Charming Roundtop Window

Plan 59509ND

  • 1,485

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This home features a charming roundtop window focal point for great street appeal.
  • An expansive great room combines with the formal dining room allowing for the ultimate in entertaining.
  • A well-designed kitchen has abundant storage and a conveniently located laundry room with garage access.
  • The master suite has private access to the rear porch and a private bathroom with his and her walk-in closets.
  • See the following related house plans: 59738ND (Craftsman exterior), 59069ND, 59506ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

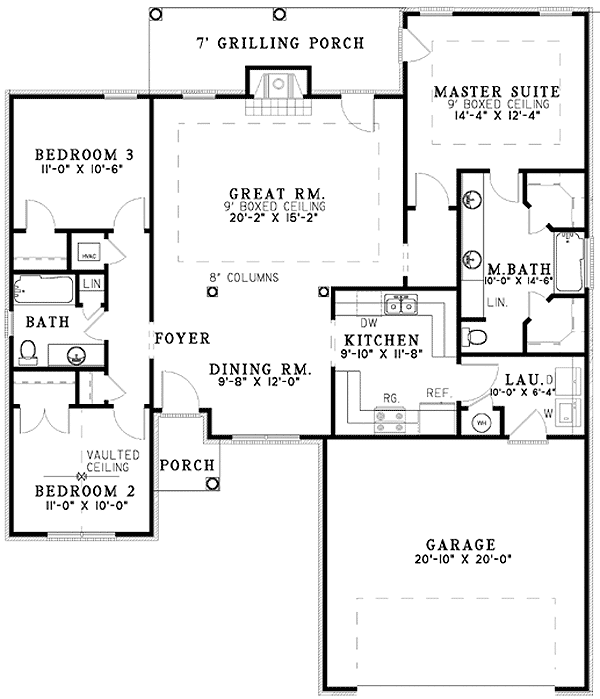

Charming Roundtop Window - 59509ND floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,485 sq. ft.
  • 1st Floor: 1,485 sq. ft.
  • Porch, Combined: 28 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 10"
  • Depth: 54' 10"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features



Charming Roundtop Window

  • 1,485

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • 5 Sets $800
  • 5 Sets + PDF $1,050
  • CAD - Single-Build $1,400
  • View all purchase option online

About This Plan

  • This home features a charming roundtop window focal point for great street appeal.
  • An expansive great room combines with the formal dining room allowing for the ultimate in entertaining.
  • A well-designed kitchen has abundant storage and a conveniently located laundry room with garage access.
  • The master suite has private access to the rear porch and a private bathroom with his and her walk-in closets.
  • See the following related house plans: 59738ND (Craftsman exterior), 59069ND, 59506ND.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,485 sq. ft.
  • 1st Floor: 1,485 sq. ft.
  • Porch, Combined: 28 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 46' 10"
  • Depth: 54' 10"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Plan 59509ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/59509ND
|
