Plan 40518WM Charming Southern Cottage with Options

Charming Southern Cottage with Options

Plan 40518WM

  • 1,286

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • A cozy front porch greets you and to this 3-bed cottage house plan and provides shelter as you enter the home into the vaulted open floor plan.
  • The living room is open to the kitchen and dining room.
  • Three bedrooms are clustered on the left with laundry convenient to all.
  • Related Plans: For an alternate layout, see house plan 40516WM.
  • Need a garage? See house plans 40517WM and 40519WM.

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

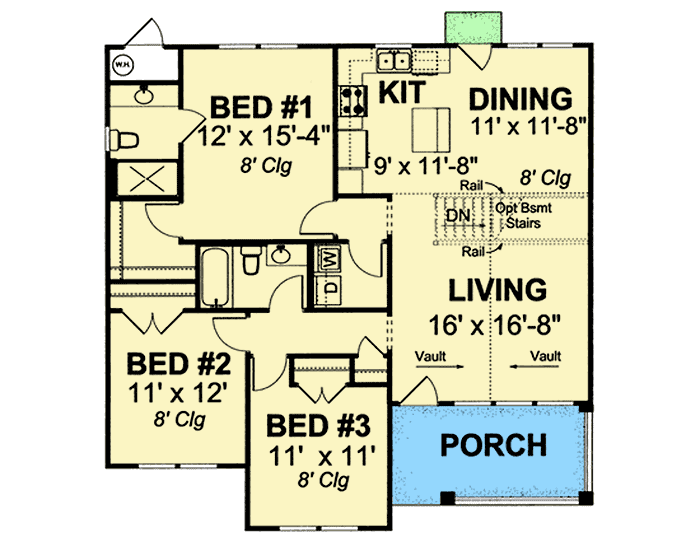

Charming Southern Cottage with Options - 40518WM floor plan - Main Level

Plan details

Architectural Style

Charming Southern Cottage with Options

  • 1,286

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Unlimited Build $945
  • CAD + PDF - Unlimited Build $1,240
  • View all purchase option online

About This Plan

  • A cozy front porch greets you and to this 3-bed cottage house plan and provides shelter as you enter the home into the vaulted open floor plan.
  • The living room is open to the kitchen and dining room.
  • Three bedrooms are clustered on the left with laundry convenient to all.
  • Related Plans: For an alternate layout, see house plan 40516WM.
  • Need a garage? See house plans 40517WM and 40519WM.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,286 sq. ft.
  • 1st Floor: 1,286 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 39' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
