Plan 290047IY

Chic 3250 Square Foot Modern Farmhouse

Heated S.F.
3,250
Beds
4 - 6
Baths
2.5 - 3.5
Stories
2
Cars
3

Floor Plan

Plan 290047IY

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 290047IY

M-F 9am-5pm EST |

1-203-761-8500

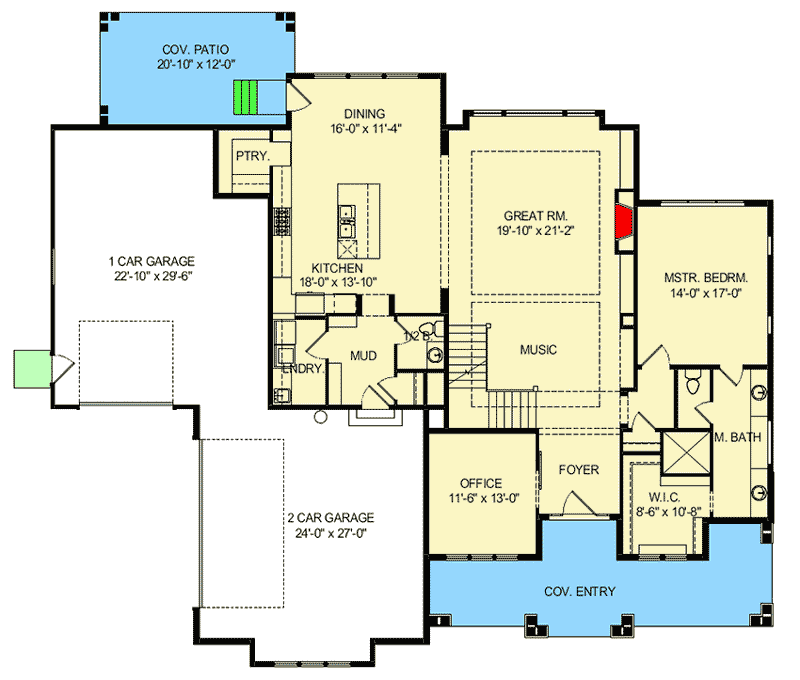

Main Level

Plan 290047IY: Chic 3250 Square Foot Modern Farmhouse - Floor Plan - Main Level - Farmhouse, Modern Farmhouse

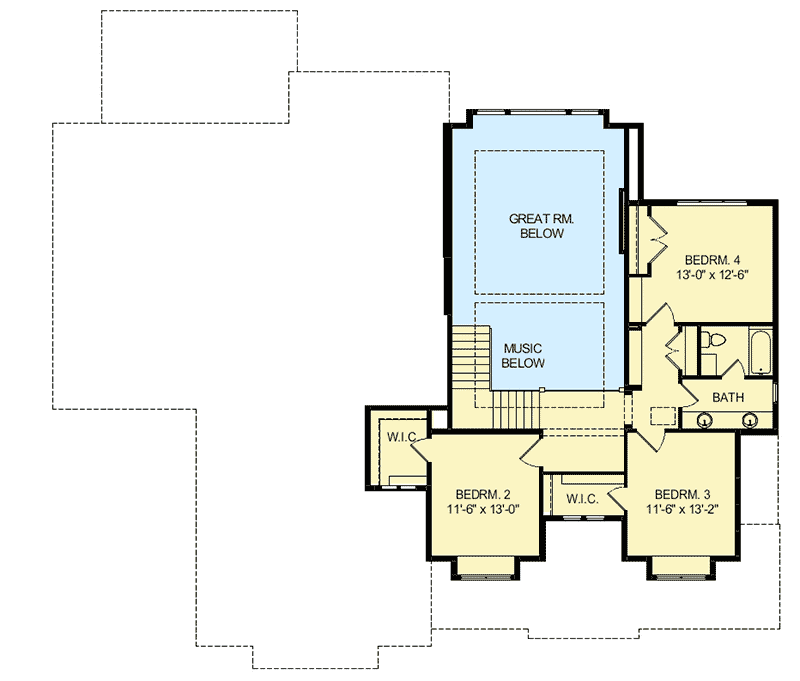

2nd Floor

Plan 290047IY: Chic 3250 Square Foot Modern Farmhouse - Floor Plan - 2nd Floor - Farmhouse, Modern Farmhouse

Optional Lower Level

Plan 290047IY: Chic 3250 Square Foot Modern Farmhouse - Floor Plan - Optional Lower Level - Farmhouse, Modern Farmhouse

Plan Details

  • The comfortable and flexible layout of this Mountain Craftsman house plan features over 3,200 square feet of living space with an option to add another 1,940 sq ft with the lower level.
  • The shared living spaces, master bedroom, and home office consume the main level. The 90-degree staircase creates the perfect nook for a piano, and opens to the great room with tall ceilings, bordered by a boxed bay window and fireplace.
  • The eat-in kitchen hosts all of the necessary amenities for modern cooking; walk-in pantry, large island, and plenty of counter space. A covered patio off the dining area lends a great space for grilling or dining outdoors.
  • A powder bath in the mudroom helps when hurrying out the door, and the oversized 3-car garage provides plenty of space for storage.
  • Three bedrooms are located upstairs, joined by a compartmentalized bath with two sinks. Discover two more bedrooms in the optional lower level, along with recreation, media, and exercise rooms.

What's Included

  • Cover Sheet & Index
  • Project Notes
  • Complete Schedules
  • Foundation Level Floor plan
  • Foundation Level Dimension Plan
  • Main Level Floor Plan
  • Main Level Dimension Plan
  • Upper Level Floor Plan
  • Upper Level Dimension Plan
  • Terrace Level Refl Floor Plan
  • Main Level Refl Floor Plan
  • Second Level Refl Floor Plan
  • Front And Rear Elevations
  • Left and Right Side Elevations

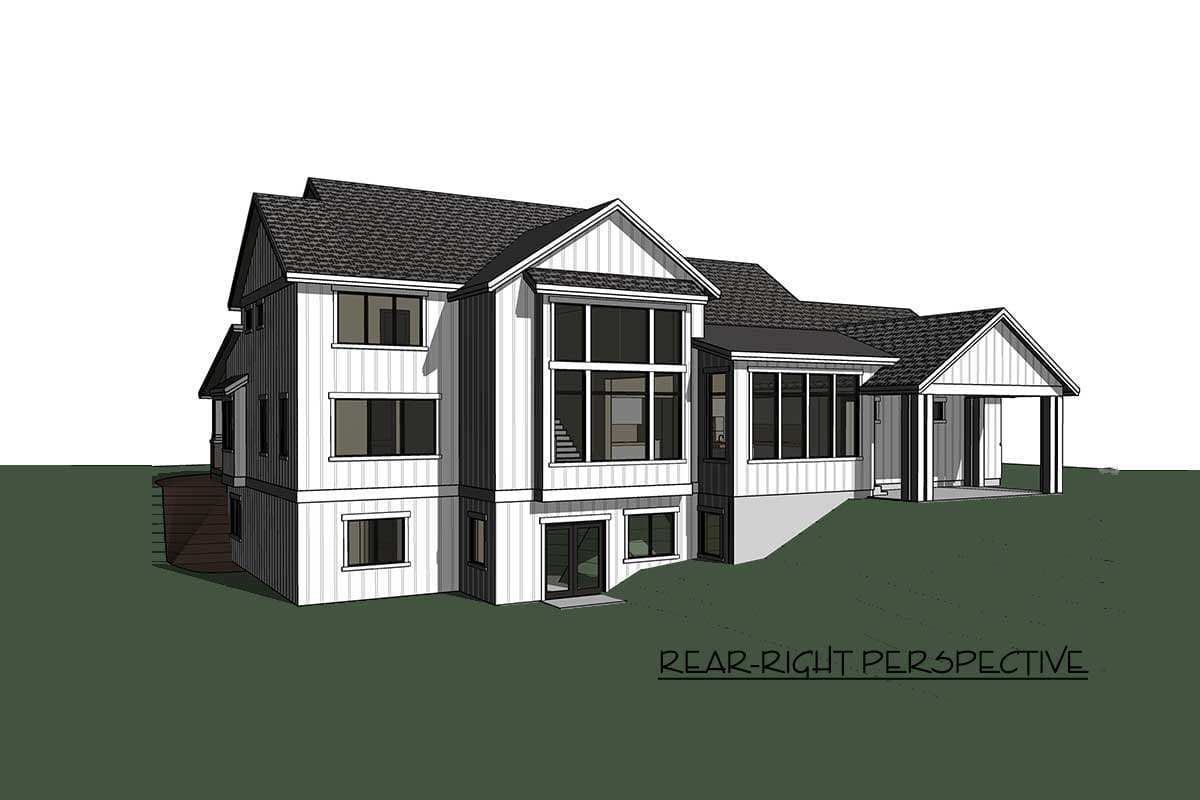

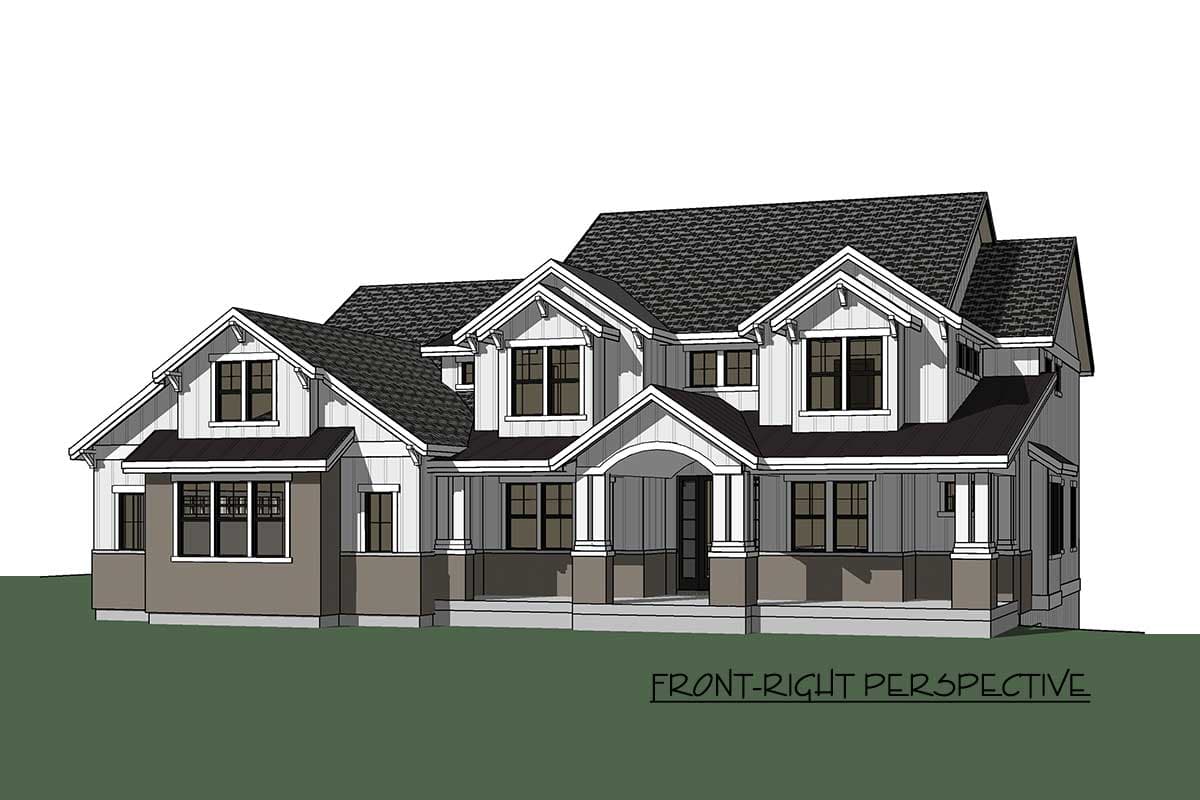

  • Perspective Views
  • Building Sections 'A' & 'B'
  • Architectural Details
  • Architectural Details
  • Roof Plan
  • Foundation Electrical Plan
  • Main Level Power Plan
  • Main Level Lighting Plan
  • Upper Level Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,250 sq. ft.

1st Floor

2,225 sq. ft.

2nd Floor

1,025 sq. ft.

Optional Lower Level

1,940 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 2"

Depth

63' 4"

Max Ridge Height

31' 10"

Garage

Type

Attached

Area

1306 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Basement

11' 0''

Kitchen & Dining

11' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Farmhouse

Modern Farmhouse

Special Features

Game/Rec Room

Home Office

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,250 sq. ft.

1st Floor

2,225 sq. ft.

2nd Floor

1,025 sq. ft.

Optional Lower Level

1,940 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 2"

Depth

63' 4"

Max Ridge Height

31' 10"

Garage

Type

Attached

Area

1306 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Basement

11' 0''

Kitchen & Dining

11' 0''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Farmhouse

Modern Farmhouse

Special Features

Game/Rec Room

Home Office

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Sloping Lot
