Plan 510021WDY

Chic Country Farmhouse

Heated S.F.
3,143
Beds
4
Baths
3.5+
Stories
2
Cars
3

Floor Plan

Plan 510021WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510021WDY

M-F 9am-5pm EST |

1-203-761-8500

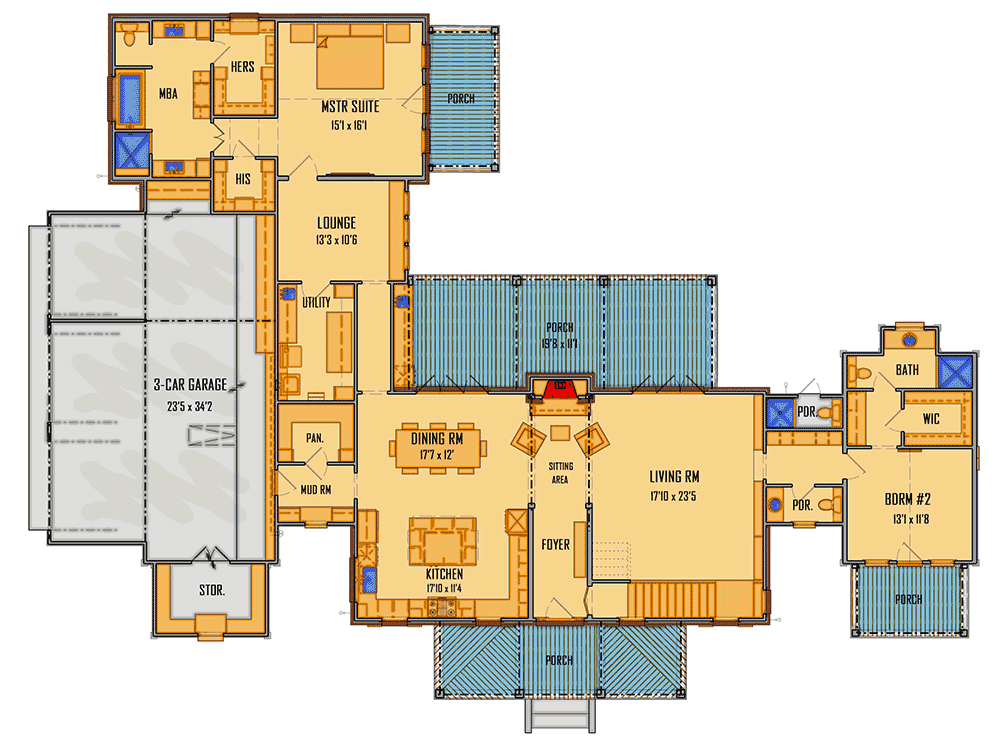

Main Level

Plan 510021WDY: Chic Country Farmhouse - Floor Plan - Main Level - Country, Farmhouse, Southern

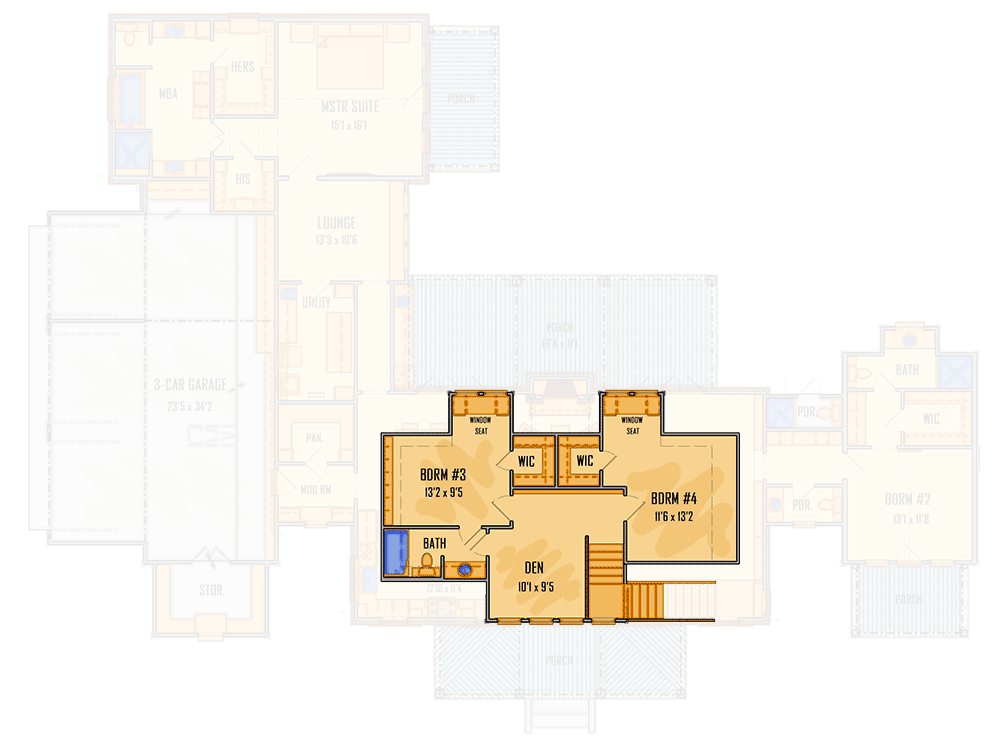

2nd Floor

Plan 510021WDY: Chic Country Farmhouse - Floor Plan - 2nd Floor - Country, Farmhouse, Southern

Plan Details

  • Metal roofing on the dormer and porches and wooden shutters give this Farmhouse house plan a chic look.
  • The living areas inside are divided into a big living room and a combined kitchen/dining room separated by a cozy sitting area in front of the fireplace.
  • Vaulted bedroom 2 is the ideal guest suite, set off by itself with it's own bathroom and walk-in closet.
  • A lounge area opens up to the vaulted master suite on the opposite side of the house and homeowners get a private porch.
  • There's even an outdoor powder room, a handy feature when entertaining outdoors.
  • Each of the two bedrooms on the second floor has a charming windows seat and there's a den close by for the kids to hang out in.
  • The three car garage has a large storage area with double doors.

What's Included

This plan has 10 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Door and Window Sizes, Rafter Span Schedule, Stair Detail

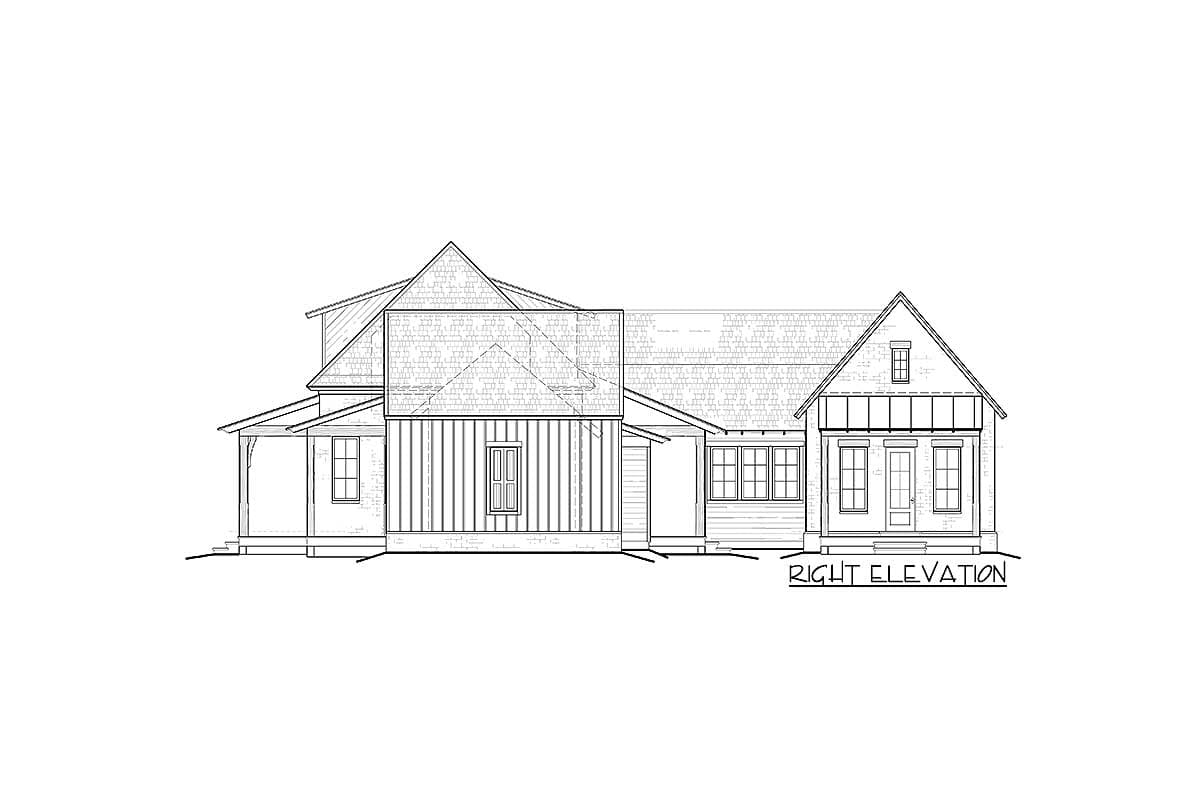

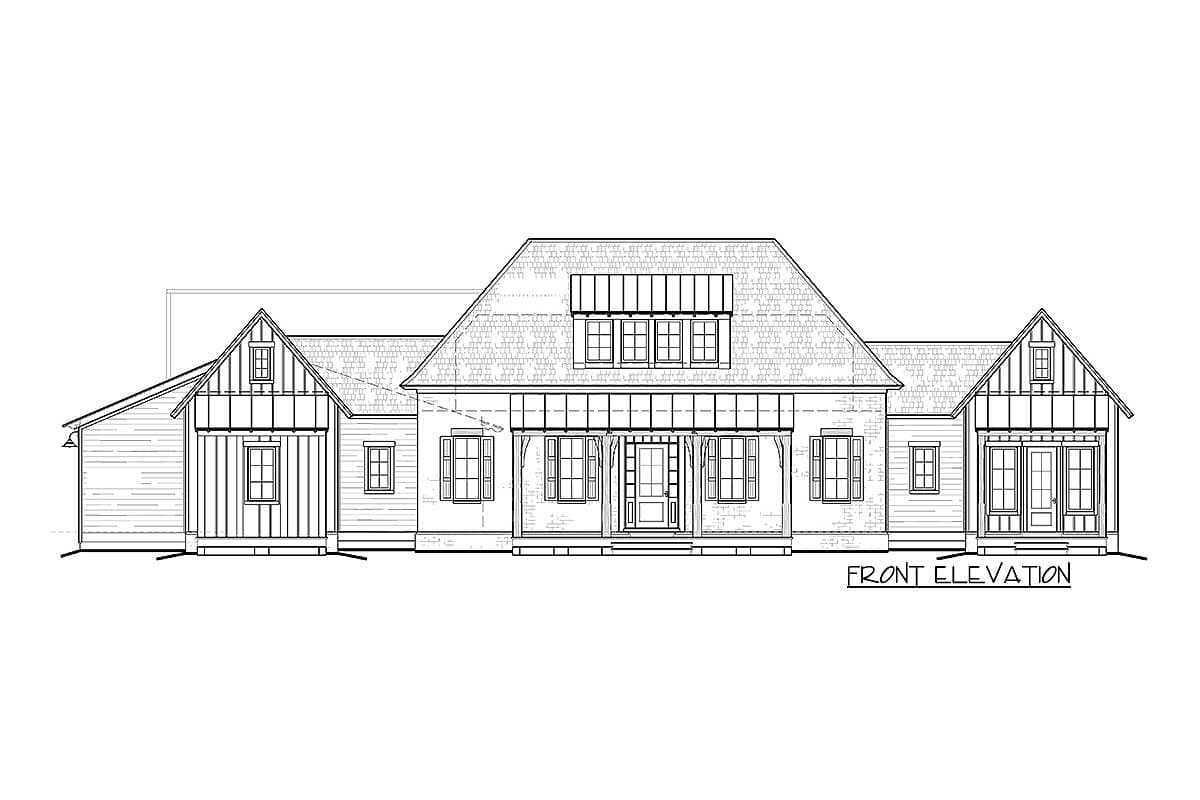

  4. Front & Right Exterior Elevations, Exposed Rafter Detail, Flush Rake Detail, Exterior Siding Details, Column Details

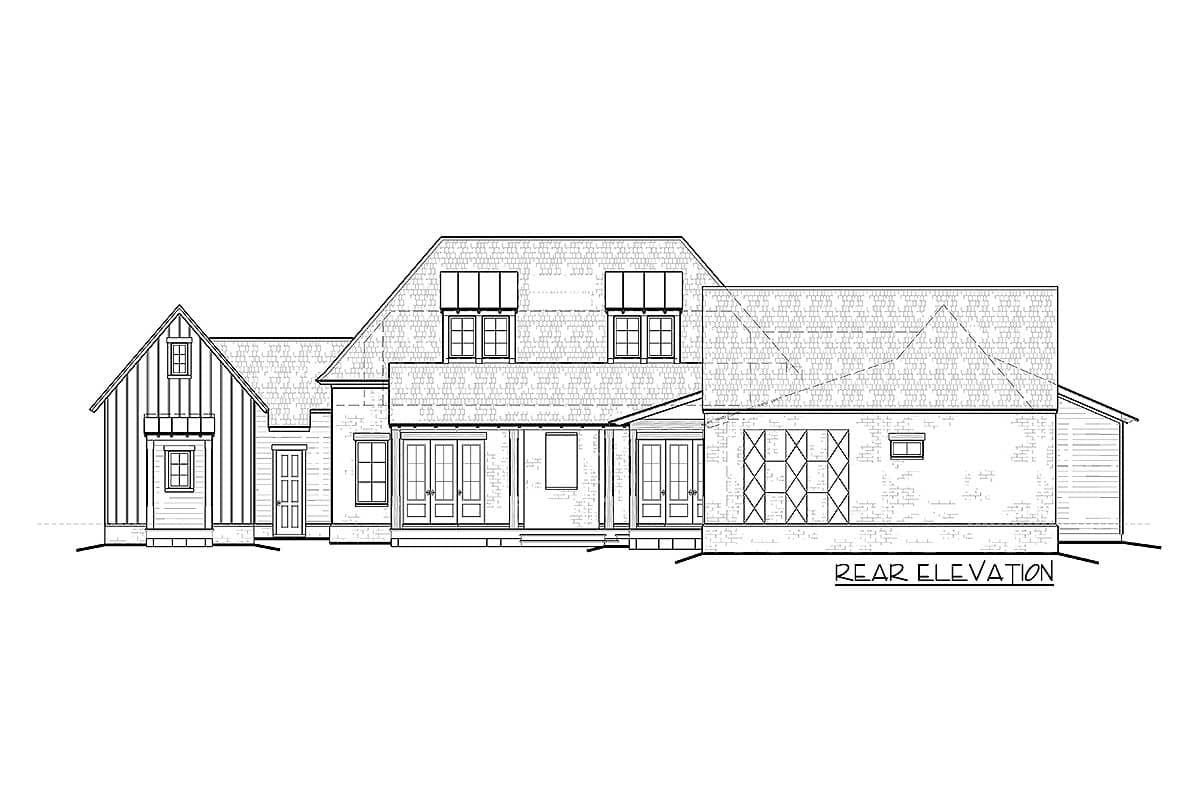

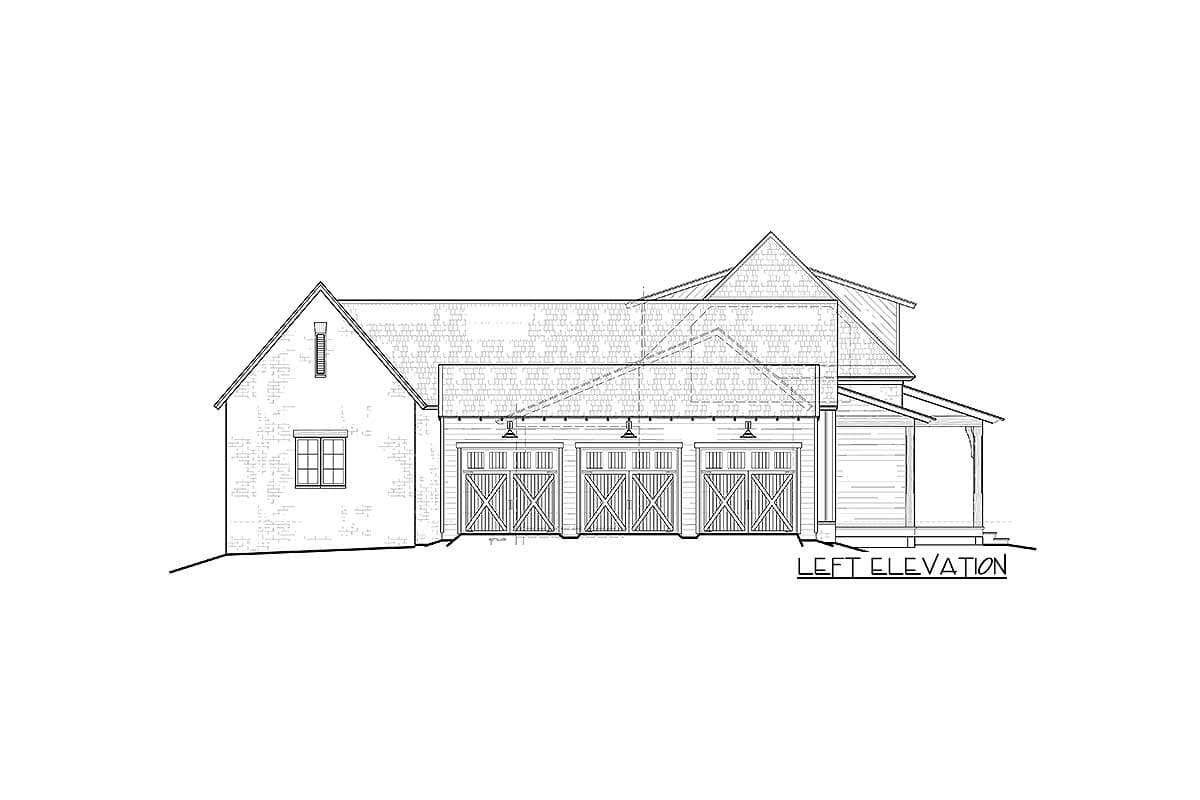

  5. Rear & Left Exterior Elevations Flush Rake Details, Wood Cap Detail, Exterior Siding Details, Masonry Detail
  6. Building Sections, Roof Plan, Cornice Details, Flashing Details, Ridge Detail
  7. Building Sections, Cornice Details
  8. First Floor Electrical Plan and Schedules
  9. Second Floor Electrical Plan and Schedules
  10. Slab Foundation and Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,143 sq. ft.

1st Floor

2,495 sq. ft.

2nd Floor

648 sq. ft.

Porch, Front

197 sq. ft.

Porch, Rear

389 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

97' 3"

Depth

71' 5"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

845 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Southern

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,143 sq. ft.

1st Floor

2,495 sq. ft.

2nd Floor

648 sq. ft.

Porch, Front

197 sq. ft.

Porch, Rear

389 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

97' 3"

Depth

71' 5"

Max Ridge Height

27' 5"

Garage

Type

Attached

Area

845 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Southern

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Walk-in Pantry
