Plan 710025BTZ

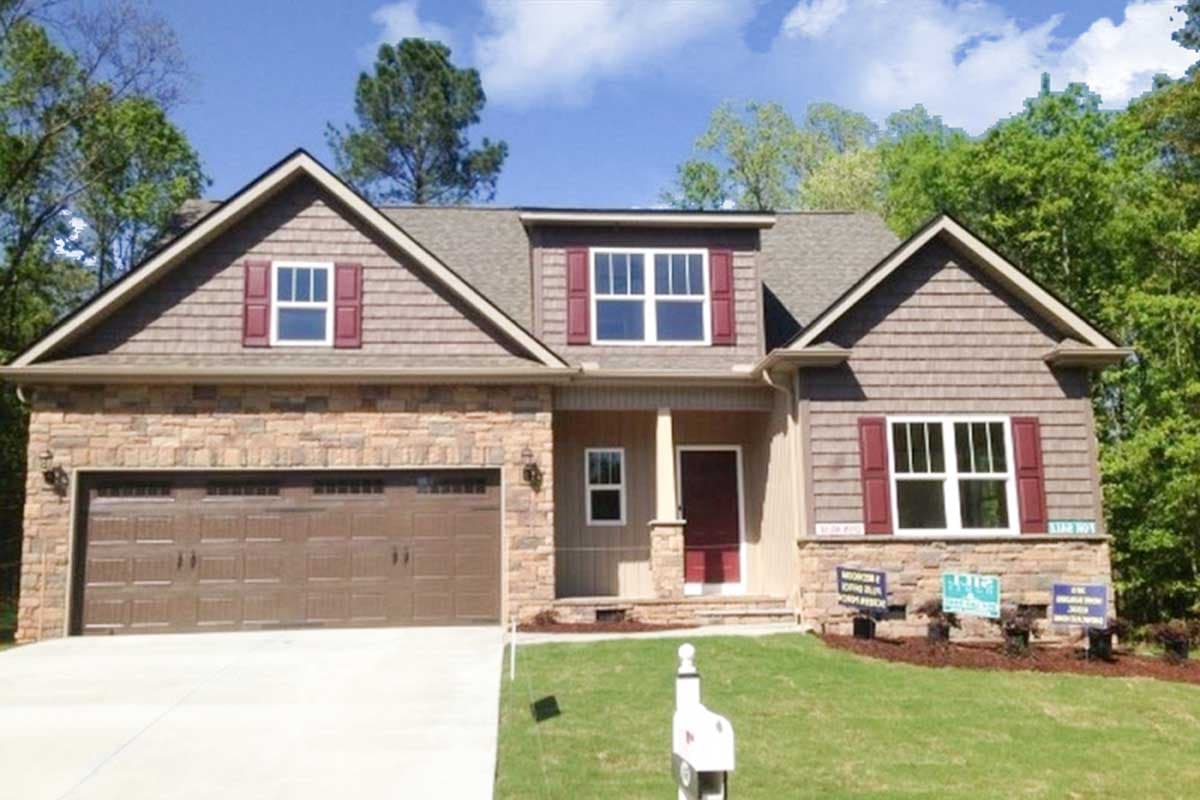

Classic Cottage with Cedar Shake Shingles

Pageloader

Classic Cottage with Cedar Shake Shingles

Plan 710025BTZ

  • 2,565

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This delightful home plan is adorned with cedar shake shingles and classic cottage details. A 2-car garage and covered back porch give homeowners an outdoor space to enjoy every season of the year.
  • Inside, a completely open floor plan welcomes guests into the vaulted family room and eat-in kitchen with a workhorse island ideal for food preparation and entertaining.
  • A charming pocket office and mudroom are found just off the foyer.
  • The left wing of the main floor houses the master suite with a spacious bathroom and walk-in closet.
  • Upstairs, three more bedrooms are available for the children along with a large double-vanity bath.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Classic Cottage with Cedar Shake Shingles

  • 2,565

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • This delightful home plan is adorned with cedar shake shingles and classic cottage details. A 2-car garage and covered back porch give homeowners an outdoor space to enjoy every season of the year.
  • Inside, a completely open floor plan welcomes guests into the vaulted family room and eat-in kitchen with a workhorse island ideal for food preparation and entertaining.
  • A charming pocket office and mudroom are found just off the foyer.
  • The left wing of the main floor houses the master suite with a spacious bathroom and walk-in closet.
  • Upstairs, three more bedrooms are available for the children along with a large double-vanity bath.

Floor Plans

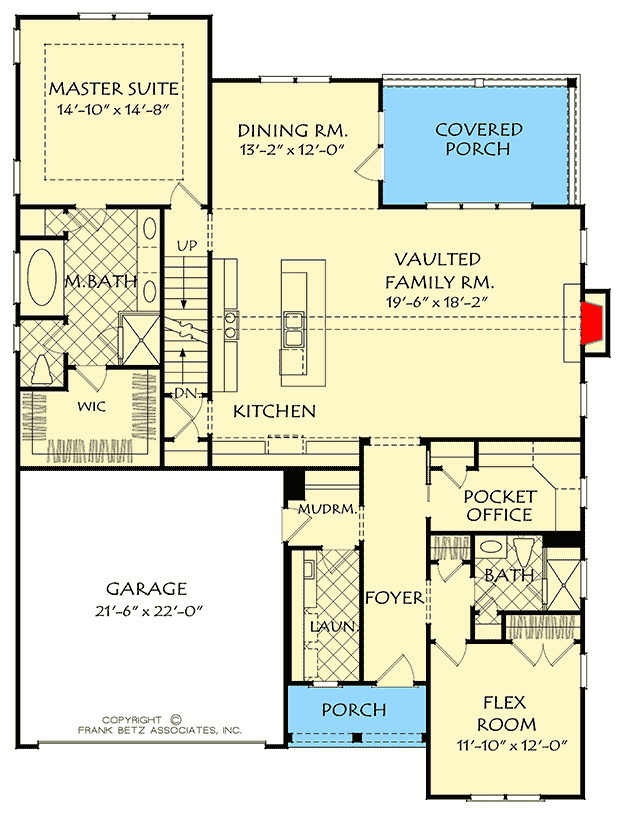

  • Main Level

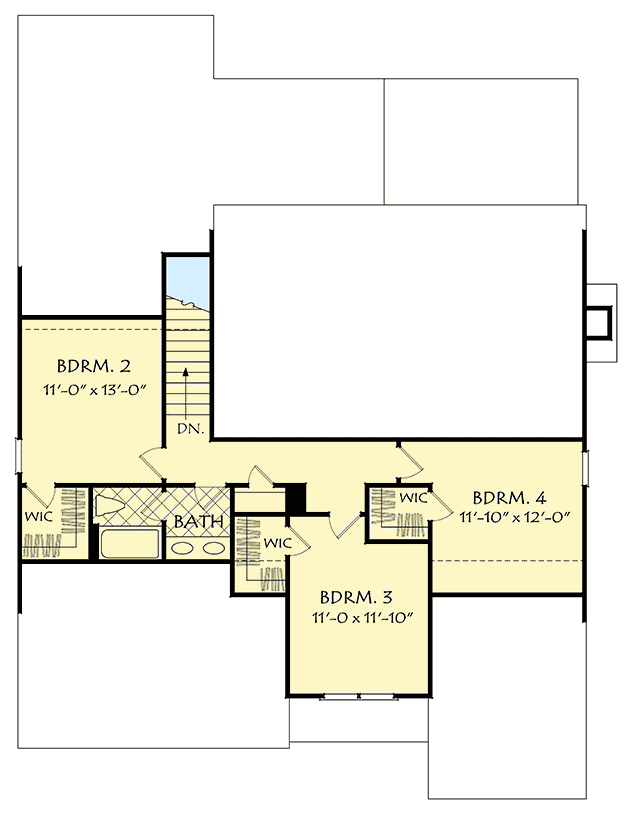

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,565 sq. ft.
  • 1st Floor: 1,830 sq. ft.
  • 2nd Floor: 735 sq. ft.
  • Basement Unfinished: 1,830 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 62' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
