Classic Craftsman 2-Car Garage - 576 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 865009SHW

Main Level
Main Level

Plan 865009SHW

M-F 9am-5pm EST |

1-203-761-8500

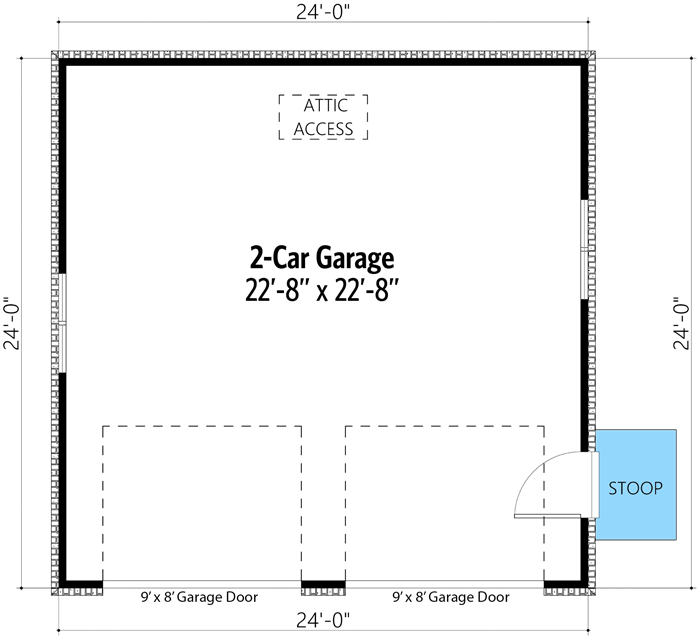

Main Level

Plan 865009SHW: Classic Craftsman 2-Car Garage - 576 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, New American

Plan Details

  • This classic Craftsman garage provides 576 square feet of parking which is room for 2 cars, a steep-gabled roof, and a rain awning above the man door.
  • The 24 foot, square design makes it budget friendly and windows on either side allow natural light to permeate the interior.
  • Two overhead doors sit side-by-side on the front elevation.

What's Included

  • Cover Sheet
  • 3D or Sketch Renderings
  • Foundation/Crawlspace Plan
  • Main Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Plan
  • Elevations; all 4 of them
  • Building Sections
  • Interiors (cabinet elevations)
  • Suggested electrical/lighting Plan(s)
  • General Notes
  • General Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
