Classic Farmhouse with Wraparound Porch and Optional Bonus Room

Plan 46452LA

  • 3,095

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Dreams are made with this wraparound porch that extends around 3 sides of this Classic Farmhouse plan. The optional bonus room above the garage offers 503 square feet of additional living space.
  • Double doors guide you into a spacious foyer, where a quiet study resides to the left, across from the formal dining room.
  • The great room gains space vertically with the two-story ceiling height, and a fireplace is framed by french doors. Move into the kitchen with ease and discover an oversized island and roomy walk-in pantry.
  • Enjoy the convenience of a main-level owner's suite, tucked behind the double garage for the utmost privacy.
  • Three family bedrooms occupy the second level; two share a Jack-and-Jill bath, and one neighbors a full bath.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

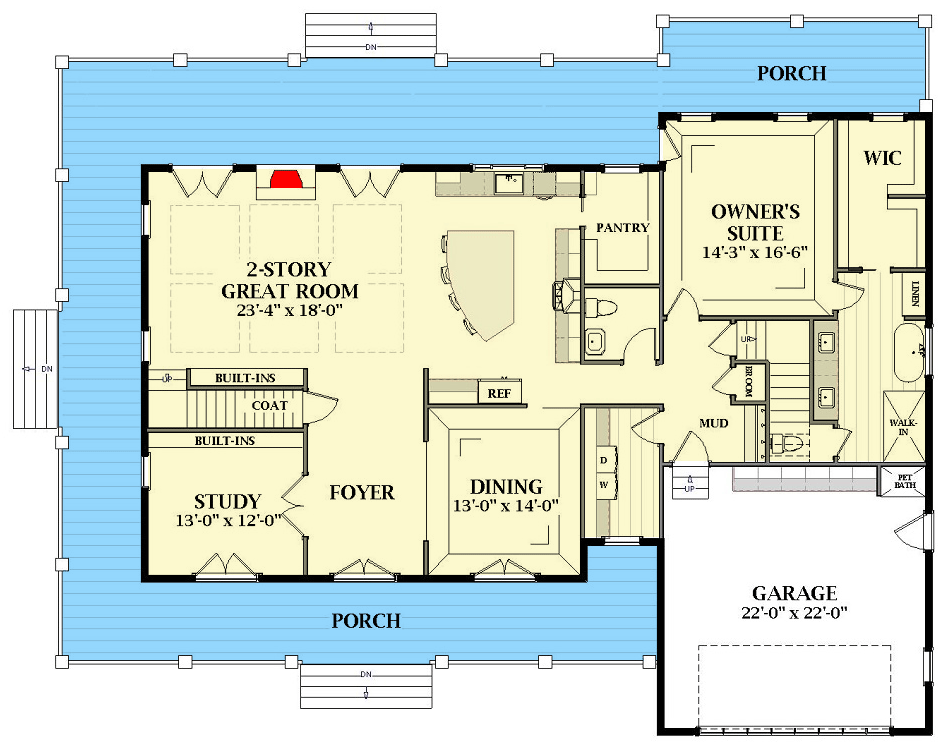

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Classic Farmhouse with Wraparound Porch and Optional Bonus Room - 46452LA floor plan - Main Level

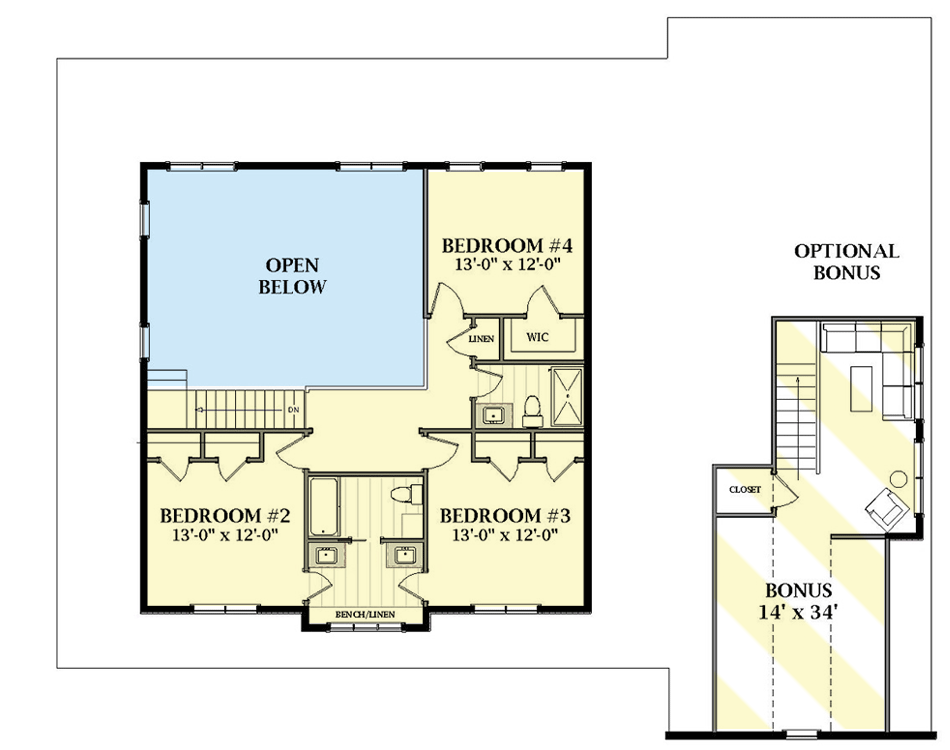

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Classic Farmhouse with Wraparound Porch and Optional Bonus Room - 46452LA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,095 sq. ft.
  • 1st Floor: 2,173 sq. ft.
  • 2nd Floor: 922 sq. ft.
  • Porch, Combined: 1,263 sq. ft.
  • Bonus: 503 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 73' 0"
  • Depth: 60' 4"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 519 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Classic Farmhouse with Wraparound Porch and Optional Bonus Room

  • 3,095

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,095 sq. ft.
  • 1st Floor: 2,173 sq. ft.
  • 2nd Floor: 922 sq. ft.

Dimensions

  • Width: 73' 0"
  • Depth: 60' 4"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 519 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
