Classy 3 Bedroom Craftsman Cottage

Classy 3 Bedroom Craftsman Cottage

Plan 51143MM

  • 1,876

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman house plan provides a very functional split-floor plan layout with many of the features that your family desires including an expansive master bedroom / bath with trayed ceiling and plenty of storage space in the his and her walk-in closets.
  • The large great room features an attractive vaulted ceiling and a gas log fireplace.
  • Front and rear covered porches are great for enjoying the outdoors in comfort.
  • The laundry room is conveniently located.
  • An open kitchen layout with plenty of counter space for that growing family is sure to please.
  • The basement stairs are tucked behind the garage and the space below gives you great room for expansion and storage.
  • Related Plans: Downsize with house plans 51159MM (1,627 sq. ft.) and 51140MM (1,509 sq. ft.) and get more room with house plan 51144MM (1,940 sq. ft.)
  • Eliminate the basement stairs with house plan 51122MM (1,853 s.f.) and 51131MM (1,604 sq. ft.).
  • Build in reverse with home plans 51040MM (1,509 s.f.) and 51043MM (2,067 s.f.).
  • For a more traditional exterior, see these related house plans: 5188MM (1,800 s.f., side-entry garage), 5191MM (2,250 s.f., side-entry garage) and 5192MM (2,500 s.f., front-entry garage).

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:

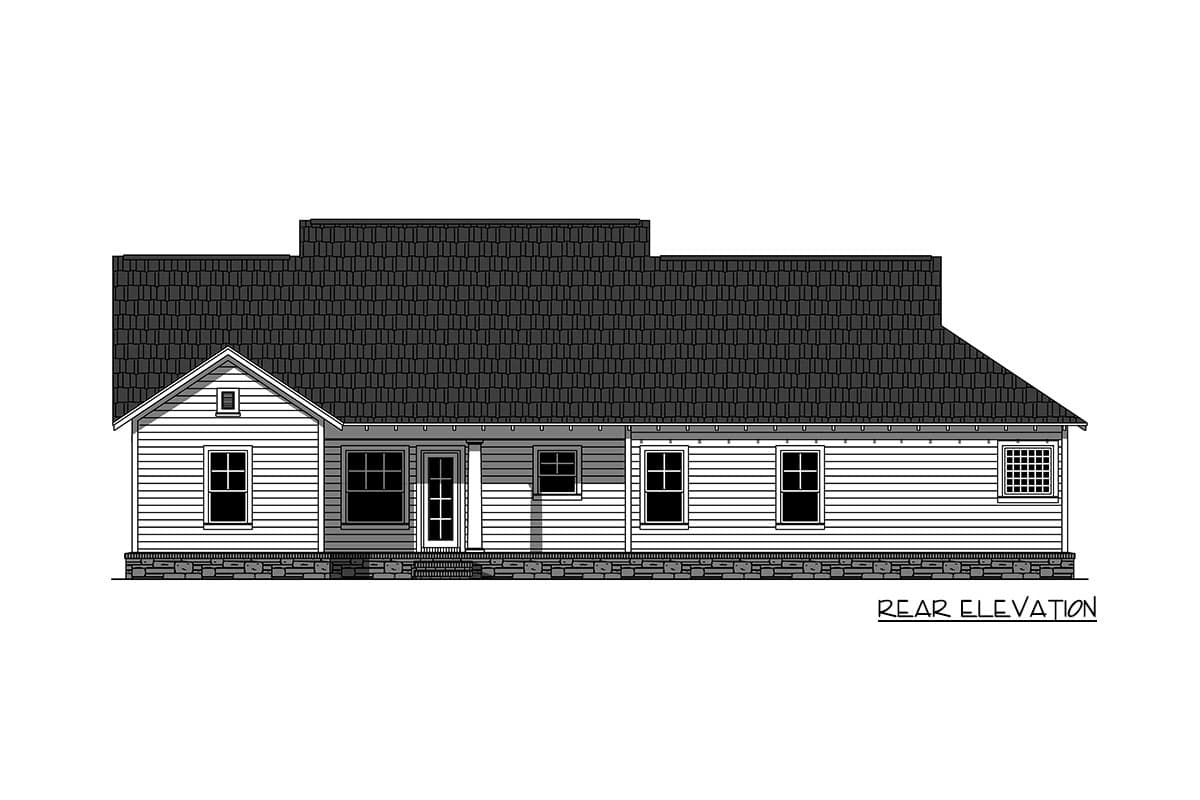

In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Floor Plan

Plan details

Architectural Style

Plan Collections



Classy 3 Bedroom Craftsman Cottage

  • 1,876

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $950
  • 5 Sets $1,015
  • PDF - single-use $1,125
  • 8 Sets $1,195
  • Reproducible Set $1,200
  • 5 Sets PLUS $1,210
  • CAD $1,680
  • View all purchase option online

About This Plan

  • This Craftsman house plan provides a very functional split-floor plan layout with many of the features that your family desires including an expansive master bedroom / bath with trayed ceiling and plenty of storage space in the his and her walk-in closets.
  • The large great room features an attractive vaulted ceiling and a gas log fireplace.
  • Front and rear covered porches are great for enjoying the outdoors in comfort.
  • The laundry room is conveniently located.
  • An open kitchen layout with plenty of counter space for that growing family is sure to please.
  • The basement stairs are tucked behind the garage and the space below gives you great room for expansion and storage.
  • Related Plans: Downsize with house plans 51159MM (1,627 sq. ft.) and 51140MM (1,509 sq. ft.) and get more room with house plan 51144MM (1,940 sq. ft.)
  • Eliminate the basement stairs with house plan 51122MM (1,853 s.f.) and 51131MM (1,604 sq. ft.).
  • Build in reverse with home plans 51040MM (1,509 s.f.) and 51043MM (2,067 s.f.).
  • For a more traditional exterior, see these related house plans: 5188MM (1,800 s.f., side-entry garage), 5191MM (2,250 s.f., side-entry garage) and 5192MM (2,500 s.f., front-entry garage).

Floor Plans

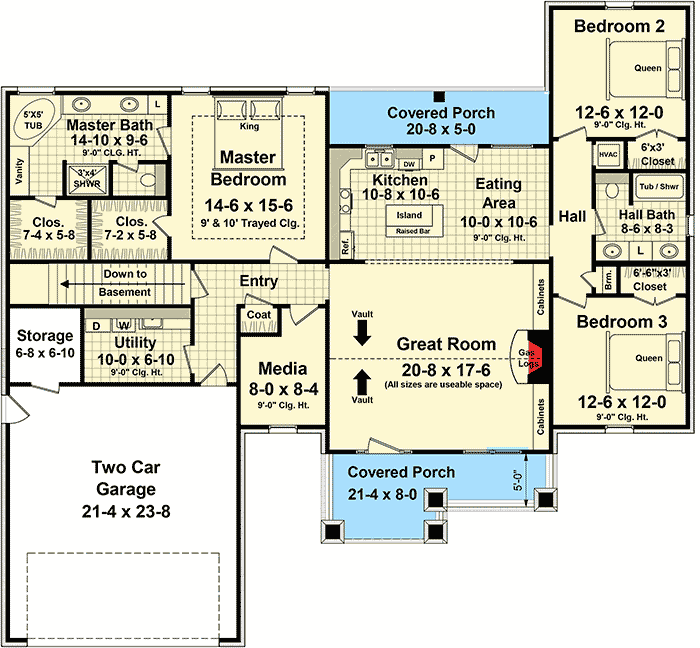

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,876 sq. ft.
  • 1st Floor: 1,876 sq. ft.
  • Porch, Front: 210 sq. ft.
  • Porch, Rear: 104 sq. ft.
  • Storage: 54 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 2"
  • Depth: 59' 8"
  • Max ridge height: 22' 5"

Garage

  • Type: Attached
  • Area: 526 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
