Plan 31502GF

Coastal Cottage with Rental Apartment

Heated S.F.
3,582
Units
2
Width
Depth

Floor Plan

Plan 31502GF

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 31502GF

M-F 9am-5pm EST |

1-203-761-8500

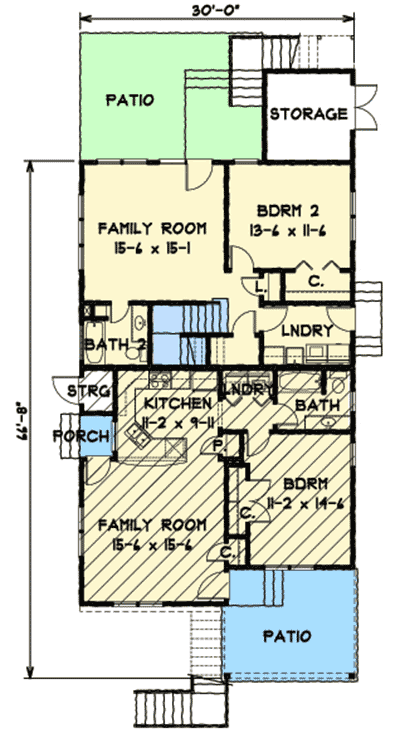

Basement

Plan 31502GF: Coastal Cottage with Rental Apartment - Floor Plan - Basement - Coastal, Shingle, Vacation

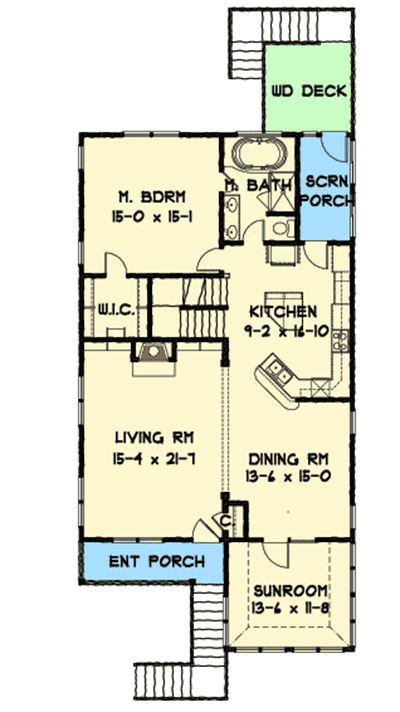

Main Level

Plan 31502GF: Coastal Cottage with Rental Apartment - Floor Plan - Main Level - Coastal, Shingle, Vacation

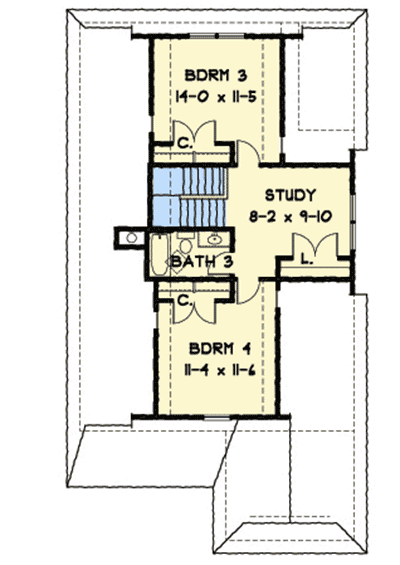

2nd Floor

Plan 31502GF: Coastal Cottage with Rental Apartment - Floor Plan - 2nd Floor - Coastal, Shingle, Vacation

Plan Details

  • This coastal cottage gives you 5 bedrooms including hte one on the main floor apartment unit.
  • The main floor is its own unit, great for rental income or as an in-law apartment, and gives you 689 square feet of living space.
  • The upper floors comprise the main home with 1,269 on the middle floor and 703 square feet on the top floor.
  • The roof has 12:12 primary and secondary pitches.
Unit A
Heated Area
2,805Sq. Ft.
Beds
4Beds
Baths
3Full Baths
Dimensions
30'width
66' 8"depth
34' 9"height
Unit B
Heated Area
689Sq. Ft.
Beds
1Beds
Baths
1Full Bath
Dimensions
30'width
33' 4"depth
34' 9"height

What's Included

  • Cover Sheet: Shows typical notes and requirements.

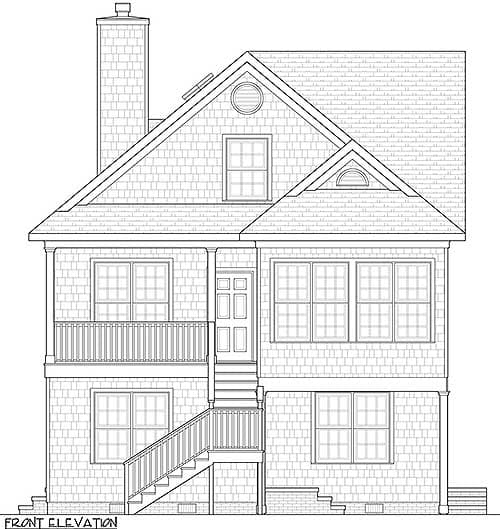

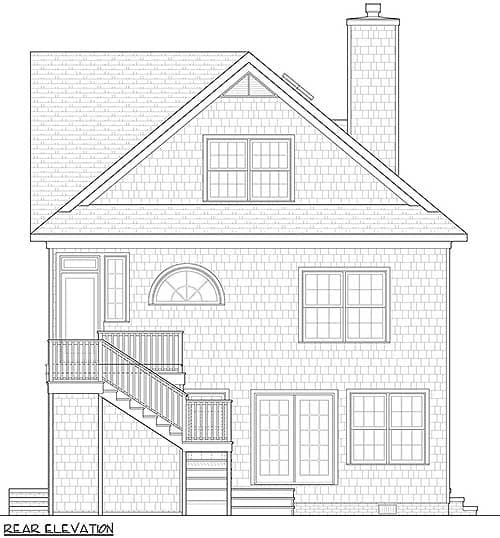

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,582 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

1,269 sq. ft.

3rd Floor

703 sq. ft.

Porch, Combined

863 sq. ft.

Deck & Porch

424 sq. ft.

Storage

119 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

66' 8"

Max Ridge Height

34' 9"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Coastal

Shingle

Vacation

Special Features

In-Law Suite

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,582 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

1,269 sq. ft.

3rd Floor

703 sq. ft.

Porch, Combined

863 sq. ft.

Deck & Porch

424 sq. ft.

Storage

119 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

66' 8"

Max Ridge Height

34' 9"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Coastal

Shingle

Vacation

Special Features

In-Law Suite

Master Suite - 1st Floor

Plan Collections

Photo Gallery
