Plan 59184ND

Columned Craftsman Cottage

2,146 3 3 2 2
Pageloader

Columned Craftsman Cottage

Plan 59184ND

  • 2,146

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Gables, columns and architectural detailing give this craftsman house plan a warm feeling.
  • A cozy porch gently welcomes you into a foyer lined with columns and separating the formal dining room from a large great room with fireplace.
  • The kitchen and breakfast room are centrally located and overlook a lovely courtyard patio perfect for entertaining.
  • Your perfect hideaway awaits you in a spacious master suite with large walk-in closet and bathroom packed with amenities.
  • The upstairs as two bedrooms each with private access to a full bathroom as well as future bonus space when desired.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style

Plan Collections



Columned Craftsman Cottage

  • 2,146

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $610
  • 5 Sets $680
  • 8 Sets $795
  • Reproducible Set $1,225
  • PDF - single-use $1,225
  • CAD $1,885
  • View all purchase option online

About This Plan

  • Gables, columns and architectural detailing give this craftsman house plan a warm feeling.
  • A cozy porch gently welcomes you into a foyer lined with columns and separating the formal dining room from a large great room with fireplace.
  • The kitchen and breakfast room are centrally located and overlook a lovely courtyard patio perfect for entertaining.
  • Your perfect hideaway awaits you in a spacious master suite with large walk-in closet and bathroom packed with amenities.
  • The upstairs as two bedrooms each with private access to a full bathroom as well as future bonus space when desired.

Floor Plans

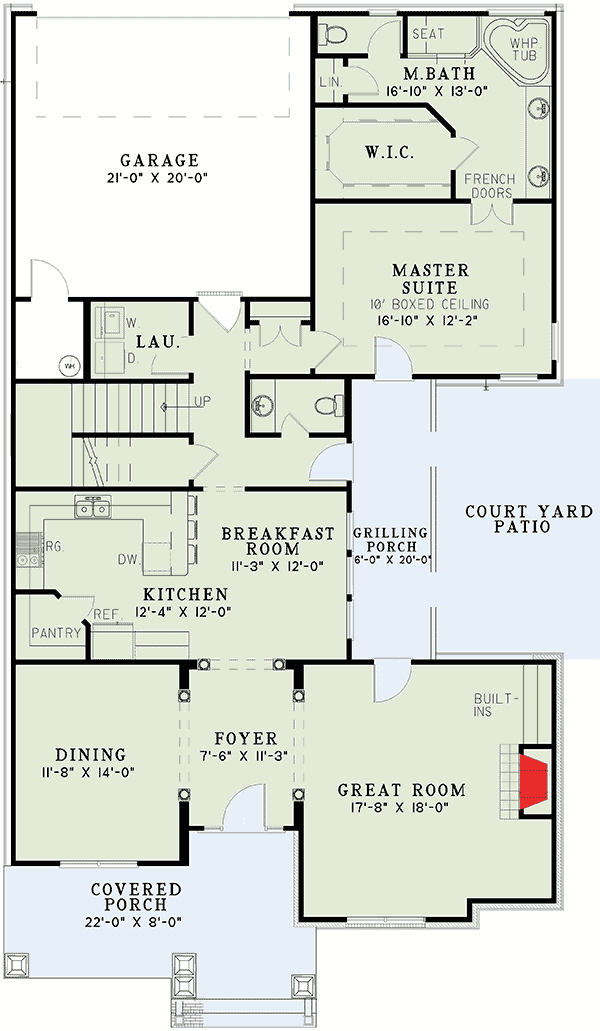

  • Main Level

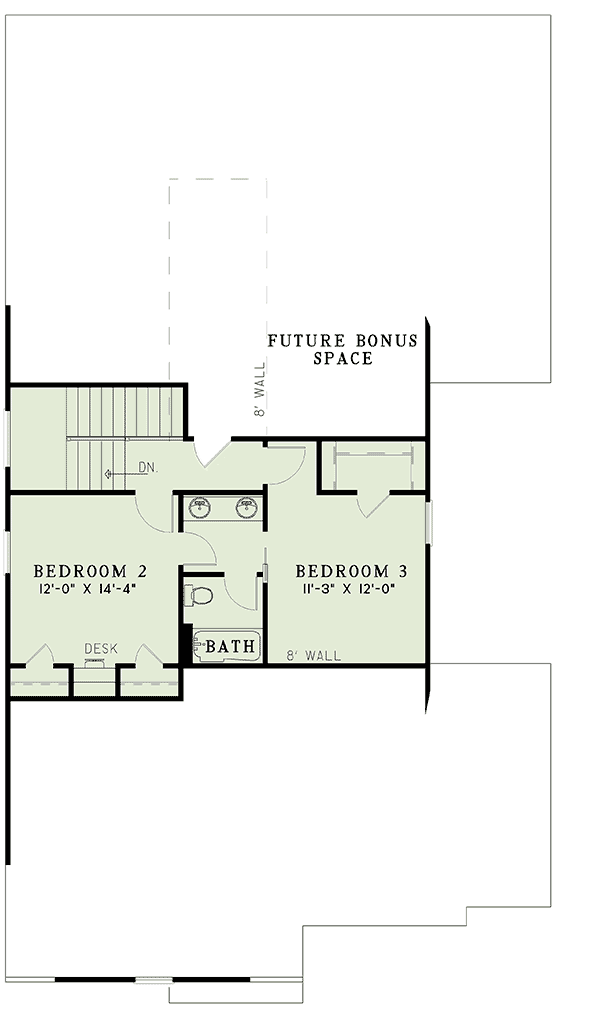

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,146 sq. ft.
  • 1st Floor: 1,654 sq. ft.
  • 2nd Floor: 492 sq. ft.
  • Porch, Front: 204 sq. ft.
  • Porch, Rear: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 10"
  • Depth: 70' 4"
  • Max ridge height: 28' 10"

Garage

  • Type: Attached
  • Area: 464 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

  • Cottage
  • Country
  • Craftsman

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
