Plan 68827VR Combo Detached RV and Car Garage with 14'-high Ceilings

Combo Detached RV and Car Garage with 14'-high Ceilings

Plan 68827VR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

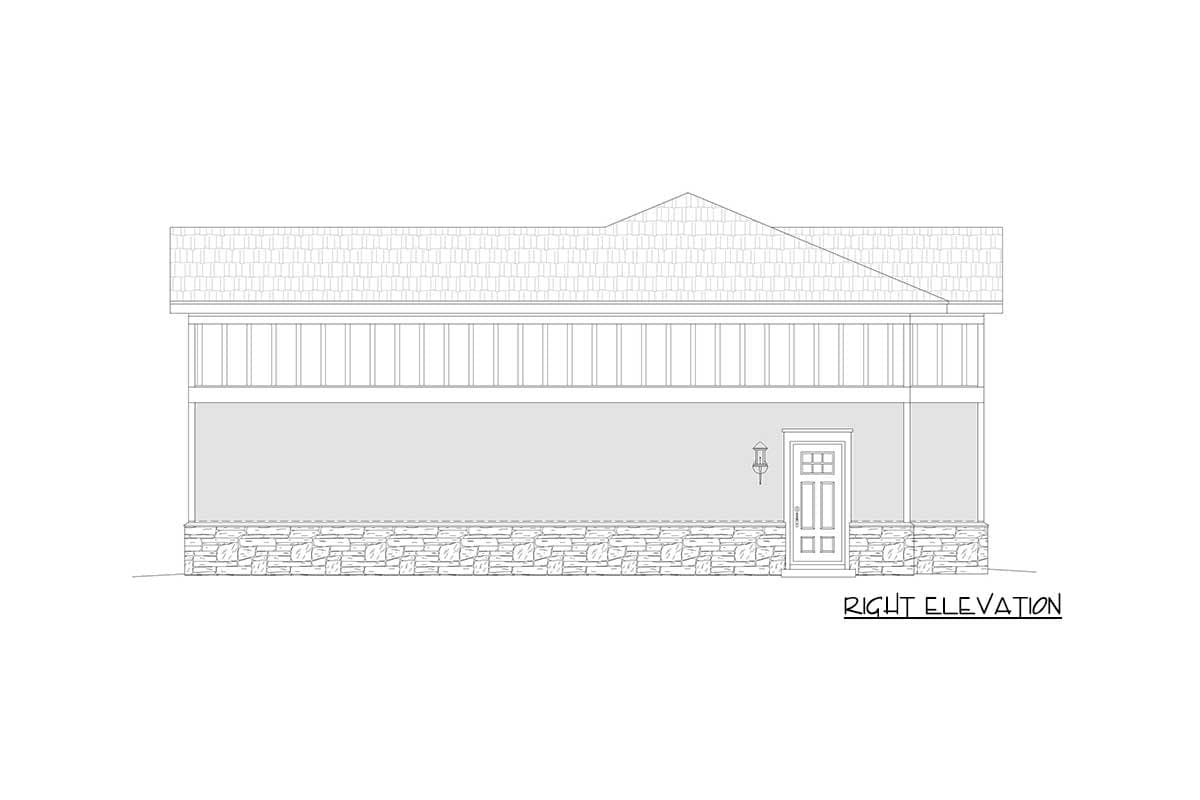

  • This detached garage plan has room for your RV in the right bay with drive-through access - and a car in the left.

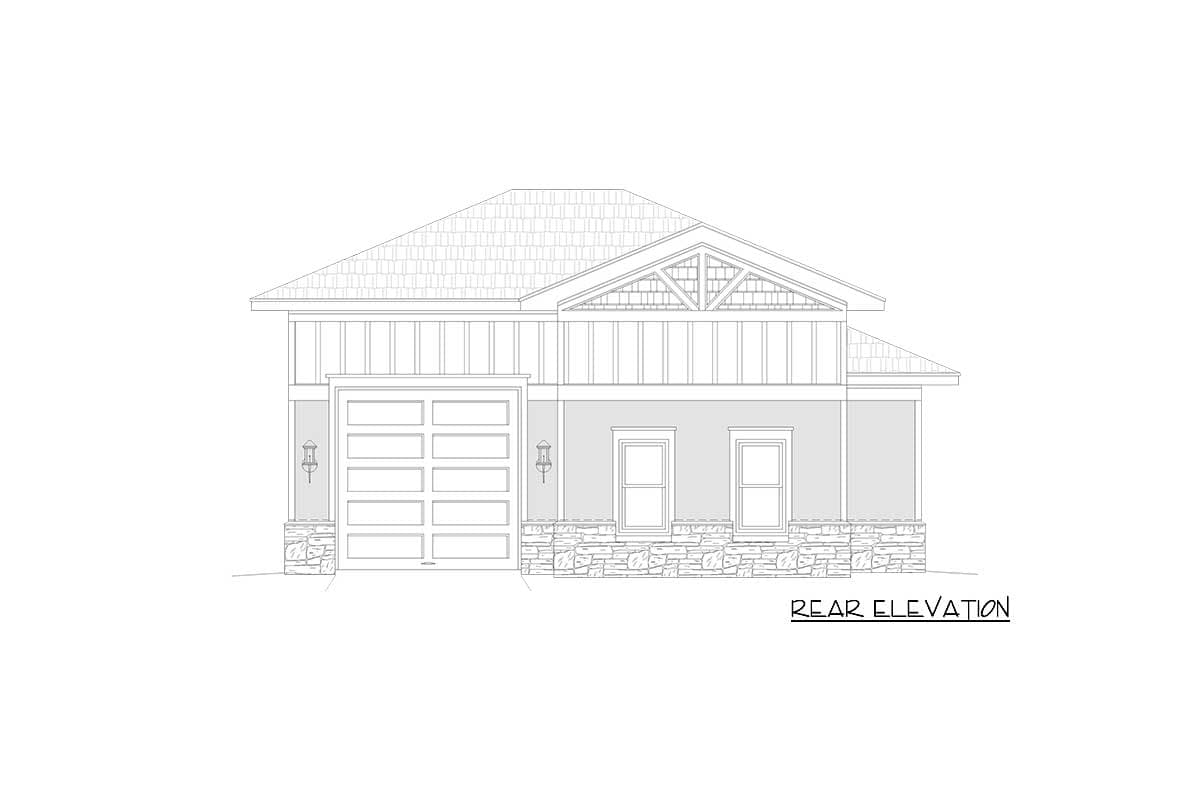

  • The RV bay has a 10' by 12' garage door in front and a 10' by 10' door in back. Inside, 14' ceilings give you plenty of clearance.

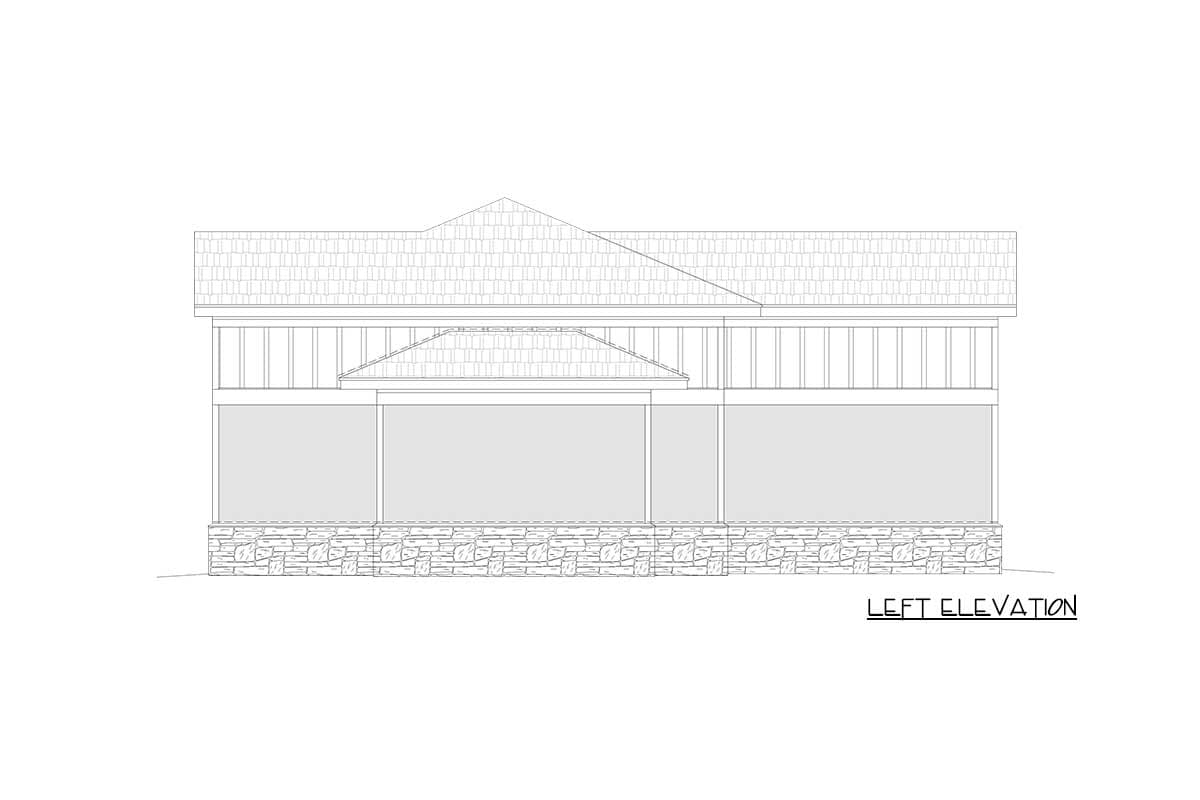

  • The left bay has a 10' by 10' garage door. A bumpout on the left gives you room for tool storage.

This plan set has the following details:

Cover Page

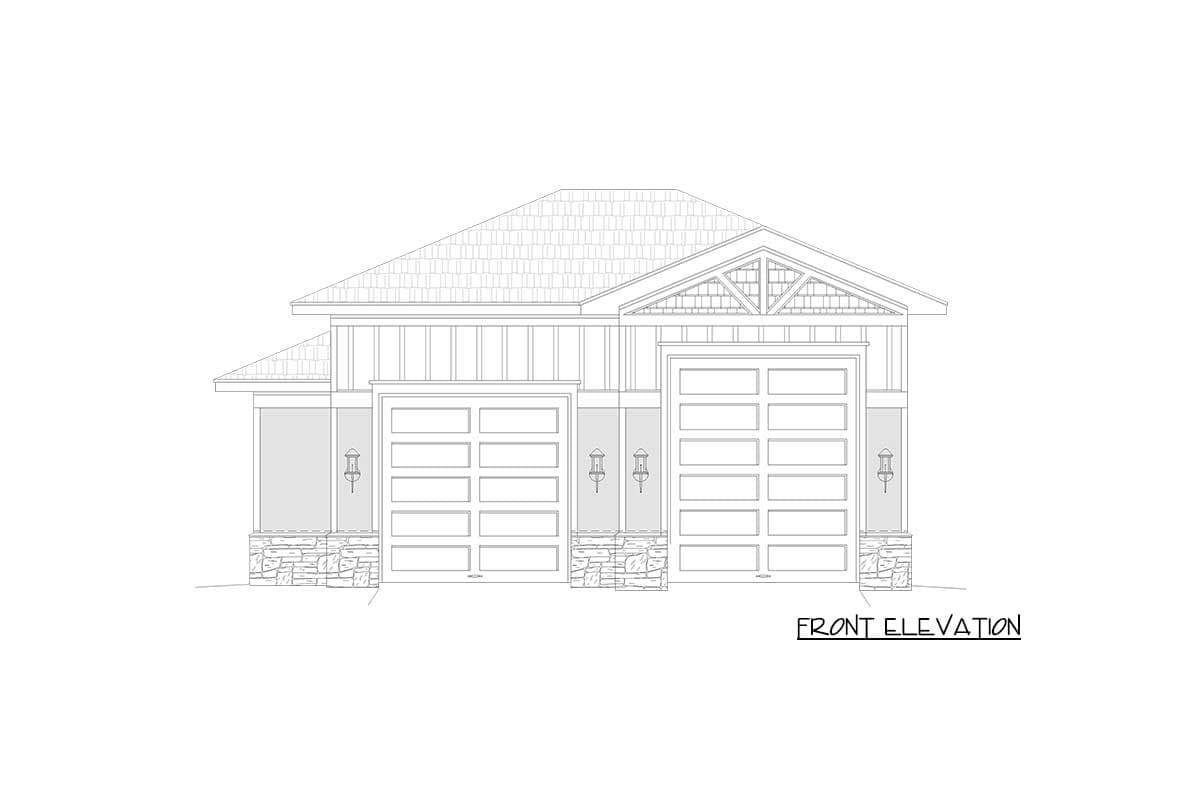

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

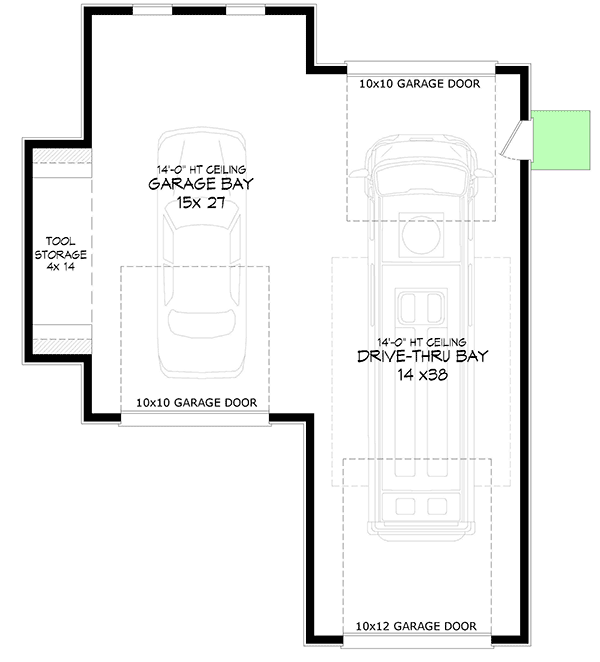

Combo Detached RV and Car Garage with 14'-high Ceilings - 68827VR floor plan - Main Level

Plan details

Architectural Style

Combo Detached RV and Car Garage with 14'-high Ceilings

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $510
  • PDF - Single-Build $675
  • 5 Sets $750
  • 5 Sets + PDF $800
  • CAD + PDF - Single-Build $975
  • View all purchase option online

About This Plan

  • This detached garage plan has room for your RV in the right bay with drive-through access - and a car in the left.
  • The RV bay has a 10' by 12' garage door in front and a 10' by 10' door in back. Inside, 14' ceilings give you plenty of clearance.
  • The left bay has a 10' by 10' garage door. A bumpout on the left gives you room for tool storage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 43' 0"
  • Max ridge height: 20' 1"

Garage

  • Type: RV Garage, Detached
  • Area: 167 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
