Plan 9336EL

Exclusive

Comes in Multiple Styles

Heated S.F.
2,744
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 9336EL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 9336EL

M-F 9am-5pm EST |

1-203-761-8500

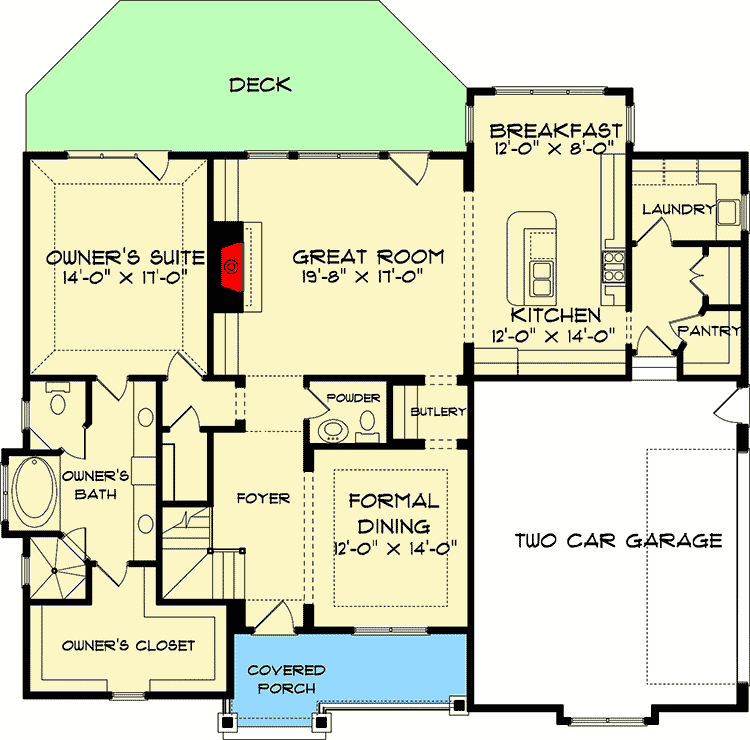

Main Level

Plan 9336EL: Comes in Multiple Styles - Floor Plan - Main Level - Craftsman, European

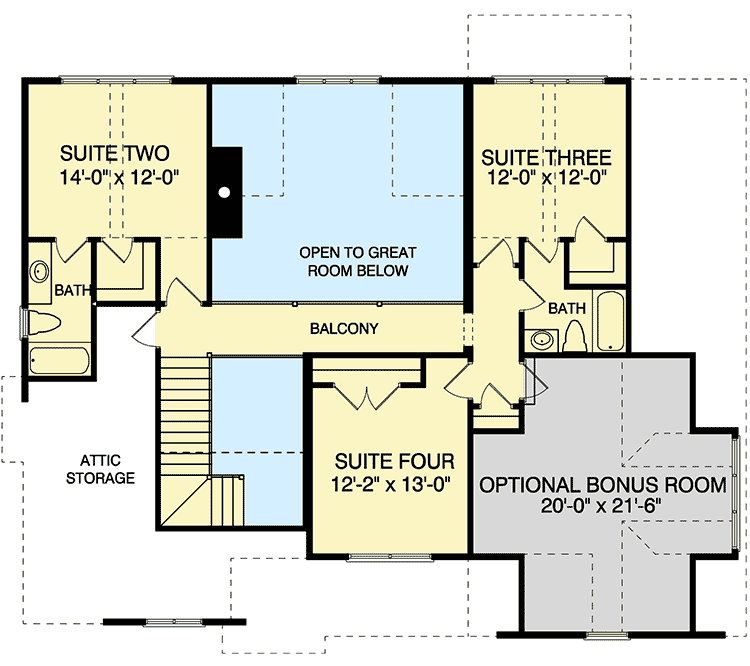

2nd Floor

Plan 9336EL: Comes in Multiple Styles - Floor Plan - 2nd Floor - Craftsman, European

Plan Details

  • Related Plans: For a different exterior, see house plans 93004EL and 93005EL.
  • Need more space? See house plan 9301EL (3,126 s.f.).

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan

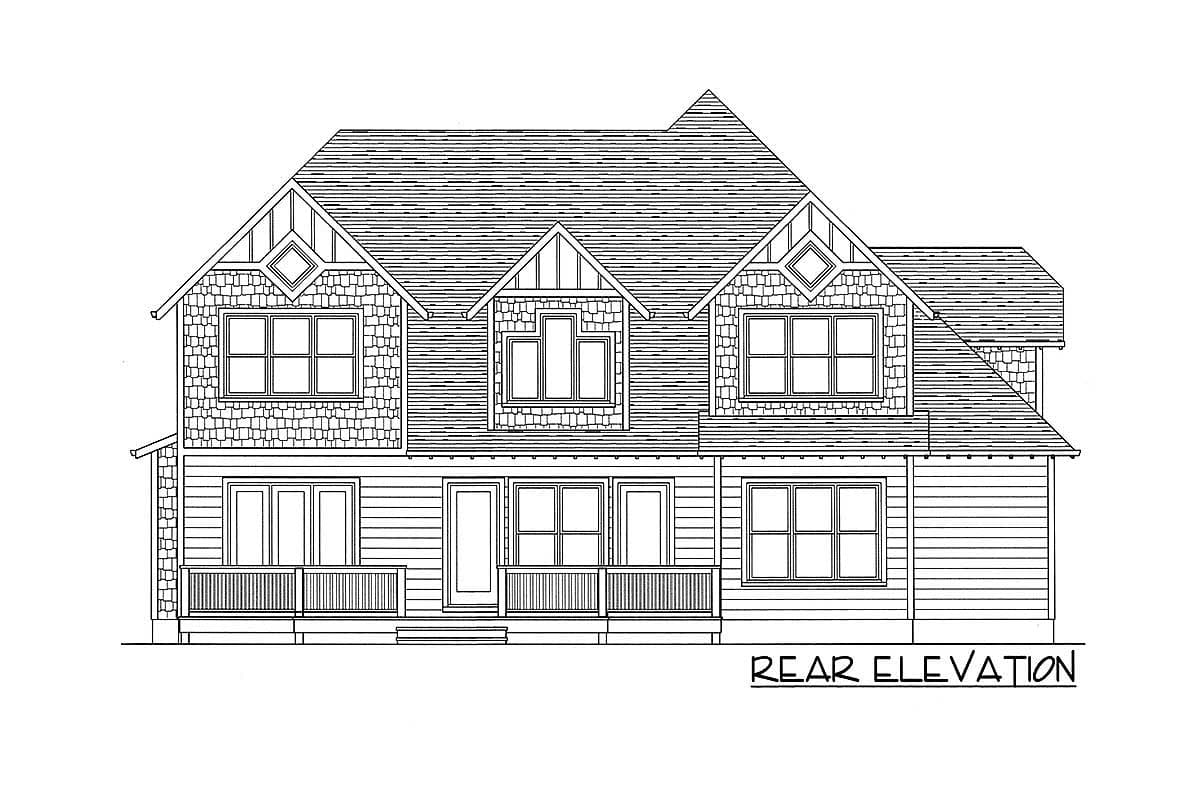

  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,744 sq. ft.

1st Floor

1,846 sq. ft.

2nd Floor

898 sq. ft.

Bonus

382 sq. ft.

Porch, Combined

119 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 2"

Depth

57' 2"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

571 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

European

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive

Photo Gallery
