Plan 60520ND

Comes in Two Versions

Heated S.F.
2,296
Beds
3 - 4
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 60520ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60520ND

M-F 9am-5pm EST |

1-203-761-8500

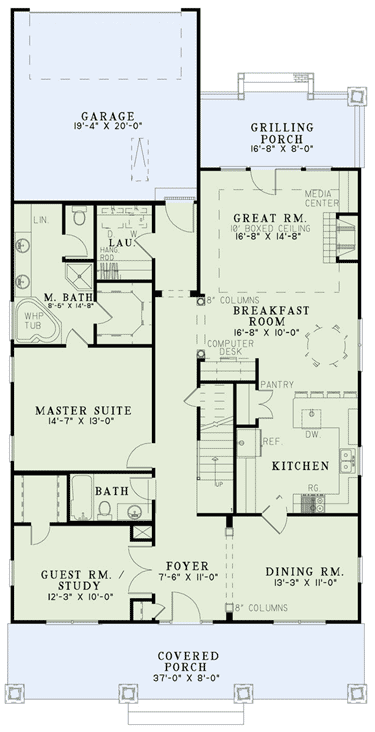

Main Level

Plan 60520ND: Comes in Two Versions - Floor Plan - Main Level - Cottage, Craftsman, Vacation

2nd Floor

Plan 60520ND: Comes in Two Versions - Floor Plan - 2nd Floor - Cottage, Craftsman, Vacation

Plan Details

  • Sit and visit with friends and family on the traditional eight foot deep covered entry porch.
  • A formal foyer with eight inch wood columns leads you through to an elegant dining area.
  • A master suite and bath will pamper you as you enjoy the luxury of a corner whirlpool tub with privacy glass block windows, large walk-in closet, corner glass shower and double 'his and hers' vanities with linen cabinet.
  • The rear grilling porch leads to the great room - perfect for entertaining any time of year.
  • The upper floor creates a wonderful area for kids of all ages with two spacious bedrooms with walk-through bath and a large game room.
  • Related Plans: For an alernate exterior, see house plan 60521ND and 59271ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,713 sq. ft.

2nd Floor

583 sq. ft.

Bonus

381 sq. ft.

Porch, Combined

432 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

73' 4"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

405 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Vacation

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,713 sq. ft.

2nd Floor

583 sq. ft.

Bonus

381 sq. ft.

Porch, Combined

432 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 0"

Depth

73' 4"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

405 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Vacation

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
