Plan 57164HA

Comfortable And Cozy Cottage House Plan

Heated S.F.
421
Beds
1
Baths
1
Stories
1
Cars
1

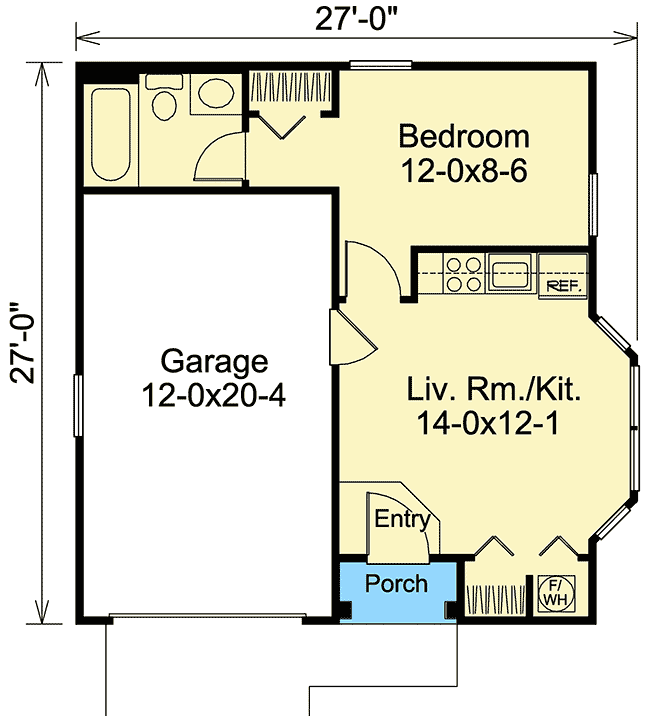

Floor Plan

Plan 57164HA

Main Level
Main Level

Plan 57164HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57164HA: Comfortable And Cozy Cottage House Plan - Floor Plan - Main Level - Cottage, Country, Vacation

Plan Details

  • A recessed porch for protection from inclement weather adds charm to the exterior.
  • The living room features a large bay window, convenient kitchenette and an entry area with guest.
  • A full size bath and closet are provided for the bedroom.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

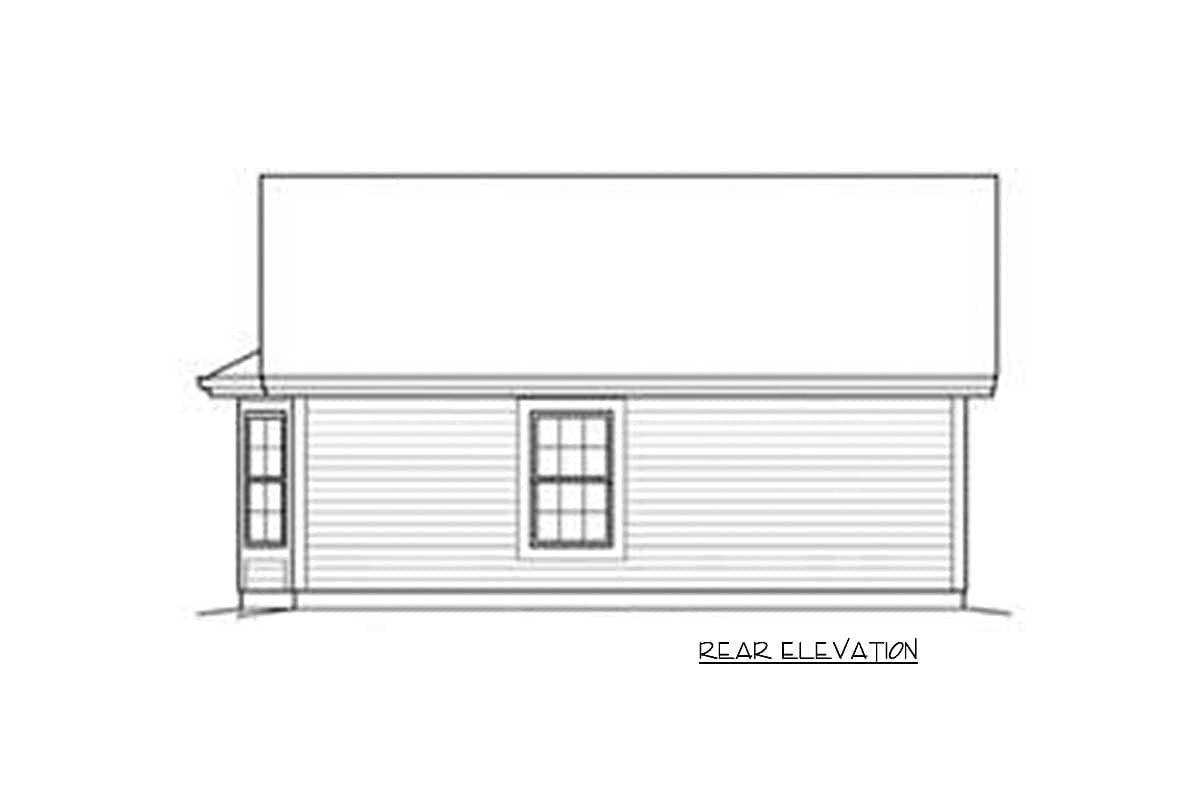

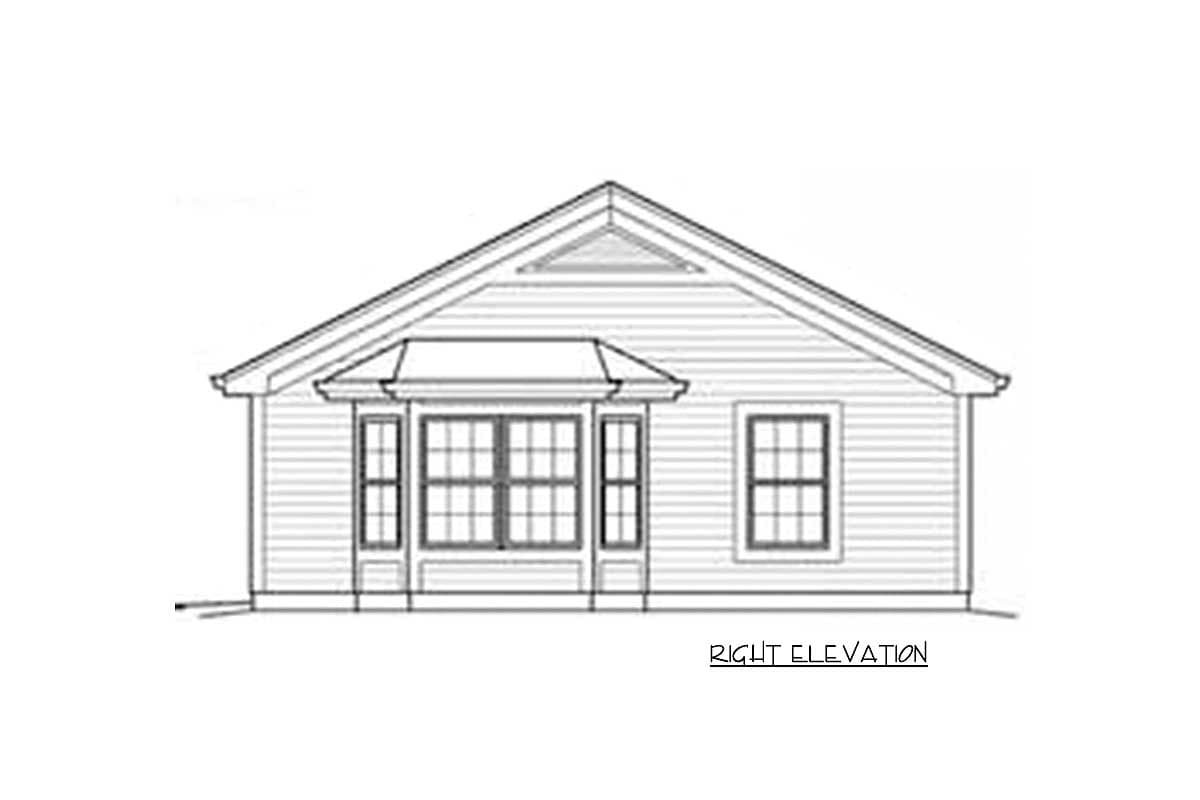

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

421 sq. ft.

1st Floor

421 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

27' 0"

Depth

27' 0"

Max Ridge Height

15' 6"

Garage

Type

Attached

Area

256 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

421 sq. ft.

1st Floor

421 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

27' 0"

Depth

27' 0"

Max Ridge Height

15' 6"

Garage

Type

Attached

Area

256 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
