Plan 510026WDY

Exclusive

Comfortable and Stylish Farmhouse

Heated S.F.
2,364
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 510026WDY

Main Level
Main Level

Plan 510026WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 510026WDY: Comfortable and Stylish Farmhouse - Floor Plan - Main Level - Country, Farmhouse, Rustic, Southern, Traditional

Plan Details

  • With its excellent curb appeal and spacious interior, this Farmhouse house plan will give your family a comfortable and good-looking home.

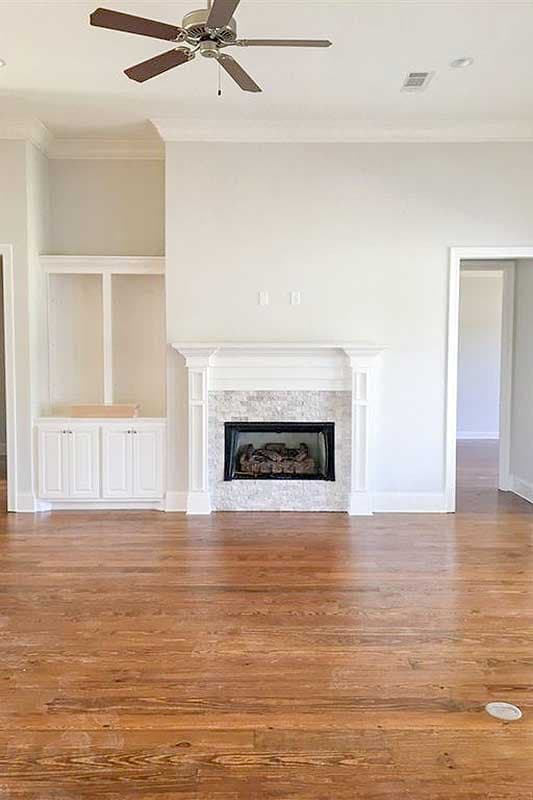

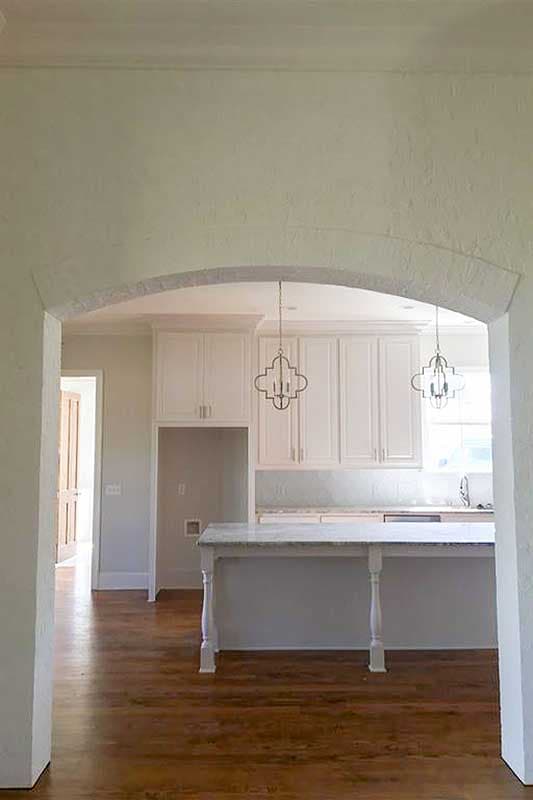

  • Design features include an interior column that keeps the sightlines open, an arched entryway between the living room and kitchen and a built-in cabinet next to the fireplace.
  • Most of the bedrooms are grouped on the left side of the home with a quiet guest suite on the right.

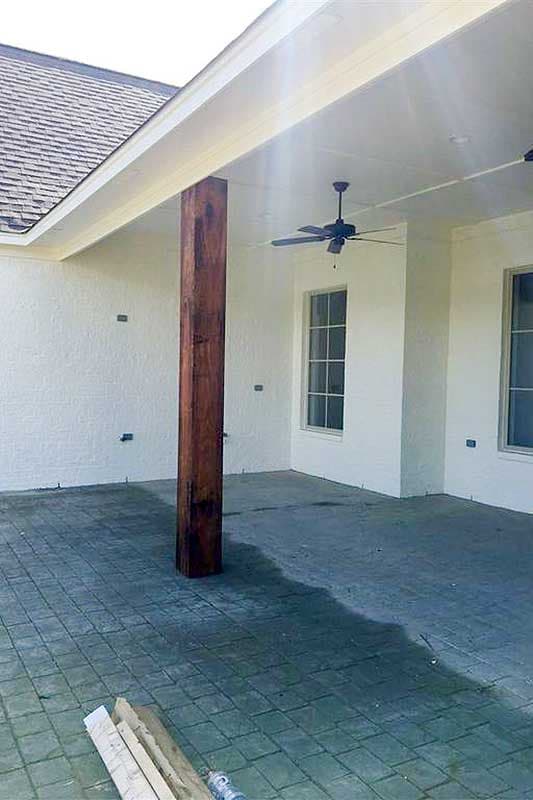

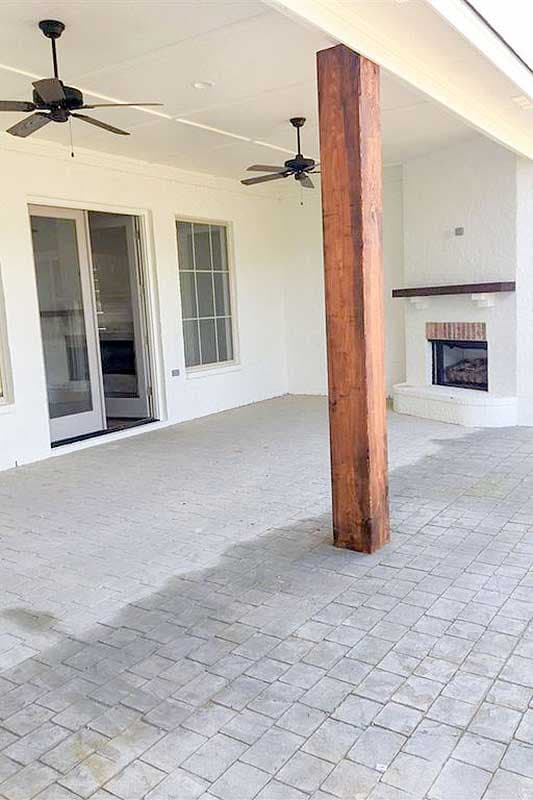

  • The rear covered porch has plenty of room for relaxing and entertaining and there's a side entry porch too.

What's Included

This plan has 9 pages as follows:
  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

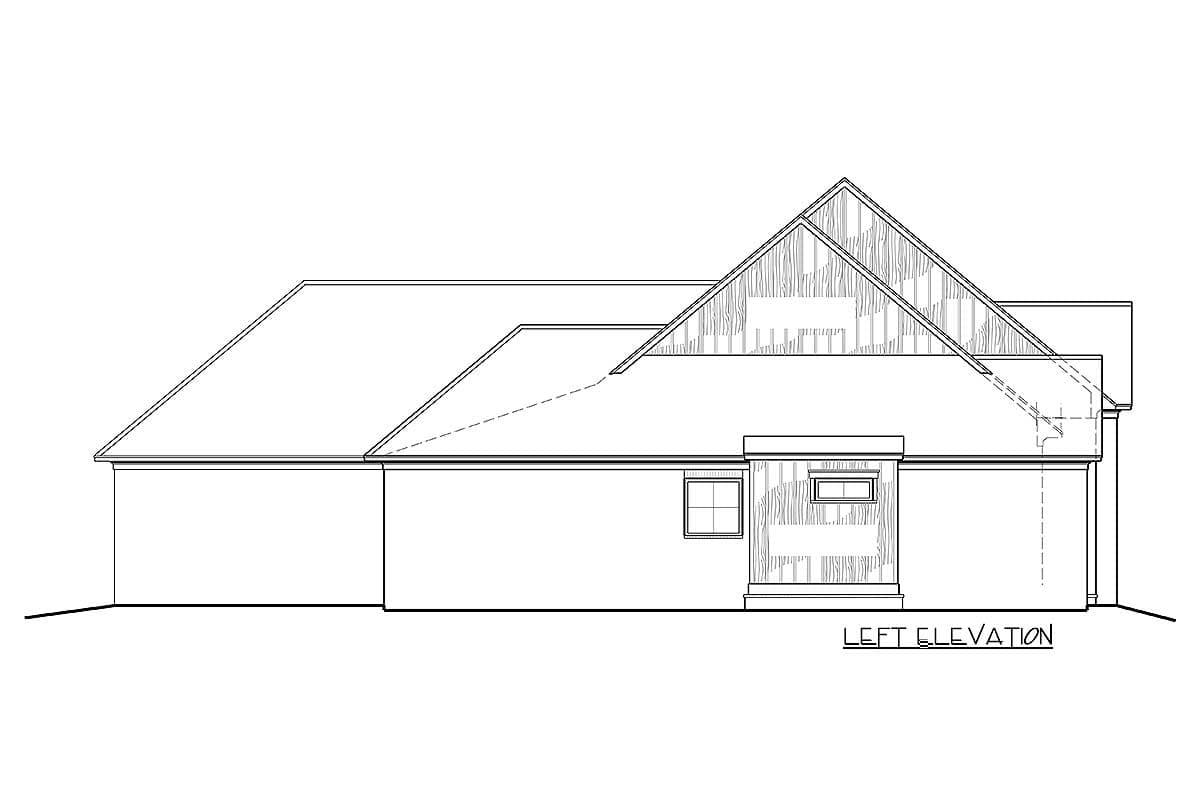

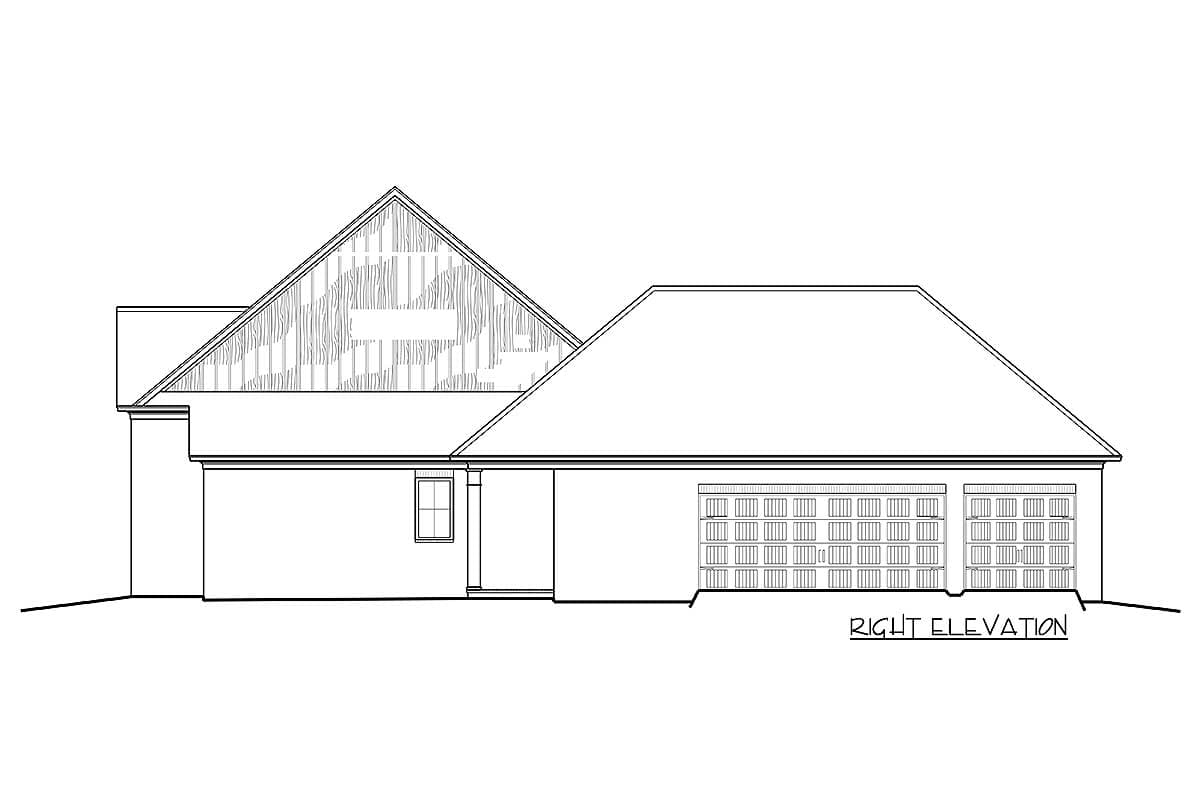

  3. All Four Exterior Elevations, Roof Plan, Window Details
  4. Building Sections, Cornice Details, Flashing Detail, Beam Strap Detail, Shutter Detail
  5. Rafter Span Schedule, Column Details, Tray Ceiling Detail, Porch Edging Detail, Roof Support Brick Detail
  6. Trim Details, Flashing Detail, Wall Flashing Detail
  7. Electrical Plan and Schedules
  8. Foundation
  9. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,364 sq. ft.

1st Floor

2,364 sq. ft.

Porch, Front

116 sq. ft.

Porch, Rear

307 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 10"

Depth

71' 7"

Max Ridge Height

29' 5"

Garage

Type

Attached

Area

671 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Rustic

Southern

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
