Plan 59457ND

3 Bed House Plan with Main Floor Master and Jack and Jill Bath Upstairs - 1697 Sq Ft

Heated S.F.
1,697
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 59457ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59457ND

M-F 9am-5pm EST |

1-203-761-8500

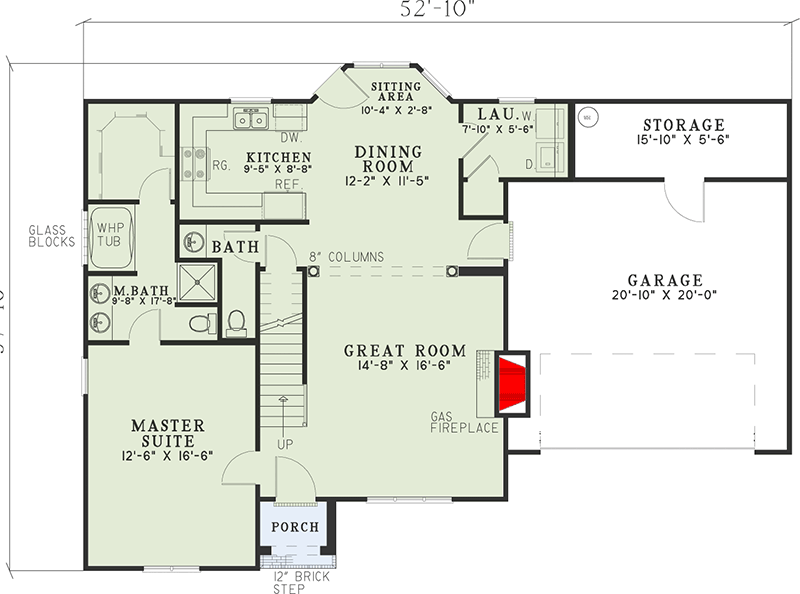

Main Level

Plan 59457ND: 3 Bed House Plan with Main Floor Master and Jack and Jill Bath Upstairs - 1697 Sq Ft - Floor Plan - Main Level - Traditional

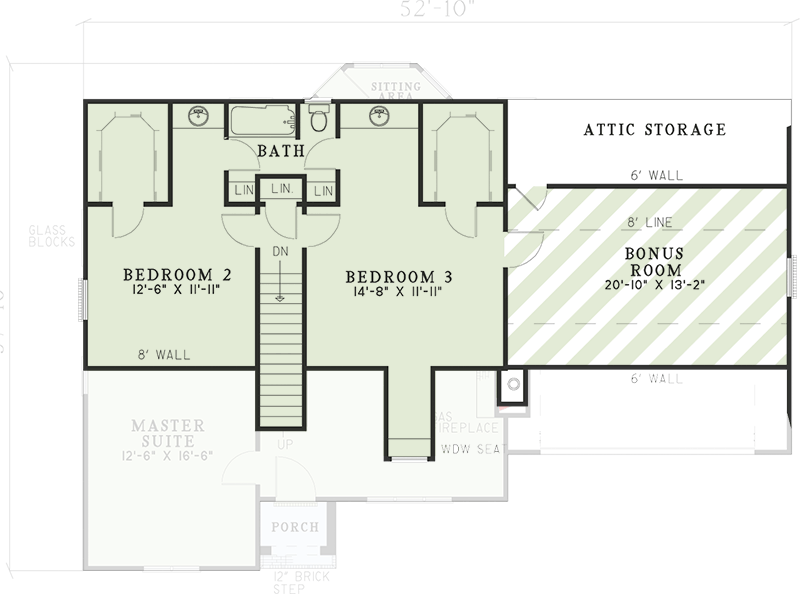

2nd Floor

Plan 59457ND: 3 Bed House Plan with Main Floor Master and Jack and Jill Bath Upstairs - 1697 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Enjoy all the comforts of home in this split bedroom house plan. Step into the spacious great room and you'll find gorgeous columns framing the entry into a brilliant dining room.
  • You'll find peace and quiet in your secluded master suite and luxurious master bath with luminous glass blocks behind the whirlpool bath.
  • Upstairs, the children have ample bedroom space available in addition to walk-in closets and shared bath access.
  • The bonus room can be utilized as a convenient play room or game room for children of all ages.
  • Related Plan: Get a brick exterior instead with house plan 59114ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,697 sq. ft.

1st Floor

1,048 sq. ft.

2nd Floor

649 sq. ft.

Bonus

275 sq. ft.

Porch, Combined

104 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 10"

Depth

37' 10"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Playroom

Square Footage Breakdown

Total Heated Area

1,697 sq. ft.

1st Floor

1,048 sq. ft.

2nd Floor

649 sq. ft.

Bonus

275 sq. ft.

Porch, Combined

104 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 10"

Depth

37' 10"

Max Ridge Height

24' 8"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Playroom
