Plan 580034DFT

Exclusive

Compact 1600 Square Foot Craftsman House Plan with 3 Bedrooms

Heated S.F.
1,637
Beds
3
Baths
2
Stories
1
Cars
2

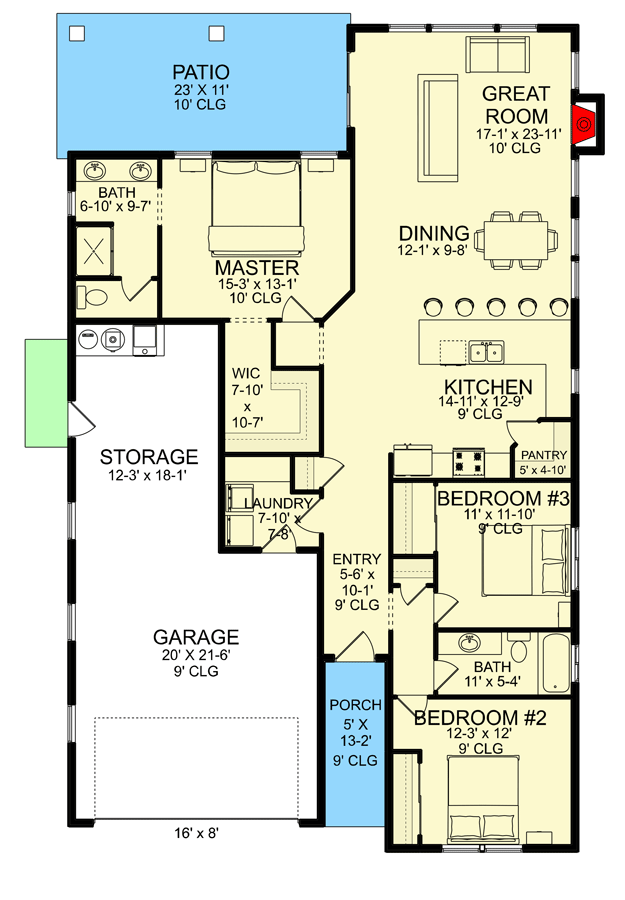

Floor Plan

Plan 580034DFT

Main Level
Main Level

Plan 580034DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580034DFT: Compact 1600 Square Foot Craftsman House Plan with 3 Bedrooms - Floor Plan - Main Level - Country, Craftsman, New American, Traditional

Plan Details

  • This compact Craftsman house plan - just 40' wide - gives you 3 beds and 1637 square feet of heated living space inside. A 637 square foot 2-car garage is extra deep on the left giving you great storage space.
  • Guest bedrooms are in front and share a bath while the master bedroom is located in back in a split layout.
  • A patio in back is accessible from the great room with fireplace which is open to the dining space and kitchen with peninsula seating.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

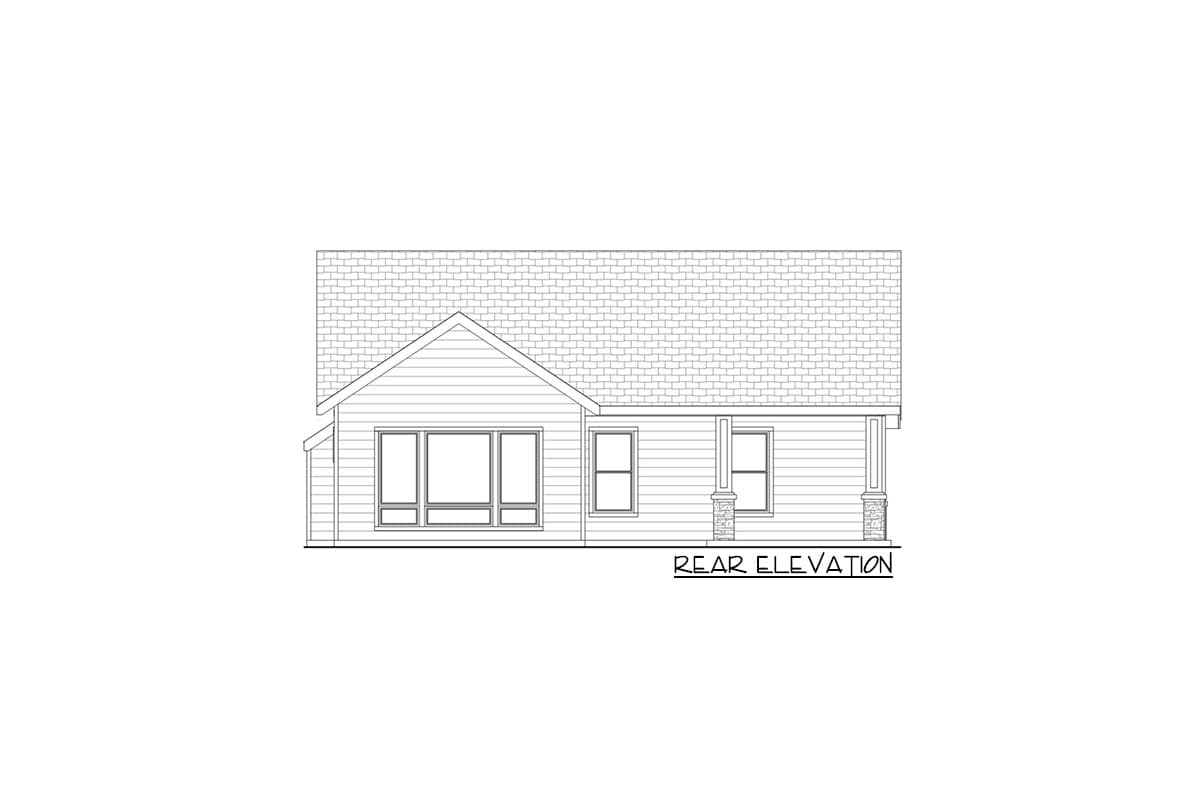

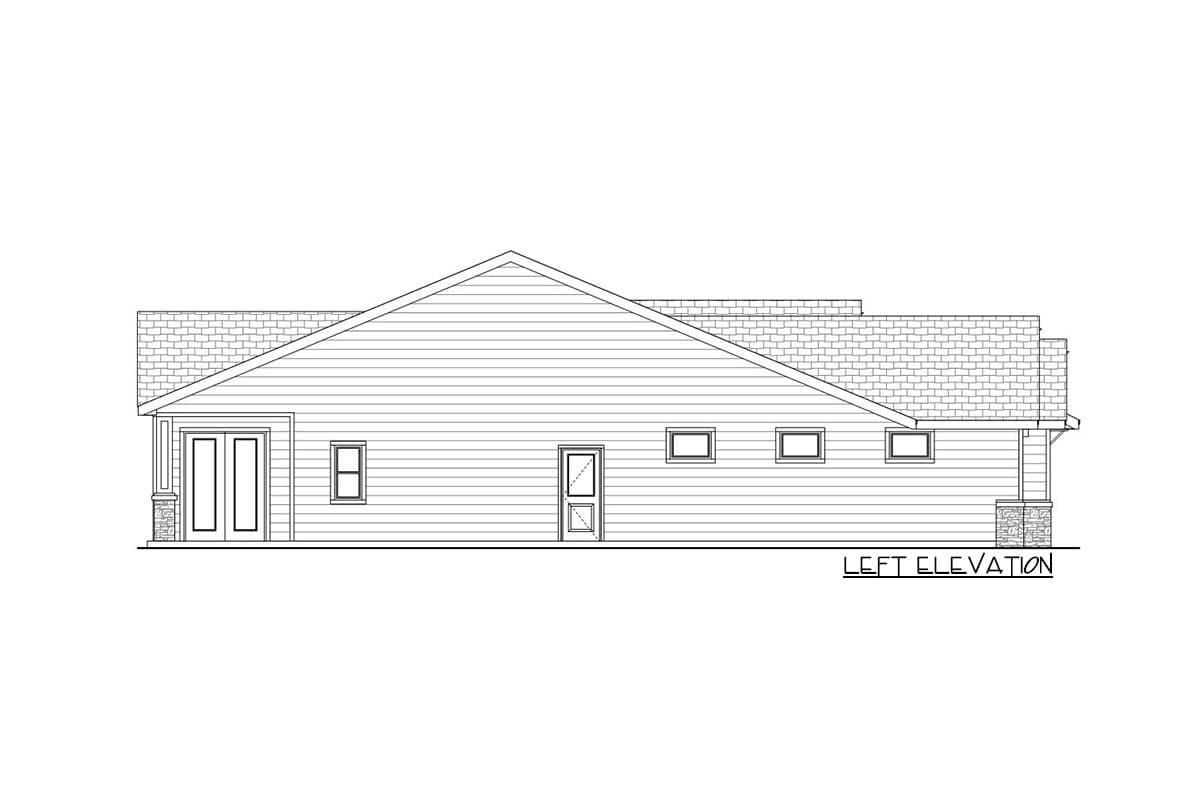

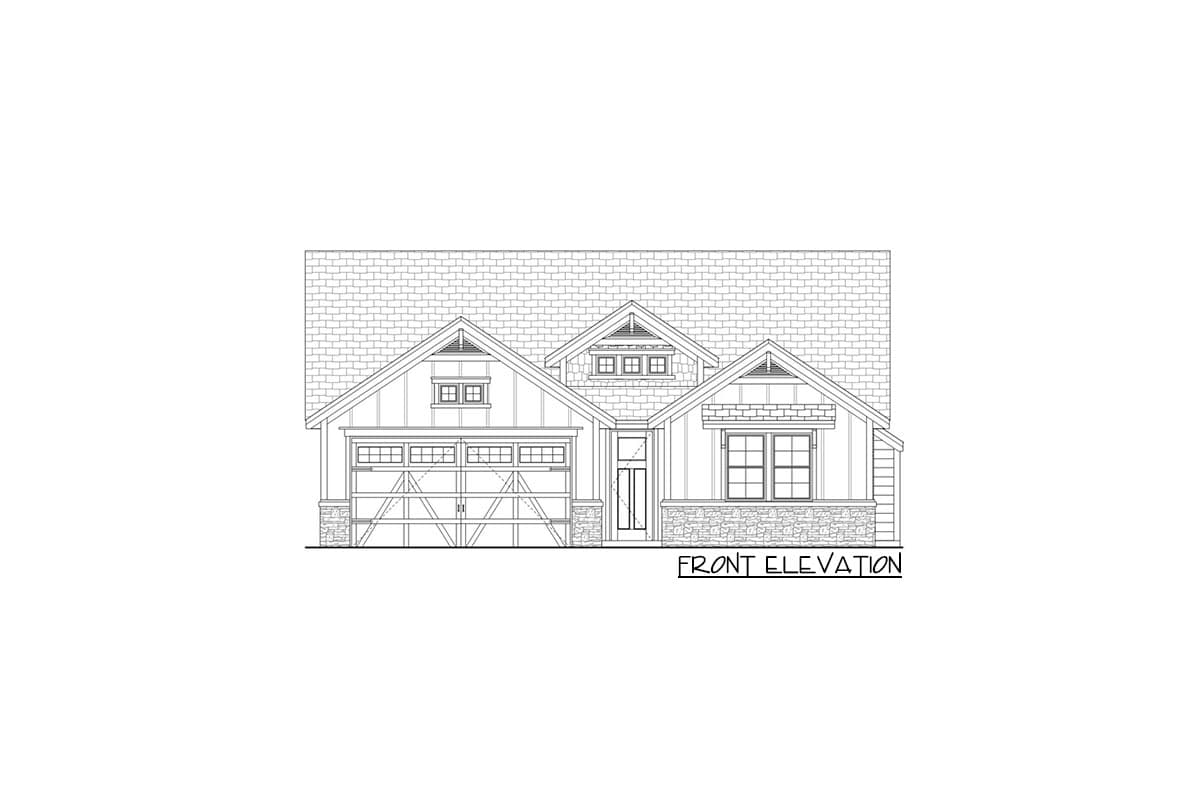

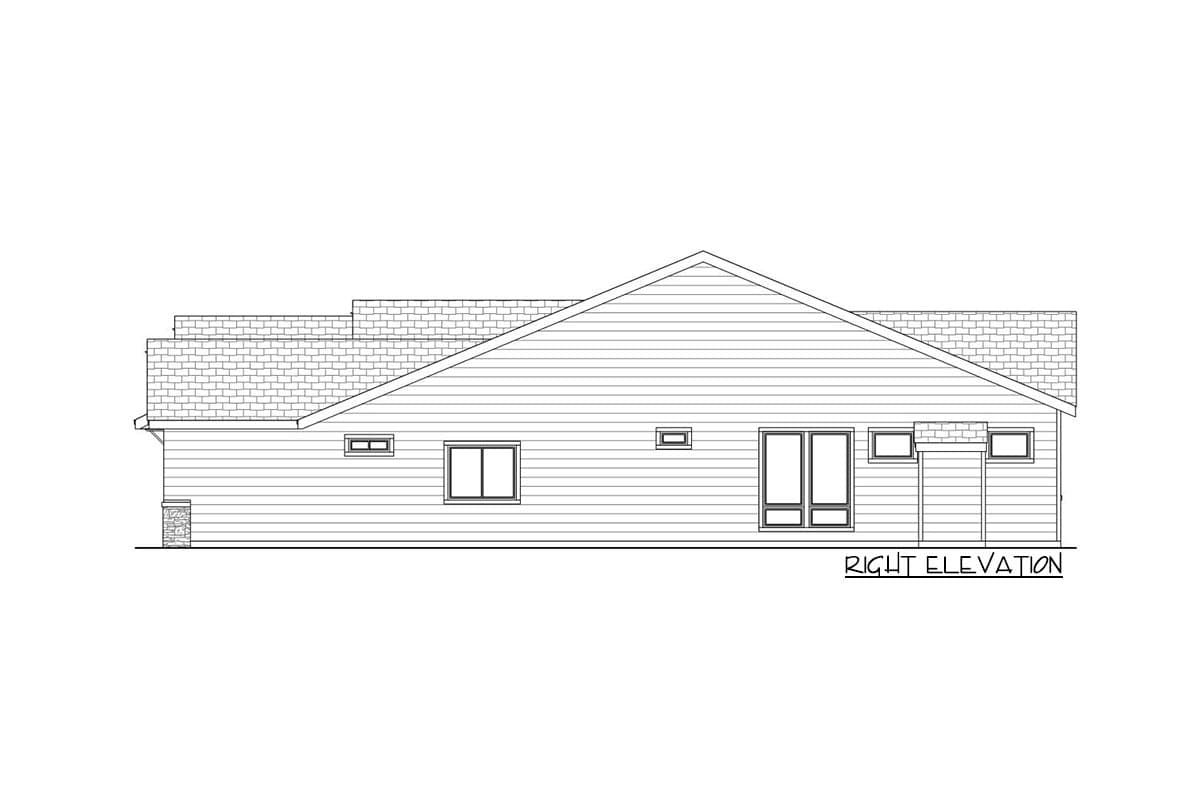

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,637 sq. ft.

1st Floor

1,637 sq. ft.

Porch, Front

20 sq. ft.

Covered Patio

220 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

65' 0"

Garage

Type

Attached

Area

637 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,637 sq. ft.

1st Floor

1,637 sq. ft.

Porch, Front

20 sq. ft.

Covered Patio

220 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

65' 0"

Garage

Type

Attached

Area

637 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive
