Compact 2-Bedroom Country Cottage House Plan - 516 Sq Ft

Heated S.F.
516
Beds
2
Baths
1
Stories
1

Floor Plan

Plan 55245BR

Main Level
Main Level

Plan 55245BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

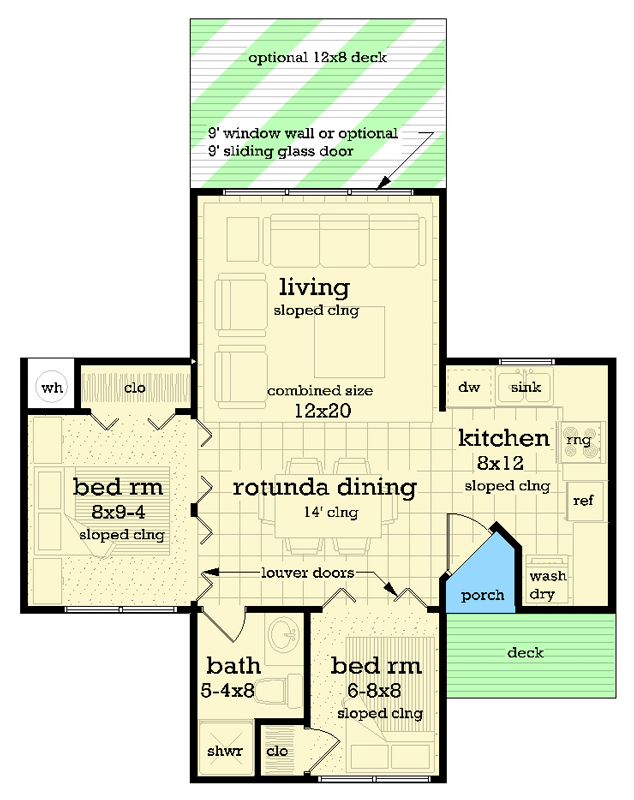

Plan 55245BR: Compact 2-Bedroom Country Cottage House Plan - 516 Sq Ft - Floor Plan - Main Level - Cottage, Country, Southern

Plan Details

  • This compact home is designed for easy construction, either built on-site or assembled from five prefabricated modules.
  • It includes two bedrooms, a shared bath, and a central 14-foot-high rotunda dining area with transom windows. Sloped ceilings throughout add a sense of space, and bi-fold doors allow the bedrooms to open into one large area.
  • The kitchen is fully equipped with standard appliances and generous cabinet space.
  • A window wall in the living area can be swapped for an optional 9-foot sliding glass door leading to a deck.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

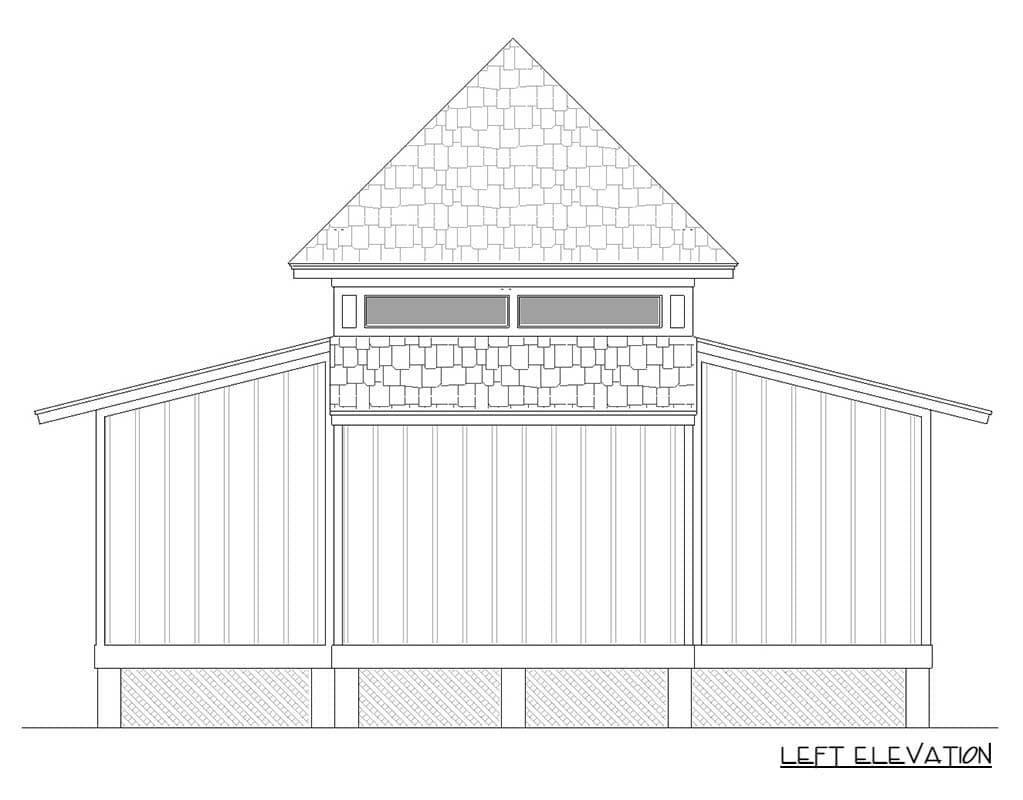

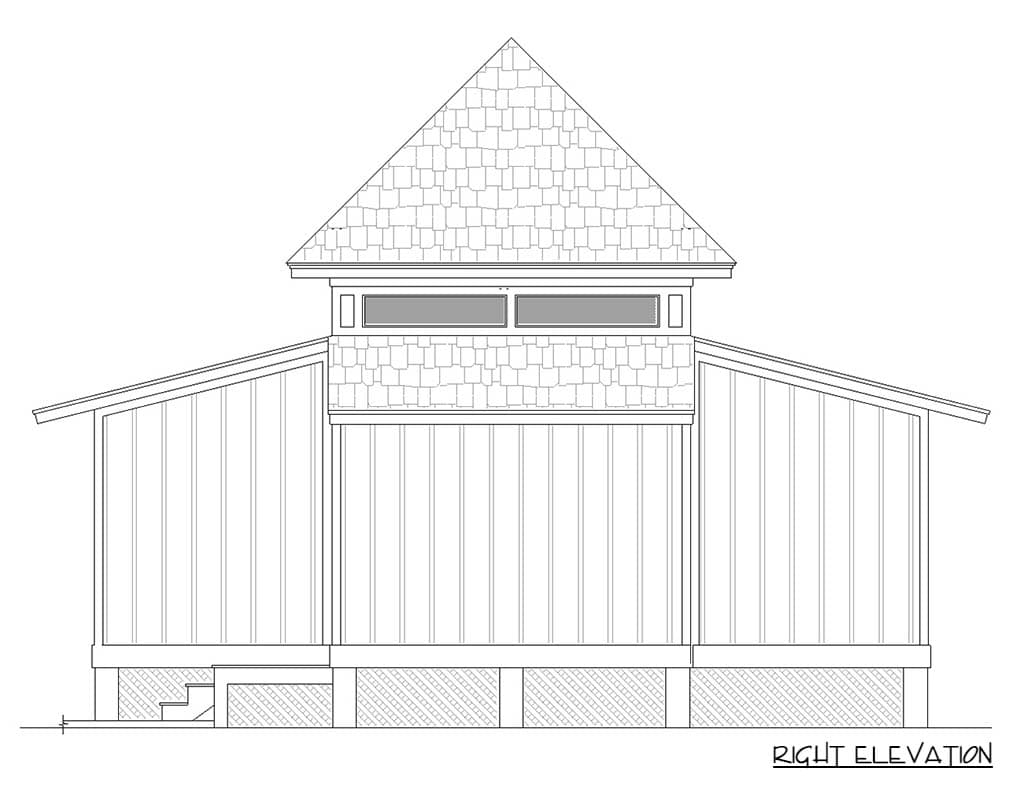

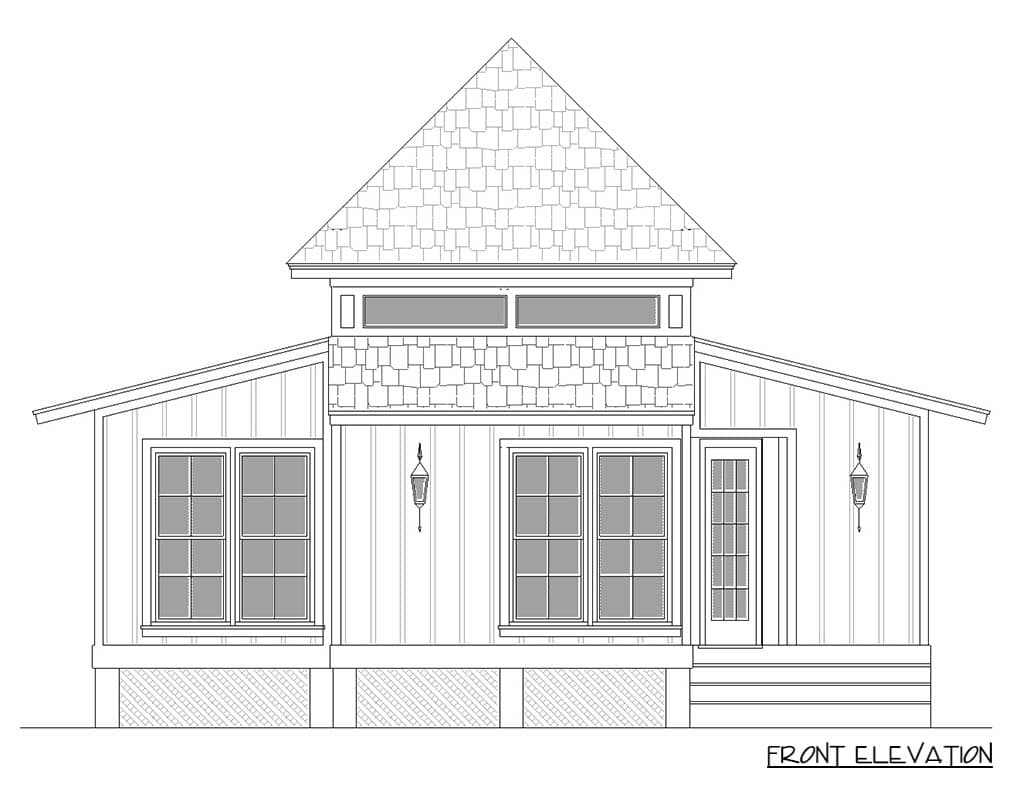

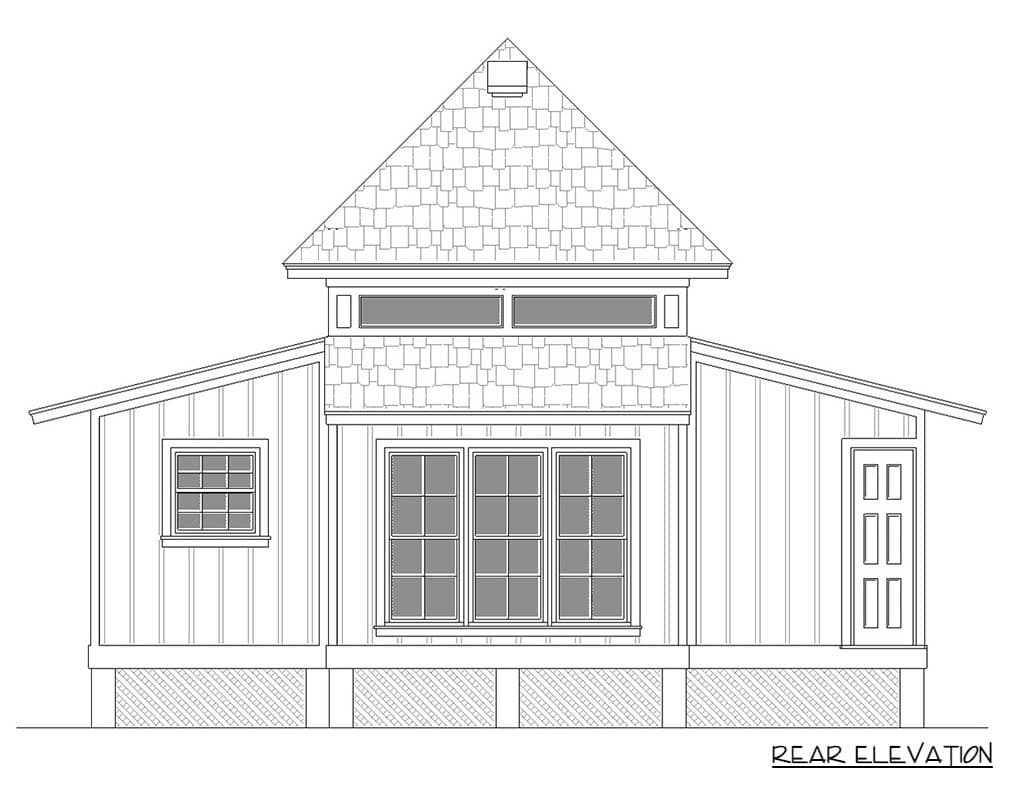

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

516 sq. ft.

1st Floor

516 sq. ft.

Porch, Front

12 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

28' 0"

Max Ridge Height

20' 0"

Ceiling Heights

Lower Level

14'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

516 sq. ft.

1st Floor

516 sq. ft.

Porch, Front

12 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

28' 0"

Max Ridge Height

20' 0"

Ceiling Heights

Lower Level

14'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Southern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
