Compact 3 Bed Craftsman Around 1300 Square Feet

Plan 28121J

This plan plants 3 trees

1,315
Heated s.f.
3
Beds
2
Baths
1
Stories
2
Cars

This compact Craftsman house plan gives you 3 beds, 2 baths and 1,315 square feet of heated living with a 2-car 440 square foot garage.
Step in off the covered entry and you'll see a hall that separates the bedrooms to the left and leads you to the open floor plan in back where the kitchen with eat-at island, dining area and great room with corner fireplace reside.
Sliding glass doors in the dining area lead out to the backyard.
In the master suite, the bathroom has two vanities and a walk-in closet.
Related Plan: Get an alternate 3 bed version with house plans 28066J (1,315 sq. ft.) and 28067J (1,569 sq. ft.). Get a 4-bed version with house plan 28068J (1,490 sq. ft.).

Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section

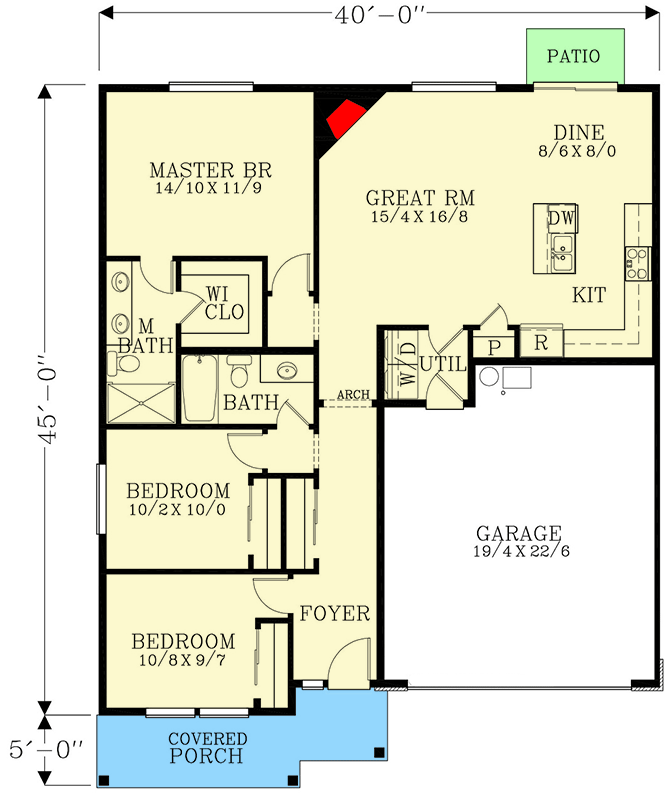

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Compact 3 Bed Craftsman Around 1300 Square Feet - 28121J floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,315 sq. ft.
1st Floor: 1,315 sq. ft.

Porch, Combined: 100 sq. ft.
Porch, Front: 100 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Crawl, Post/Beam

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 32' 0"
Max ridge height: 20' 5"

Garage

Type: Attached
Area: 440 sq. ft.
Count: 2 Cars
Entry Location: Front

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 10 on 12

Framing Type: Truss
