Plan 623436DJ

Compact 5-Bed Traditional House Plan with Open Concept Living - 2007 Sq Ft

Heated S.F.
2,007
Beds
5
Baths
3
Stories
1
Cars
2
Tour

Floor Plan

Plan 623436DJ

Main Level
Main Level
Optional Lower Level Layout (+$ Paid Option)
Optional Lower Level Layout (+$ Paid Option)

Plan 623436DJ

M-F 9am-5pm EST |

1-203-761-8500

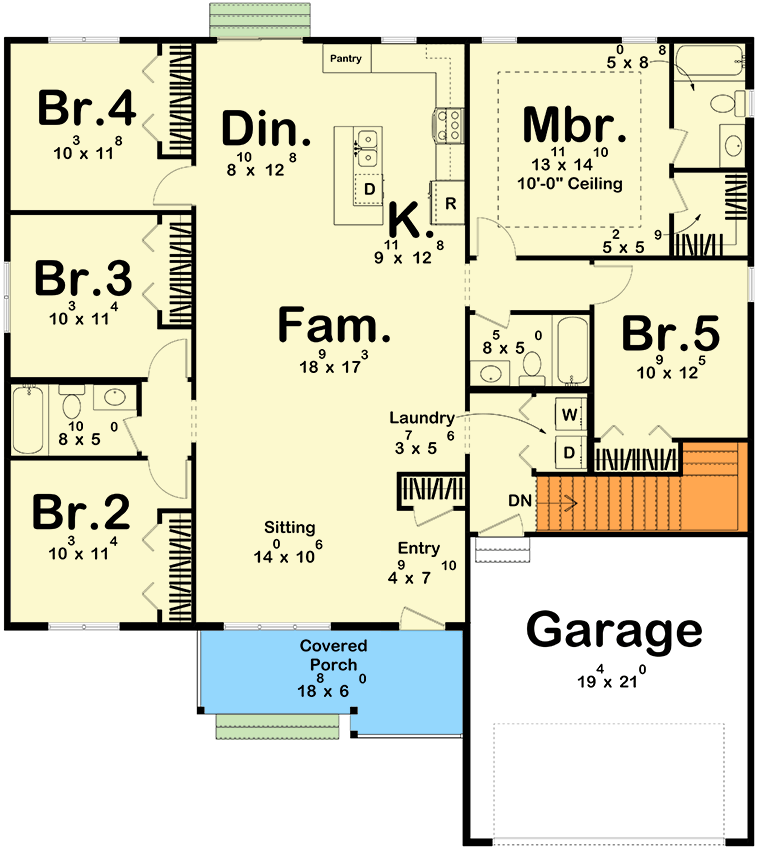

Main Level

Plan 623436DJ: Compact 5-Bed Traditional House Plan with Open Concept Living - 2007 Sq Ft - Floor Plan - Main Level - Cottage, Country, Traditional

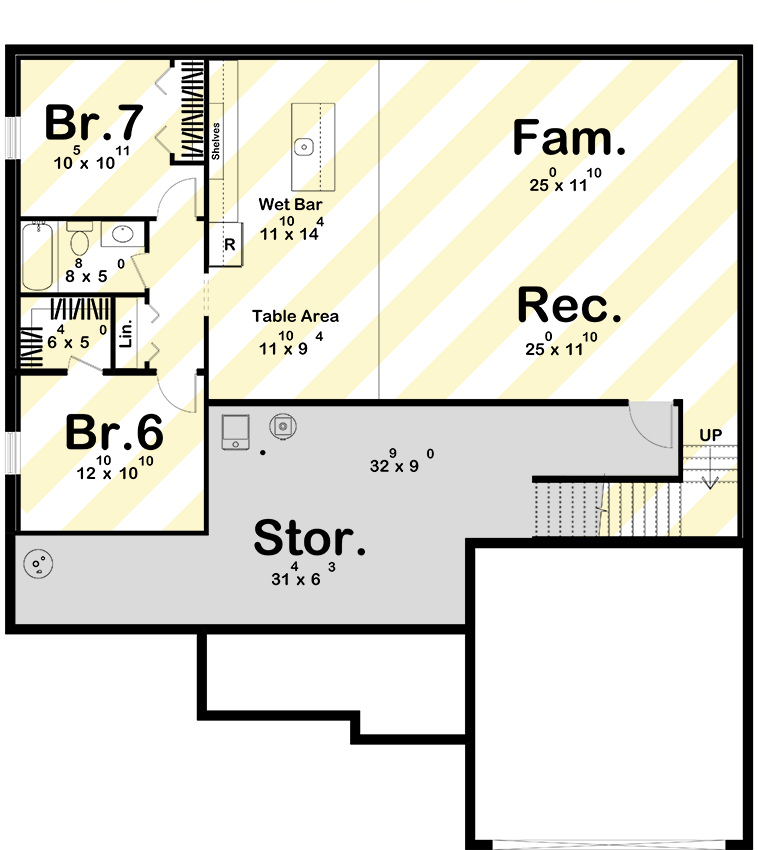

Optional Lower Level Layout (+$ Paid Option)

Plan 623436DJ: Compact 5-Bed Traditional House Plan with Open Concept Living - 2007 Sq Ft - Floor Plan - Optional Lower Level Layout (+$ Paid Option) - Cottage, Country, Traditional

Plan Details

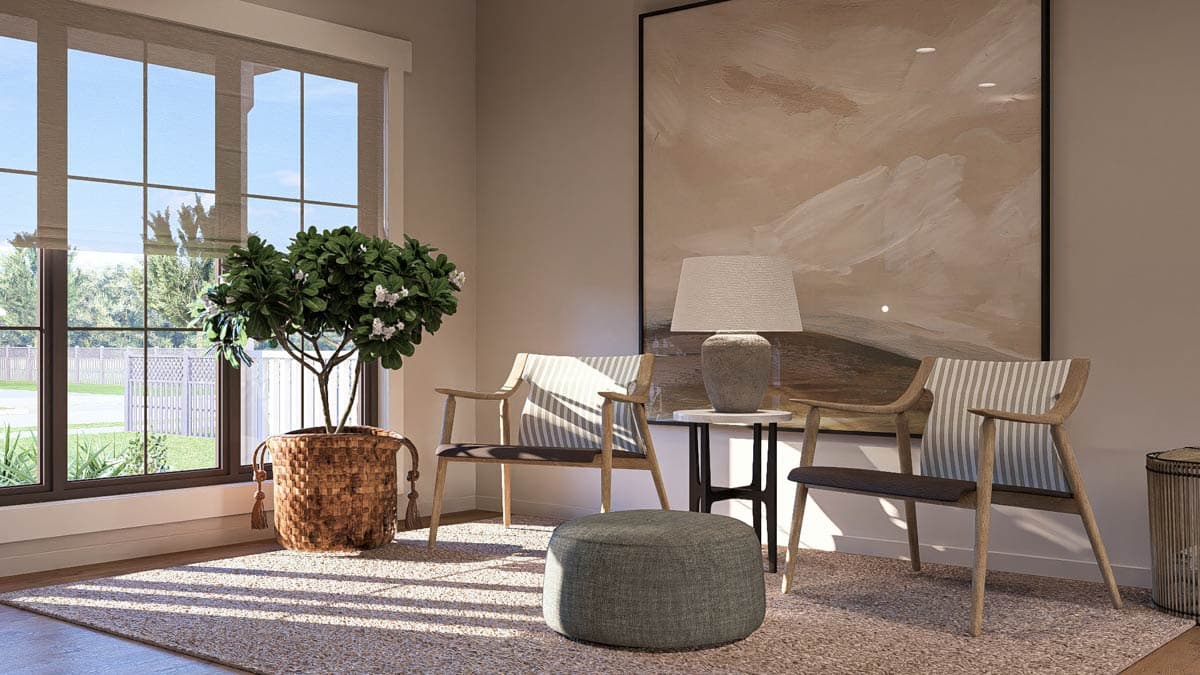

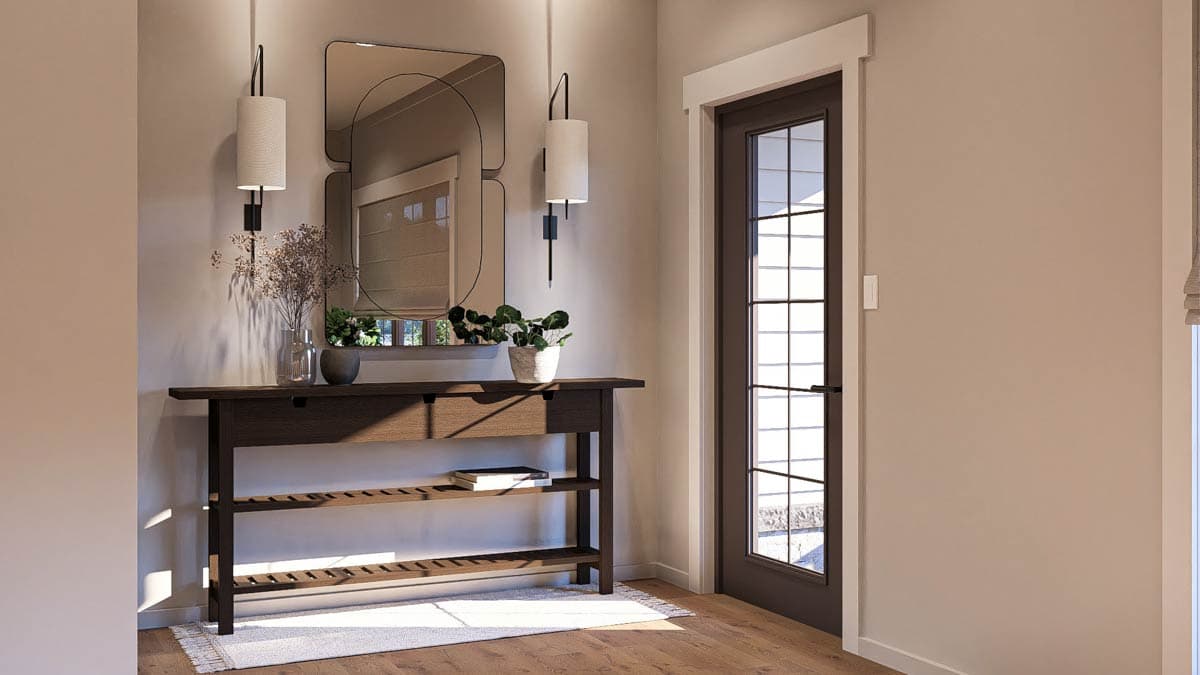

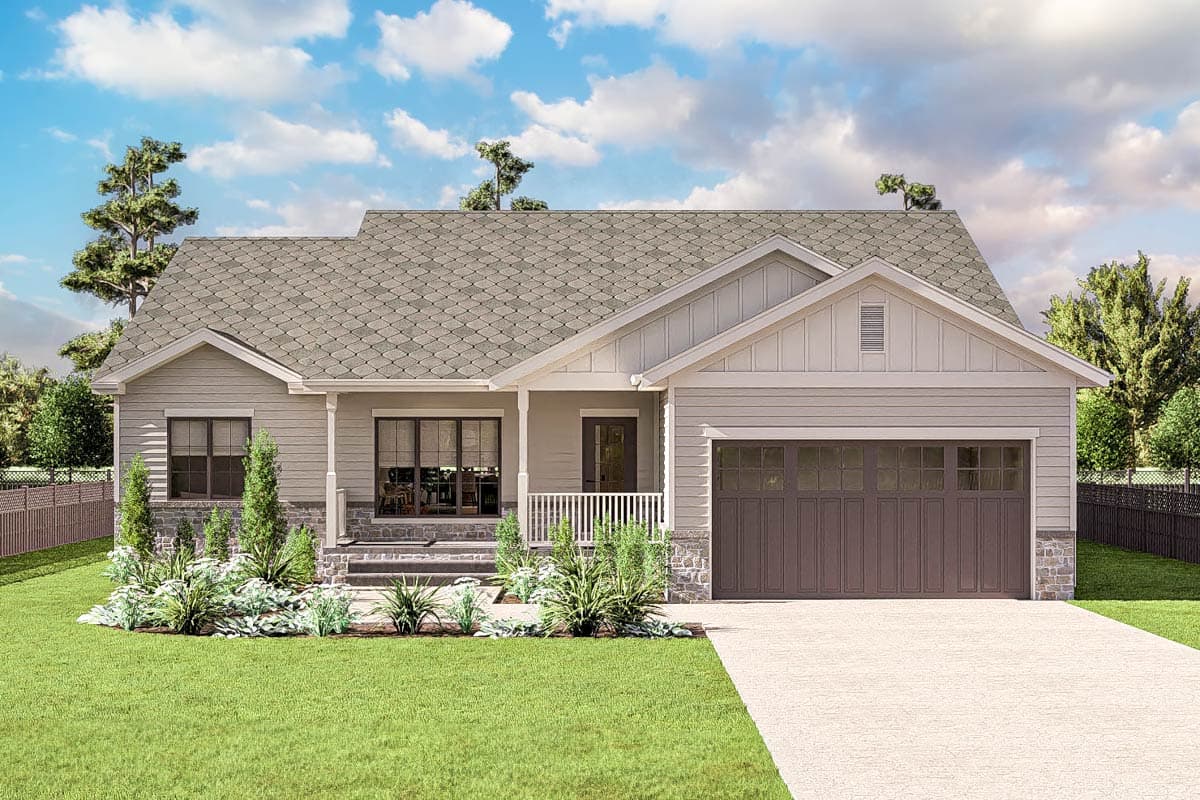

  • This compact traditional one-story house plan provides 2,007 square feet of heated living area with up to 5-bedrooms, 3-baths, and a 2-car garage with a front-entry. This plan provides ample bedrooms in a compact footprint for a growing family and features charming curb appeal with a craftsman cottage inspired exterior and a welcoming front sitting area inside off the entry foyer.

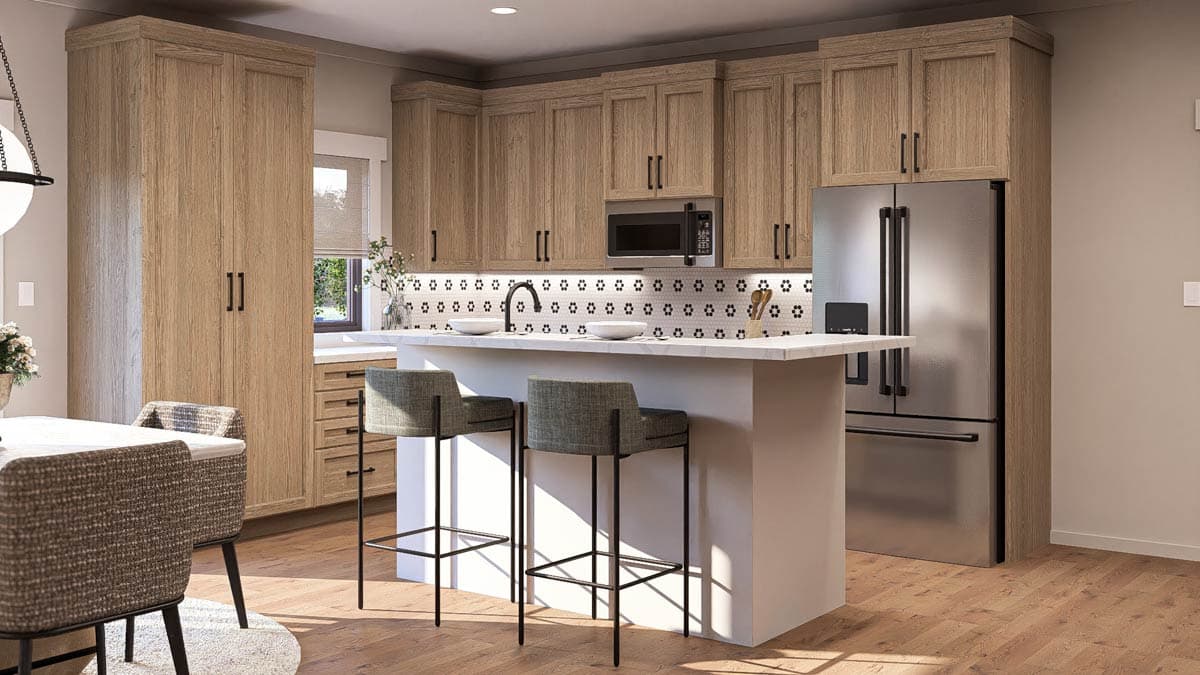

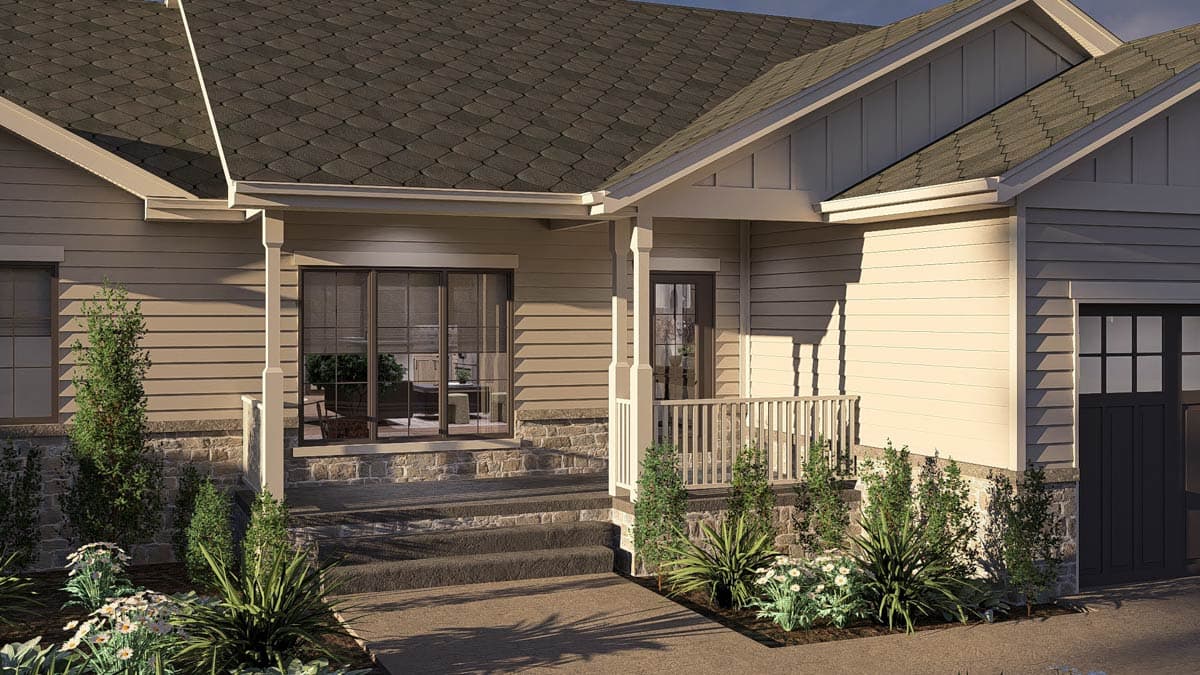

  • Its open floor plan makes it ideal for family living and entertaining. A covered front porch enhances curb appeal, while the attached two-car garage provides convenience.

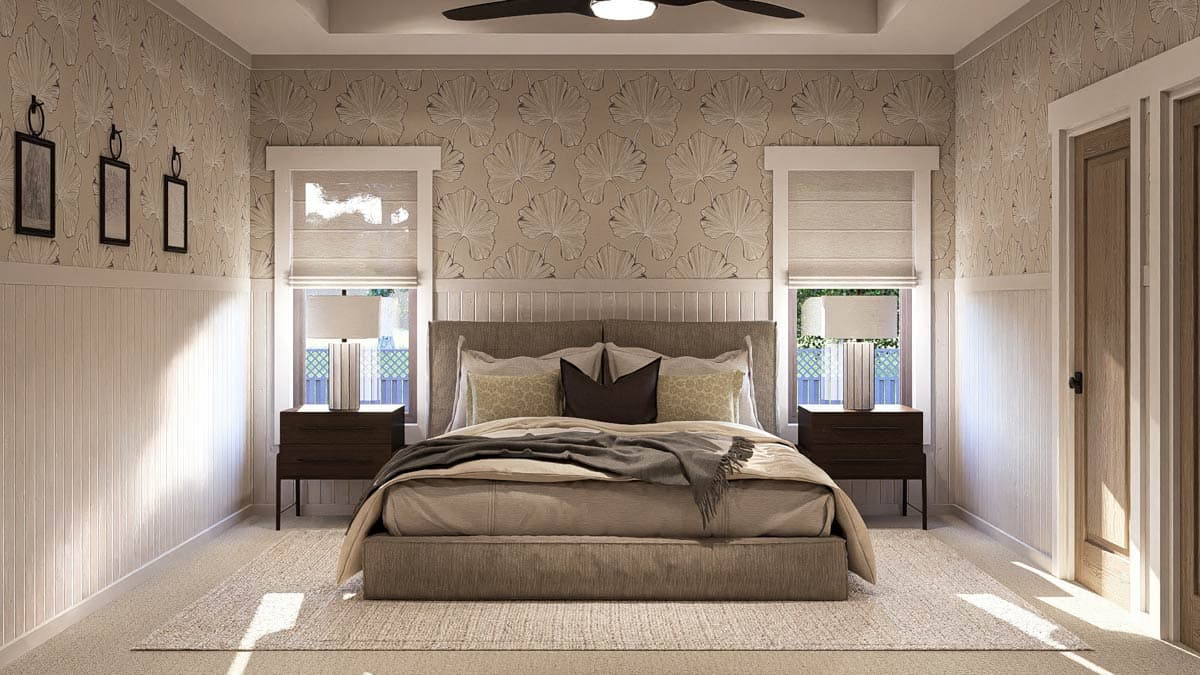

  • Bedroom 5, located adjacent to the primary bedroom suite could be used as a nursery, home office, gaming room, craft room or anything you'd like.
  • There is an upgrade optional for a finished basement layout, perfect for additional living space, a home office, or extra storage with up to 1,372 square feet of additional living space (paid option).

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,007 sq. ft.

1st Floor

2,007 sq. ft.

Optional Lower Level

1,372 sq. ft.

Porch, Combined

125 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

56' 0"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

425 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Cottage

Country

Traditional

Special Features

Bedrooms - Clustered

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar

Plan Collections

Home Office
