Plan 5941ND

Compact and Charming

Heated S.F.
1,359
Beds
2 - 3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 5941ND

Main Level
Main Level

Plan 5941ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

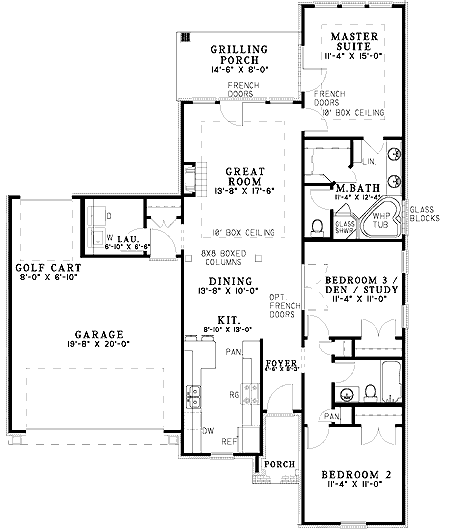

Plan 5941ND: Compact and Charming - Floor Plan - Main Level - Traditional

Plan Details

  • This compact French Country huose plan features a great room with a fireplace, a 10' boxed ceiling and French doors to the rear grilling porch from the great room and the master bedroom.
  • Optional French doors from bedroom three would make the room suitable as a den or study.
  • Two boxed columns set off the dining room, while the kitchen has an eating bar and a pantry closet.
  • The luxurious master bath includes a corner whirlpool tub and twin sinks.
  • Ceilings: 9' standard.
  • Foundation options: slab or crawl space. Please specify when ordering.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

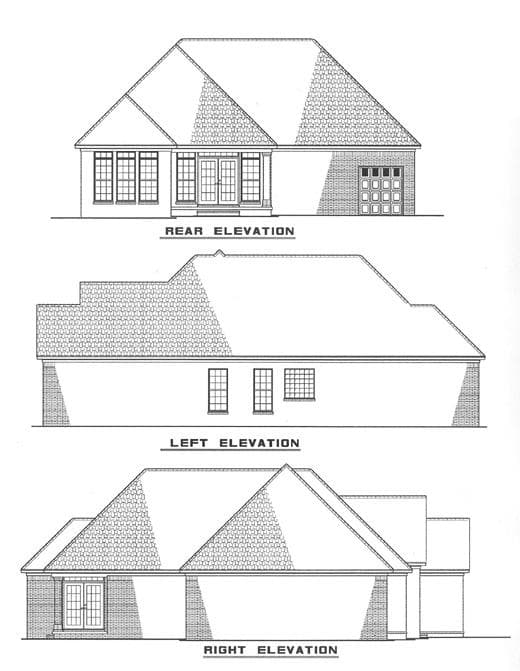

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,359 sq. ft.

1st Floor

1,359 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

117 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

60' 4"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

393 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Den

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,359 sq. ft.

1st Floor

1,359 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

117 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

60' 4"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

393 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Den

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
