Plan 31047D

Compact Country-Style House Plan

Heated S.F.
1,006
Beds
3
Baths
1
Stories
1
Cars
2

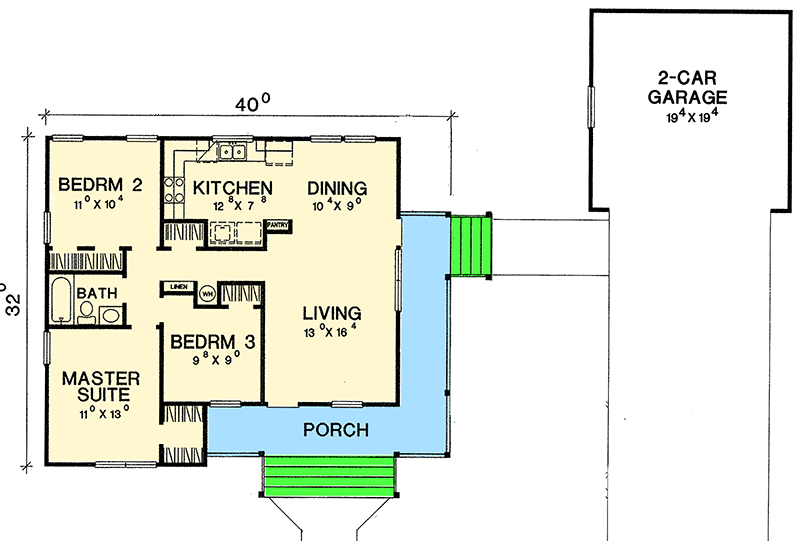

Floor Plan

Plan 31047D

Main Level
Main Level

Plan 31047D

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 31047D: Compact Country-Style House Plan - Floor Plan - Main Level - Cabin, Cottage, Country

Plan Details

  • This country style compact efficient three bedroom home plan has a wraparound front porch with columns.
  • The third bedroom is an optional study/office.
  • The washer and dryer are located in the kitchen.
  • As an added bonus, a matching 2-car detached garage comes with the house plan.
  • Related Plan: Get an extra bathroom with house plan 31052D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,006 sq. ft.

1st Floor

1,006 sq. ft.

Porch, Front

215 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

18' 0"

Garage

Type

Detached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,006 sq. ft.

1st Floor

1,006 sq. ft.

Porch, Front

215 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

18' 0"

Garage

Type

Detached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
