Compact Craftsman House Plan with Main Level Owners Suite

Name: Plan 72076DA: Compact Craftsman House Plan with Main Level Owners Suite
Brand: Architectural Designs
SKU: 72076DA
Price: 1725.0 USD
Availability: InStock

Heated S.F.

1,420

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

This 1,420 sq. ft. Craftsman-style house plan offers four bedrooms, two bathrooms, and an attached two-car garage, all within a compact 38' x 40' footprint.
Upon entry, you're greeted by an immediate sense of spaciousness with an open flow leading into the main living areas, where ample natural light fills the space, creating an inviting atmosphere.
The kitchen serves as the home's gathering spot, featuring an efficient C-shaped layout with generous counter space, a walk-in pantry for storage, and an open connection to the dining and living rooms.
This plan features a smart split-bedroom layout, placing the private owners' suite with its walk-in closet on the main level, while three additional family or guest bedrooms and a full bath are thoughtfully located upstairs for separation.
Adjacent to the garage entry, a dedicated utility area acts as a convenient drop zone, complete with laundry appliances and additional storage to help keep daily life organized.
Extending from the dining area, a rear patio offers a natural outdoor extension, perfect for enjoying meals al fresco or simply relaxing in your private outdoor space.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

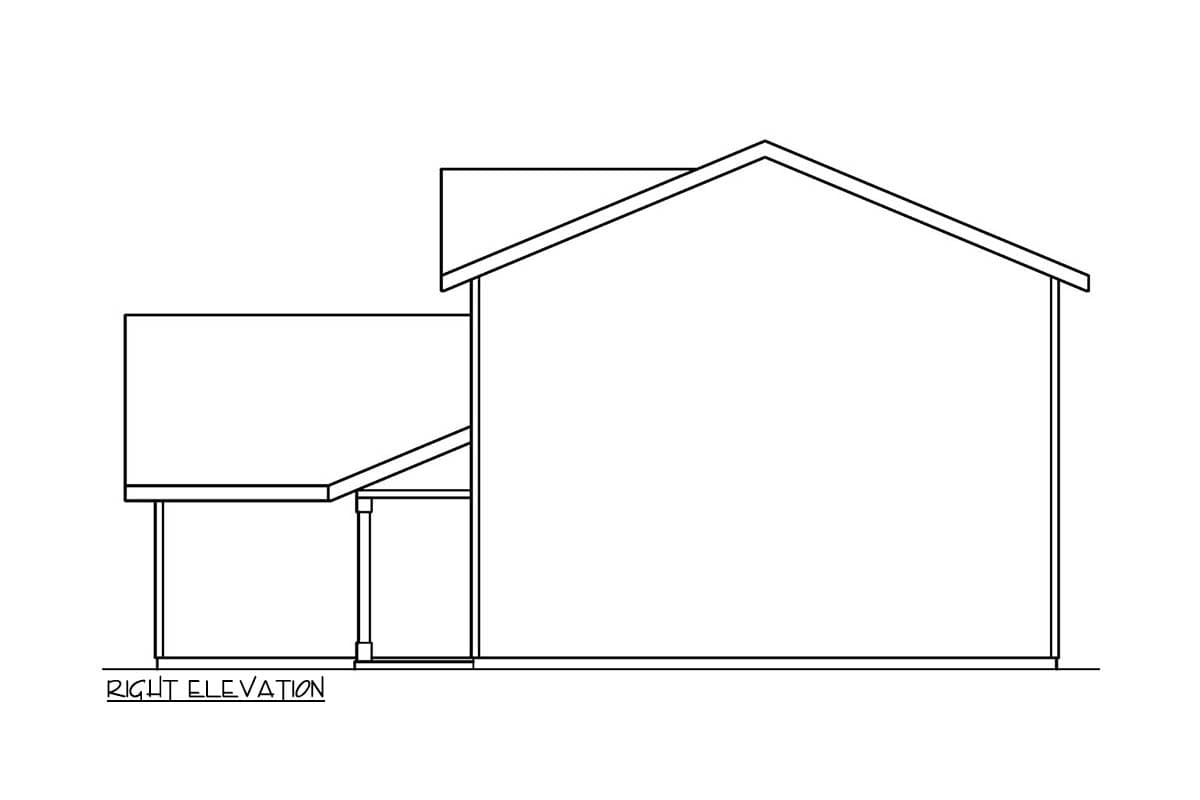

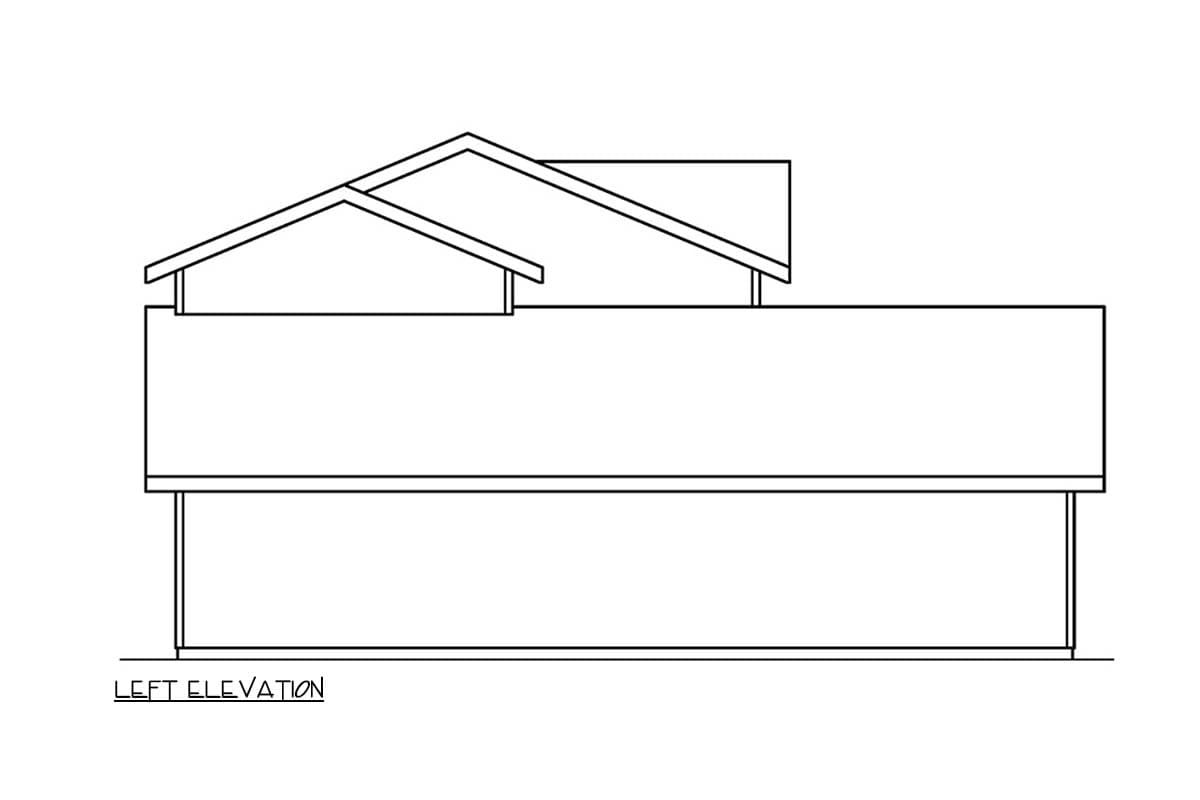

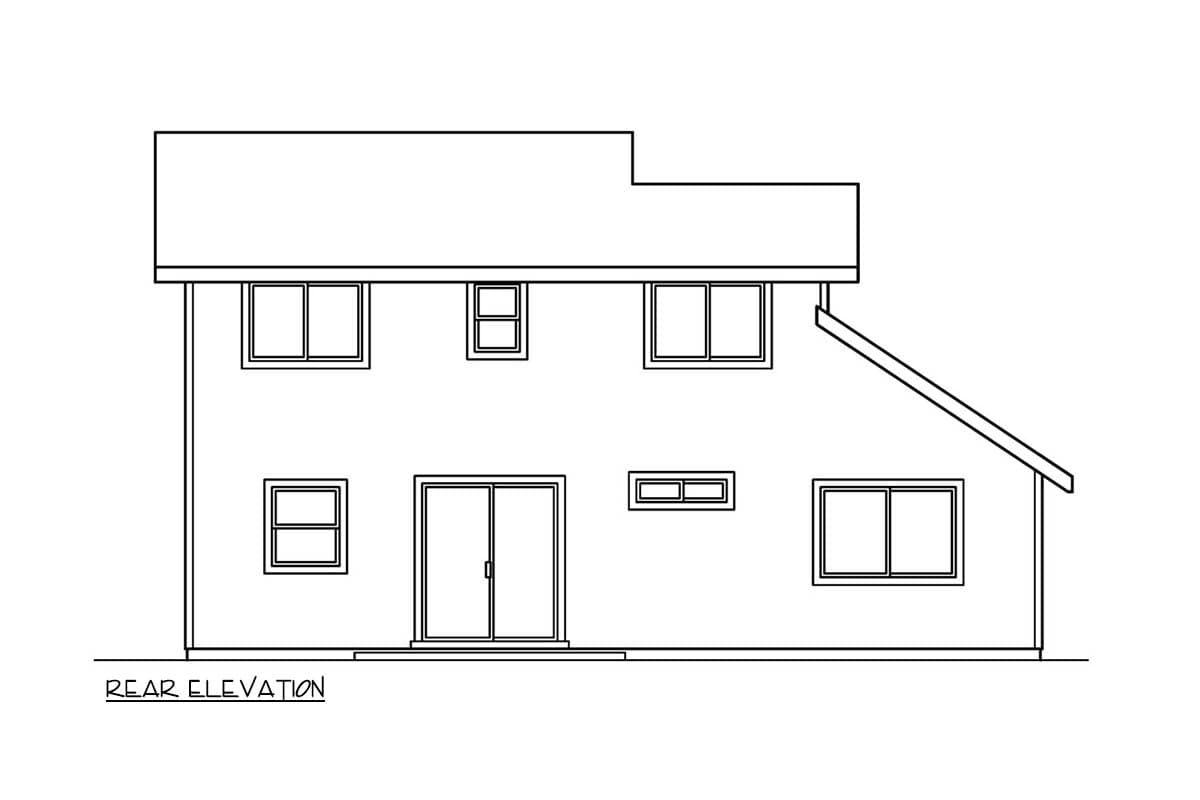

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

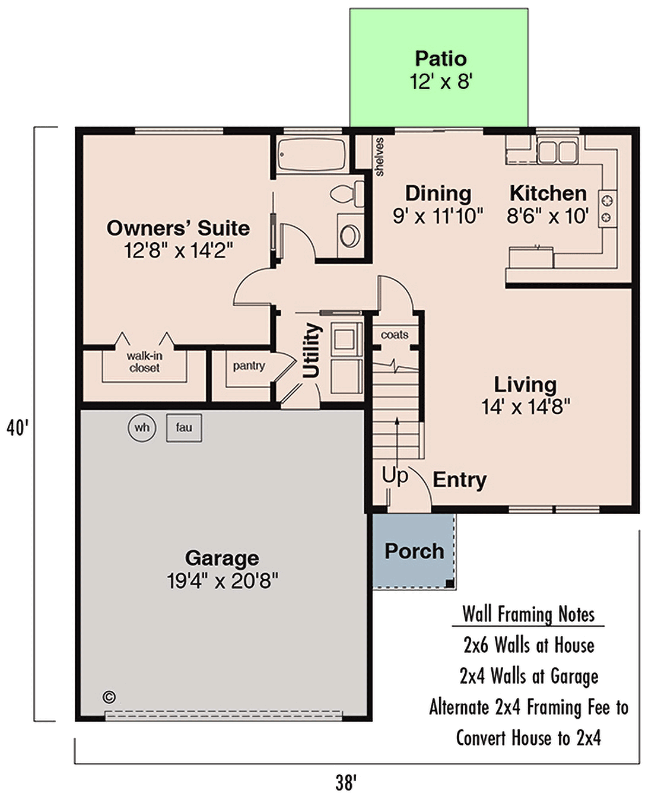

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

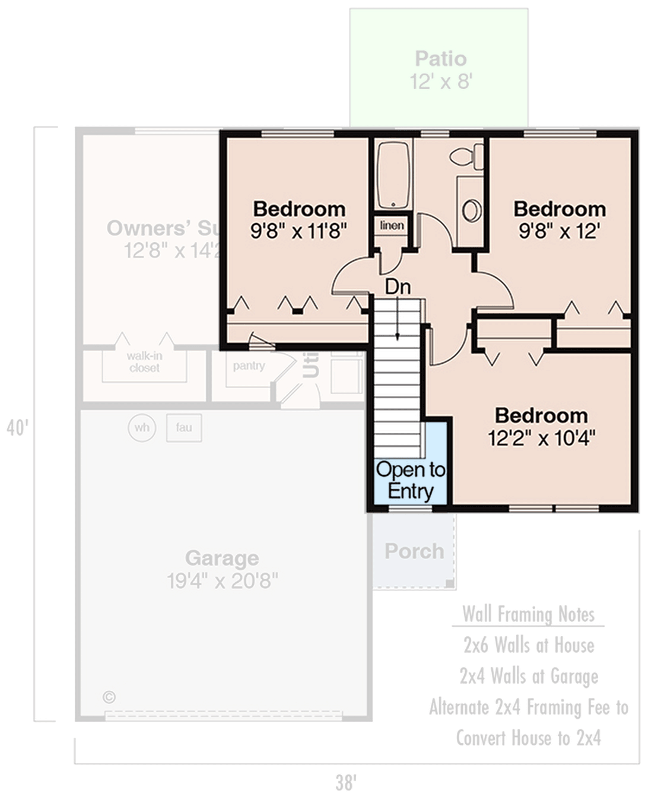

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
