Plan 8190LB

Compact Craftsman with Shed Dormer

Heated S.F.
1,793
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 8190LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8190LB

M-F 9am-5pm EST |

1-203-761-8500

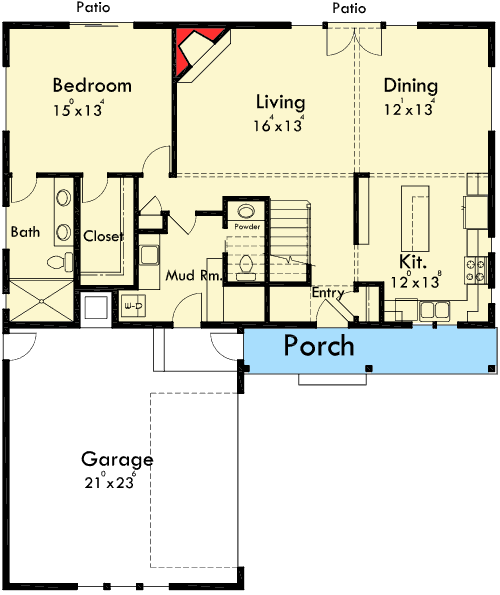

Main Level

Plan 8190LB: Compact Craftsman with Shed Dormer - Floor Plan - Main Level - Craftsman, Northwest

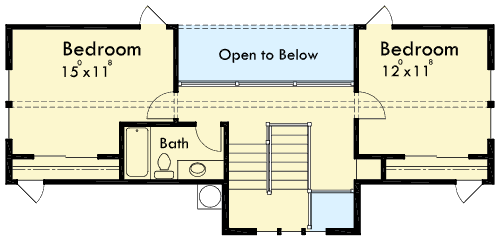

2nd Floor

Plan 8190LB: Compact Craftsman with Shed Dormer - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

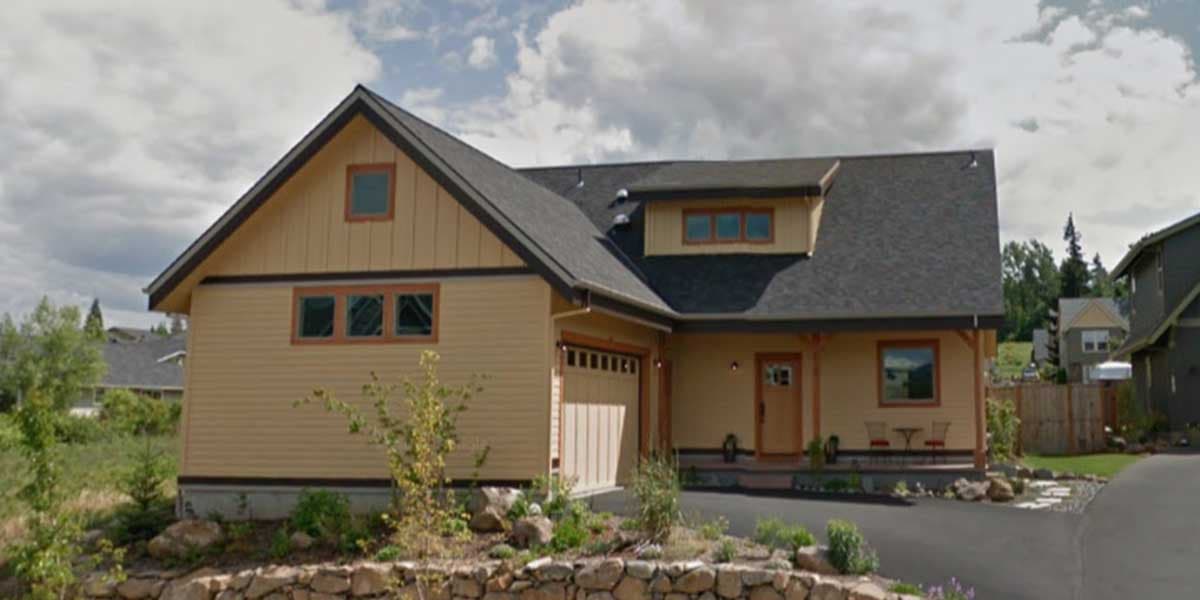

  • A shed dormer sits pretty on the roof of this compact 3 bedroom Craftsman house plan.
  • An open rail on the staircase going up makes the space feel larger.
  • The open floor plan allows the corner fireplace to be enjoyed from the dining room.
  • Sliding glass doors in the first floor master suite lead out to the back yard where you can add a deck if desired.
  • The two bedrooms on the upper floor share a hall bathroom and the open rail lets you look down into the great room below.

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,793 sq. ft.

1st Floor

1,250 sq. ft.

2nd Floor

543 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

52' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

538 sq. ft.

Count

2 Cars

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,793 sq. ft.

1st Floor

1,250 sq. ft.

2nd Floor

543 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

52' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

538 sq. ft.

Count

2 Cars

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
