Plan 3065D Compact Home on a Narrow Lot

1,262 3 2 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Compact Home on a Narrow Lot

Plan 3065D

  • 1,262

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • Perfect for a narrow lot, this compact home contains the basics and more: three bedrooms, two full baths, a two-car garage and an open great-room arrangement. Cascading gables and arched windows dress up the exterior.
  • Sheltered from the elements, the entry porch opens to the living room with its fireplace set on the diagonal and a sloped ceiling. Together with the living room, the dining room and the country kitchen offer space ideal for family living and entertaining. Light streams through a bayed window wall into the dining room, which opens to a patio in back.
  • The first-floor master suite shares a powder room with the rest of the house. The private master bath space is comprised of a sink, a shower-tub combination, a linen closet and a walk-in clothes closet.
  • Upstairs, the second full bath serves the two additional bedrooms.
  • For a larger version of this house plan, see 31010D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan

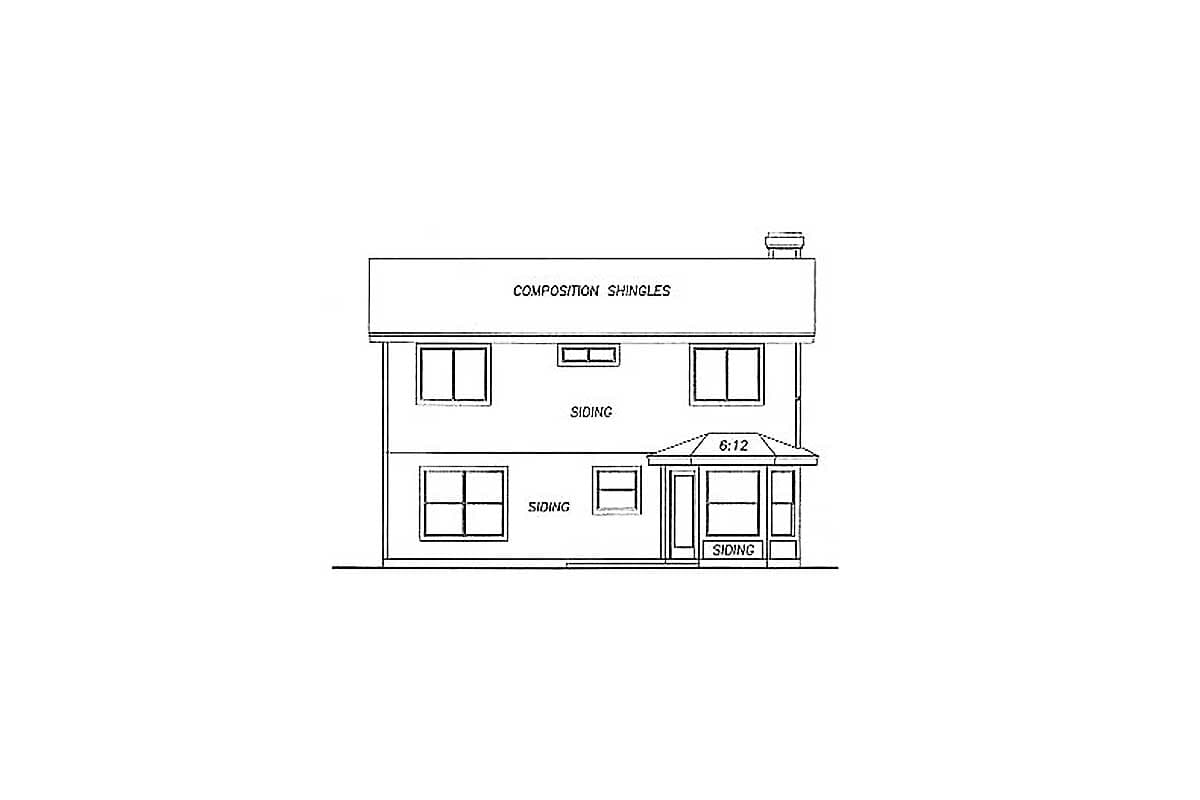

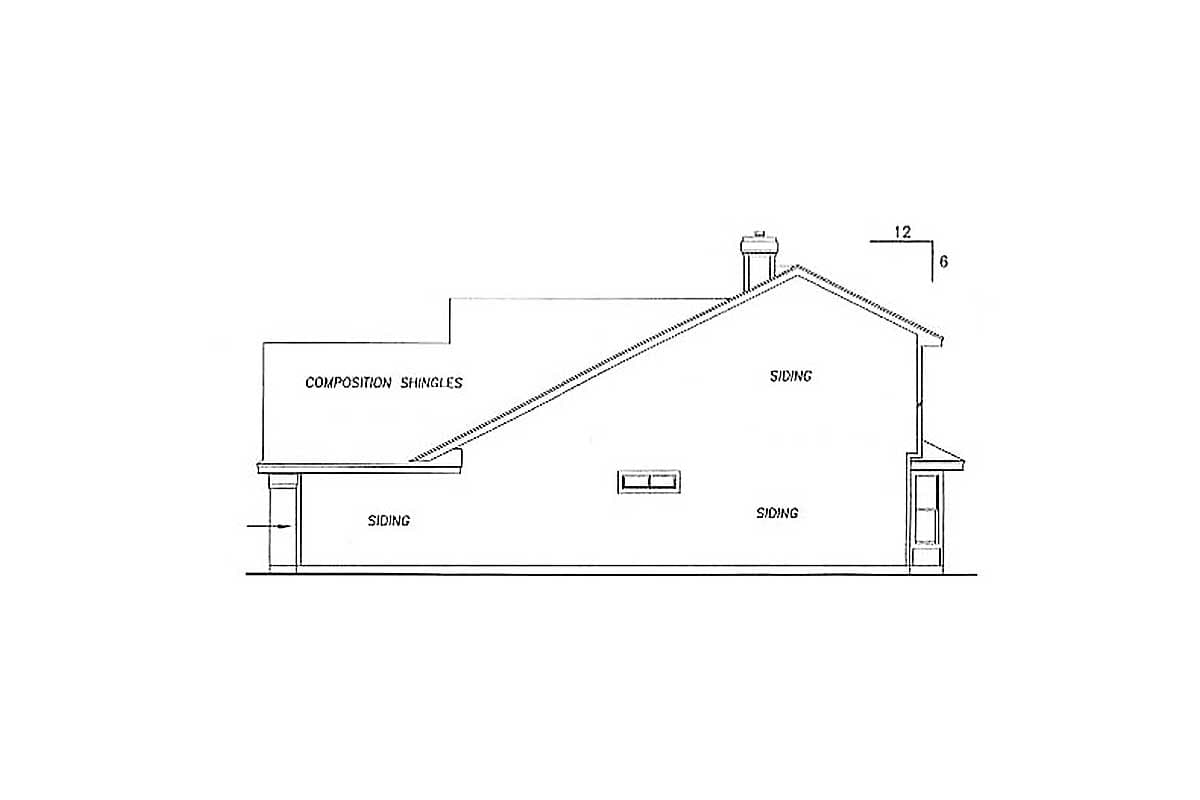

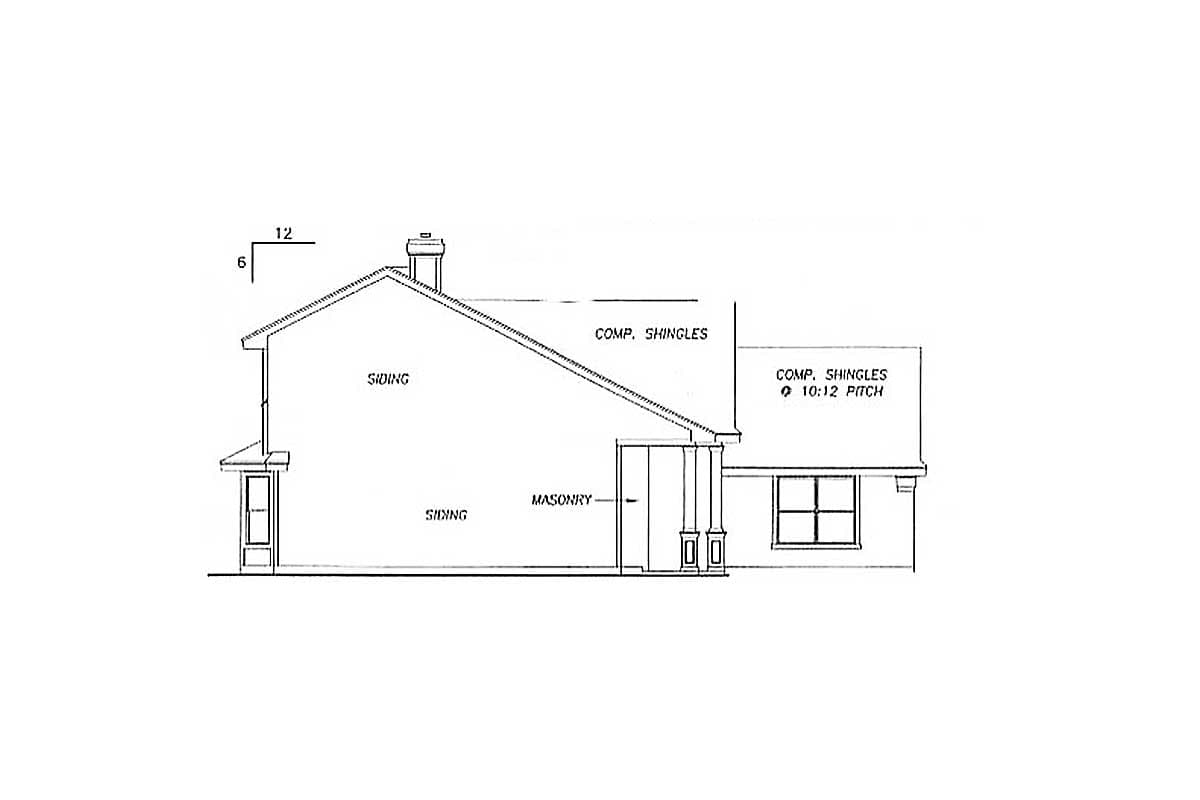

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

Floor Plan

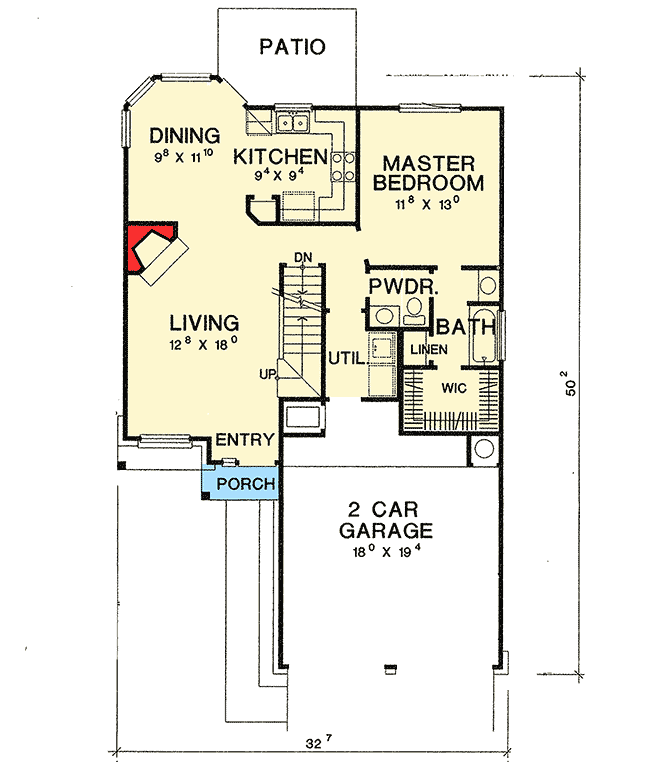

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact Home on a Narrow Lot - 3065D floor plan - Main Level

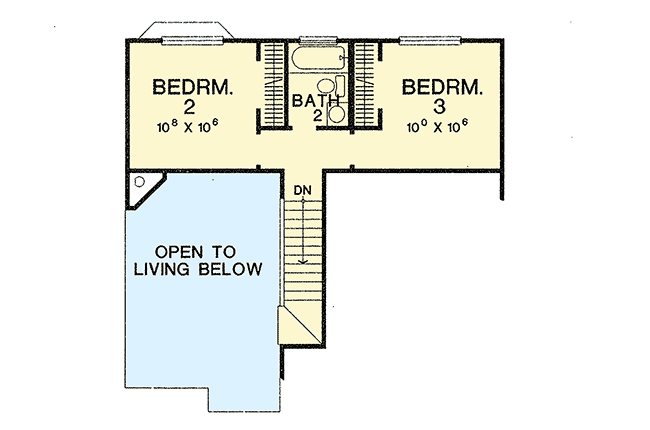

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Compact Home on a Narrow Lot - 3065D floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,262 sq. ft.
  • 1st Floor: 889 sq. ft.
  • 2nd Floor: 373 sq. ft.
  • Covered Patio: 97 sq. ft.
  • Entry: 55 sq. ft.
  • Porch, Front: 58 sq. ft.
  • Basement Unfinished: 889 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 32' 7"
  • Depth: 50' 2"
  • Max ridge height: 19' 5"

Garage

  • Type: Attached
  • Area: 403 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Compact Home on a Narrow Lot

  • 1,262

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • CAD - Single-Build $1,995
  • View all purchase option online

About This Plan

  • Perfect for a narrow lot, this compact home contains the basics and more: three bedrooms, two full baths, a two-car garage and an open great-room arrangement. Cascading gables and arched windows dress up the exterior.
  • Sheltered from the elements, the entry porch opens to the living room with its fireplace set on the diagonal and a sloped ceiling. Together with the living room, the dining room and the country kitchen offer space ideal for family living and entertaining. Light streams through a bayed window wall into the dining room, which opens to a patio in back.
  • The first-floor master suite shares a powder room with the rest of the house. The private master bath space is comprised of a sink, a shower-tub combination, a linen closet and a walk-in clothes closet.
  • Upstairs, the second full bath serves the two additional bedrooms.
  • For a larger version of this house plan, see 31010D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,262 sq. ft.
  • 1st Floor: 889 sq. ft.
  • 2nd Floor: 373 sq. ft.
  • Covered Patio: 97 sq. ft.
  • Entry: 55 sq. ft.
  • Porch, Front: 58 sq. ft.
  • Basement Unfinished: 889 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 32' 7"
  • Depth: 50' 2"
  • Max ridge height: 19' 5"

Garage

  • Type: Attached
  • Area: 403 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
