Plan 57026HA

Compact Home Plan for Sloping Lot

Pageloader

Compact Home Plan for Sloping Lot

Plan 57026HA

  • 1,332

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 4

    Cars

  • This home plan offers both basement and first floor entry locations.
  • A dramatic living room features a vaulted ceiling, fireplace, exterior balcony and dining area.
  • An L-shaped kitchen offers spacious cabinetry, breakfast area with bay window and access to the rear patio.
  • The first floor bedroom is handy to a convenient hall bath.
  • The second floor boasts two bedrooms, a full bath, and a balcony overlooking the living room.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan
  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Floor Plan

Plan details

Architectural Style

Plan Collections



Compact Home Plan for Sloping Lot

  • 1,332

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $750
  • 5 Sets $800
  • Reproducible Set $800
  • 8 Sets $875
  • CAD $1,550
  • View all purchase option online

About This Plan

  • This home plan offers both basement and first floor entry locations.
  • A dramatic living room features a vaulted ceiling, fireplace, exterior balcony and dining area.
  • An L-shaped kitchen offers spacious cabinetry, breakfast area with bay window and access to the rear patio.
  • The first floor bedroom is handy to a convenient hall bath.
  • The second floor boasts two bedrooms, a full bath, and a balcony overlooking the living room.

Floor Plans

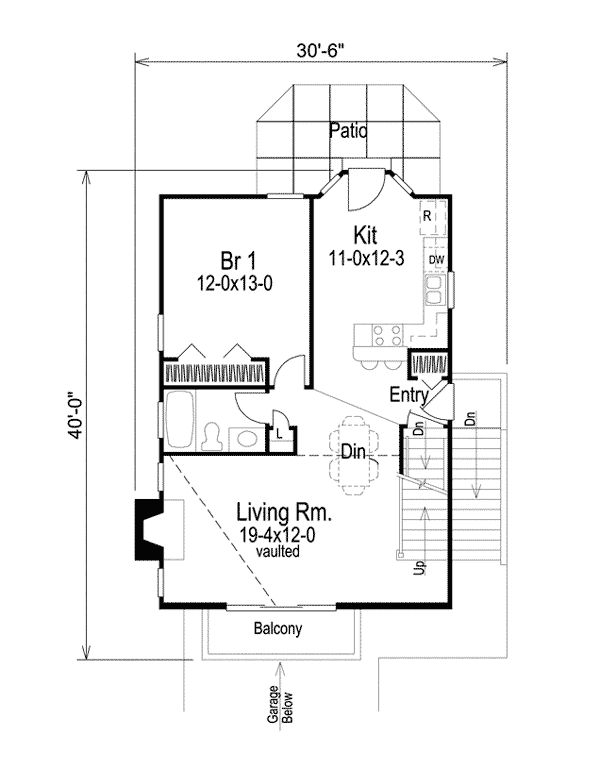

  • Main Level

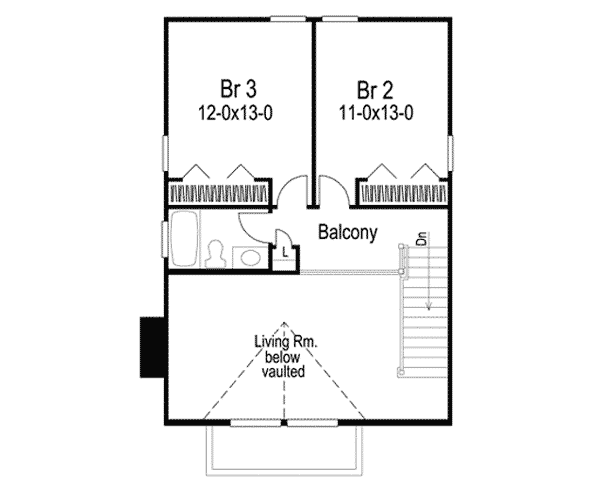

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,332 sq. ft.
  • 1st Floor: 828 sq. ft.
  • 2nd Floor: 504 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 6"
  • Depth: 40' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Drive Under
  • Area: 633 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
