Plan 55148BR
Compact Home Plan With Walk-In Closets
Heated S.F.
1,407
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This well-designed compact home plan has a small footprint packed with living space. All of the bedrooms have large walk-in closets and are generously sized.
  • The living room has a wonderful and expansive vaulted ceiling and a real brick wood burning fireplace.
  • The large gourmet kitchen is fully appointed and it offers a see-thru and pass-thru bar into the living room.
  • Two bedrooms are isolated from the master and share the hall bath. The master suite has an adjoining bath and private access to the covered side porch.
  • An oversized front loading garage has an open storage area and attic access via a pull-down stair.
  • To top it all off, this is a super energy saving plan featuring 2x6 exterior walls.
What's Included
Plans include the following:
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Compact Home Plan With Walk-In Closets

  • 1,407

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

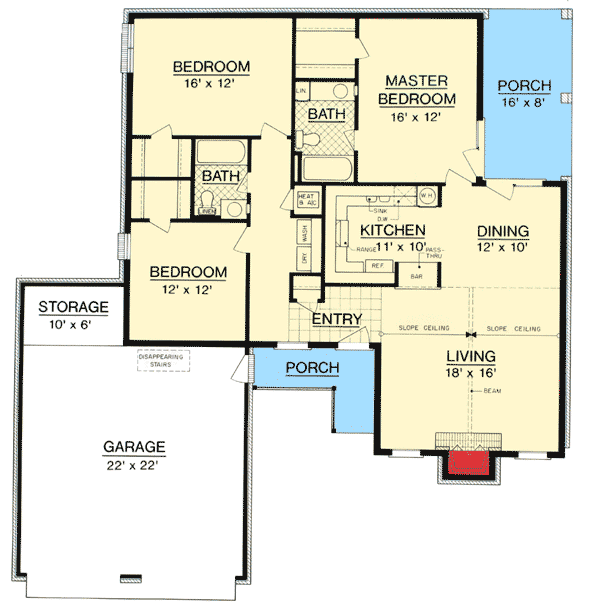

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,407 sq. ft.
  • 1st Floor: 1,407 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 54' 0"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick
