Plan 51859HZ
Compact Modern Farmhouse Under 1800 Square Feet with 3 Bedrooms
Heated S.F.
1,756
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 51859HZ

Main Level
slide image 0
Main Level - Basement Stairs Location
slide image 1

Plan 51859HZ

1-800-854-7852

1-262-521-4596

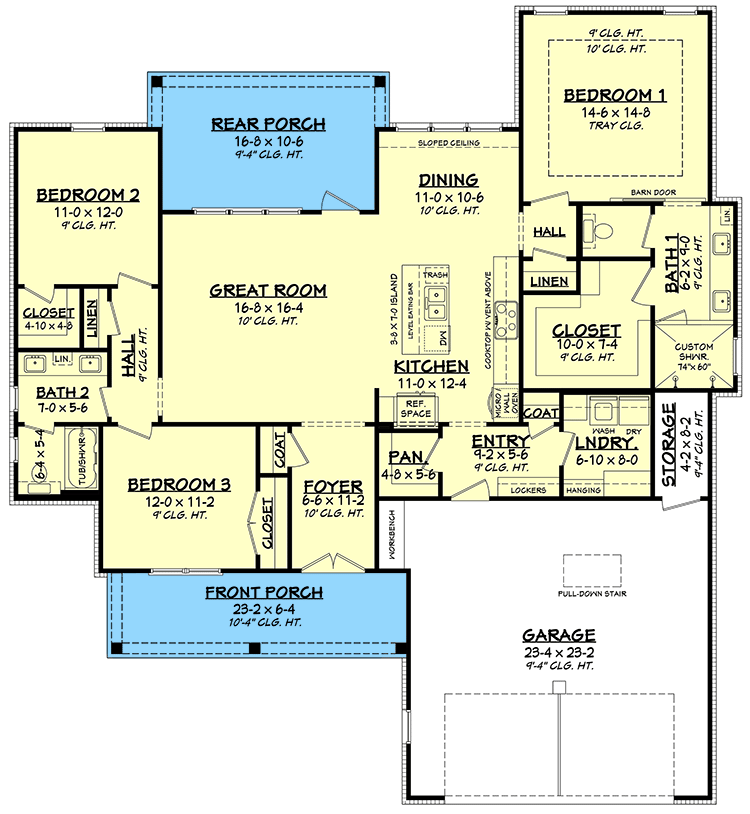

Main Level
floor plan image Main Level

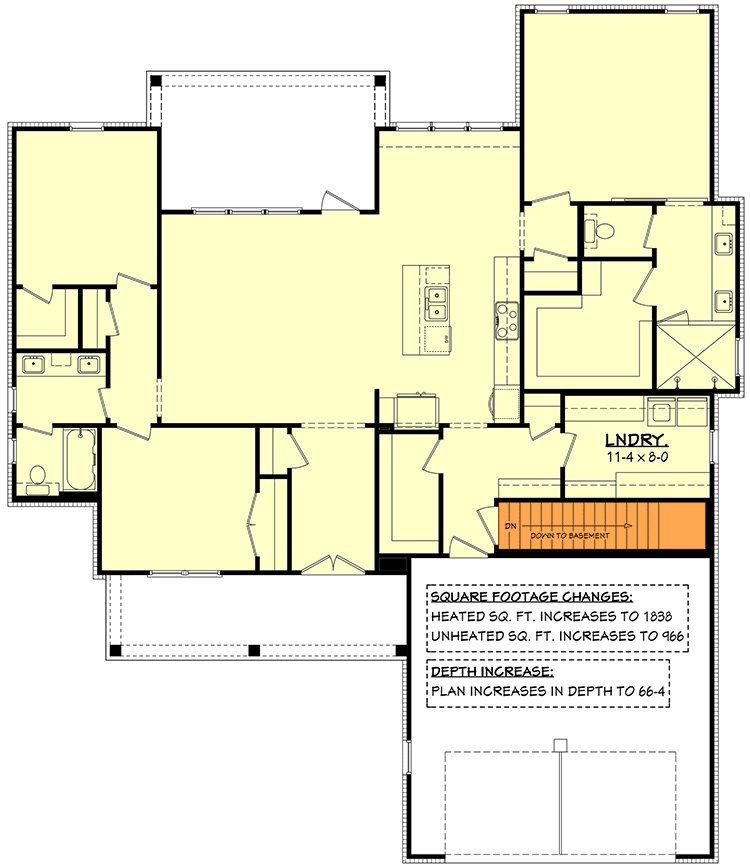

Main Level - Basement Stairs Location
floor plan image Main Level - Basement Stairs Location
Plan Details

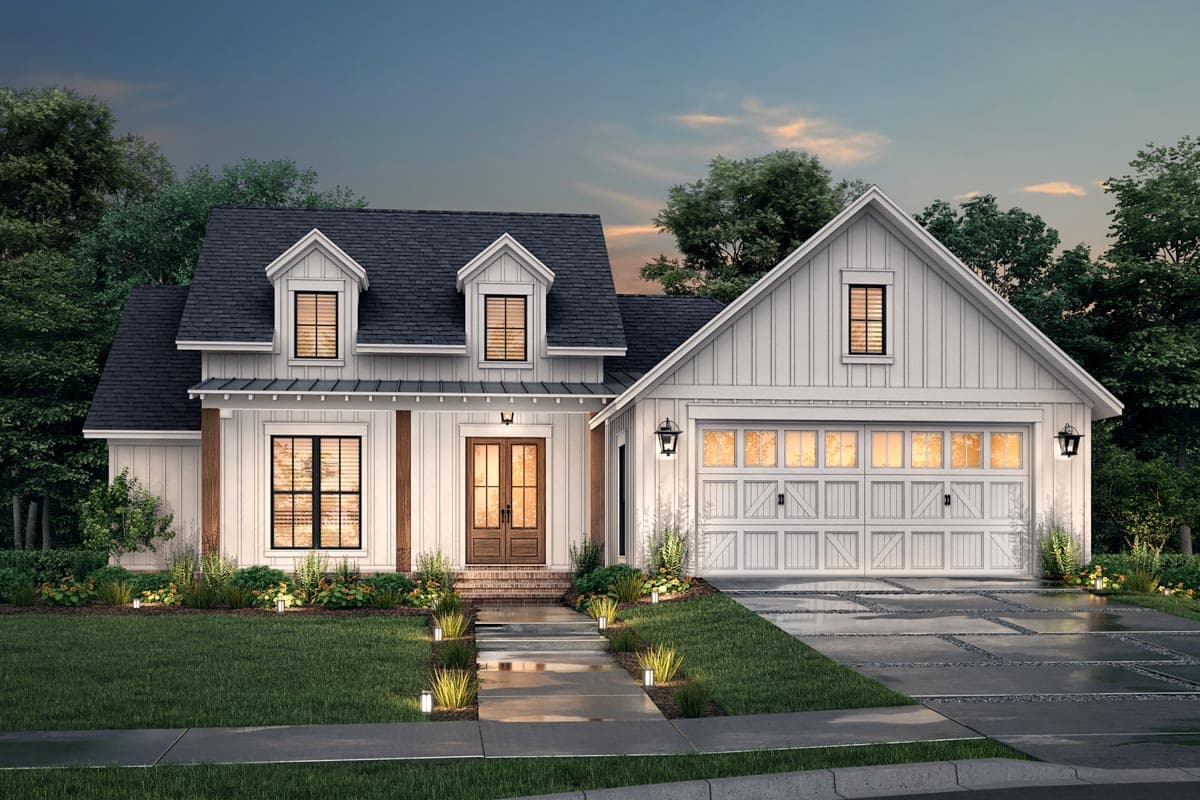

  • This compact 3-bedroom modern farmhouse offers many features you find in larger homes while coming in under 1,800 square feet of heated space. Two dormers above the front porch add to the curb appeal and open to the attic, not the main floor.
  • The great room, kitchen and dining are arranged in an open design to maximize the space and allow for large family gatherings and all have 10' ceilings.
  • A large island (3'8" by 7') is a welcome feature in the kitchen, as is the walk-in pantry and the cooktop with built in oven.
  • An oversized room is adjacent to the rear entry and comes equipped with lockers to help control clutter.
  • The primary bedroom has a 10' ceiling and offers a large bath and closet and offers a huge custom shower. Across the home, two more bedrooms share the second bath.
  • Select the basement option and the heated square feet expands to 1,836 square feet to accommodate the stairs which left-to-right just inside the home from the garage.
  • Related Plan: Get a courtyard garage with house plan 51933HZ (1,997 sq. ft.).
What's Included
This plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,756 sq. ft.

1st Floor

1,756 sq. ft.

Porch, Front

147 sq. ft.

Porch, Rear

182 sq. ft.

Storage

38 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 10"

Depth

62' 0"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country
