Compact New American Barndominium House Plan with Two-Car Garage

Heated S.F.
775
Beds
1 - 2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 420197WNT

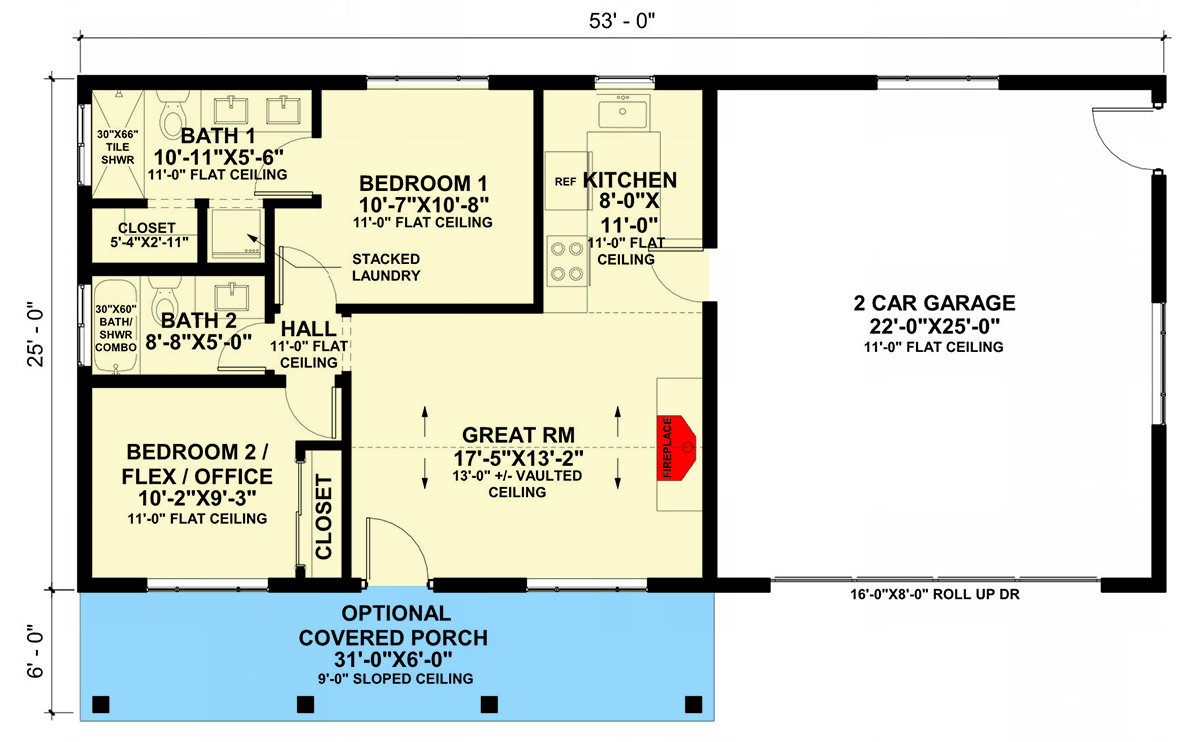

Floor Plan 1

Plan 420197WNT

M-F 9am-5pm EST |

1-203-761-8500

Plan 420197WNT: Compact New American Barndominium House Plan with Two-Car Garage - Floor Plan - - Barndominium, Country, New American

Plan Details

  • This efficient 775 sq ft New American barndominium features 1 to 2 bedrooms, 2 full bathrooms, and an integrated 550 sq ft 2-car garage.
  • The home offers a welcoming entry that transitions directly into a vaulted great room, creating an immediate sense of openness and airy comfort.
  • The interior layout emphasizes functional flow, with the great room acting as the heart of the home, anchored by a cozy fireplace and adjacent to an efficient kitchen.
  • A primary suite is positioned for privacy, while the secondary bedroom serves as a versatile flex space or home office, supported by a second full bathroom.
  • The design includes a convenient main-level laundry area tucked away for ease of access.
  • An optional covered porch stretches across the front of the home, providing a perfect spot for morning coffee and enjoying the surrounding landscape.
  • DELIVERY NOTE: Please allow 3 to 5 business days for delivery.

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

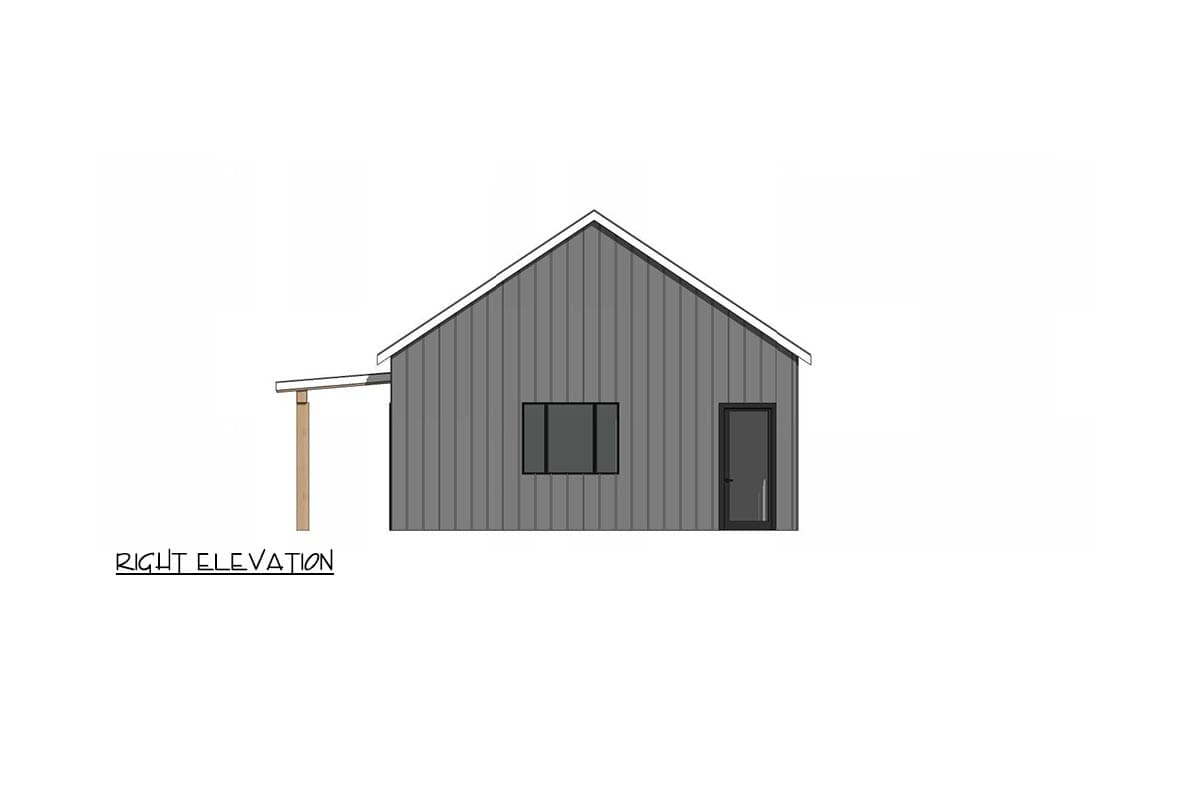

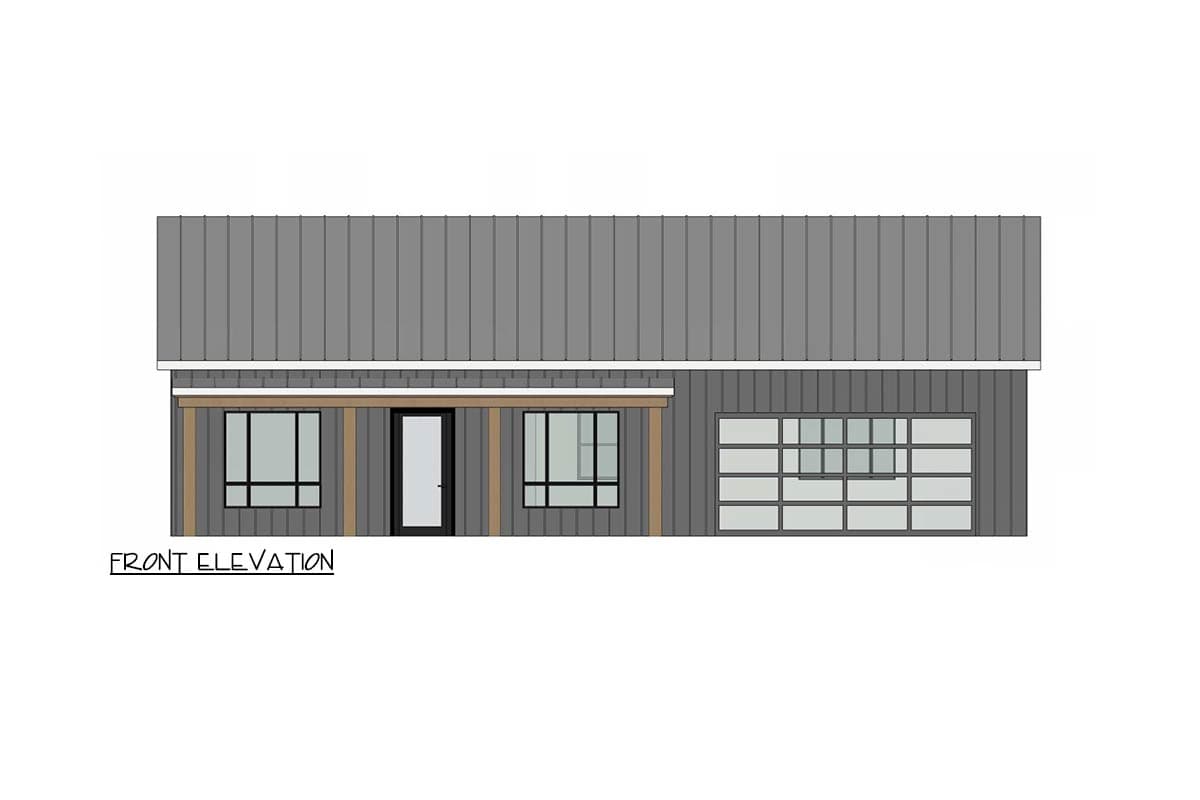

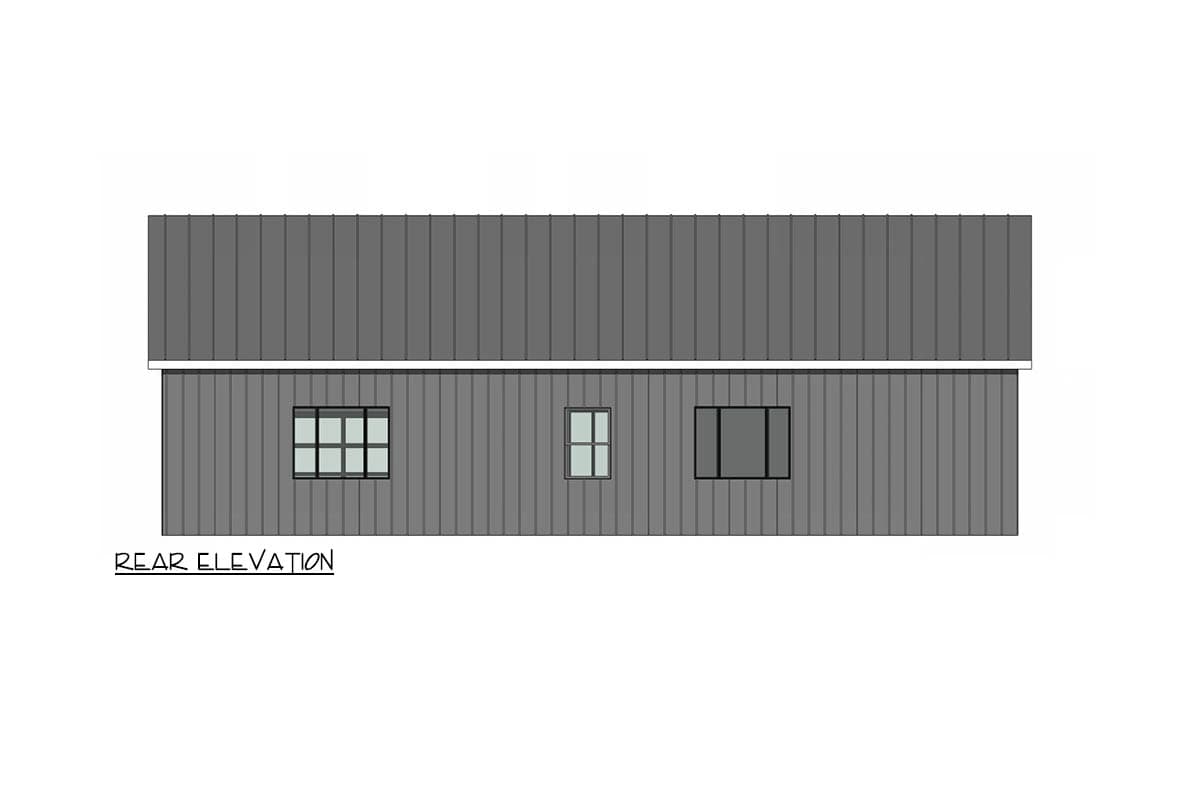

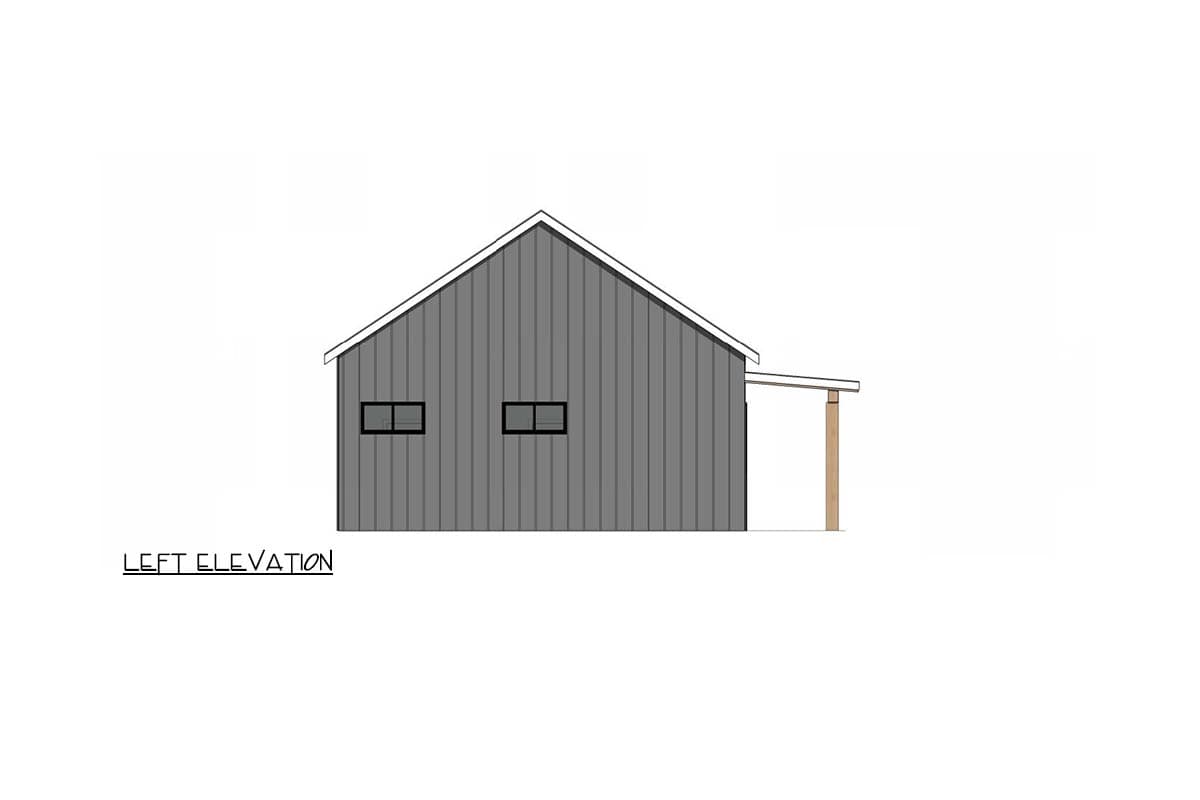

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

775 sq. ft.

1st Floor

775 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

25' 0"

Max Ridge Height

20' 0"

Garage

Type

Standard

Area

550 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Great Room

Vaulted

13' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

1 on 12

Framing Type

Architectural Style

Barndominium

Country

New American

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

775 sq. ft.

1st Floor

775 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

25' 0"

Max Ridge Height

20' 0"

Garage

Type

Standard

Area

550 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Room

Ceiling Type

Height

Great Room

Vaulted

13' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

1 on 12

Framing Type

Architectural Style

Barndominium

Country

New American

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
