Plan 62631DJ

Compact Split Level House Plan

Heated S.F.
1,096
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 62631DJ

Basement
Basement
Main Level
Main Level

Plan 62631DJ

M-F 9am-5pm EST |

1-203-761-8500

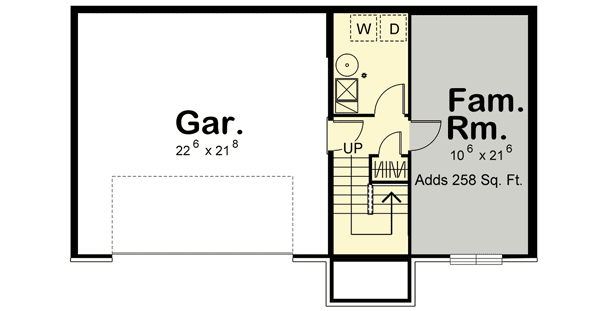

Basement

Plan 62631DJ: Compact Split Level House Plan - Floor Plan - Basement - Traditional

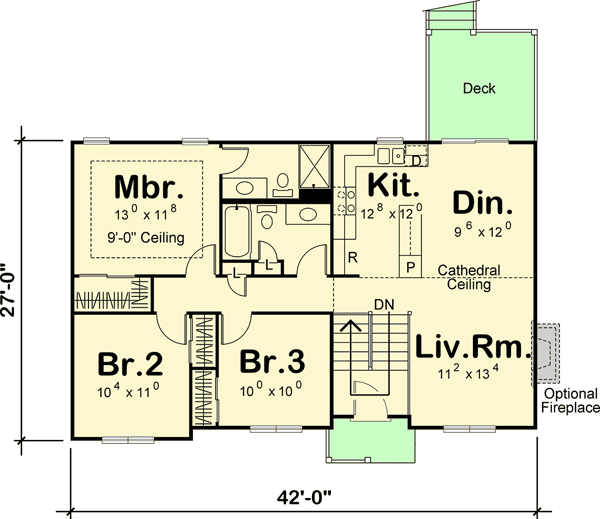

Main Level

Plan 62631DJ: Compact Split Level House Plan - Floor Plan - Main Level - Traditional

Plan Details

  • Only 42' wide, this Split Level house plan fits well on a narrow lot.
  • From the foyer, it is only six steps up to the living area.
  • A cathedral ceiling and an open floor plan maximize the space making the home feel larger.
  • Sliding glass doors in the dining area take you out to a rear deck.
  • The bedrooms are all grouped on the left side of the home.
  • The master bedroom gets a tray ceiling and private bathroom.
  • Add a finished bonus room on the ground level for an additional 258 square feet.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

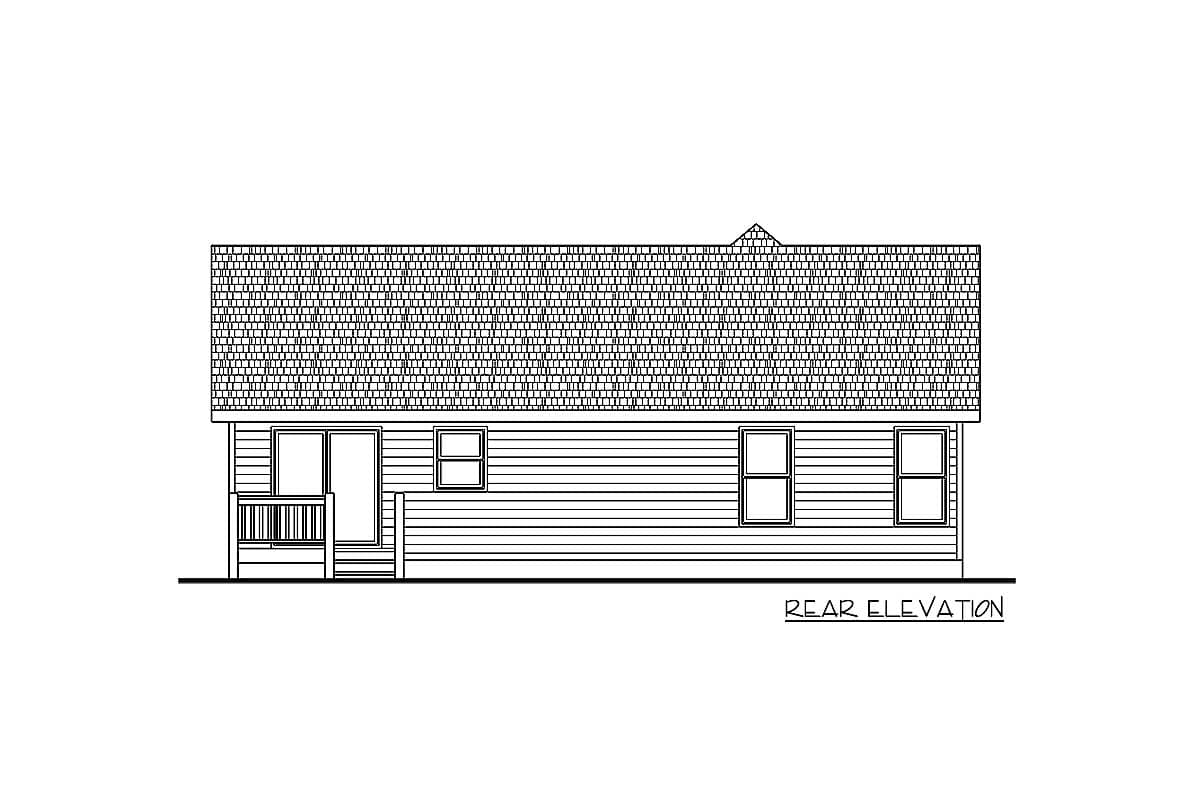

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,096 sq. ft.

1st Floor

1,096 sq. ft.

Basement Unfinished

369 sq. ft.

Bonus

258 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

27' 0"

Max Ridge Height

19' 0"

Garage

Type

Drive Under

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Split Level

Square Footage Breakdown

Total Heated Area

1,096 sq. ft.

1st Floor

1,096 sq. ft.

Basement Unfinished

369 sq. ft.

Bonus

258 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

27' 0"

Max Ridge Height

19' 0"

Garage

Type

Drive Under

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Split Level
