Contemporary Craftsman Plan with Bonus Room Over The Garage

Plan 51774HZ

2,534
Heated s.f.
3
Beds
2.5
Baths
1-2
Stories
2
Cars

This contemporary farmhouse home gives you three bedrooms and a bonus room over the garage with a full bath. Exposed truss and beams on the front porch and the angled garage give it great curb appeal.
High ceilings throughout the main living areas create impressive spaces, and the gourmet kitchen with hidden pantry has a large island with casual seating.
A covered outdoor kitchen also provides additional space for entertaining.
The private master suite including a spa-like bath and generous master closet. A jack-and-jill bath layout connects the two other bedrooms and includes large walk-in closets.

This designer's plans include the following details:

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

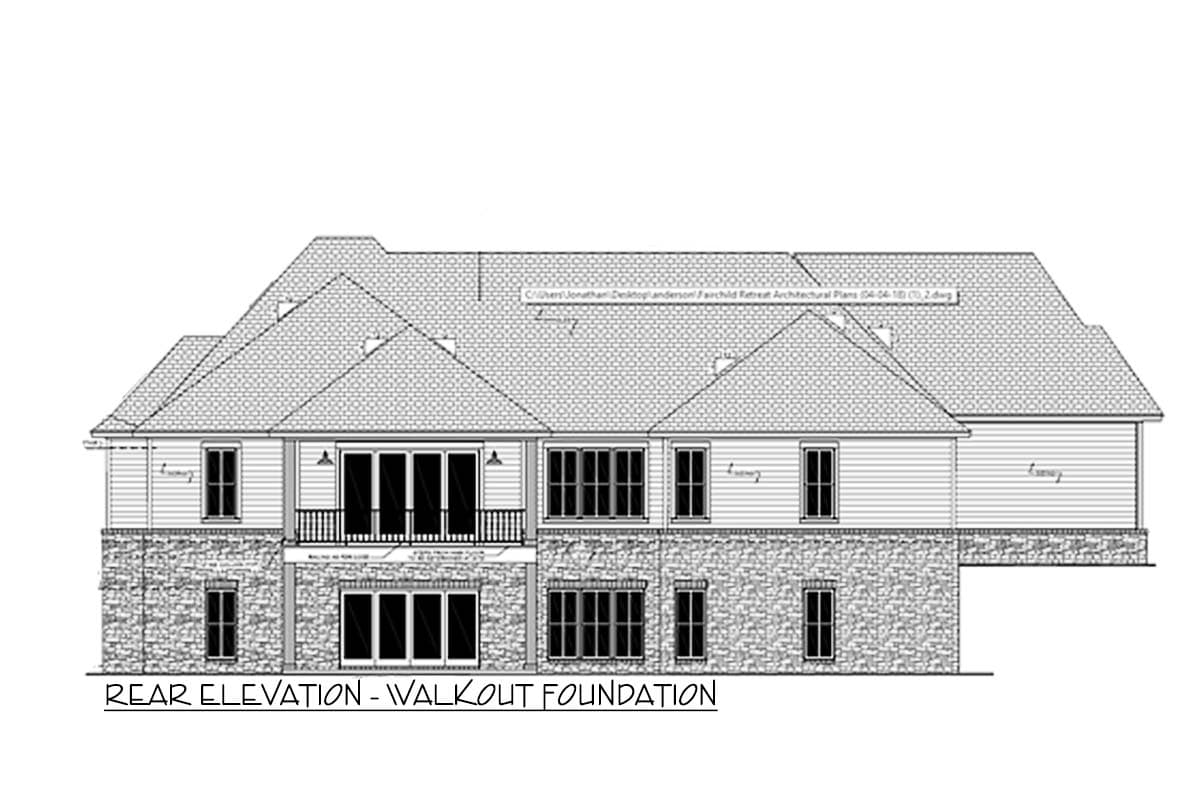

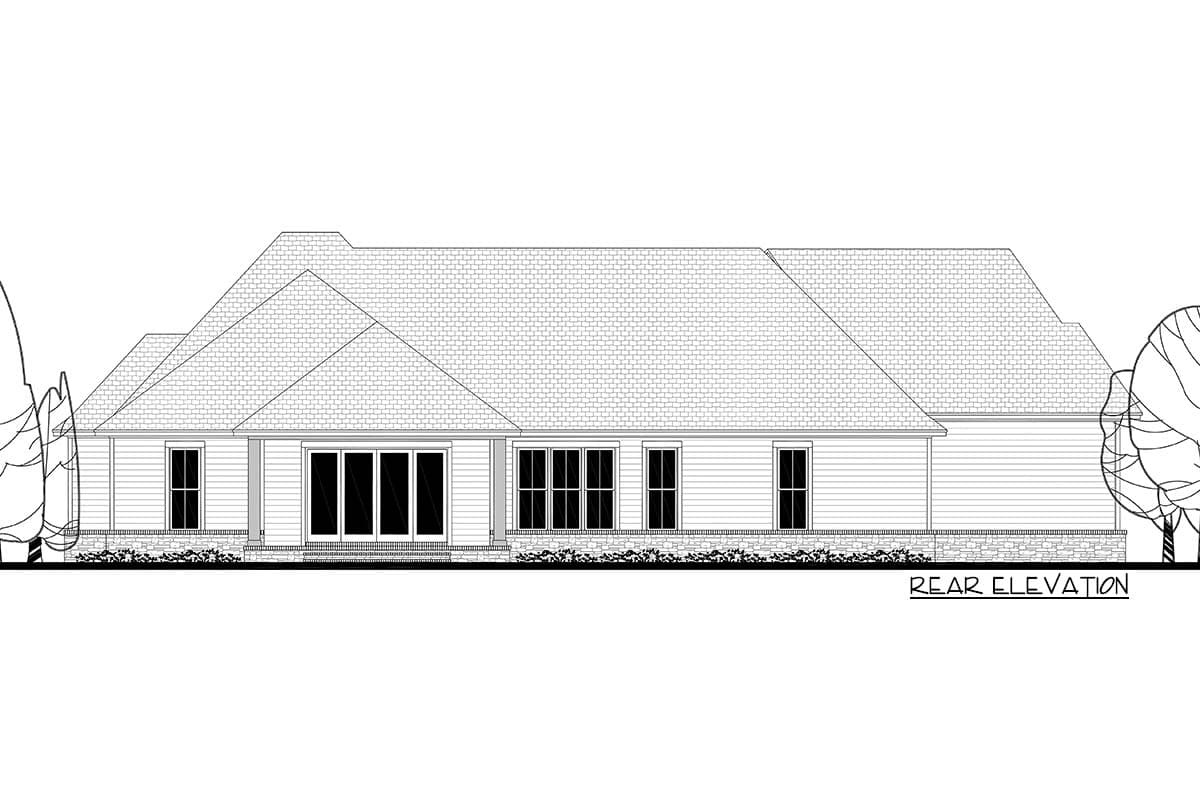

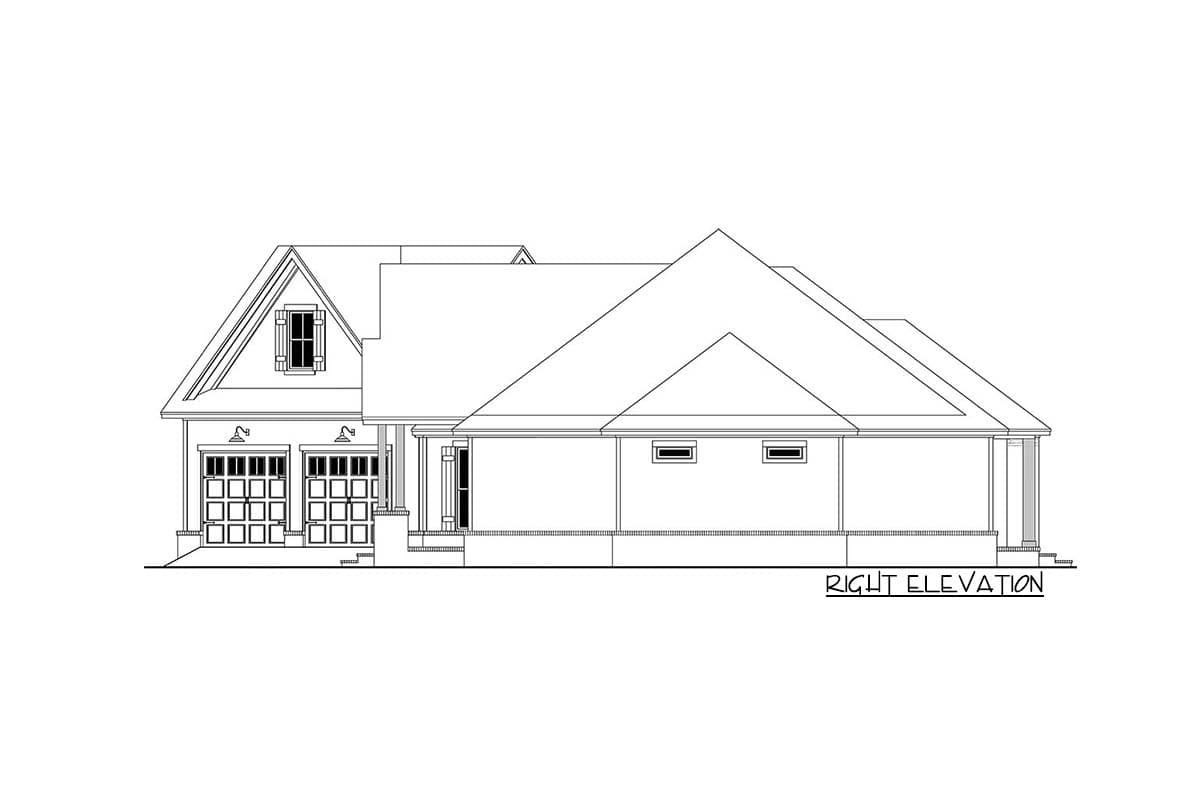

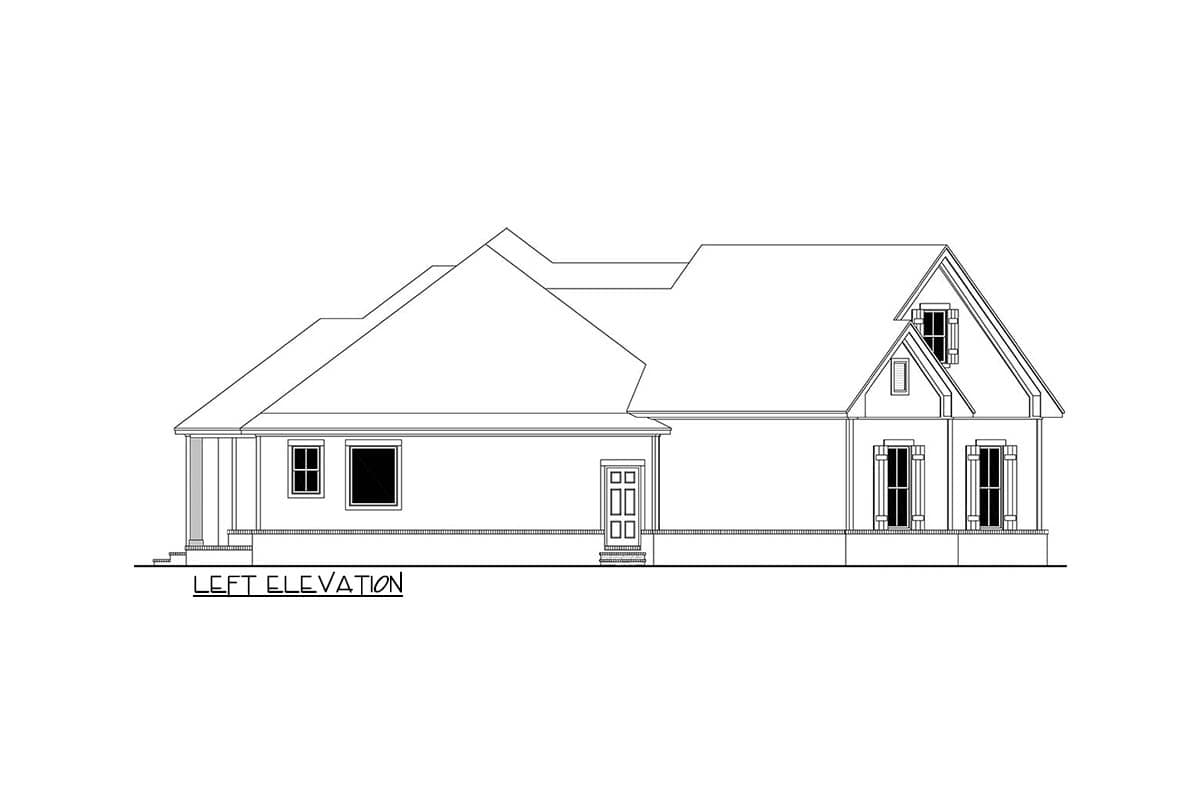

Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

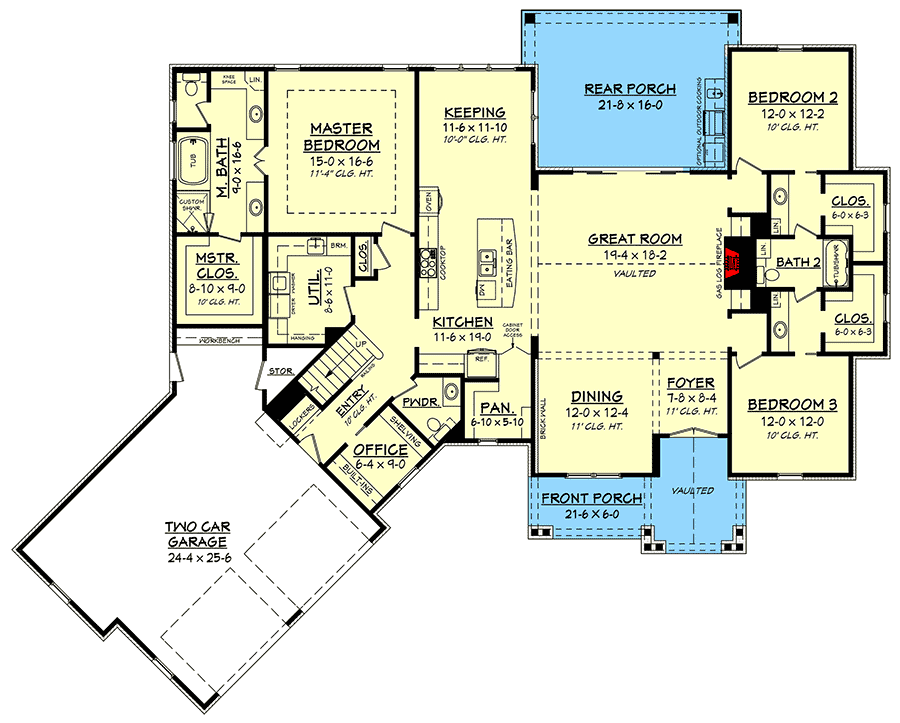

Contemporary Craftsman Plan with Bonus Room Over The Garage - 51774HZ floor plan - Main Level

Bonus

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

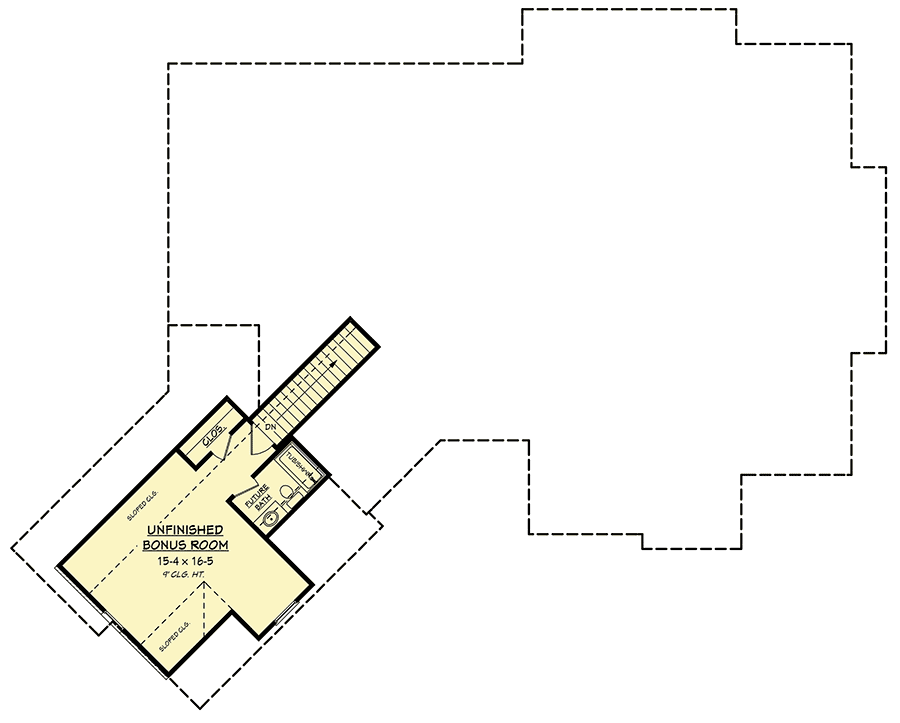

Contemporary Craftsman Plan with Bonus Room Over The Garage - 51774HZ floor plan - Bonus

Optional Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

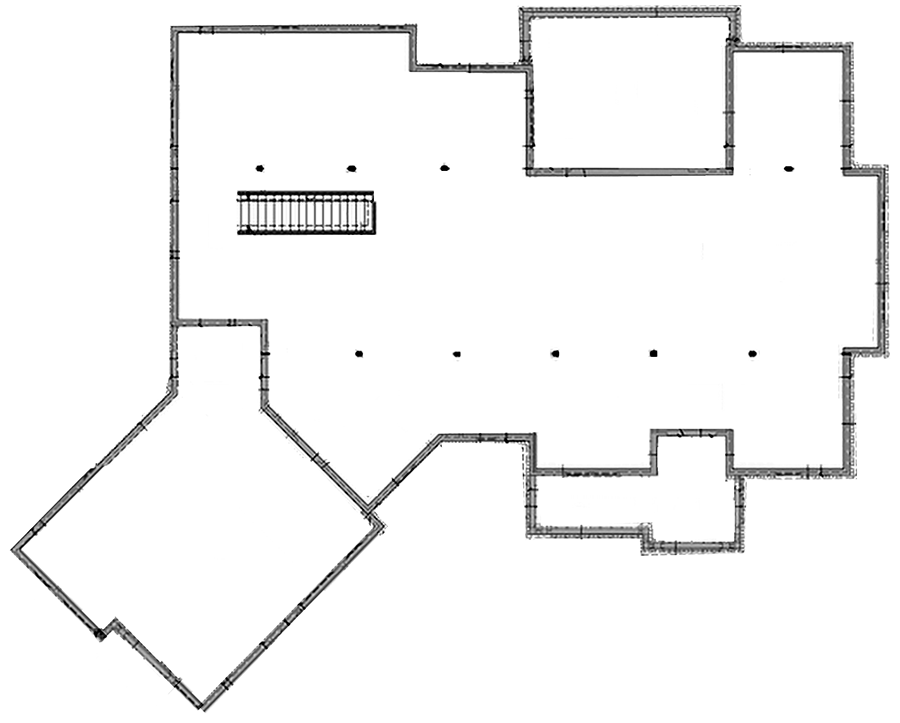

Contemporary Craftsman Plan with Bonus Room Over The Garage - 51774HZ floor plan - Optional Lower Level

Main Level - Basement Stair Location

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

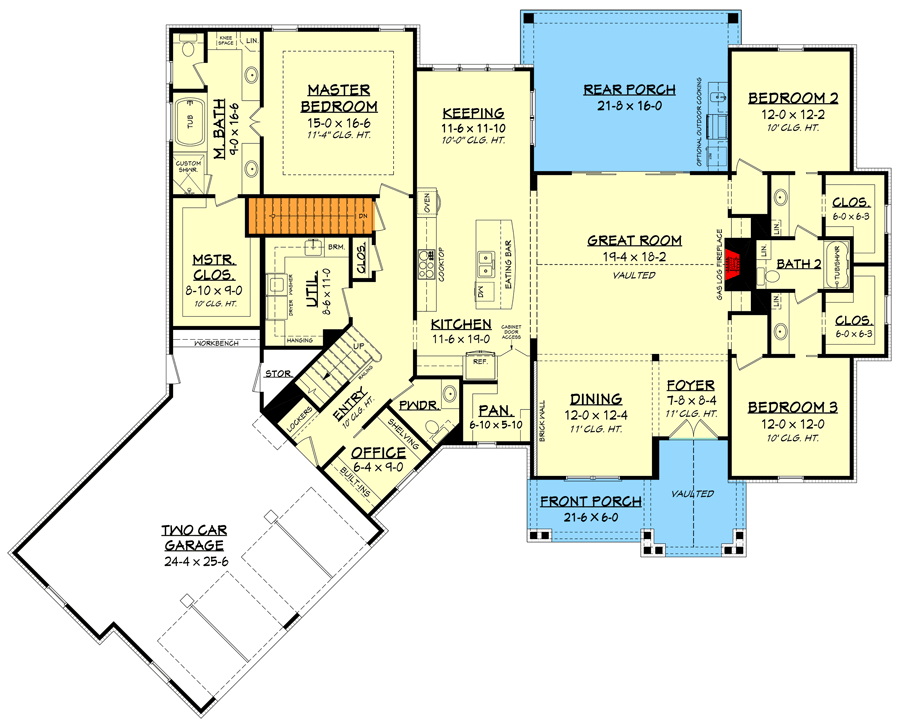

Contemporary Craftsman Plan with Bonus Room Over The Garage - 51774HZ floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

Total Heated Area: 2,534 sq. ft.
1st Floor: 2,534 sq. ft.

Storage: 20 sq. ft.
Porch, Rear: 324 sq. ft.
Porch, Front: 172 sq. ft.
Bonus: 418 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 88' 7"
Depth: 70' 10"
Max ridge height: 27' 0"

Garage

Type: Attached
Area: 720 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 4" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12

Framing Type: Stick
