Plan 57199HA

Corner Window Wall Dominates Design

Heated S.F.
784
Beds
3
Baths
1
Stories
1

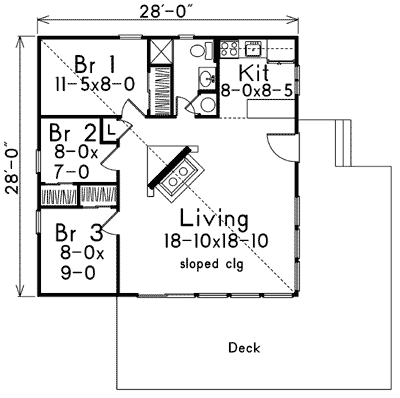

Floor Plan

Plan 57199HA

Main Level
Main Level

Plan 57199HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 57199HA: Corner Window Wall Dominates Design - Floor Plan - Main Level - Mountain, Vacation

Plan Details

  • Outdoor relaxation will be enjoyed with this home's huge wrap-around wood deck.
  • Upon entering the spacious living area, a cozy free-standing fireplace, sloped ceiling and corner window wall catch the eye.
  • Charming kitchen features pass-through peninsula to dining area.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

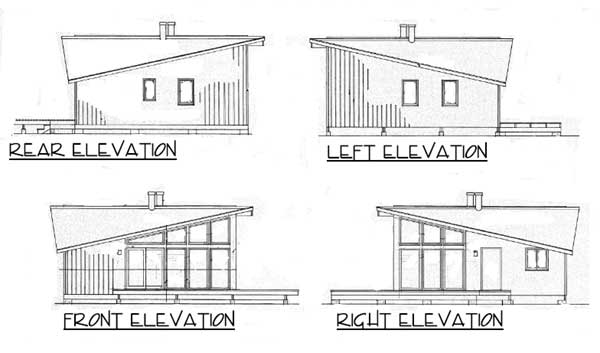

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?
