Cottage Duplex House Plan: 3 Beds, 2 Baths, Main Level Laundry Per Unit

Heated S.F.
2,240
Units
2
Width
Depth

Floor Plan

Plan 52485WM

Main Level
Main Level

Plan 52485WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

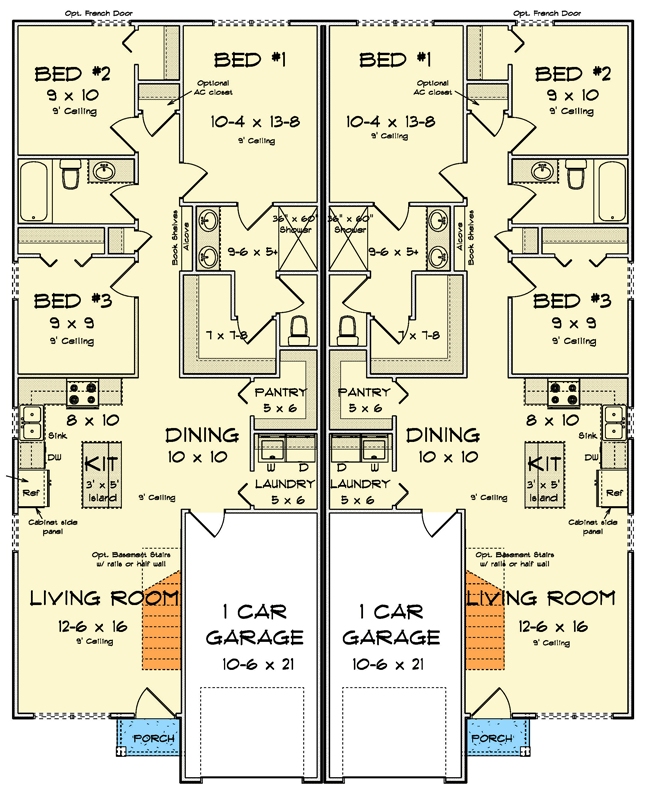

Plan 52485WM: Cottage Duplex House Plan: 3 Beds, 2 Baths, Main Level Laundry Per Unit - Floor Plan - Main Level - Cottage, Craftsman, Traditional

Plan Details

  • This charming Cottage style duplex house plan presents two distinct units, offering a combined total of 2,240 finished square feet. Each unit features three bedrooms, two full bathrooms, and a 1-car attached garage, with the entire structure encompassing two garages totaling 462 square feet.
  • Each unit welcomes you into an inviting living room with soaring 9-foot ceilings, flowing seamlessly into the dining area and kitchen, creating an open-concept layout ideal for daily living and social gatherings.
  • The well-appointed kitchen in each unit, featuring a practical island, seamlessly connects to the dining area for casual meals, while a dedicated main-level laundry room and a generous butler walk-in pantry enhance daily convenience and storage capabilities.
  • Each unit thoughtfully clusters its three bedrooms; a spacious primary bedroom and an additional bedroom share one full bath, while a third bedroom enjoys its own private full bath, ensuring comfort and privacy for all residents.
  • A welcoming front porch, totaling 30 square feet across both units, provides a charming entry point and a cozy spot for morning coffee or evening relaxation.
Unit A & B
Heated Area
1,120Sq. Ft.
1120 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
231 Sq. Ft.
Dimensions
24'width
59'depth
Unfinished Areas
231 Sq. Ft. Garage
15 Sq. Ft. Deck & Porch

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
