Cottage Duplex House Plan with First Floor Masters

Heated S.F.
2,404
Units
2
Width
Depth

Floor Plan

Plan 720147DA

Main Level
Main Level

Plan 720147DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

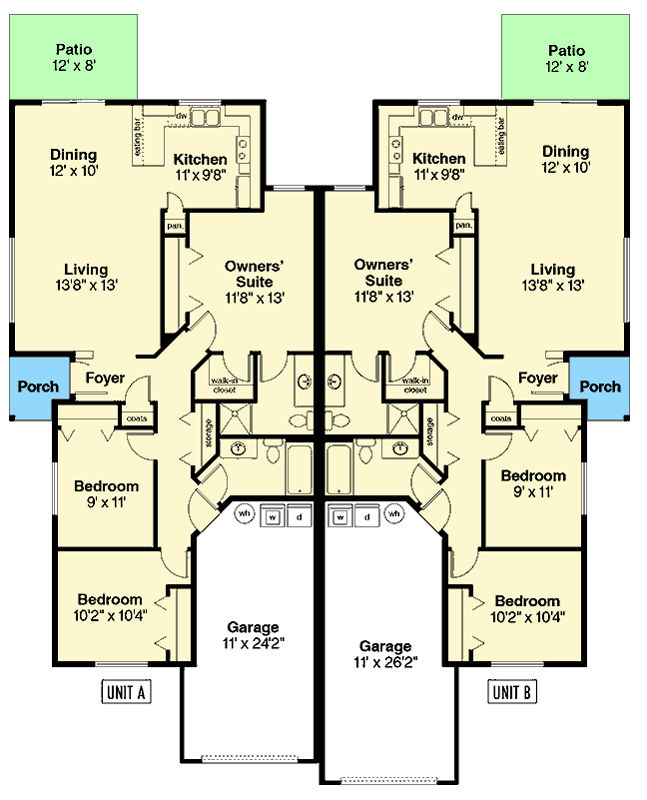

Plan 720147DA: Cottage Duplex House Plan with First Floor Masters - Floor Plan - Main Level - Cottage, New American

Plan Details

  • This charming 1202 Sq. Ft. Cottage style duplex house plan offers comfortable living with 3 beds, 2 full baths, and a convenient 289 Sq. Ft. 1-car attached garage per unit.
  • Step inside each unit from a welcoming front porch into a compact foyer, offering a coat closet and a clear path to the expansive open-concept living area.
  • The heart of each home is the generously sized living room, flowing seamlessly into the dining area and a well-appointed kitchen, which features a practical breakfast nook for casual meals and a dedicated pantry. A main level laundry area is discreetly positioned near the owner's suite.
  • The private Owner's Suite, thoughtfully placed on the first floor, provides a serene retreat with its spacious bedroom, walk-in closet, and an en-suite full bathroom. Two additional bedrooms are strategically located on the opposite side of the unit, creating a desirable split-bedroom layout ideal for privacy, and they share a full hall bathroom.
  • Each unit extends its living space outdoors with a private 12' x 8' patio, perfect for al fresco dining or enjoying a quiet morning coffee, complementing the welcoming front porch.
Unit A & B
Heated Area
1,202Sq. Ft.
1202 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
289 Sq. Ft.
Dimensions
29'width
64'depth
Unfinished Areas
289 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

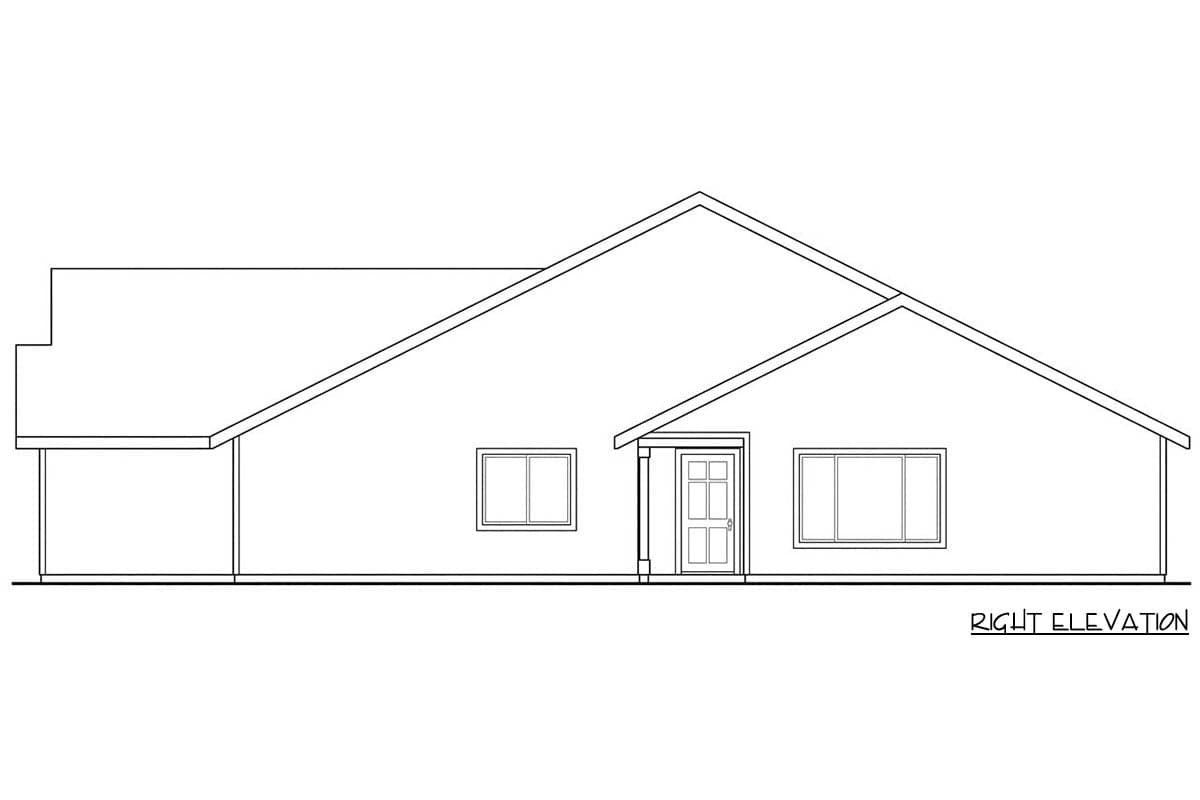

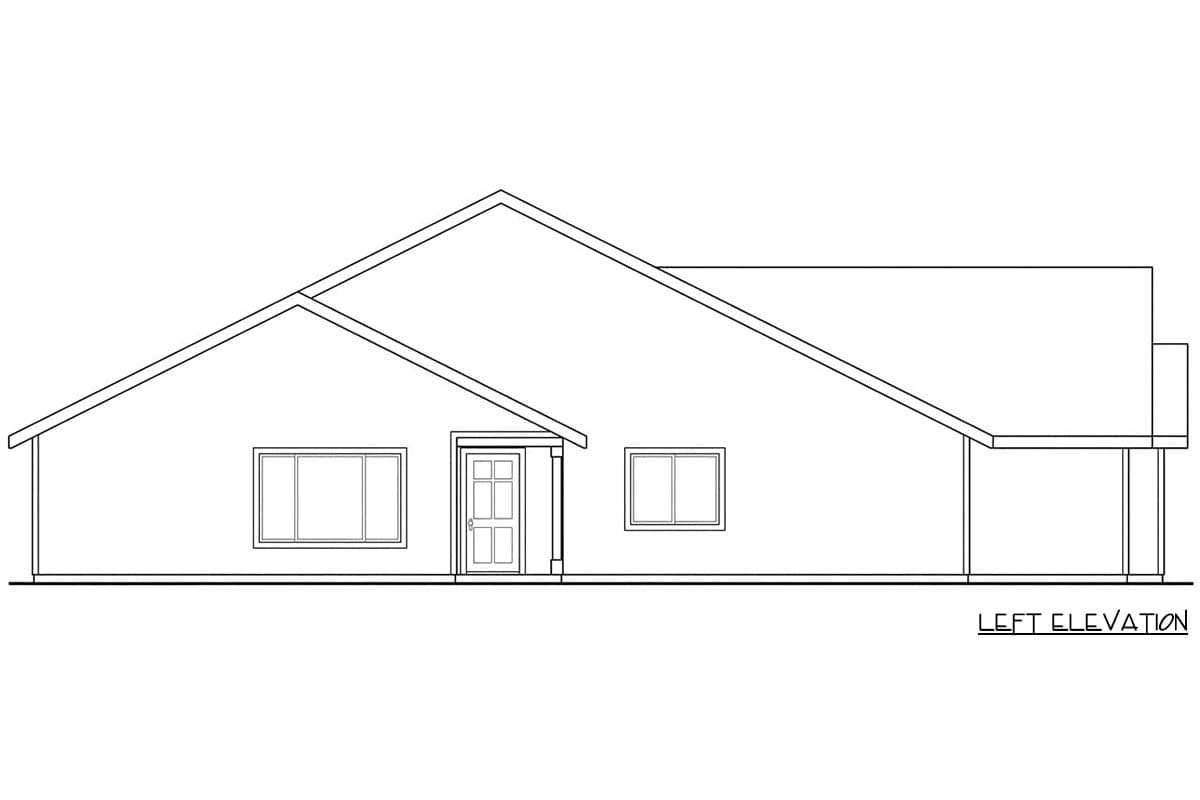

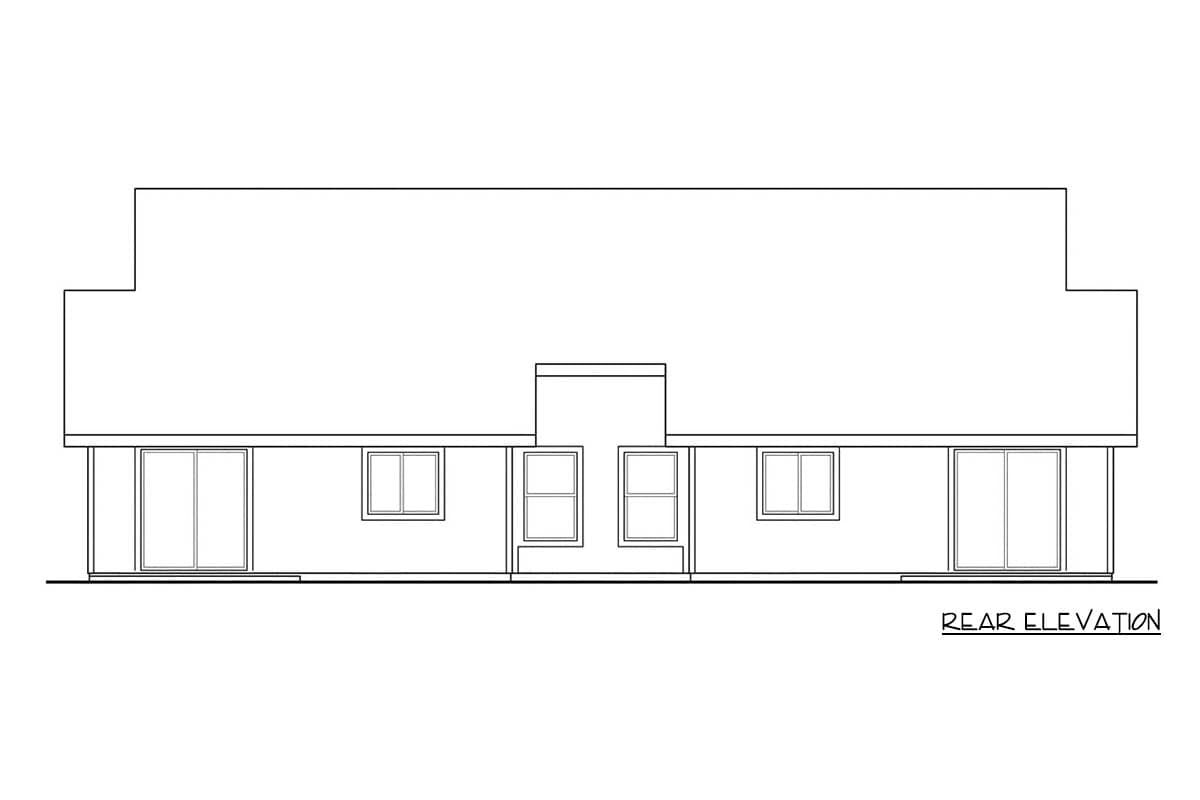

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,404 sq. ft.

1st Floor

2,404 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

64' 0"

Max Ridge Height

22' 0"

Garage

Type

Standard, Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,404 sq. ft.

1st Floor

2,404 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

64' 0"

Max Ridge Height

22' 0"

Garage

Type

Standard, Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
