Plan 52477WM

Cottage House Plan: 3 Beds, Open Living, Butlers Pantry

Heated S.F.
1,120
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 52477WM

Main Level
Main Level

Plan 52477WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

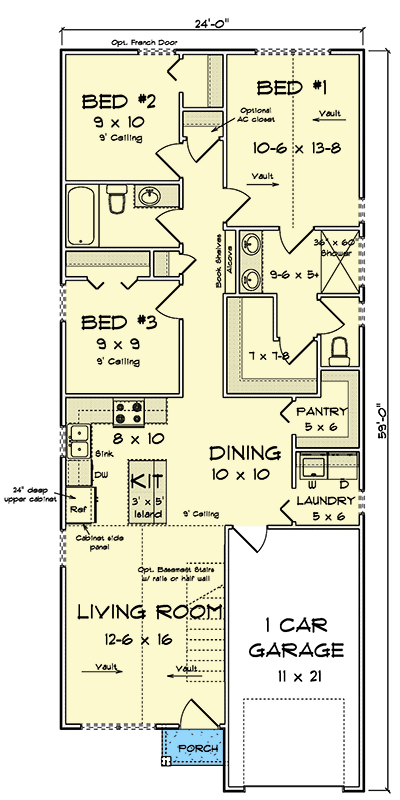

Plan 52477WM: Cottage House Plan: 3 Beds, Open Living, Butlers Pantry - Floor Plan - Main Level - Cottage, Country, Shingle

Plan Details

  • This charming 1,120 sq. ft. cottage house plan offers 3 bedrooms, 2 full bathrooms, and an attached 231 sq. ft. 1-car garage, all clad in inviting shingle-style siding.
  • Upon entering from the small, welcoming front porch, guests are greeted by an immediately open-concept living room with a vaulted ceiling, seamlessly flowing into the dining area, creating an expansive feel perfect for intimate gatherings or quiet evenings.
  • The heart of the home features a well-appointed kitchen with an island, positioned to overlook the dining space, making meal preparation a social affair. Adjacent to the dining area, a convenient walk-in butler's pantry and a dedicated main-level laundry room enhance daily functionality.
  • The private master suite is thoughtfully placed on the first floor for convenience, featuring a spacious bedroom with a vaulted ceiling and an ensuite bathroom with a large shower. Two additional bedrooms, sharing a full bathroom, are clustered on the opposite side of the home, providing a quiet retreat for family or guests.
  • A cozy 15 sq. ft. front porch provides a quaint spot to enjoy a morning coffee or greet neighbors, enhancing the home's charming curb appeal.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,120 sq. ft.

1st Floor

1,120 sq. ft.

Porch, Front

15 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

59' 0"

Max Ridge Height

17' 6"

Garage

Type

Standard, Attached

Area

231 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Shingle

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,120 sq. ft.

1st Floor

1,120 sq. ft.

Porch, Front

15 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

59' 0"

Max Ridge Height

17' 6"

Garage

Type

Standard, Attached

Area

231 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Shingle

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
