Plan 52464WM

Cottage House Plan with Dual Suites and Vaulted Great Room

Heated S.F.
1,049
Beds
2
Baths
2
Stories
1

Floor Plan

Plan 52464WM

Main Level
Main Level

Plan 52464WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

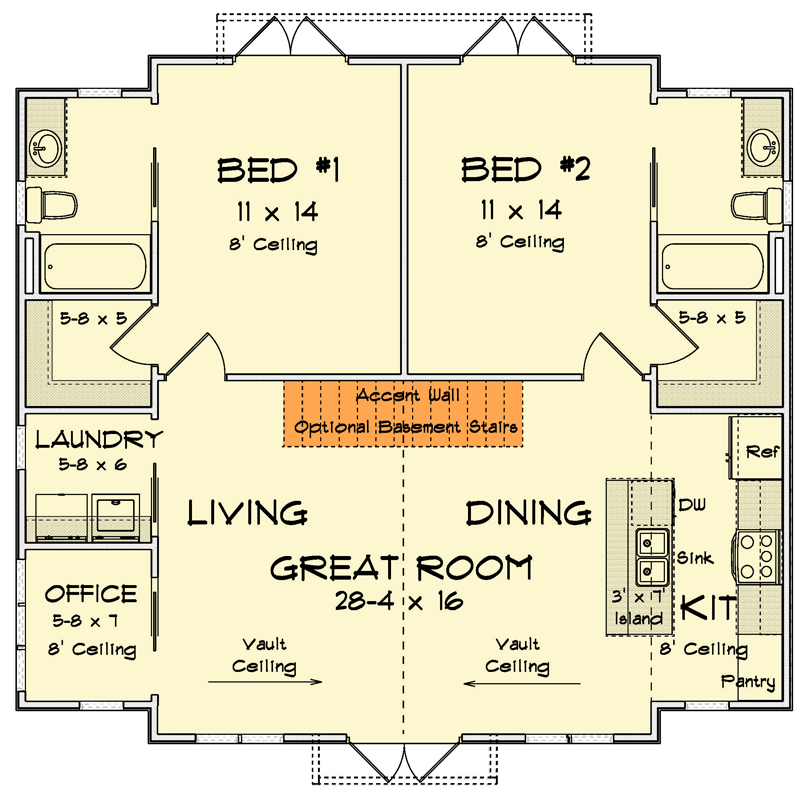

Plan 52464WM: Cottage House Plan with Dual Suites and Vaulted Great Room - Floor Plan - Main Level - Cottage, Traditional

Plan Details

  • This inviting 1,049 sq. ft. Traditional Plan offers two bedrooms, two full bathrooms, and exudes classic charm.
  • Step through the welcoming double French doors into an expansive, open-concept great room, where a dedicated home office is conveniently placed near the entry for focused work or study.
  • The central great room, featuring a dramatic vault ceiling, seamlessly connects the comfortable living area with the dining space, flowing into a well-appointed kitchen boasting a practical island and a walk-in pantry, perfect for daily living and casual gatherings.
  • Flanking the great room, two equally spacious and private bedroom suites each offer ample space and a dedicated full bathroom, creating ideal retreats for residents or guests.
  • The exterior presents a classic cottage facade with a covered entry, offering a quaint spot for welcoming guests.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
