Cottage House Plan With Master Sitting Room - 1550 Sq Ft - Architectural Designs
Heated S.F.
1,550
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

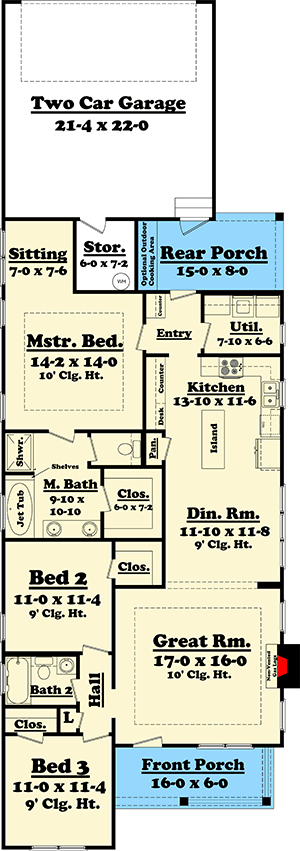

Cottage House Plan With Master Sitting Room - 1550 Sq Ft - Architectural Designs - 11763HZ floor plan - Main Level
Basement Stairs
Reverse Floor Plan

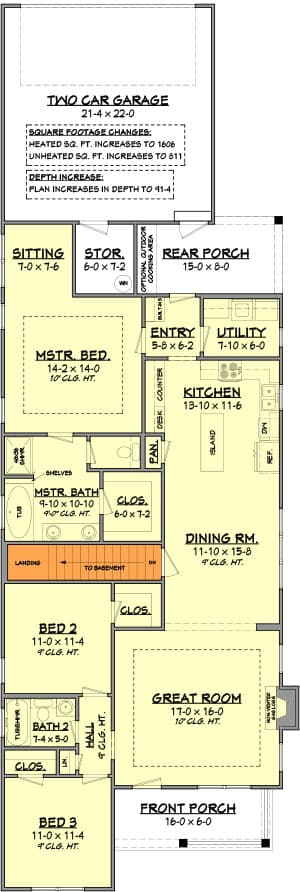

Cottage House Plan With Master Sitting Room - 1550 Sq Ft - Architectural Designs - 11763HZ floor plan - Basement Stairs
Plan Details
  • Only 30'8" wide, this narrow lot Cottage still has room for a master sitting area.
  • The covered front porch opens to the big great room with tray ceiling and fireplace.
  • Views extend all the way back through to dining room to the kitchen with island.
  • Two equal size bedrooms are placed in the front, with the master suite in back for privacy.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

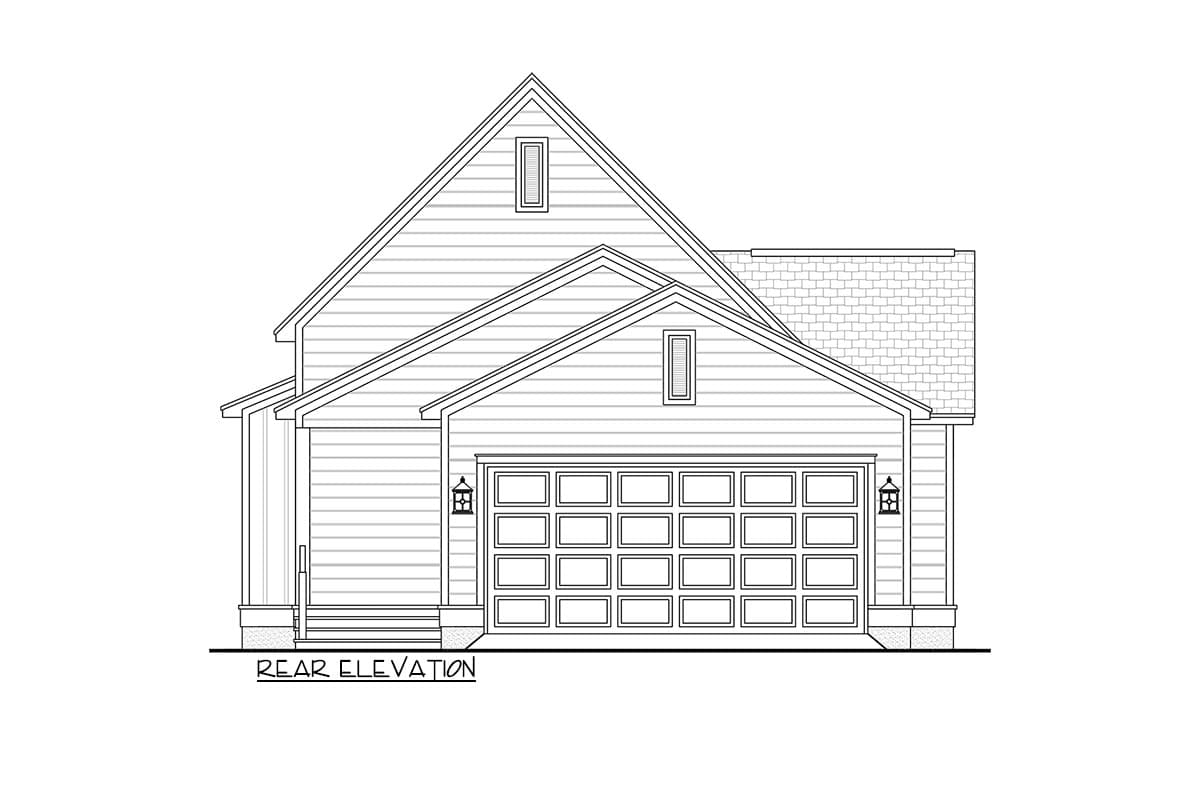

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
