Plan 22182SL Cottage In The Woods with 2 Beds and 2 Porches

Cottage In The Woods with 2 Beds and 2 Porches

Plan 22182SL

  • 1,185

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • This cottage is perfect for that spot in the woods. It has an attractive board and batten exterior with a touch of shakes in the gables and a stone-clad chimney. It gives you 1,185 square feet of heated living space plus front and side porches that extend the livability to the outdoors.
  • Step in off the front porch and find yourself in the sitting room with fireplace on the right wall and the kitchen and breakfast are on your left. The kitchen has a C-shaped layout with lots of counterspace.
  • The bedrooms are located in back and each enjoy their own bathrooms. The washer and dryer are centrally located and hidden behind a pocket door.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

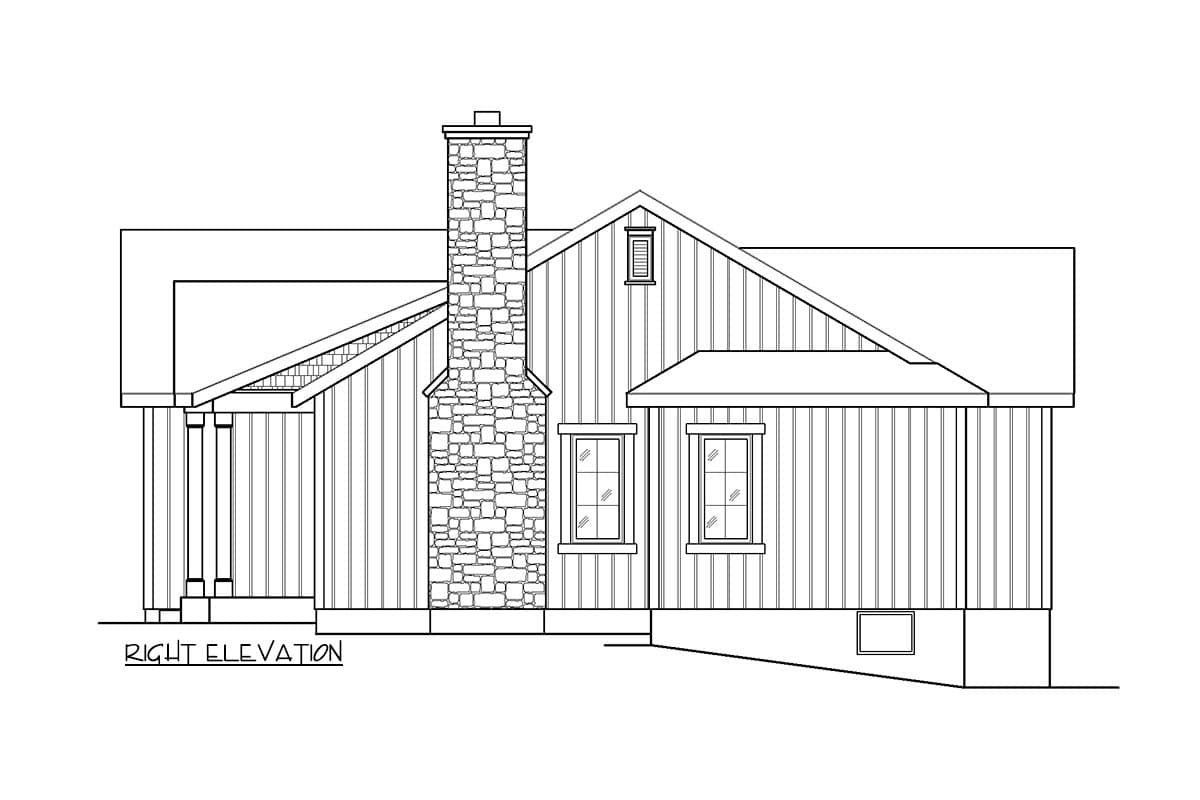

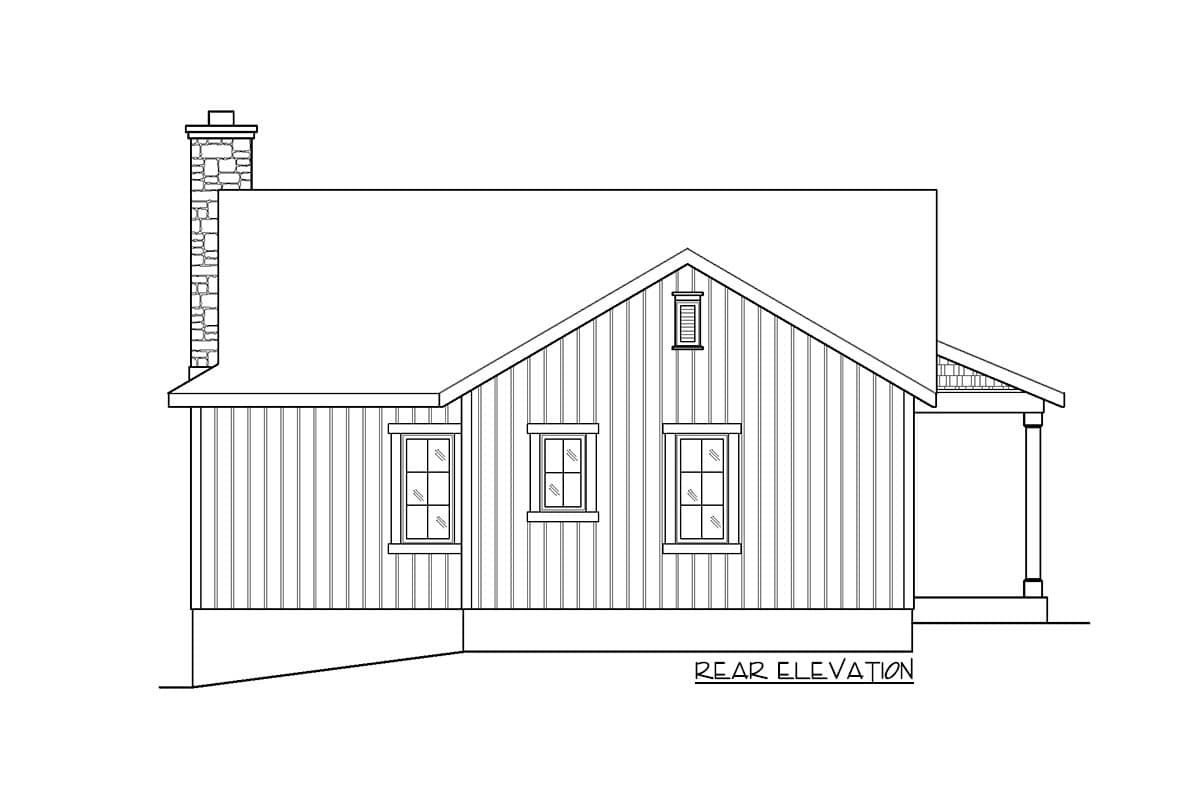

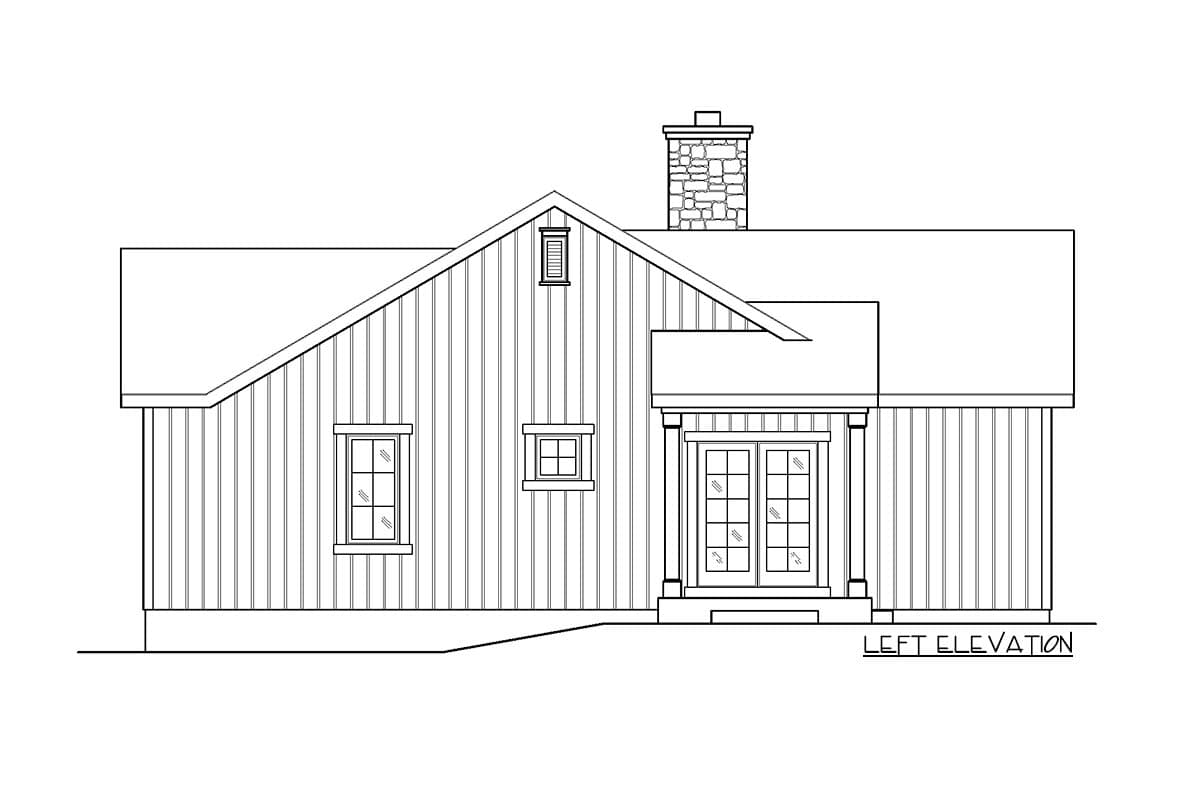

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

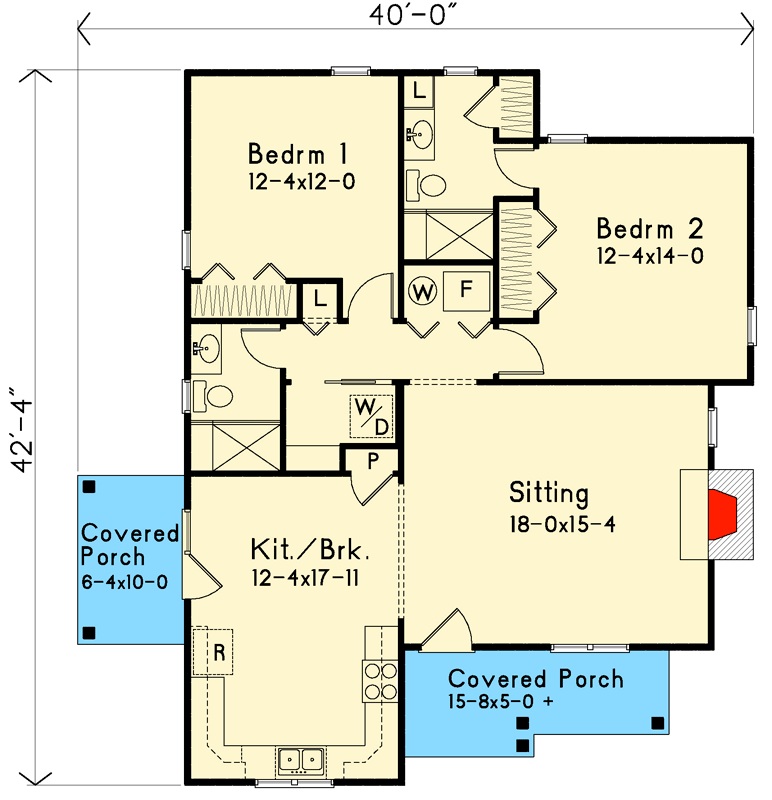

Cottage In The Woods with 2 Beds and 2 Porches - 22182SL floor plan - Main Level

Plan details

Architectural Style

Special features

Cottage In The Woods with 2 Beds and 2 Porches

  • 1,185

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $550
  • CAD - Single-Build $650
  • PDF - Unlimited Build $1,550
  • CAD - Unlimited Build $1,650
  • View all purchase option online

About This Plan

  • This cottage is perfect for that spot in the woods. It has an attractive board and batten exterior with a touch of shakes in the gables and a stone-clad chimney. It gives you 1,185 square feet of heated living space plus front and side porches that extend the livability to the outdoors.
  • Step in off the front porch and find yourself in the sitting room with fireplace on the right wall and the kitchen and breakfast are on your left. The kitchen has a C-shaped layout with lots of counterspace.
  • The bedrooms are located in back and each enjoy their own bathrooms. The washer and dryer are centrally located and hidden behind a pocket door.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,185 sq. ft.
  • 1st Floor: 1,185 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 42' 4"
  • Max ridge height: 20' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
