Plan 69084AM

Cottage-Inspired Facade

Pageloader

Cottage-Inspired Facade

Plan 69084AM

  • 2,904

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

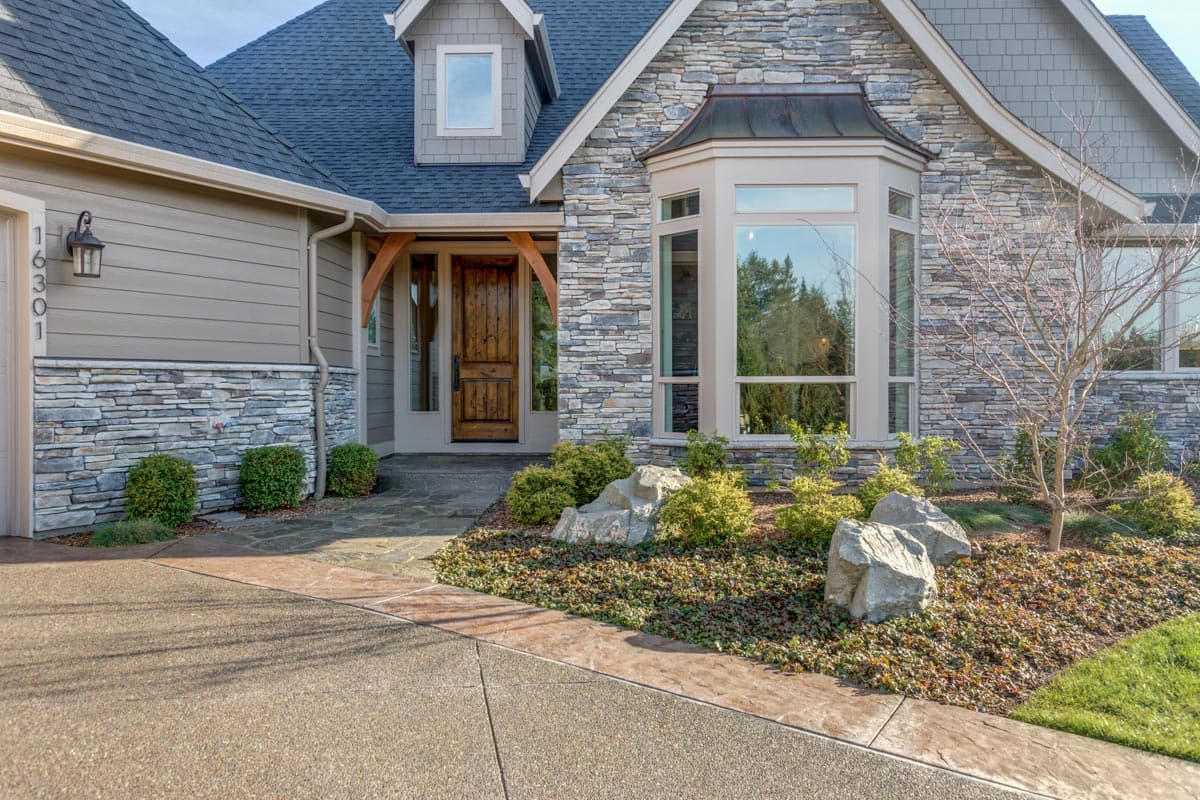

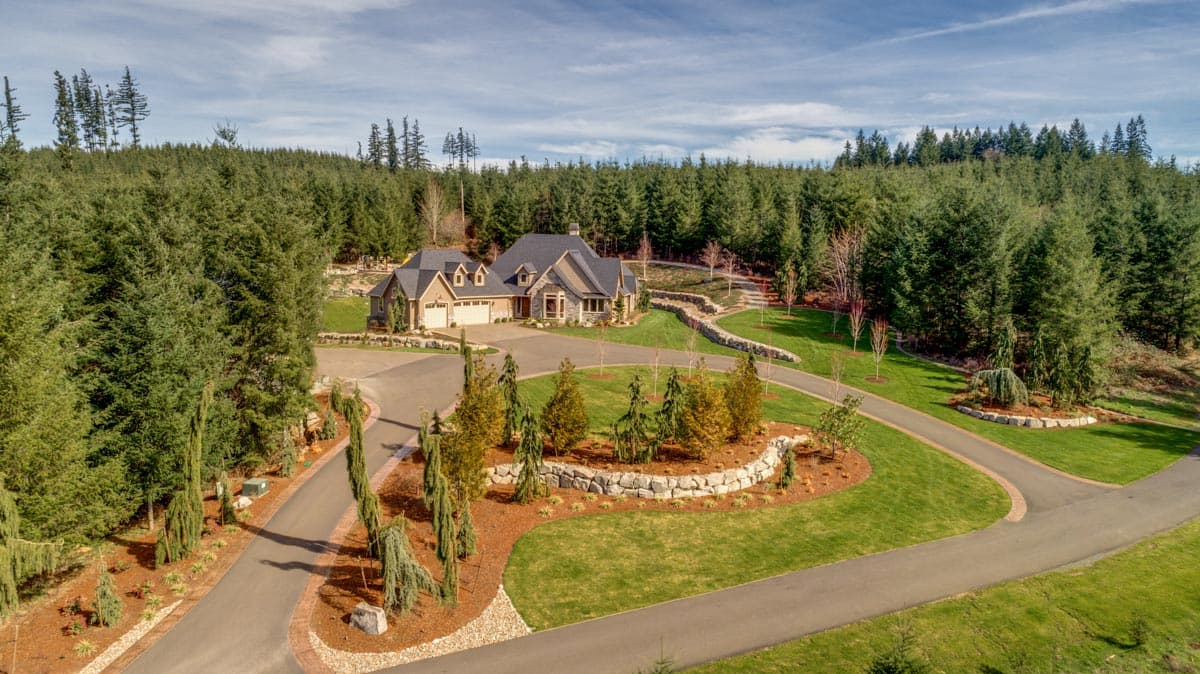

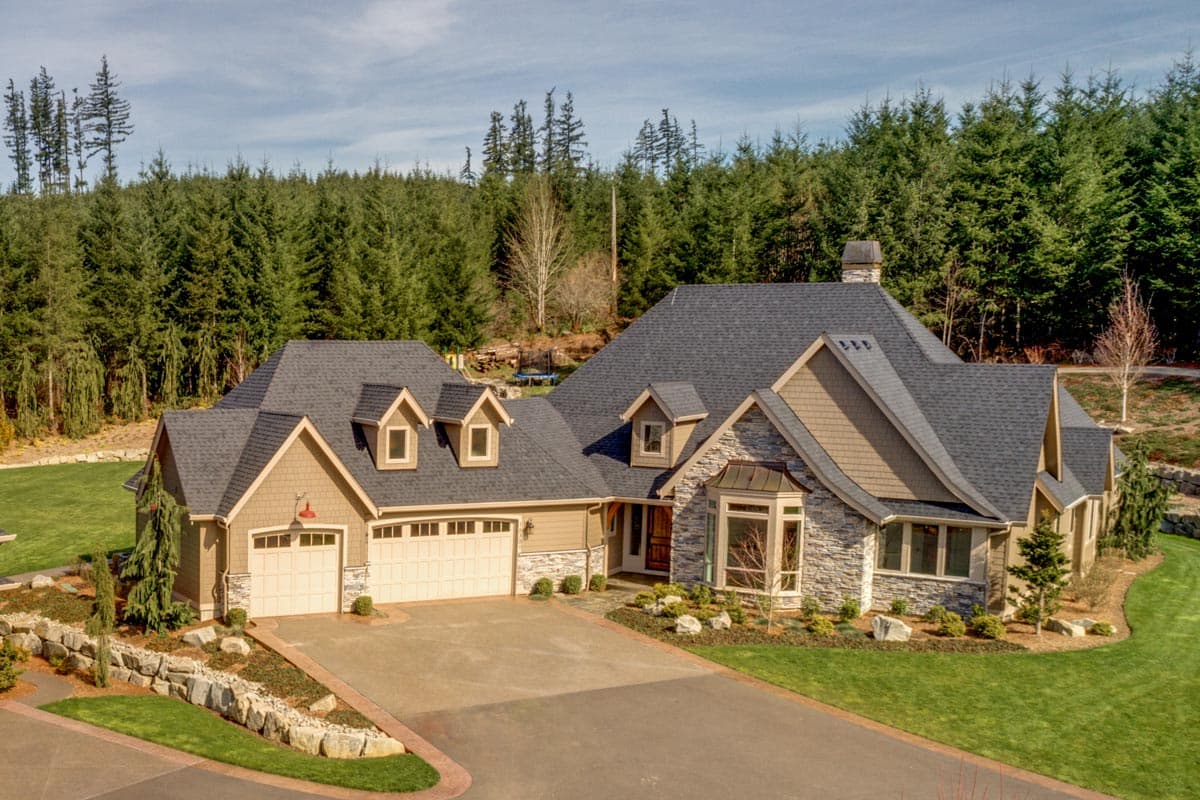

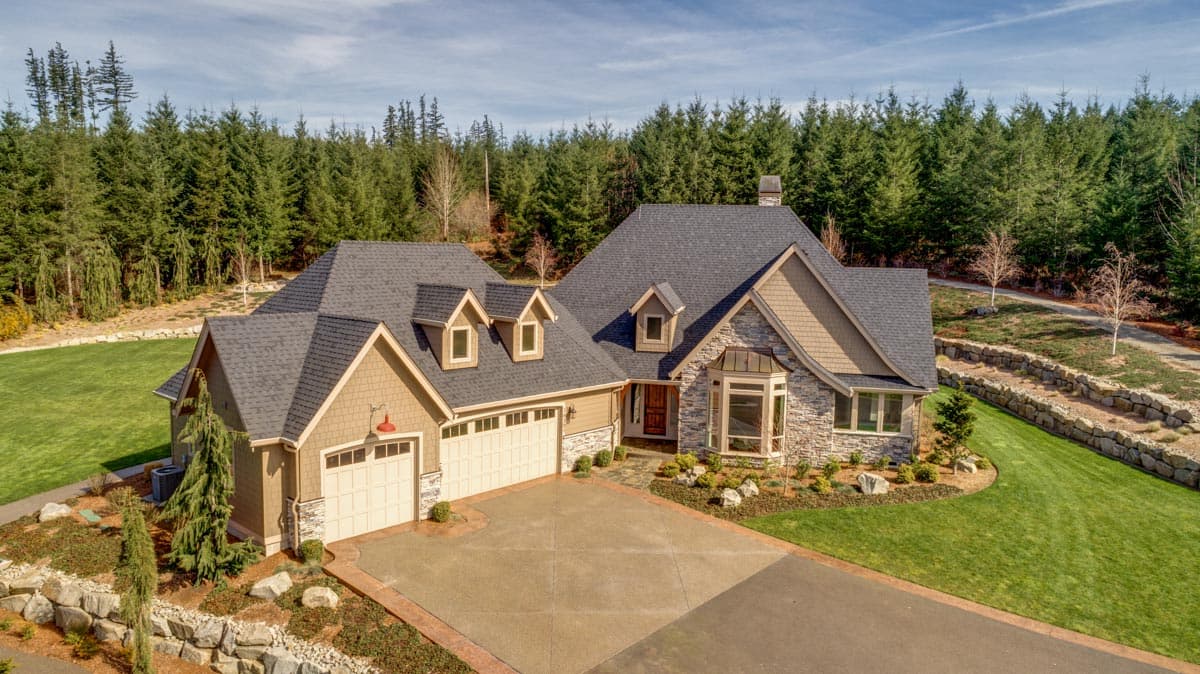

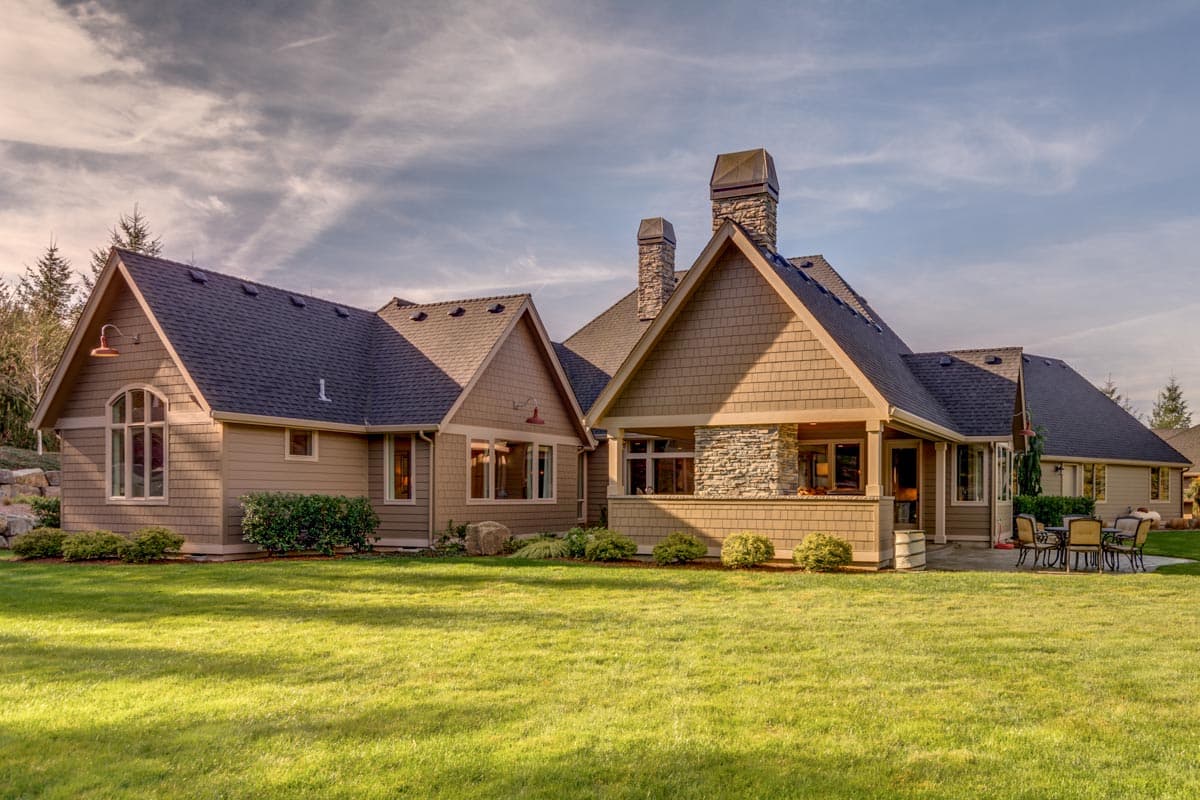

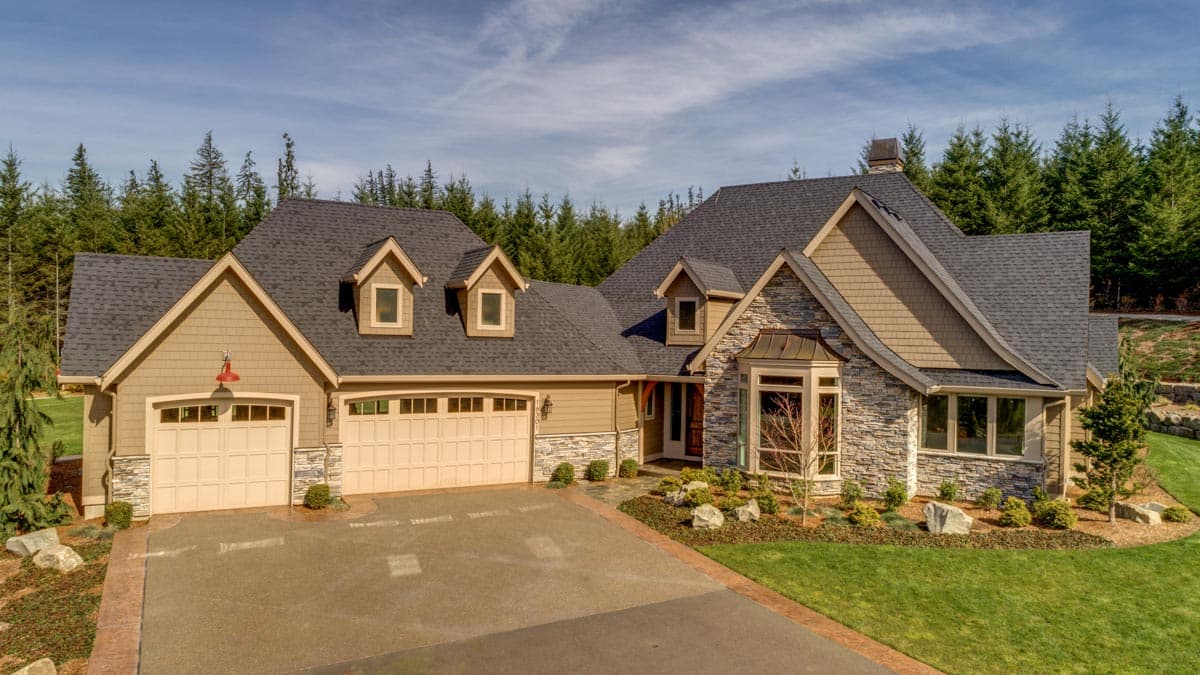

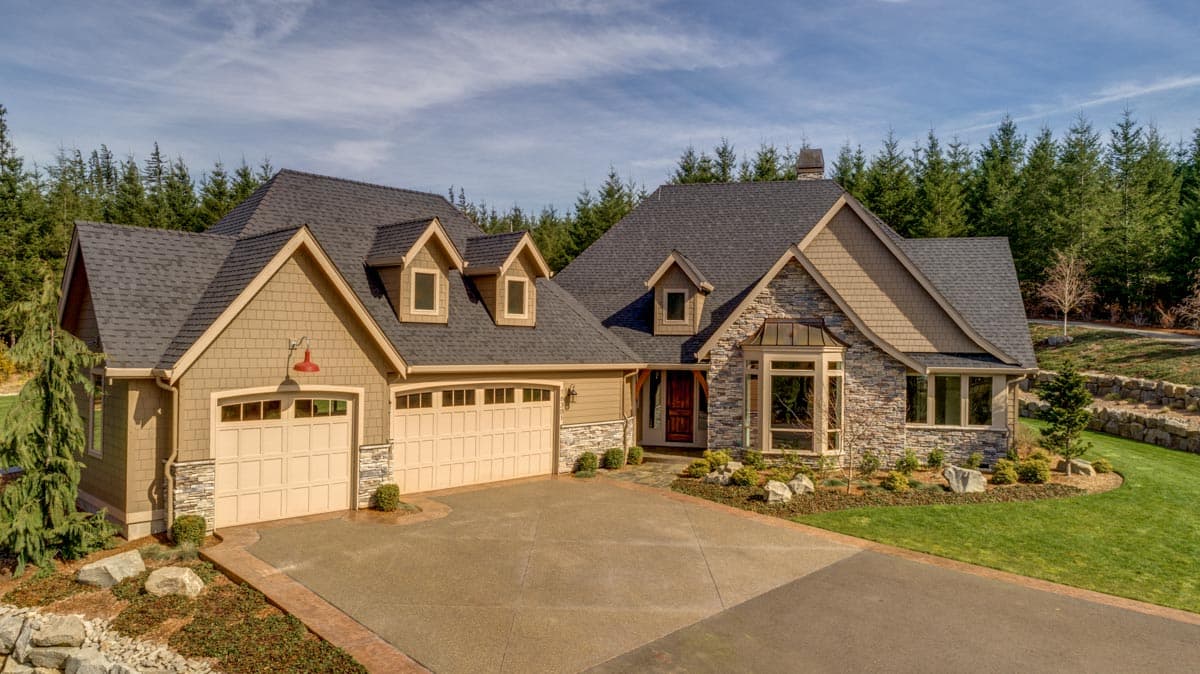

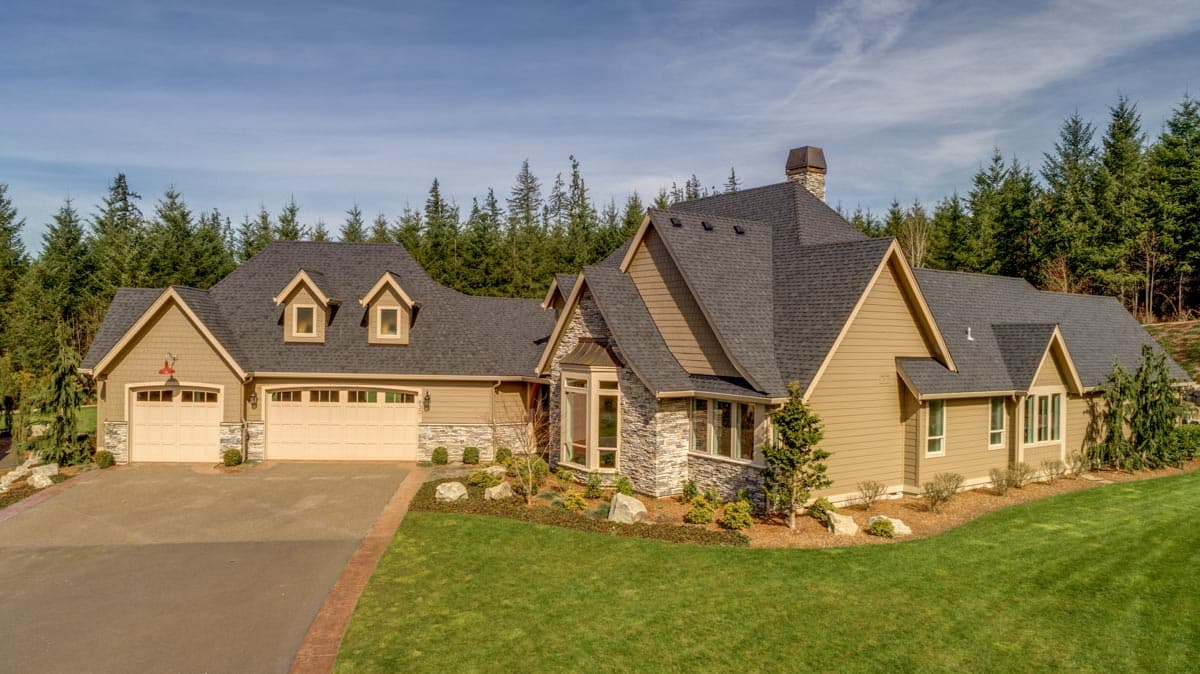

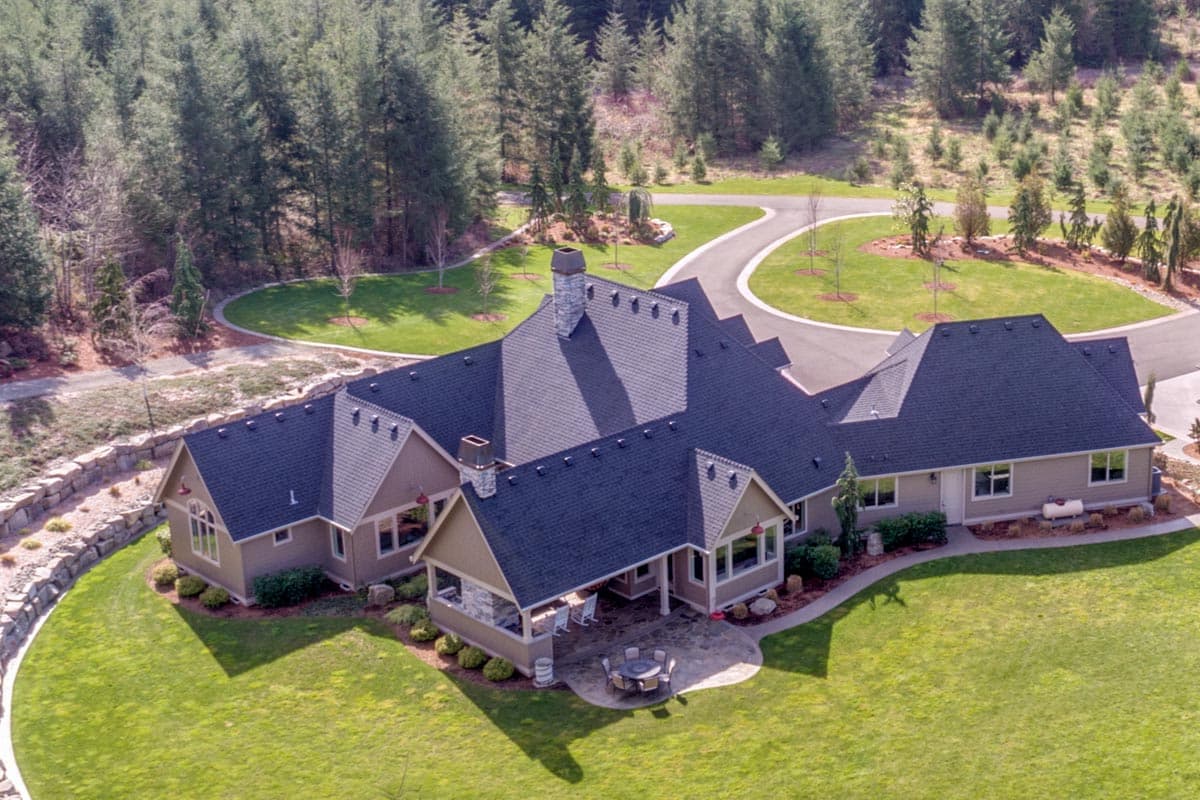

  • Reminiscent of a charming English country home, this one-story home proves the ease and convenience of living on one level. A side-entry garage creates a courtyard-like entrance to the home. If constructed of brick, stone, or stamped concrete, the driveway makes an elegant companion to the cottage-inspired fa'ade.

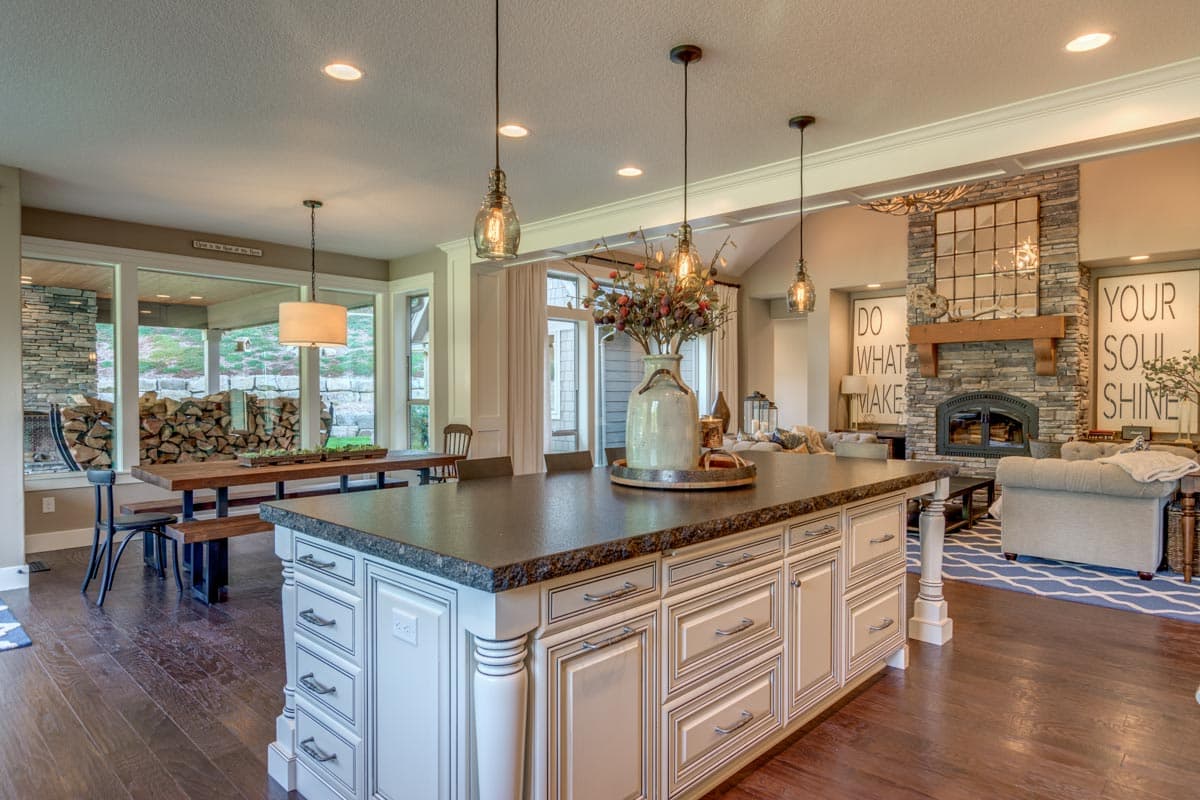

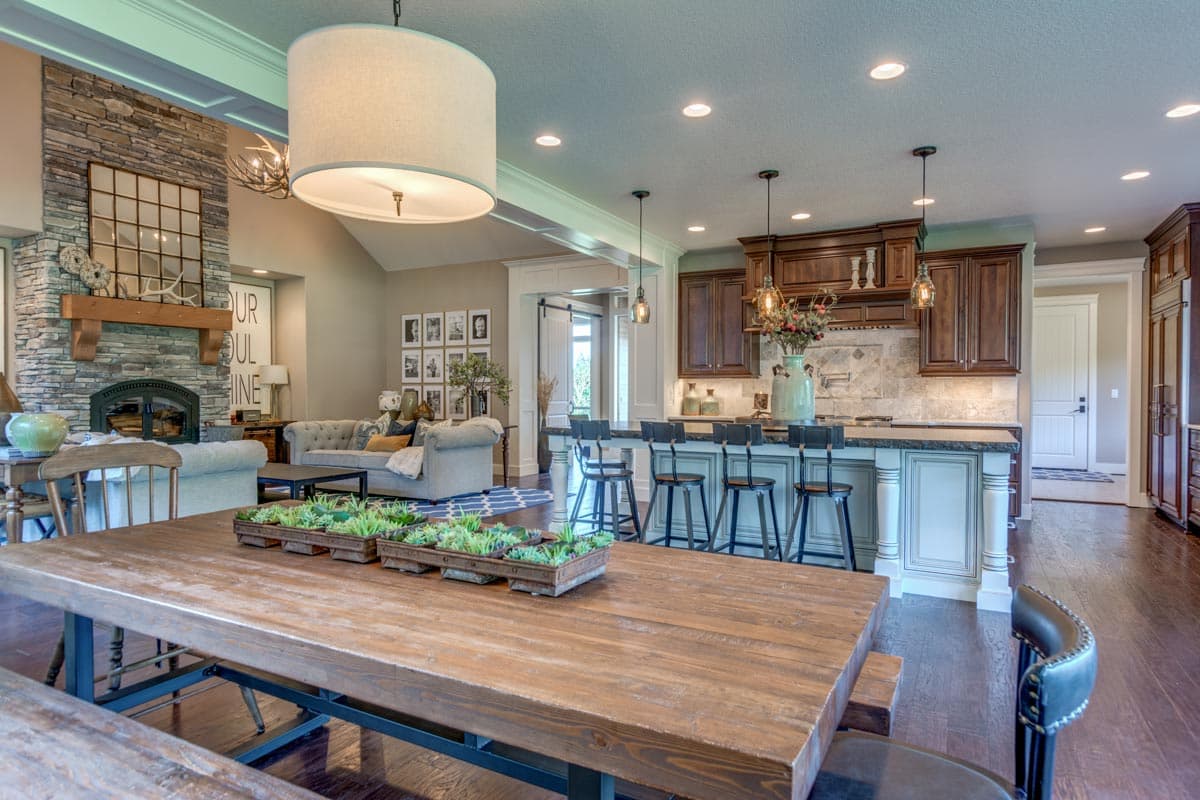

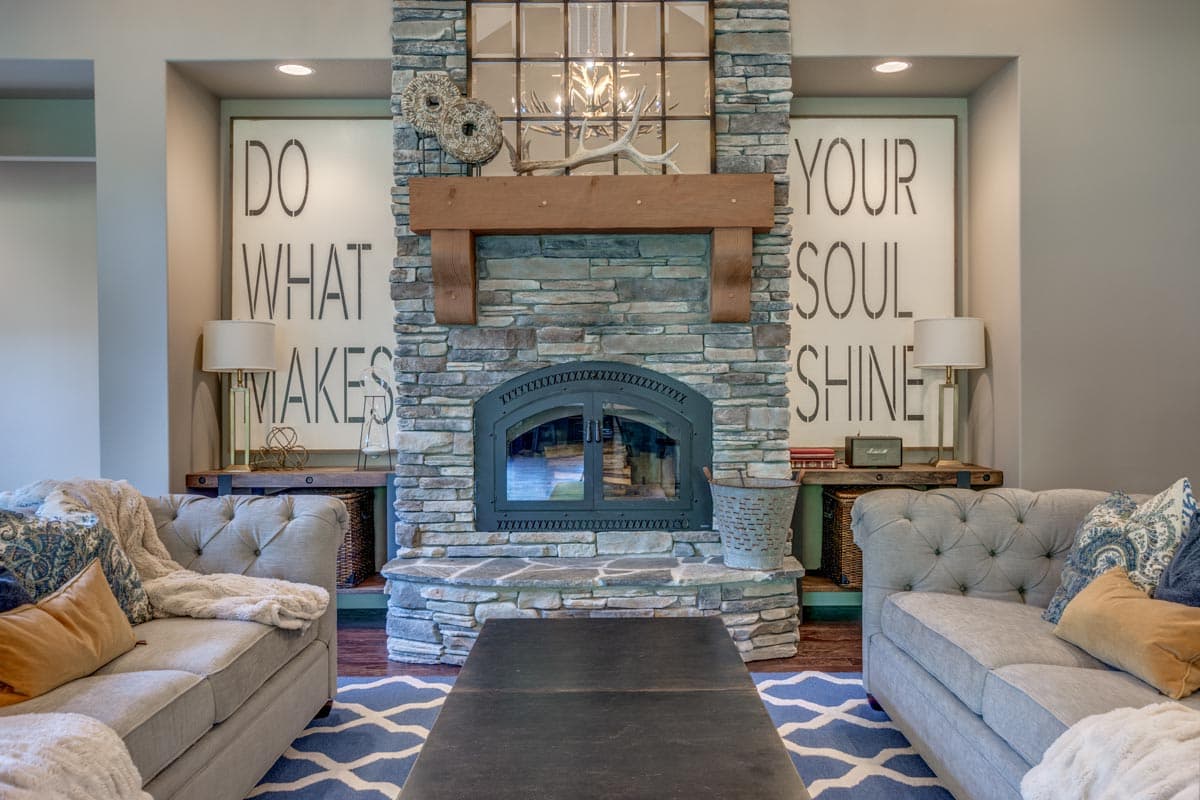

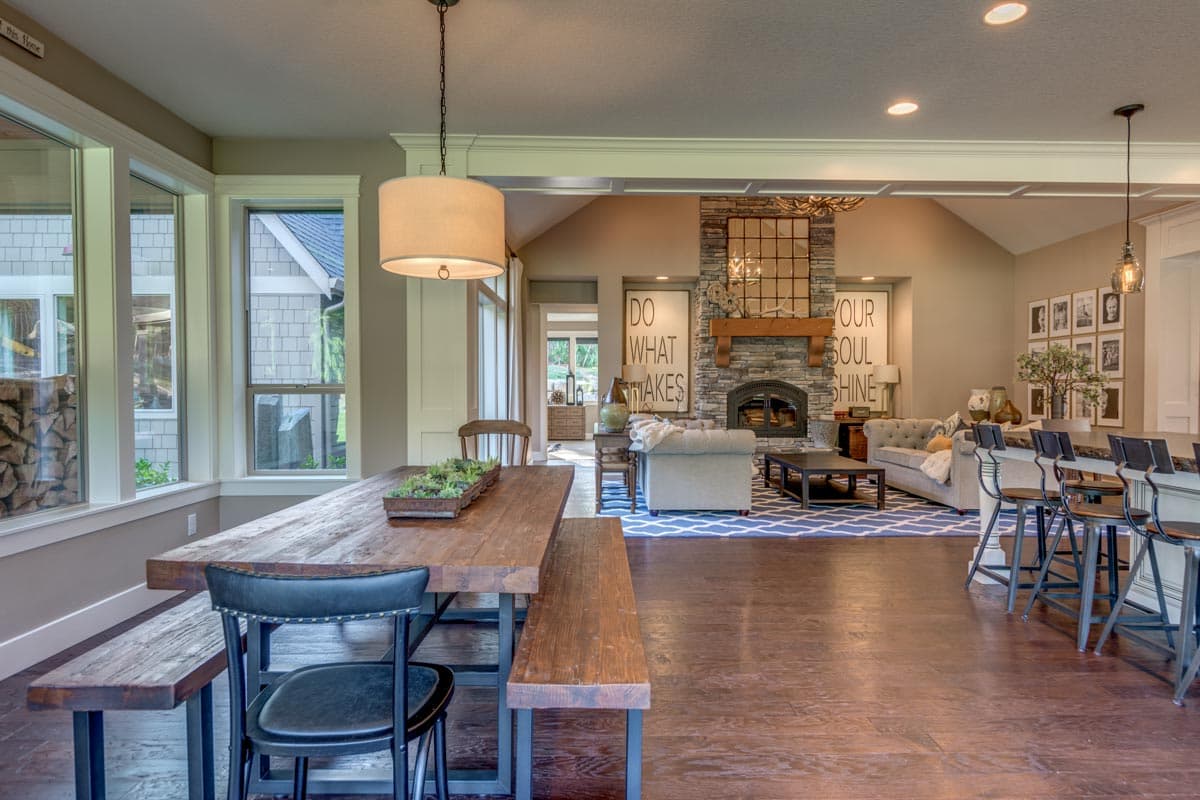

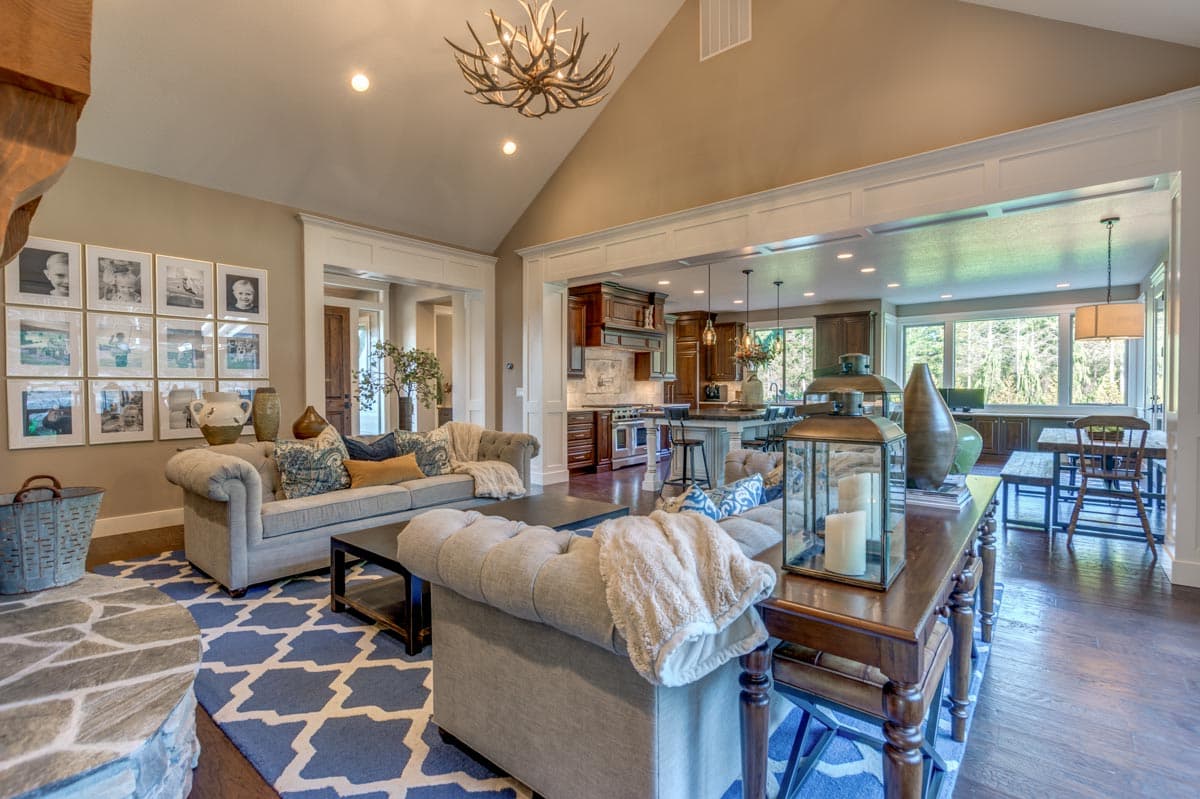

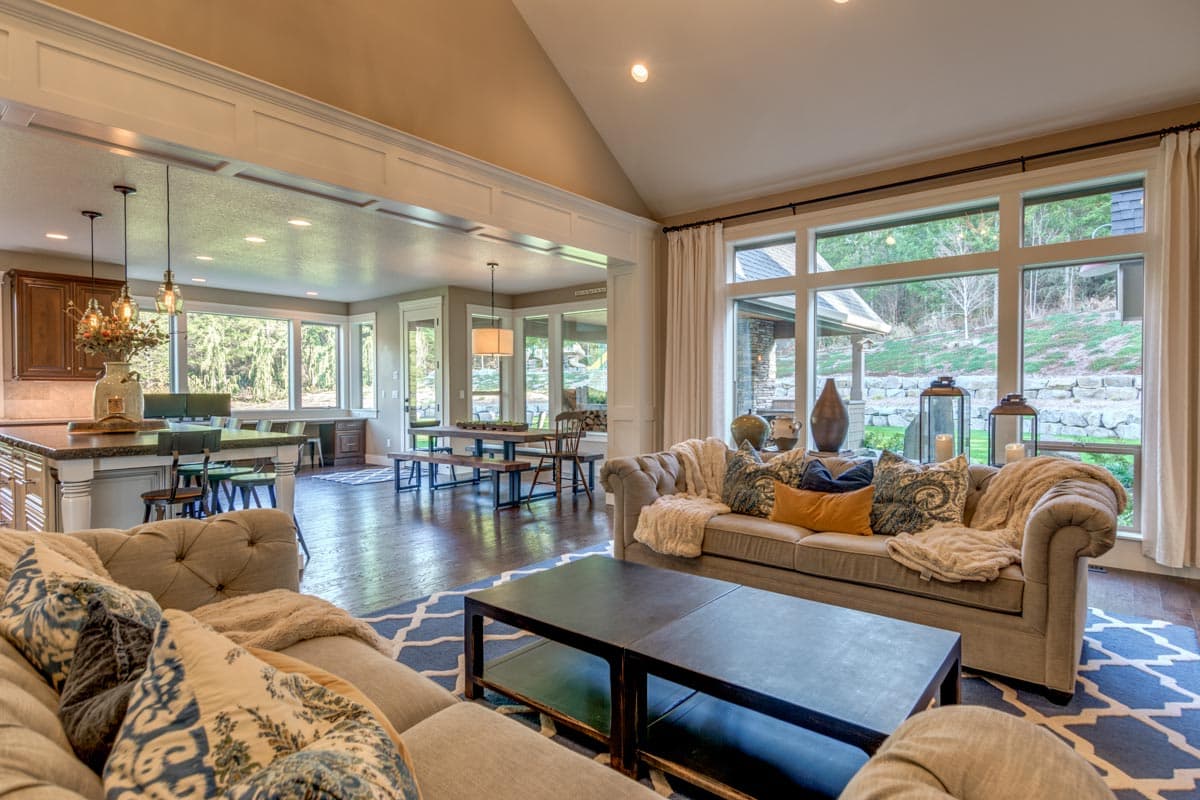

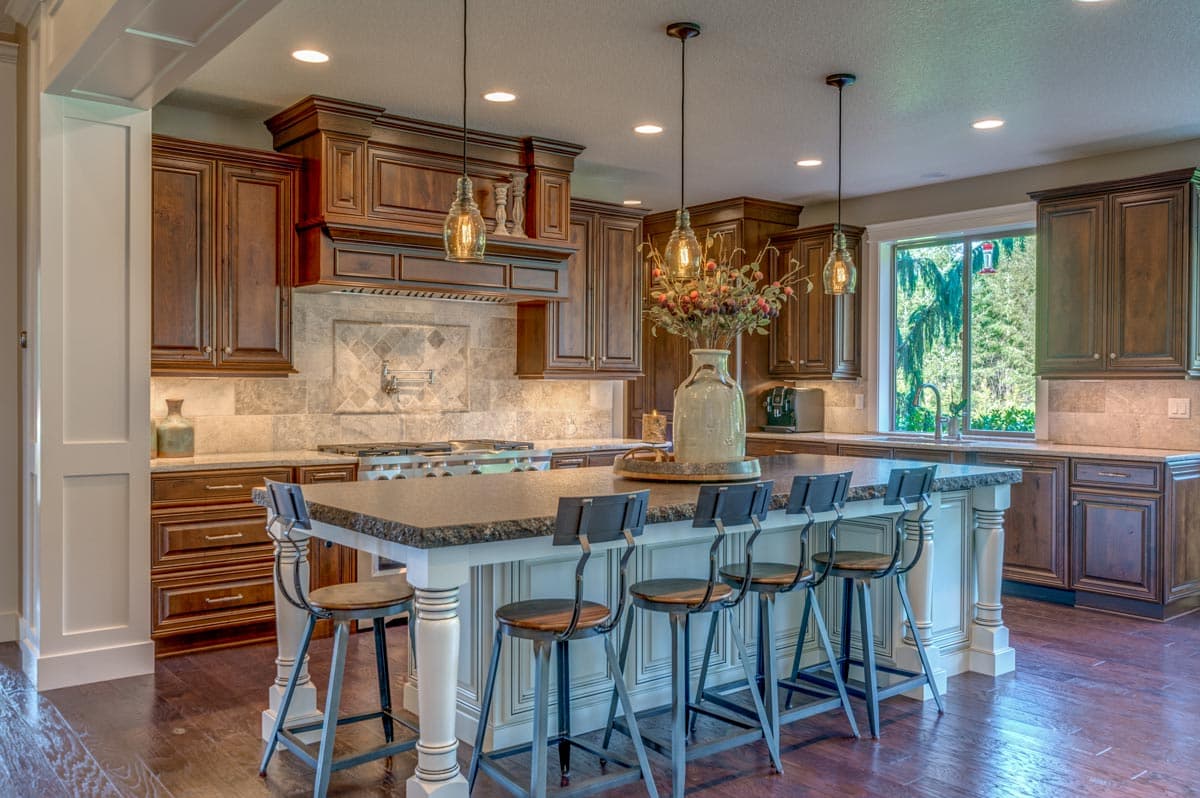

  • In the main living zone just off the foyer, a large, beam-topped great room feeds directly into an open kitchen, dining room, and quaint sitting area. Bump-out alcoves, cabinetry, and decorative ceilings rather than walls define these living spaces. Such openness allows those conversing with the cook to take in views of the great room's fireplace and built-ins. In addition, those in the great room can enjoy views of the outdoors through the windows of the sitting room and dining room.

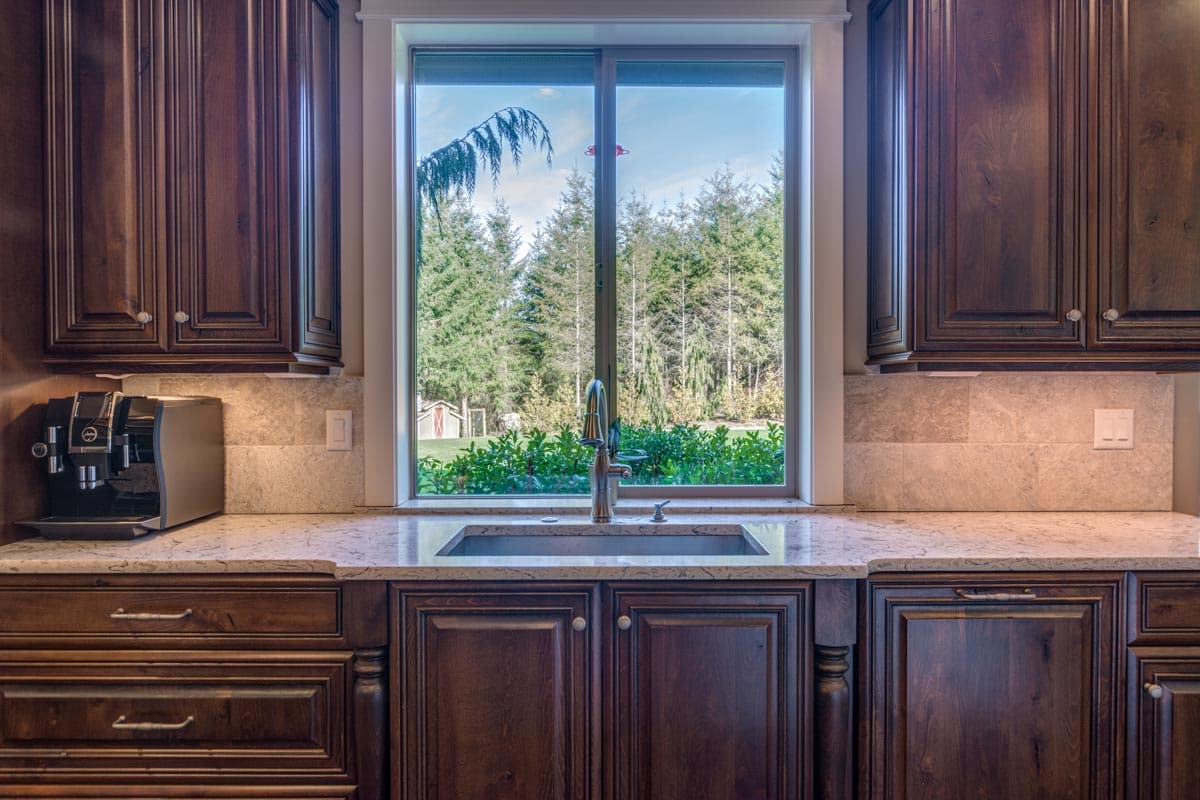

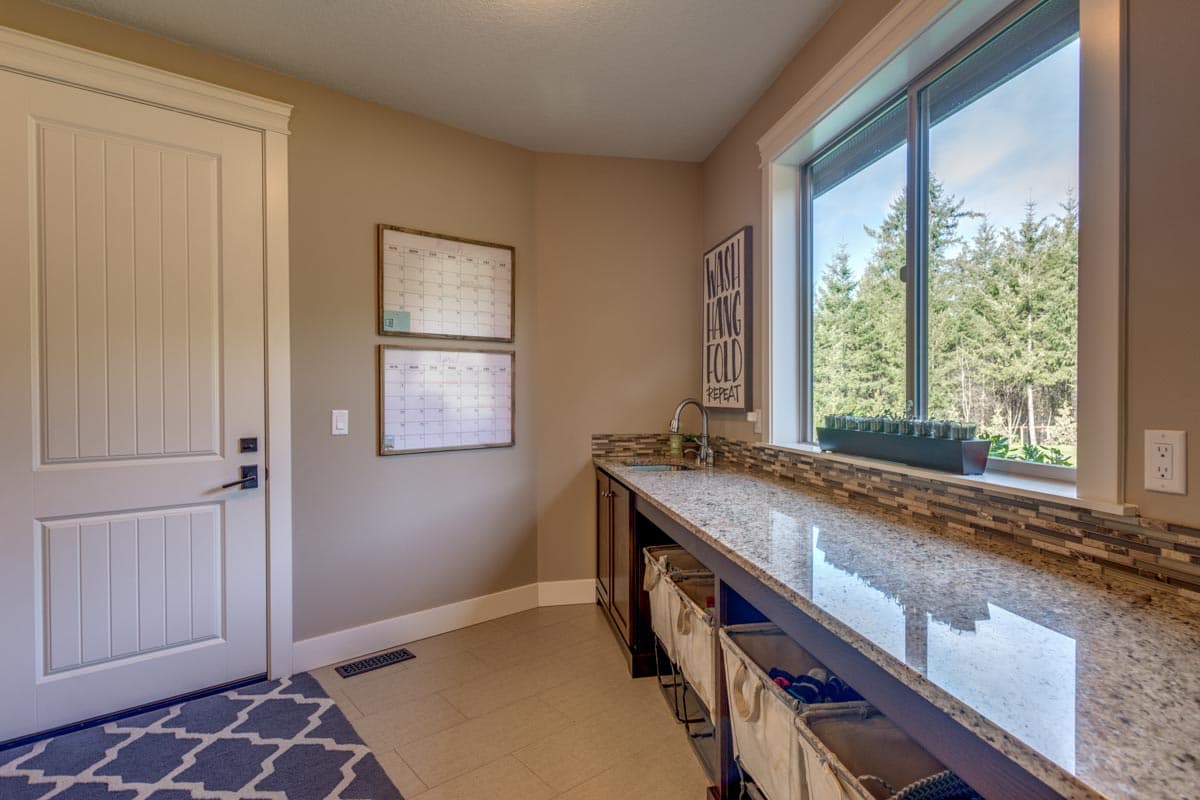

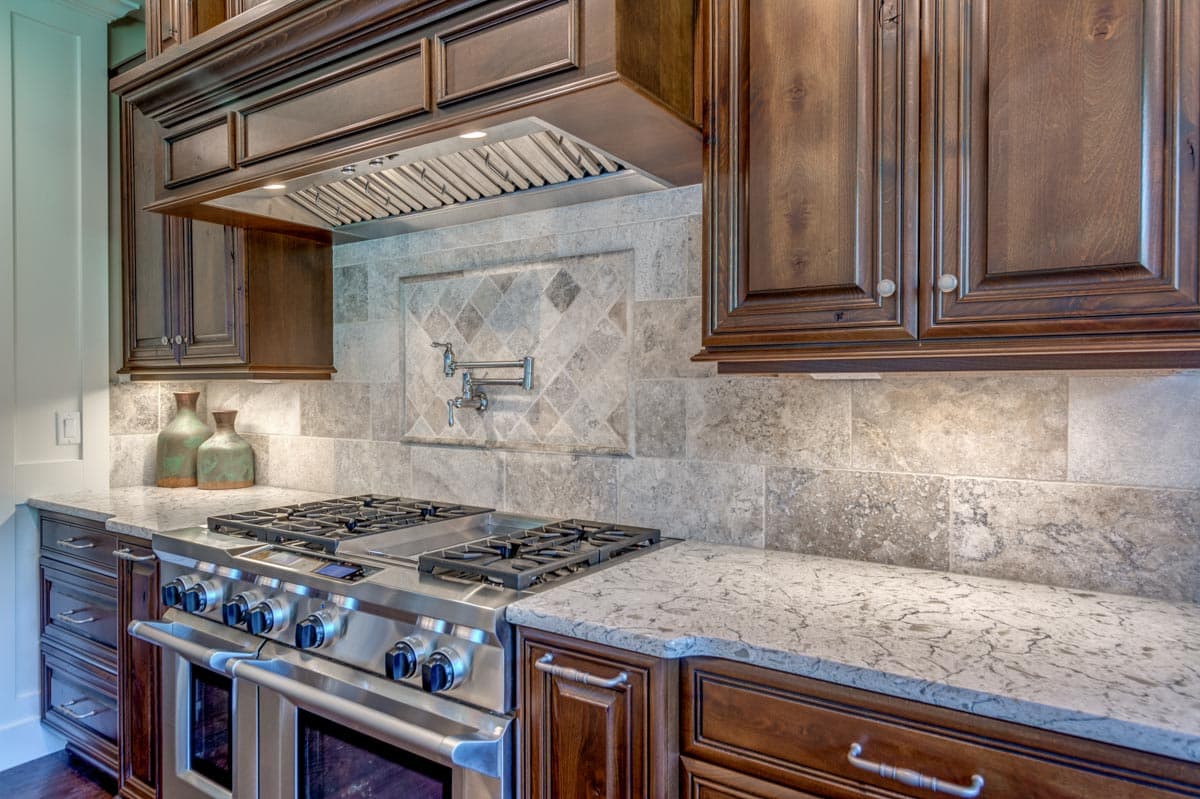

  • Amenities in the kitchen include a window seat and a walk-in pantry. Quick access to the laundry/mudroom is convenient for throwing in a quick load of laundry and helping kids get ready for school at the locker-style built-ins.

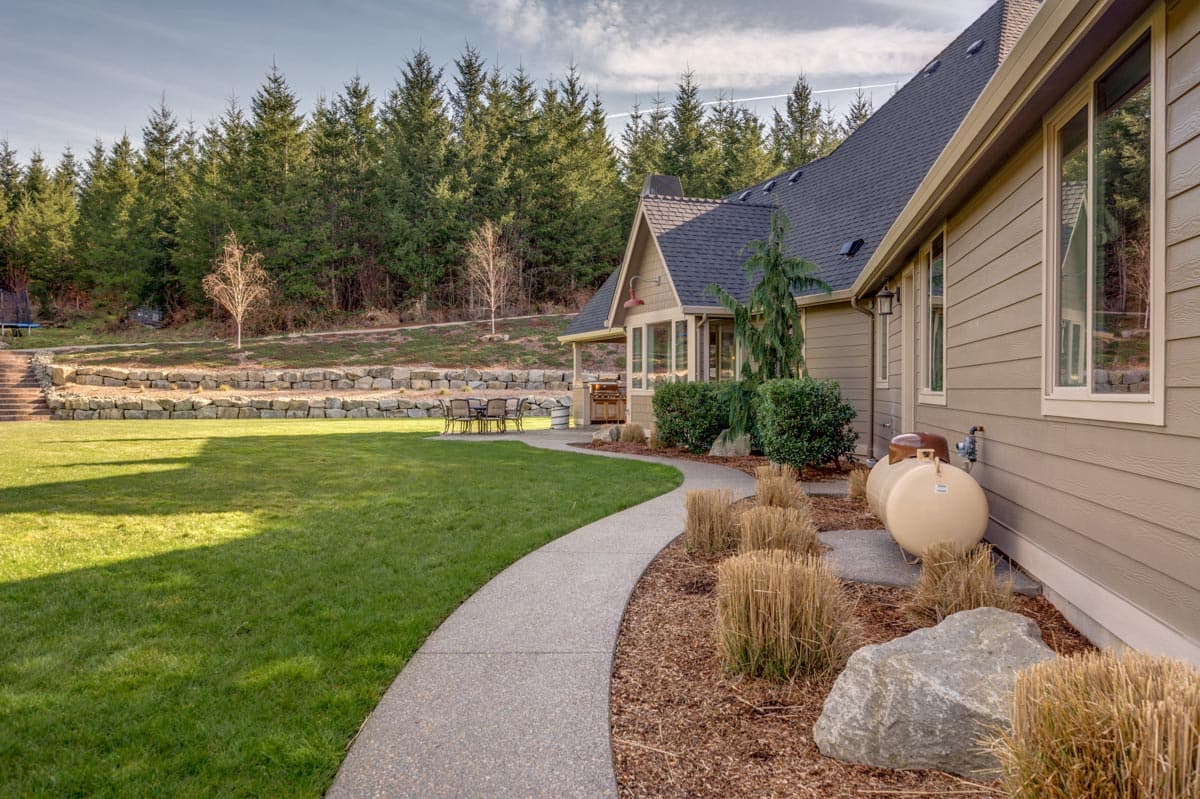

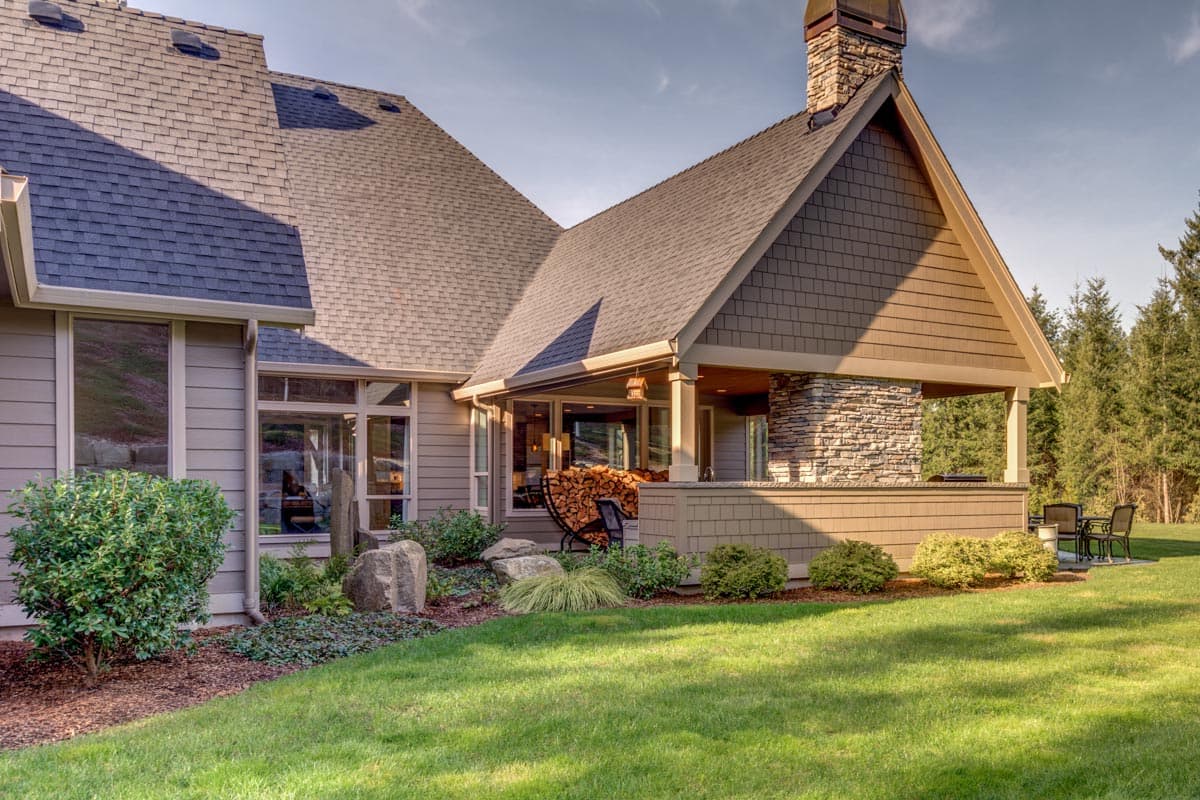

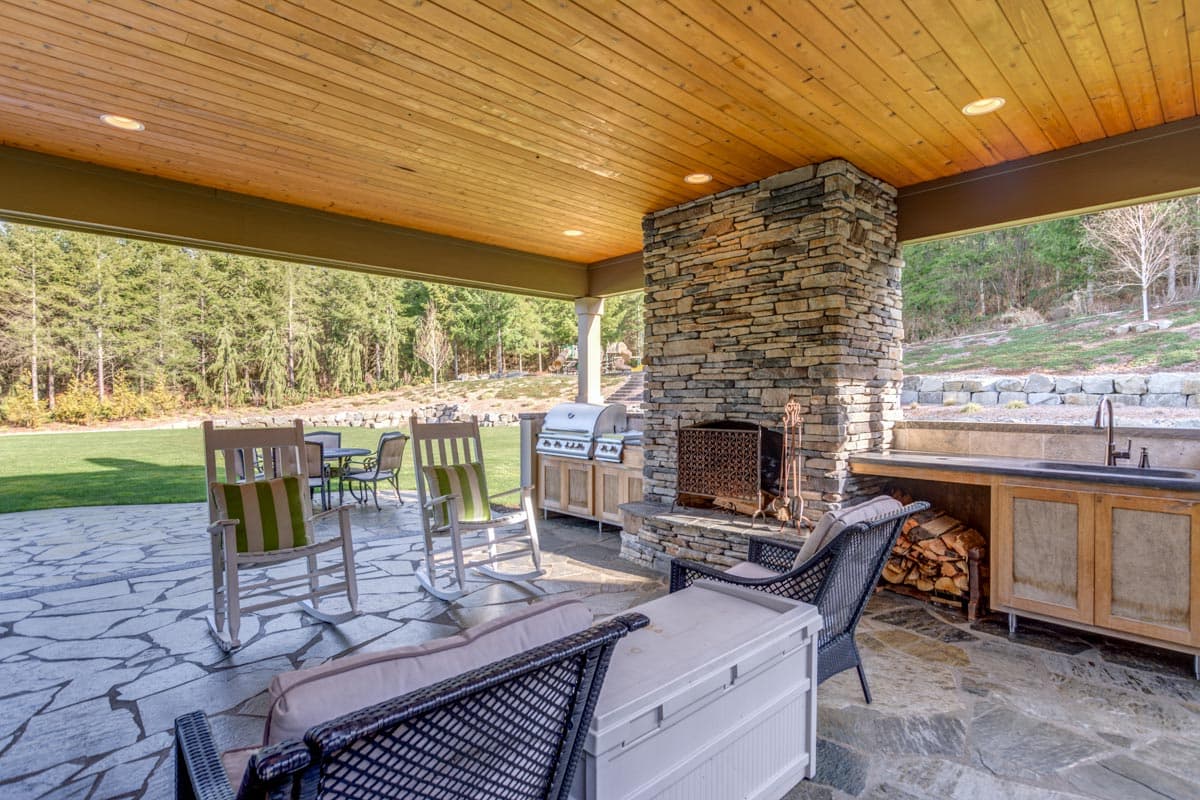

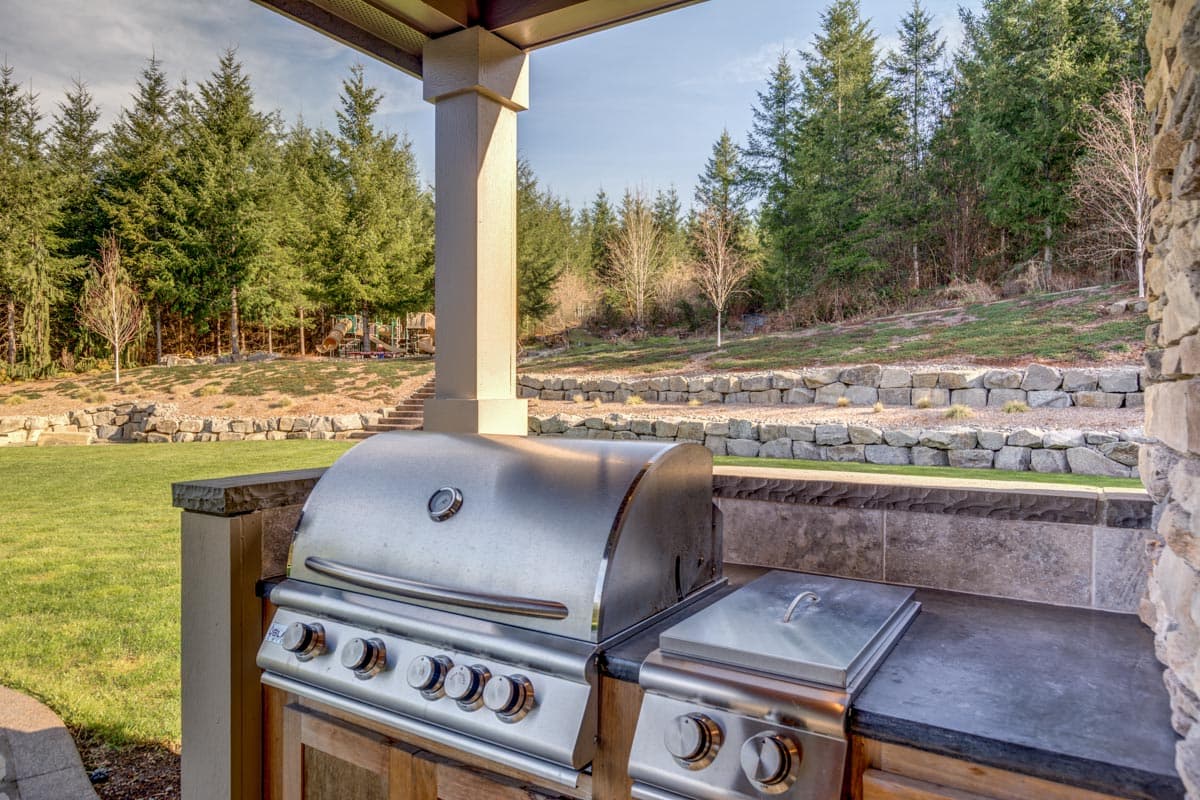

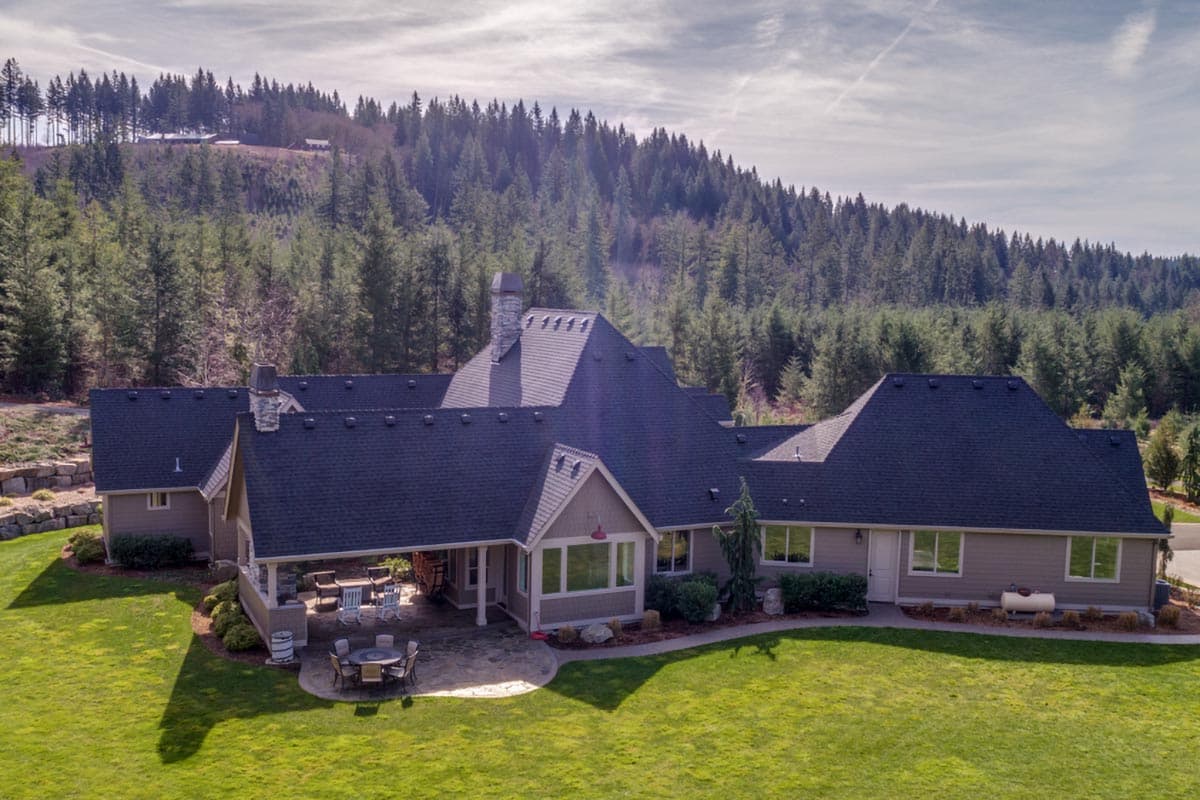

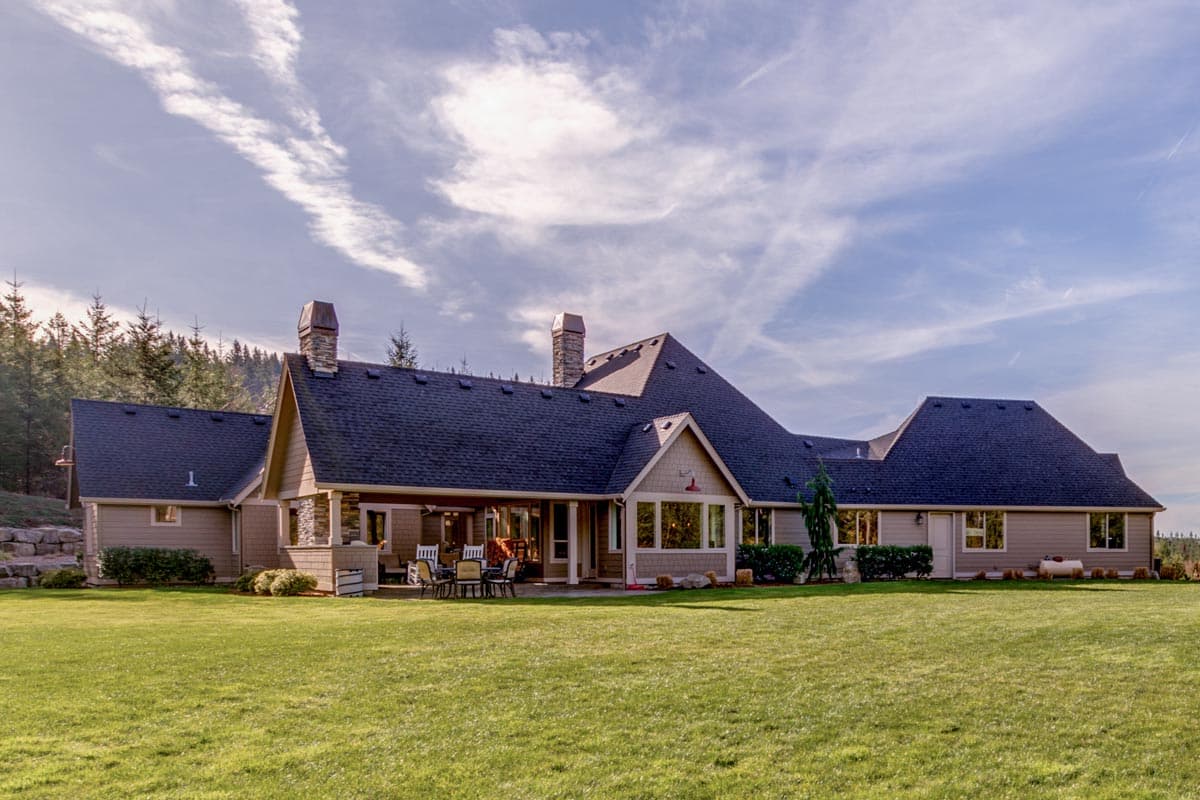

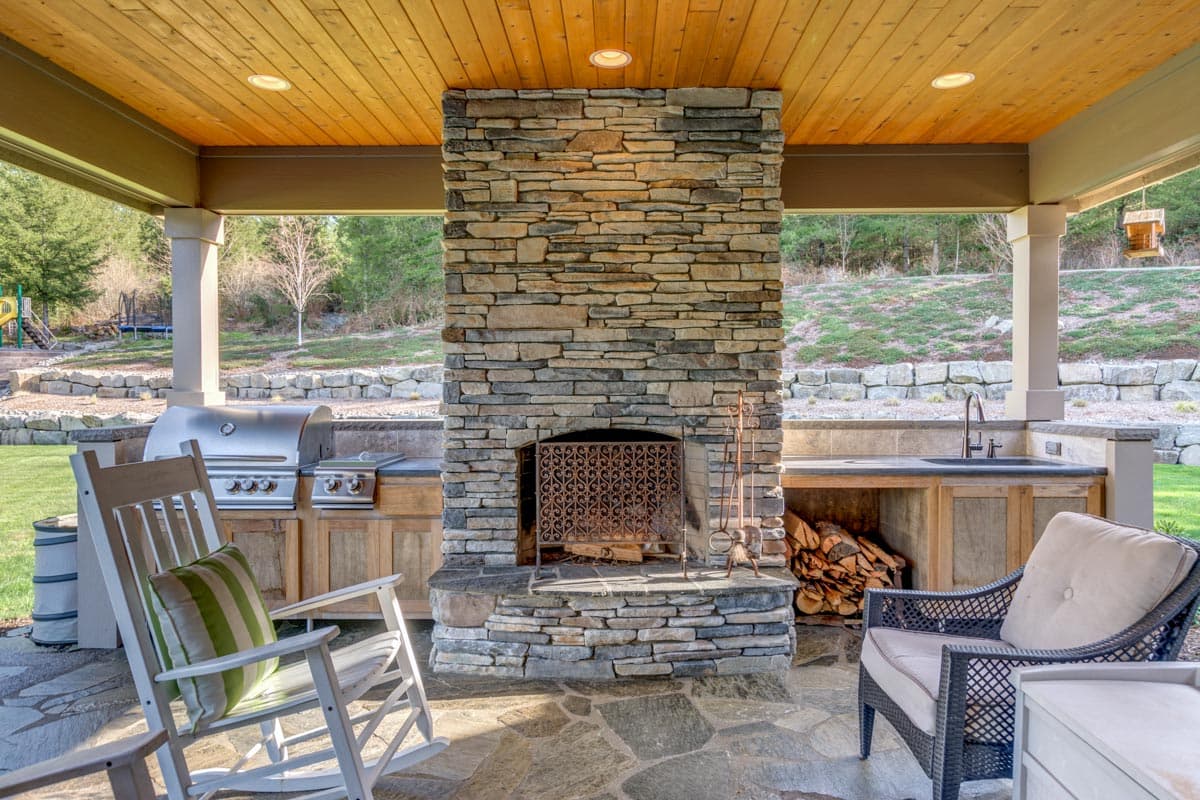

  • More living space is granted in the open-air outdoor living areas at the rear of the home. A spacious patio is nestled in an ell and connects to all the main living areas through French doors. An outdoor fireplace on one end provides further delineation. A grill space, which accompanies the fireplace, makes the area ideal for entertaining.

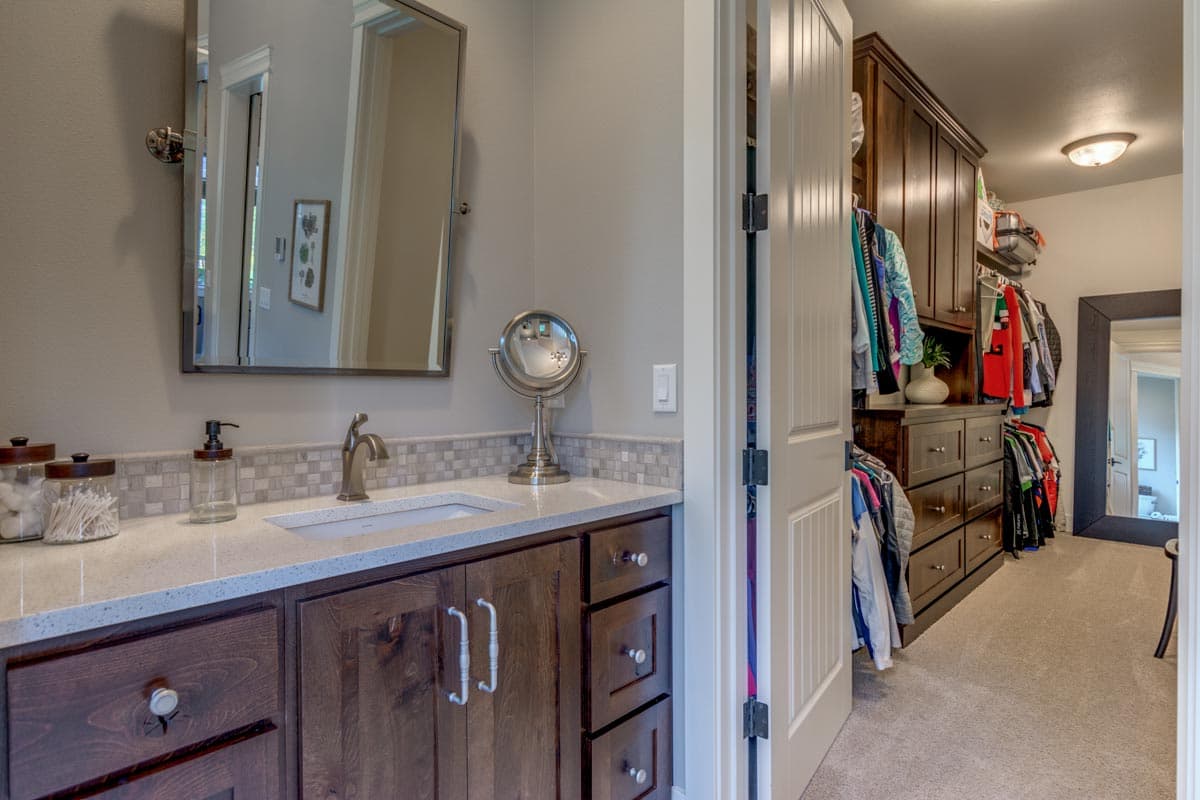

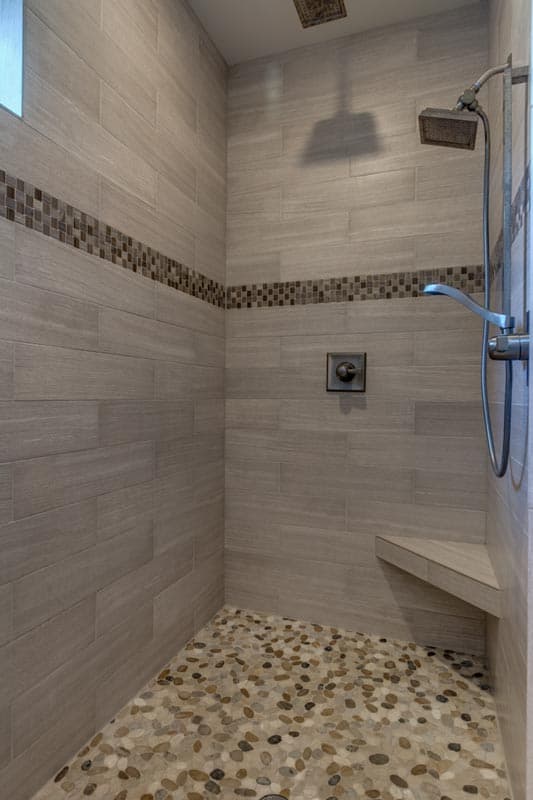

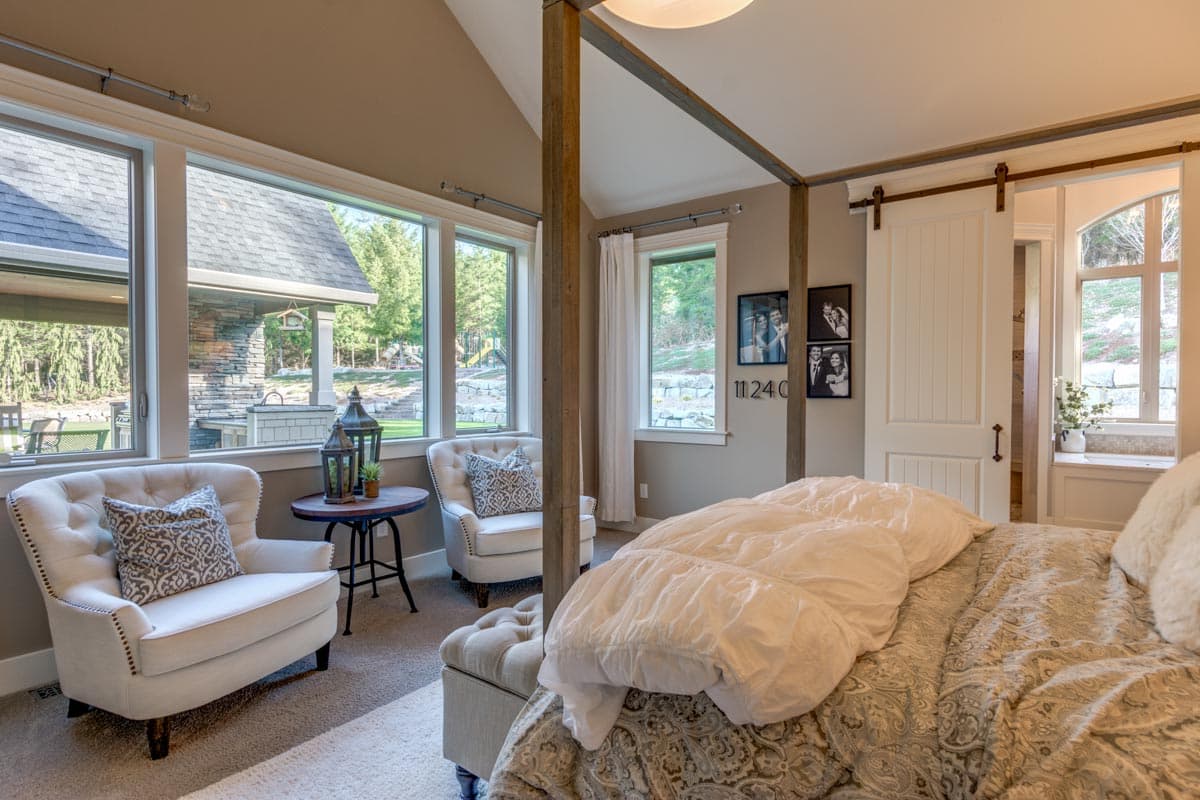

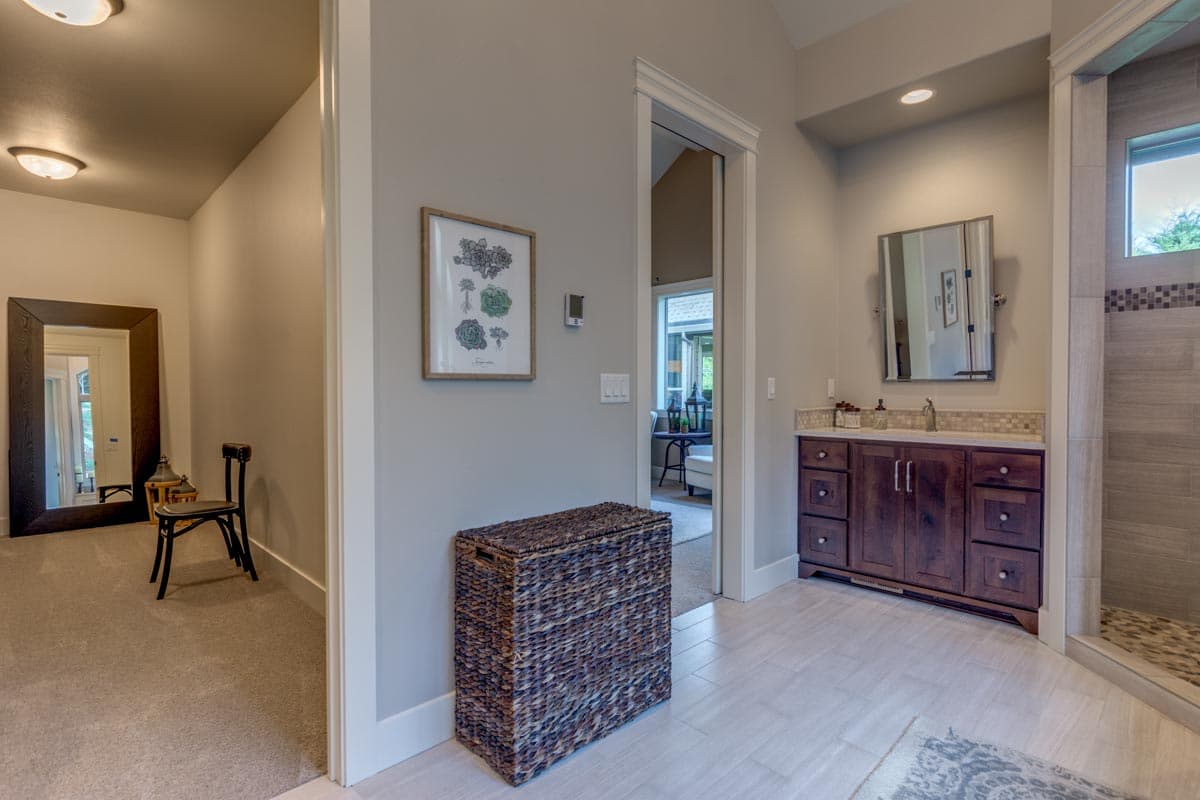

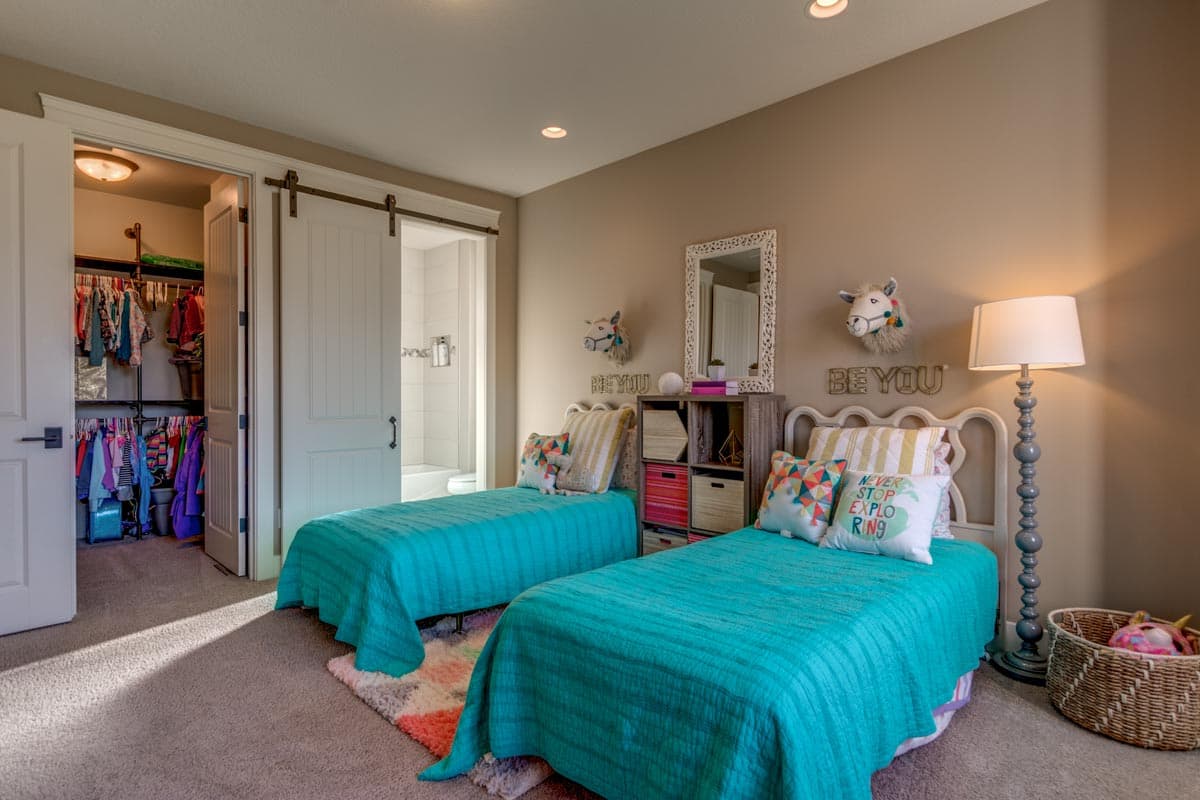

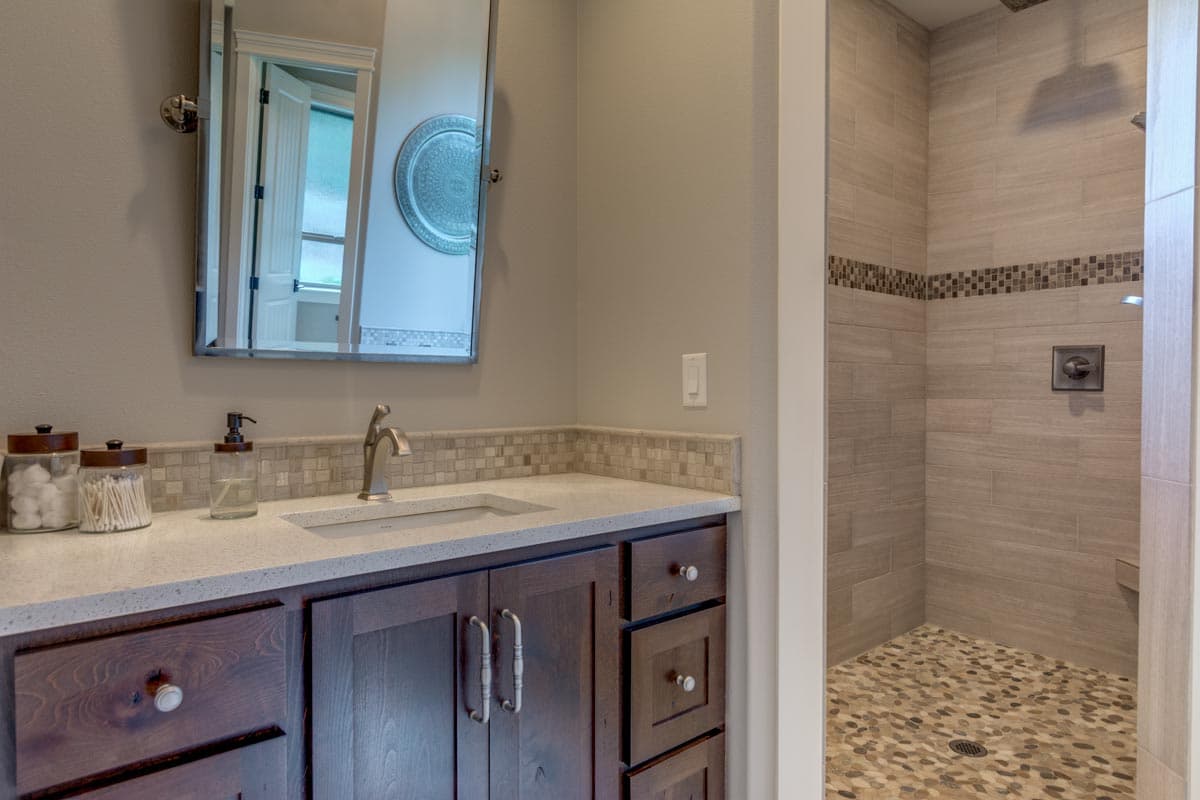

  • A private zone consisting of bedrooms and a den is located along one side of the home. A hallway further separates the home's three bedrooms from the living quarters. Each bedroom contains a walk-in closet and a full bath, with the master suite aptly receiving the luxury of a tiled shower and a spa tub.
  • Family members who need quiet space for studying or working at home can find serenity in the den, which is hidden behind double doors that are adjacent to the foyer. A bay window, fireplace, and built-ins enhance the space.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Cottage-Inspired Facade

  • 2,904

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,010
  • PDF - single-use $1,360
  • 5 Sets $1,510
  • 5 Sets PLUS $1,560
  • CAD - multi-use $2,720
  • View all purchase option online

About This Plan

  • Reminiscent of a charming English country home, this one-story home proves the ease and convenience of living on one level. A side-entry garage creates a courtyard-like entrance to the home. If constructed of brick, stone, or stamped concrete, the driveway makes an elegant companion to the cottage-inspired fa'ade.
  • In the main living zone just off the foyer, a large, beam-topped great room feeds directly into an open kitchen, dining room, and quaint sitting area. Bump-out alcoves, cabinetry, and decorative ceilings rather than walls define these living spaces. Such openness allows those conversing with the cook to take in views of the great room's fireplace and built-ins. In addition, those in the great room can enjoy views of the outdoors through the windows of the sitting room and dining room.
  • Amenities in the kitchen include a window seat and a walk-in pantry. Quick access to the laundry/mudroom is convenient for throwing in a quick load of laundry and helping kids get ready for school at the locker-style built-ins.
  • More living space is granted in the open-air outdoor living areas at the rear of the home. A spacious patio is nestled in an ell and connects to all the main living areas through French doors. An outdoor fireplace on one end provides further delineation. A grill space, which accompanies the fireplace, makes the area ideal for entertaining.
  • A private zone consisting of bedrooms and a den is located along one side of the home. A hallway further separates the home's three bedrooms from the living quarters. Each bedroom contains a walk-in closet and a full bath, with the master suite aptly receiving the luxury of a tiled shower and a spa tub.
  • Family members who need quiet space for studying or working at home can find serenity in the den, which is hidden behind double doors that are adjacent to the foyer. A bay window, fireplace, and built-ins enhance the space.

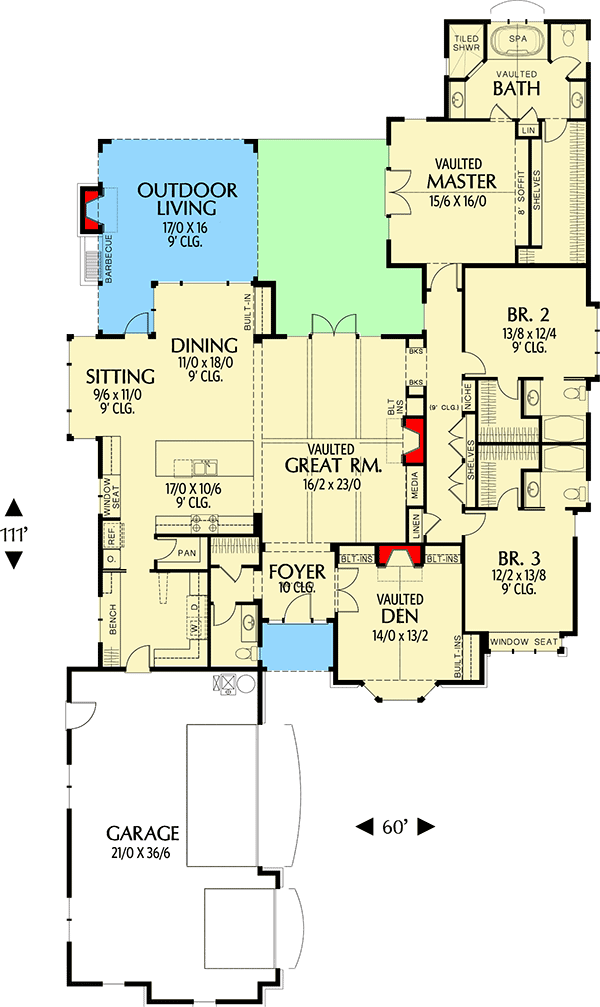

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,904 sq. ft.
  • 1st Floor: 2,904 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 111' 0"
  • Max ridge height: 29' 11"

Garage

  • Type: Attached
  • Area: 835 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
