Cottage Open Front-To-Back on the Left

Plan 22517DR

  • 1,504

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Enjoy one-level living with this 1,504 sq. ft. house plan. A clapboard exterior with a brick trick gives it great curb appeal.
  • Three bedrooms are clustered around a single bathroom. Laundry is centrally located.
  • The left side of the home is open front-to-back and sliding doors open to get you to your back deck or patio.
  • Note: Please allow 12 days for delivery

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

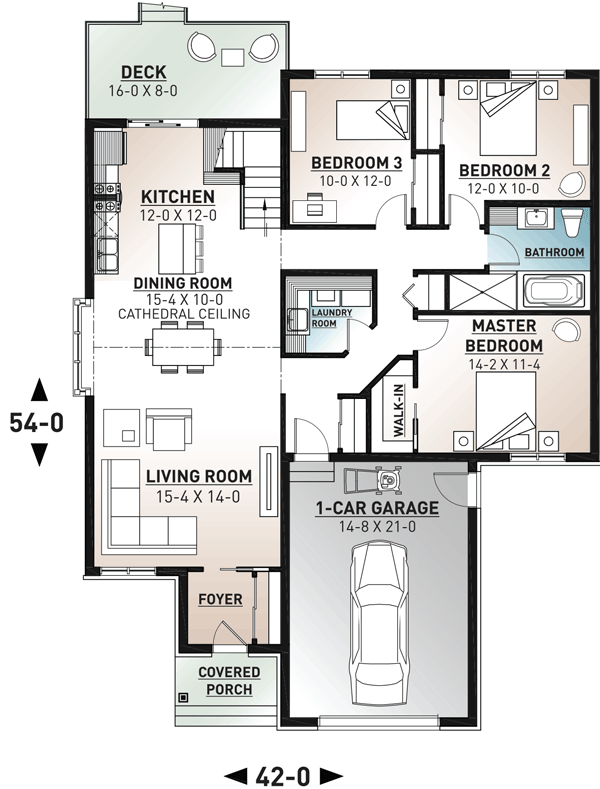

Cottage Open Front-To-Back on the Left - 22517DR floor plan - Main Level

Basement Unfinished

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

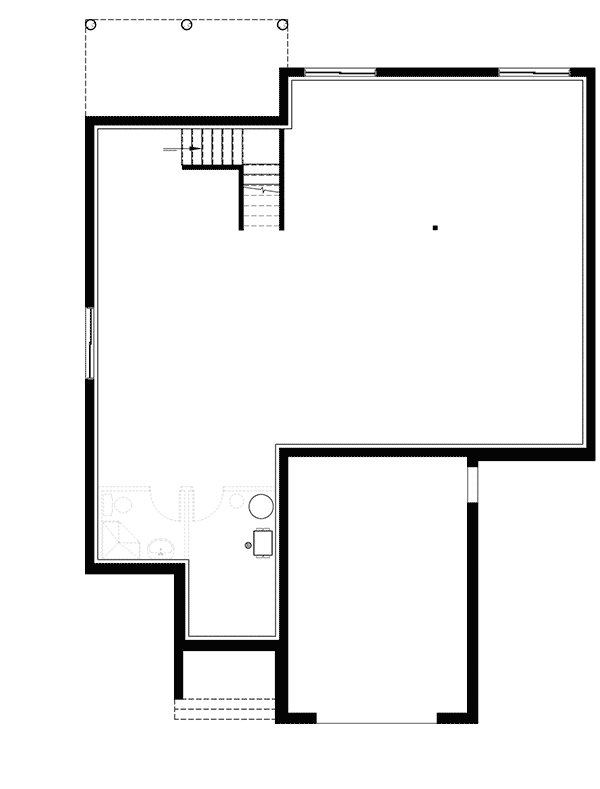

Cottage Open Front-To-Back on the Left - 22517DR floor plan - Basement Unfinished

Cottage Open Front-To-Back on the Left

  • 1,504

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total: 1,504 sq. ft.
  • 1st Floor: 1,504 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 54' 0"
  • Max ridge height: 22' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 350 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"
