Cottage with Atrium

Plan 57035HA

  • 1,207

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Eye-pleasing fa'ade enjoys stone accents with country porch for quiet evenings.
  • Step-saver kitchen is located immediately to the right of the foyer and includes a pass-though snack bar.
  • A bayed dining area, cozy fireplace and atrium with sunny two-story windows are the many features of the living room.
  • Master suite has walk-in closet and private access to the hall bath.
  • 325 square feet of optional living area on is the lower level.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan
  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Floor Plan

Plan details

Architectural Style

Special features

Plan Collections



Cottage with Atrium

  • 1,207

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - single-use $675
  • 5 Sets $725
  • Reproducible Set $725
  • 8 Sets $800
  • View all purchase option online

About This Plan

  • Eye-pleasing fa'ade enjoys stone accents with country porch for quiet evenings.
  • Step-saver kitchen is located immediately to the right of the foyer and includes a pass-though snack bar.
  • A bayed dining area, cozy fireplace and atrium with sunny two-story windows are the many features of the living room.
  • Master suite has walk-in closet and private access to the hall bath.
  • 325 square feet of optional living area on is the lower level.

Floor Plans

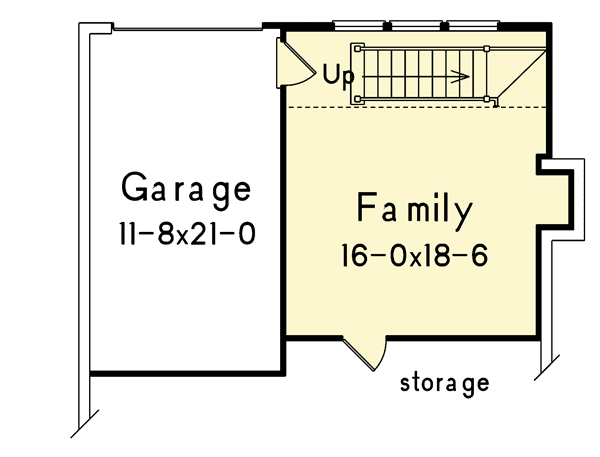

  • Basement

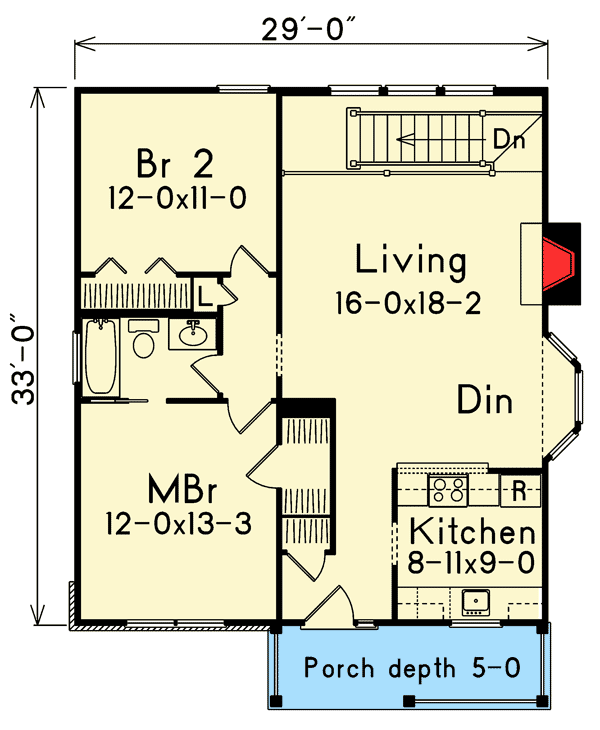

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,207 sq. ft.
  • Lower Level: 238 sq. ft.
  • 1st Floor: 969 sq. ft.
  • Basement Unfinished: 325 sq. ft.
  • Optional Lower Level: 325 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 31' 4"
  • Depth: 38' 0"
  • Max ridge height: 19' 0"

Garage

  • Type: Drive Under
  • Area: 245 sq. ft.
  • Count: 1 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
