Plan 72718DA
Cottage With Pocket Doored Den
Heated S.F.
2,051
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

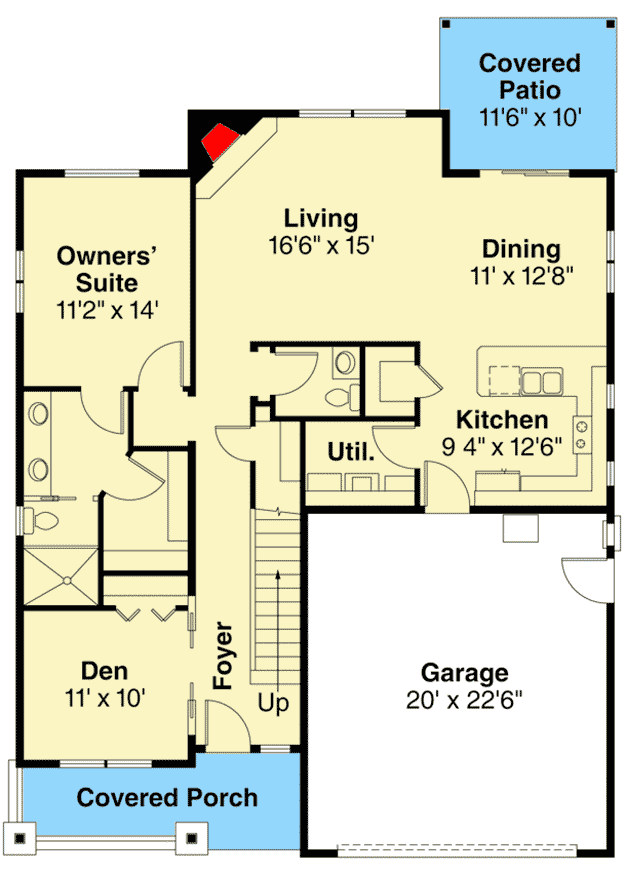

Cottage With Pocket Doored Den - 72718DA floor plan - Main Level
2nd Floor
Reverse Floor Plan

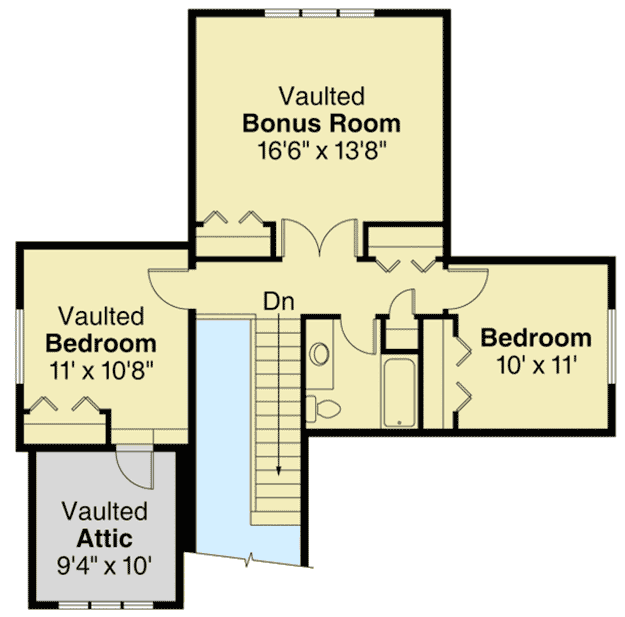

Cottage With Pocket Doored Den - 72718DA floor plan - 2nd Floor
Optional Basement Stairs
Reverse Floor Plan
Cottage With Pocket Doored Den - 72718DA floor plan - Optional Basement Stairs
Plan Details

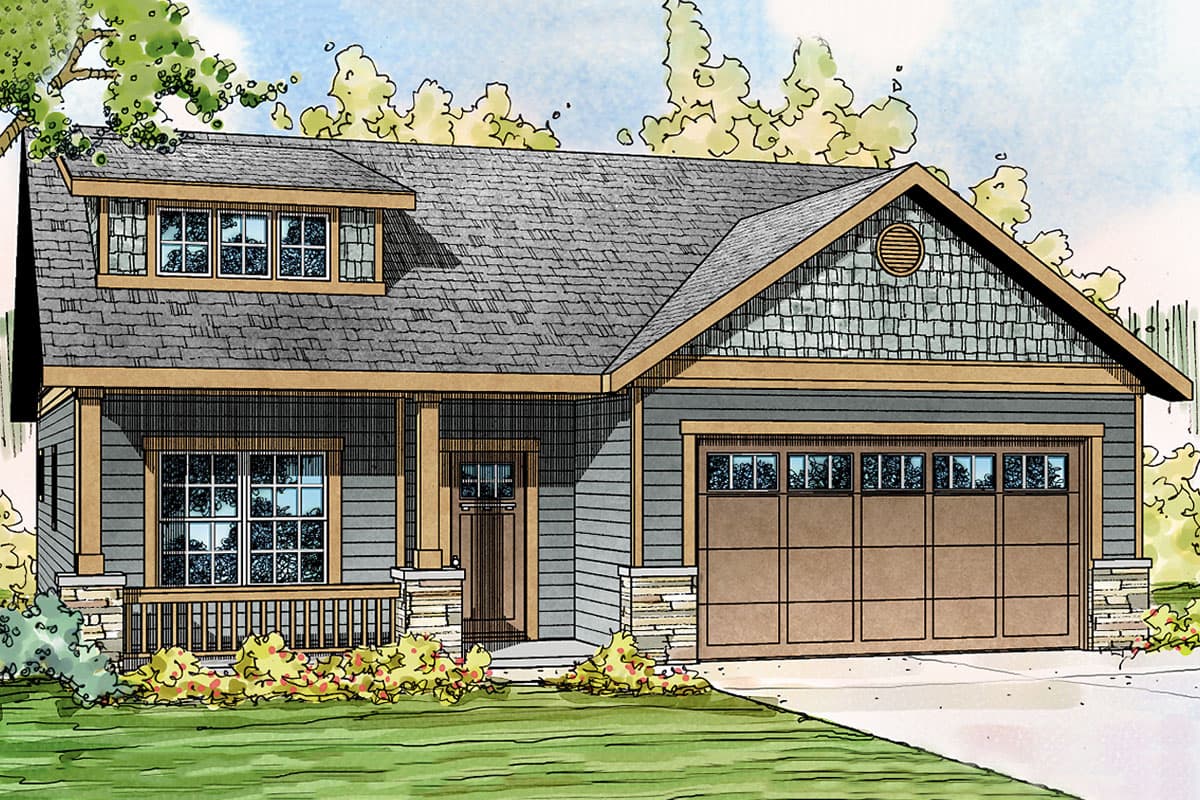

  • Dormers and an inviting front porch are among a cluster of Craftsman features that lend nostalgic charm to this cottage house plan. Multipaned windows, along with cultured stone wainscoting and column supports, boost its appeal.

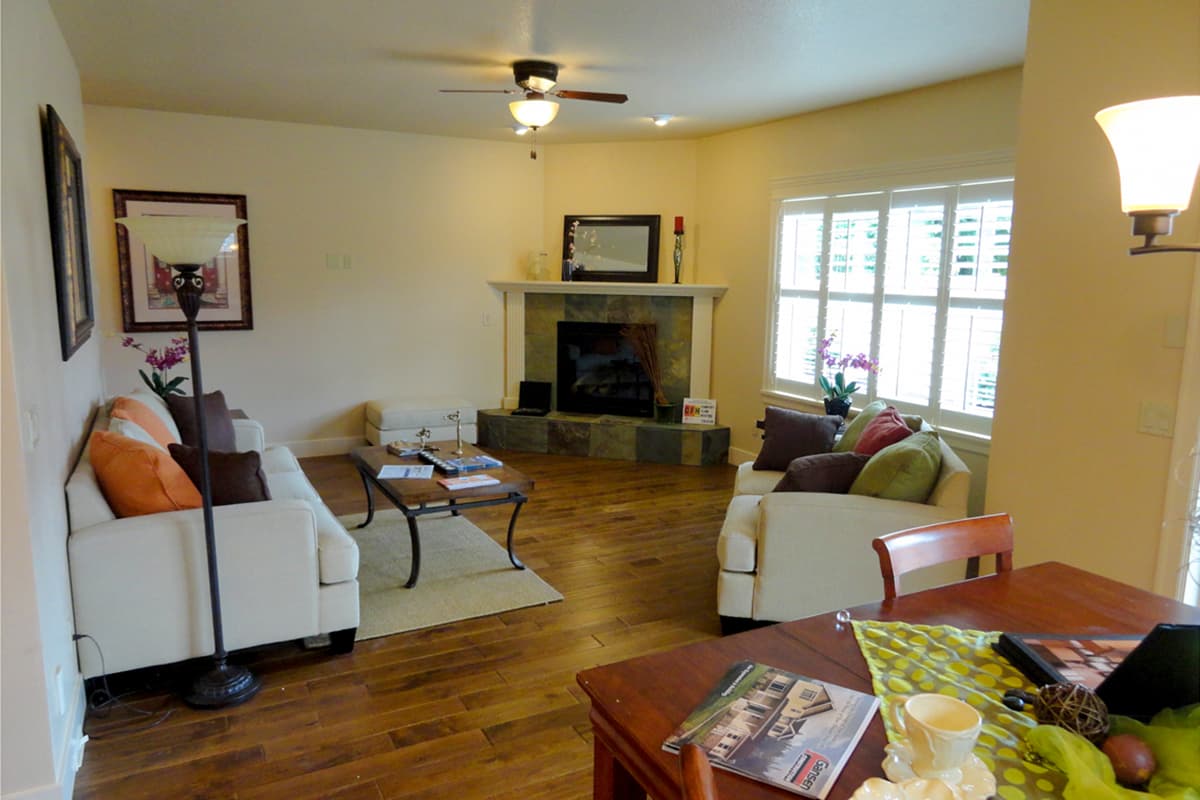

  • Inside, windows fill most of the living room's rear wall, next to a gas fireplace and is completely open to a dining room that is windowed on two sides, and open to the kitchen on its fourth side. A mini-bathroom is centrally located.

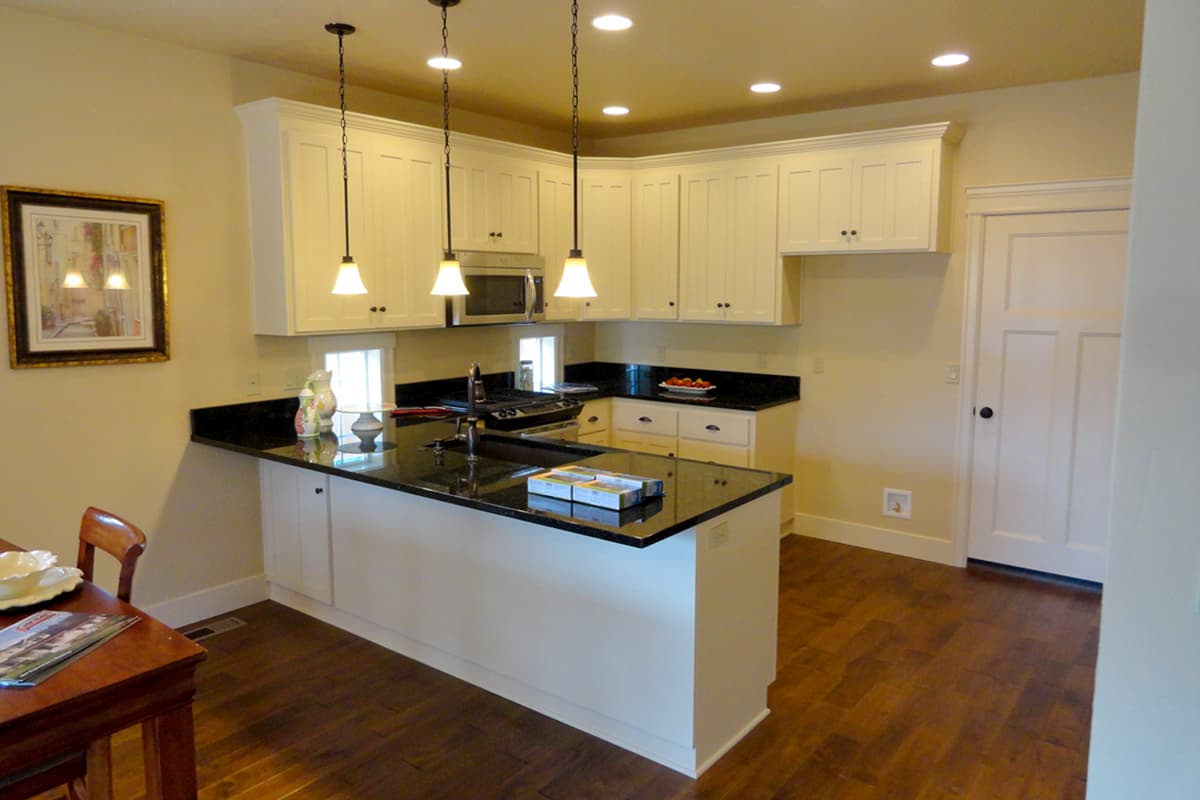

  • Standing at the kitchen sink, you can look out across the flush eating bar to the dining room, covered patio, and part of the living room. Counter space wraps around three sides of the C-shaped kitchen. Cupboards span two walls, while a generously sized walk-in pantry offers plenty of space.
  • Laundry facilities are in a good-sized utility room with built-in cabinets. Direct entry to the garage is ideal for unloading groceries.
  • The owners' suite and a den/home office fill the left side of the main floor, accessed via a vaulted foyer that runs next to the right-hand stairway. Pocket doors open into the den, which also has a closet. It could be furnished as a guest room, fourth bedroom, or put to other uses. Owners' suite amenities include a double vanity and a roomy walk-in closet.
  • Two more bedrooms and a bathroom are upstairs, along with a vaulted attic and a much larger vaulted bonus room.
  • The roof has a 6:12 pitch.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

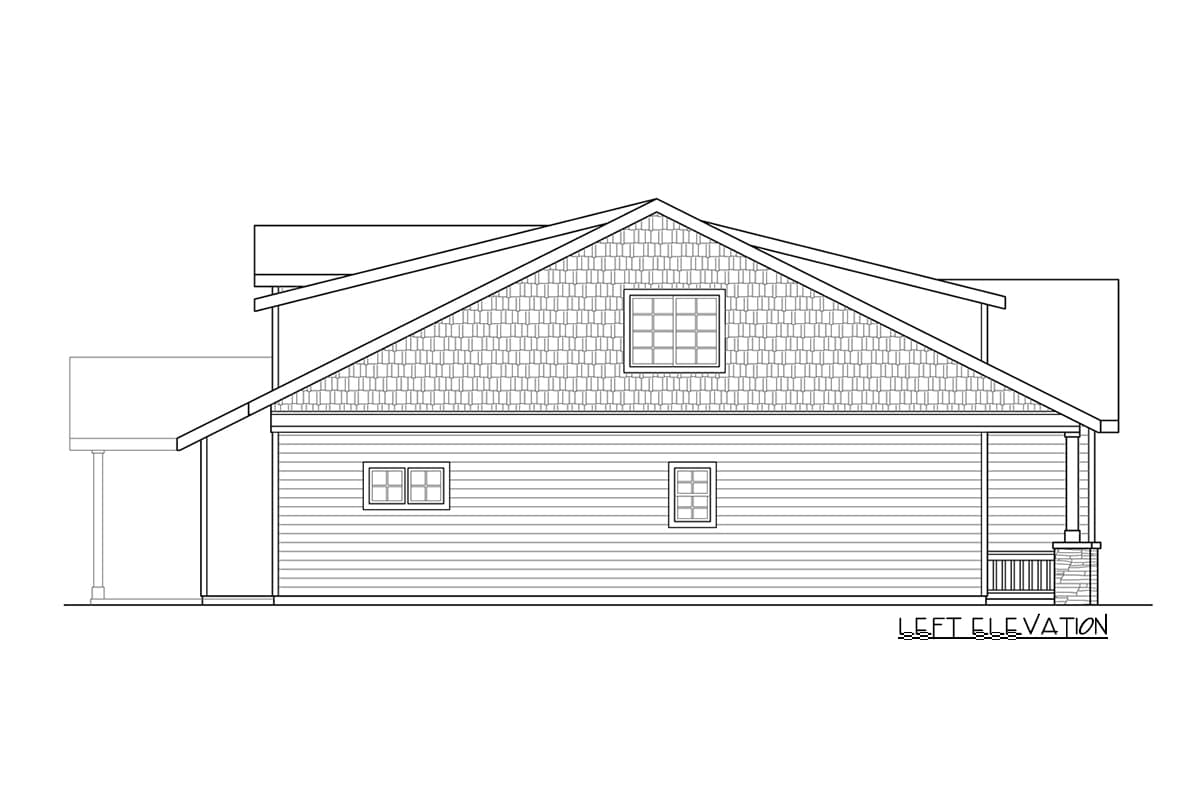

Elevations

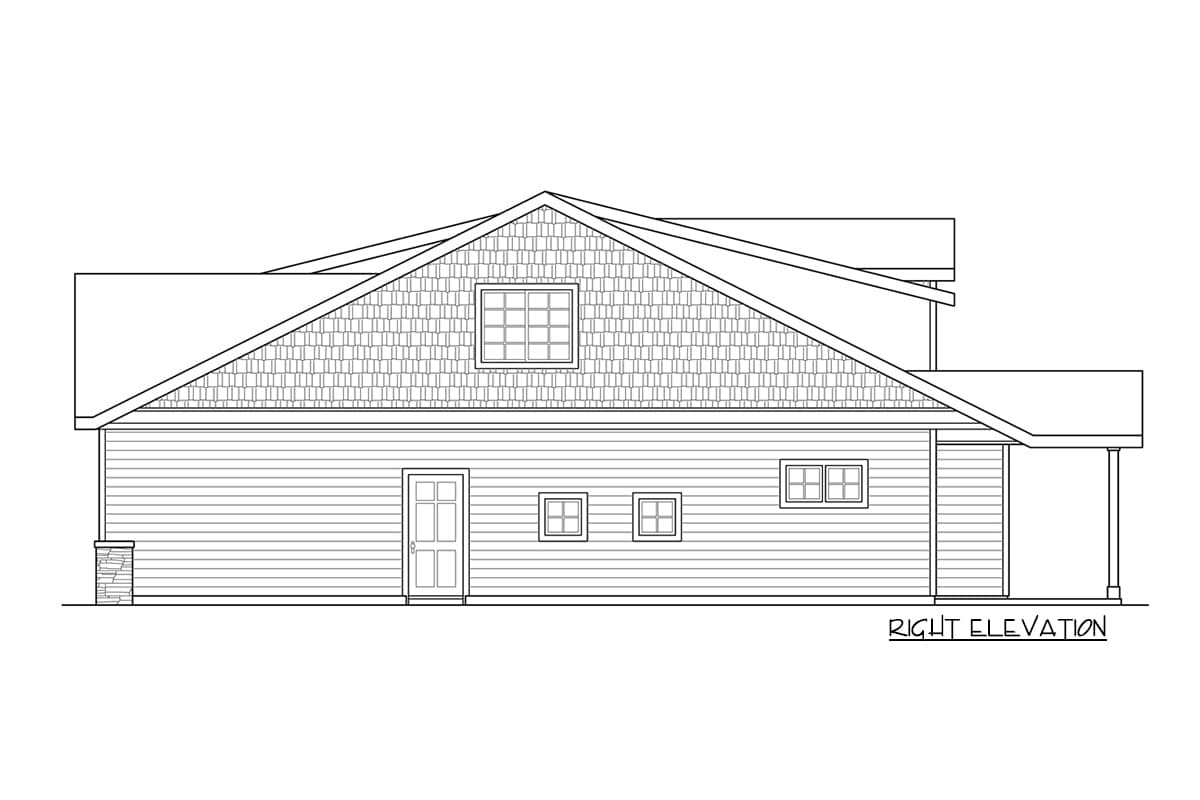

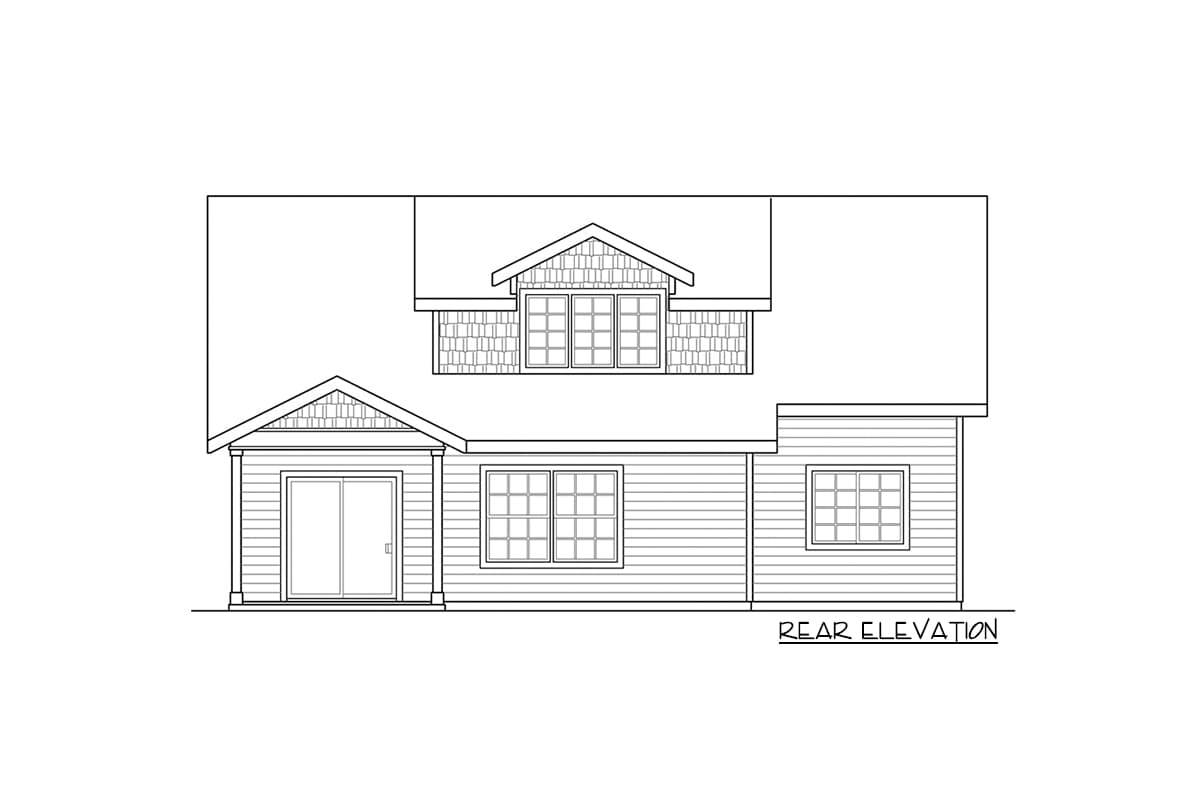

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cottage With Pocket Doored Den

  • 2,051

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Basement Stairs

Plan Details

Square Footage Breakdown

  • Total: 2,051 sq. ft.
  • 1st Floor: 1,314 sq. ft.
  • 2nd Floor: 737 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 56' 0"
  • Max ridge height: 22' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 475 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
