Plan 57027HA

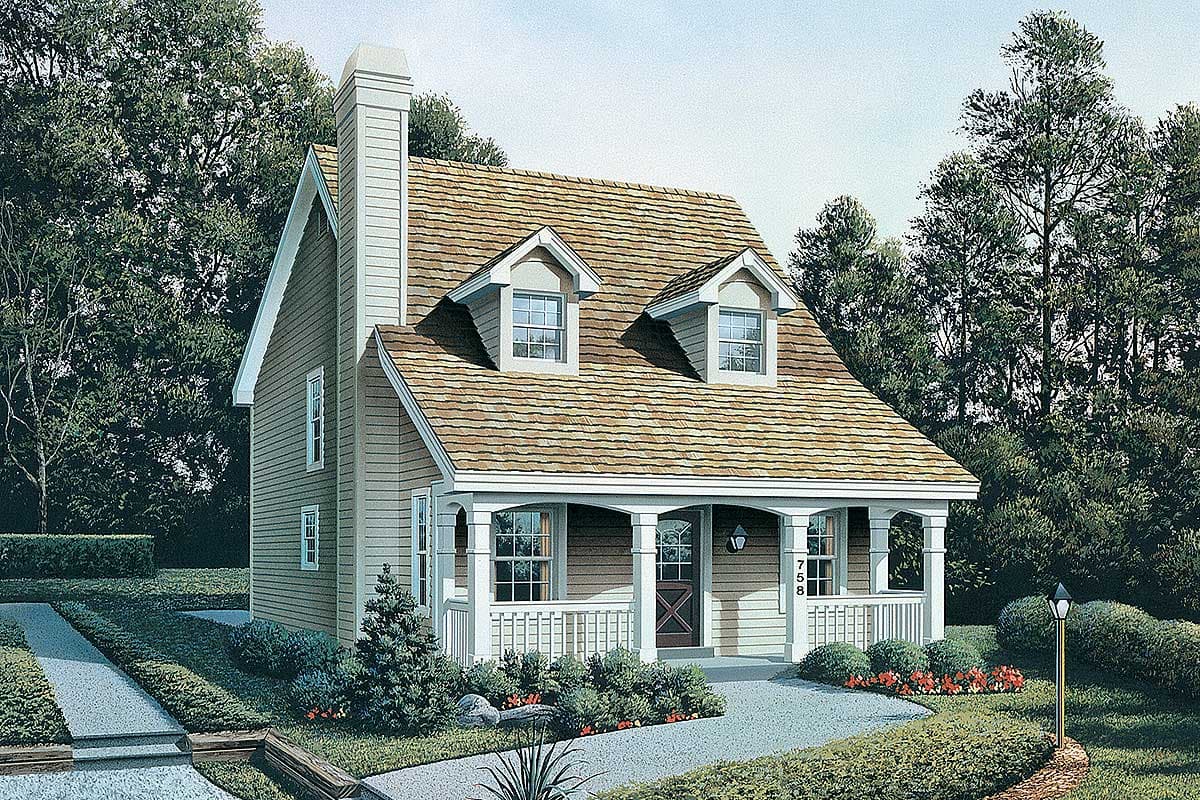

Country Appeal for a Small Lot

Heated S.F.
1,299
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 57027HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57027HA

M-F 9am-5pm EST |

1-203-761-8500

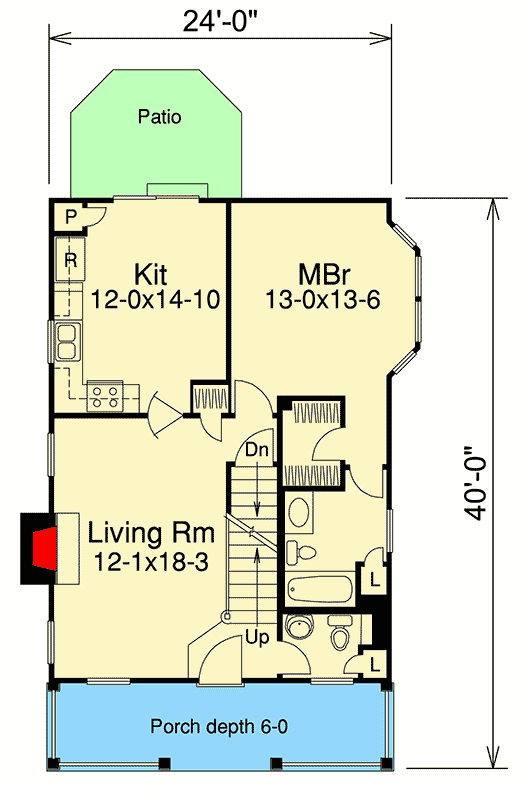

Main Level

Plan 57027HA: Country Appeal for a Small Lot - Floor Plan - Main Level - Cottage, Country

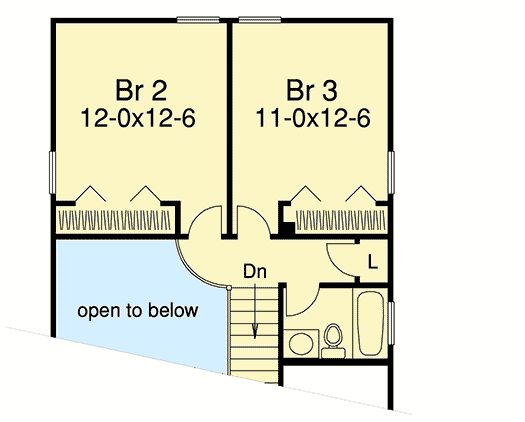

2nd Floor

Plan 57027HA: Country Appeal for a Small Lot - Floor Plan - 2nd Floor - Cottage, Country

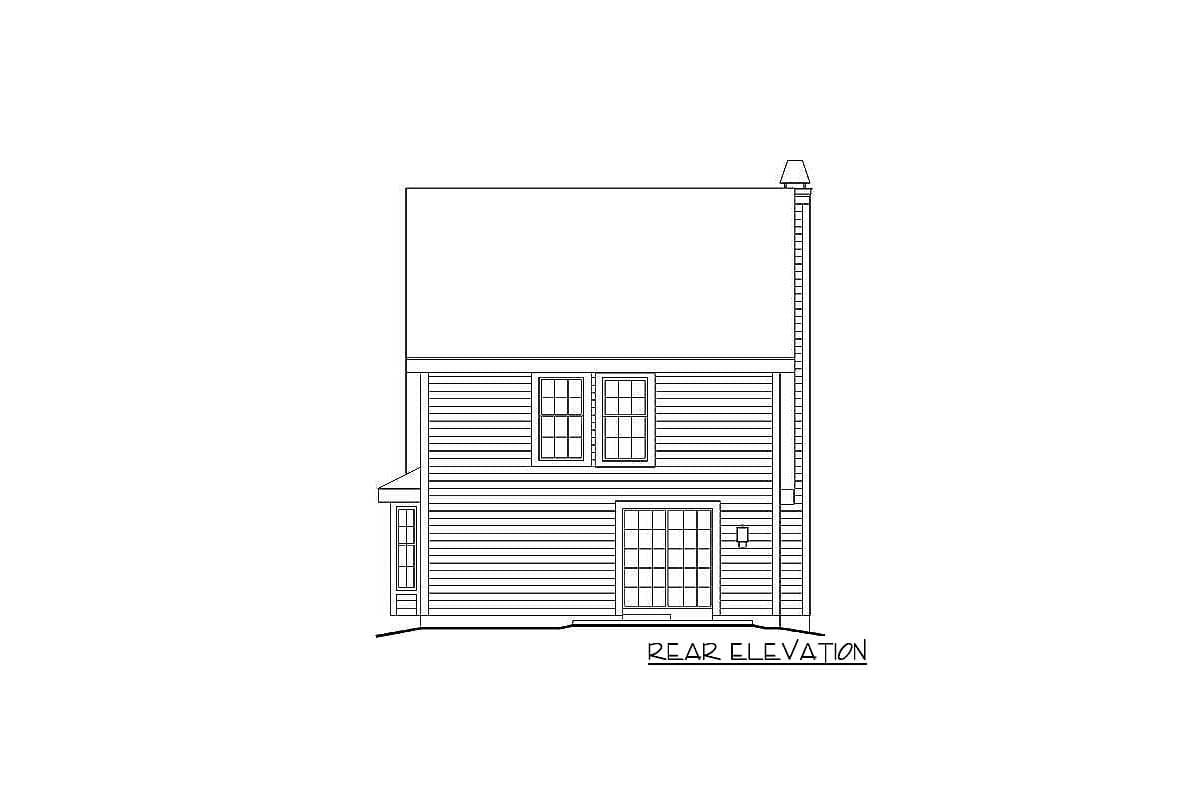

Plan Details

  • This compact home plan boasts a large covered porch.
  • Living room with vaulted ceiling and fireplace are handy to a spacious kitchen, which leaves room for dining and also has a door to a rear patio.
  • The first floor master bedroom has a bay window, walk-in closet and roomy bath.
  • Two generous bedrooms with lots of closet space, a hall bath, and linen closet and balcony over-look comprise the second floor.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,299 sq. ft.

1st Floor

834 sq. ft.

2nd Floor

465 sq. ft.

Basement Unfinished

816 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,299 sq. ft.

1st Floor

834 sq. ft.

2nd Floor

465 sq. ft.

Basement Unfinished

816 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor
