Plan 680560VR

Country Barn Garage with Optionally Finished Second Level - 1080 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 680560VR

Main Level
Main Level
Optionally Finished Second Level
Optionally Finished Second Level

Plan 680560VR

M-F 9am-5pm EST |

1-203-761-8500

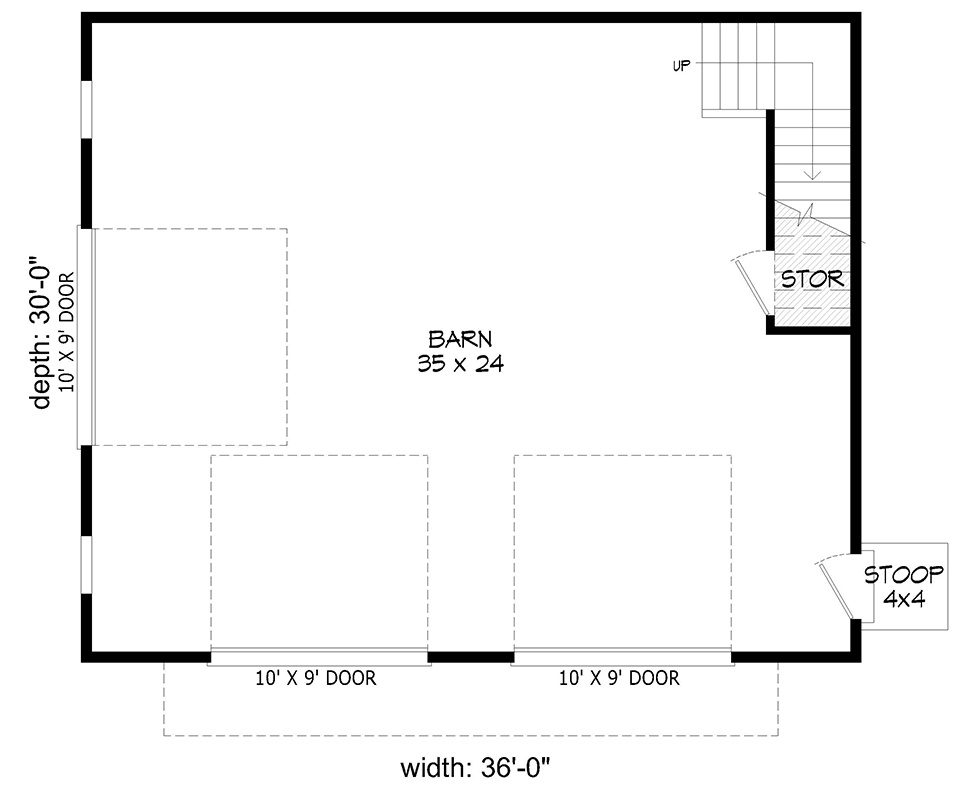

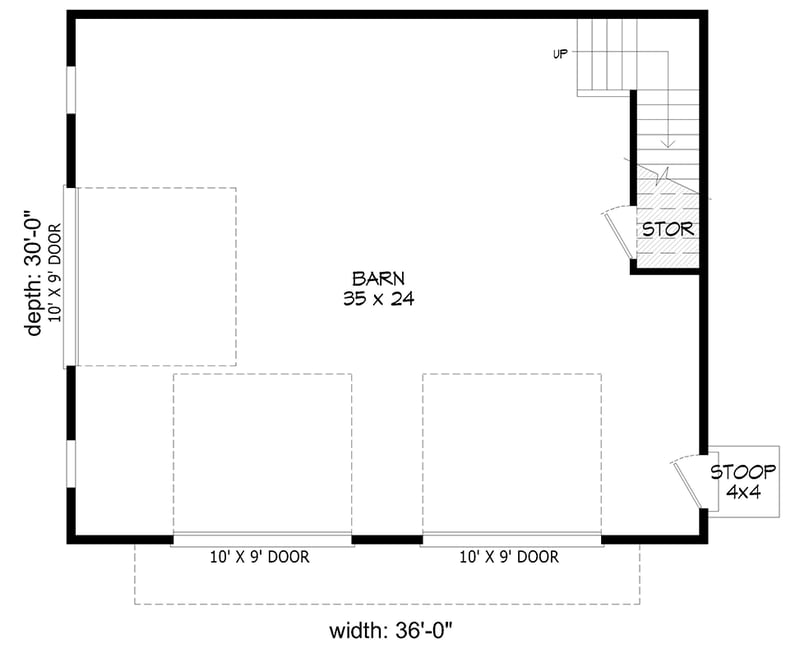

Main Level

Plan 680560VR: Country Barn Garage with Optionally Finished Second Level - 1080 Sq Ft - Floor Plan - Main Level

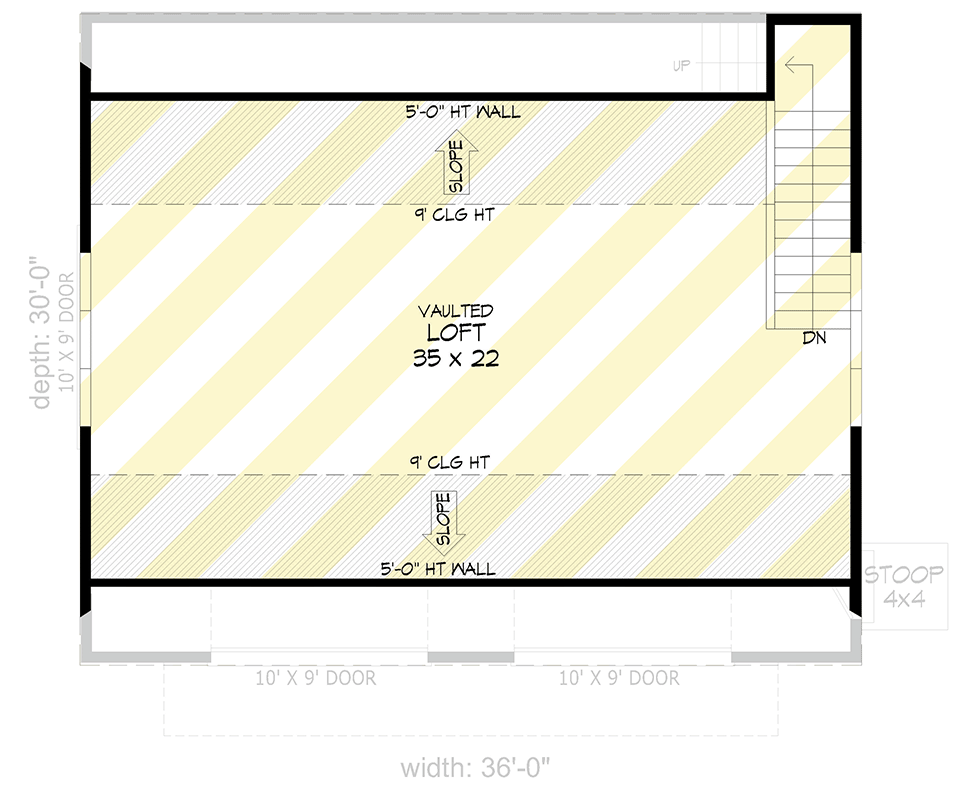

Optionally Finished Second Level

Plan 680560VR: Country Barn Garage with Optionally Finished Second Level - 1080 Sq Ft - Floor Plan - Optionally Finished Second Level

Plan Details

  • This country garage plan offers you 771 square feet of optionally heated living space on the second floor and a 1,080 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

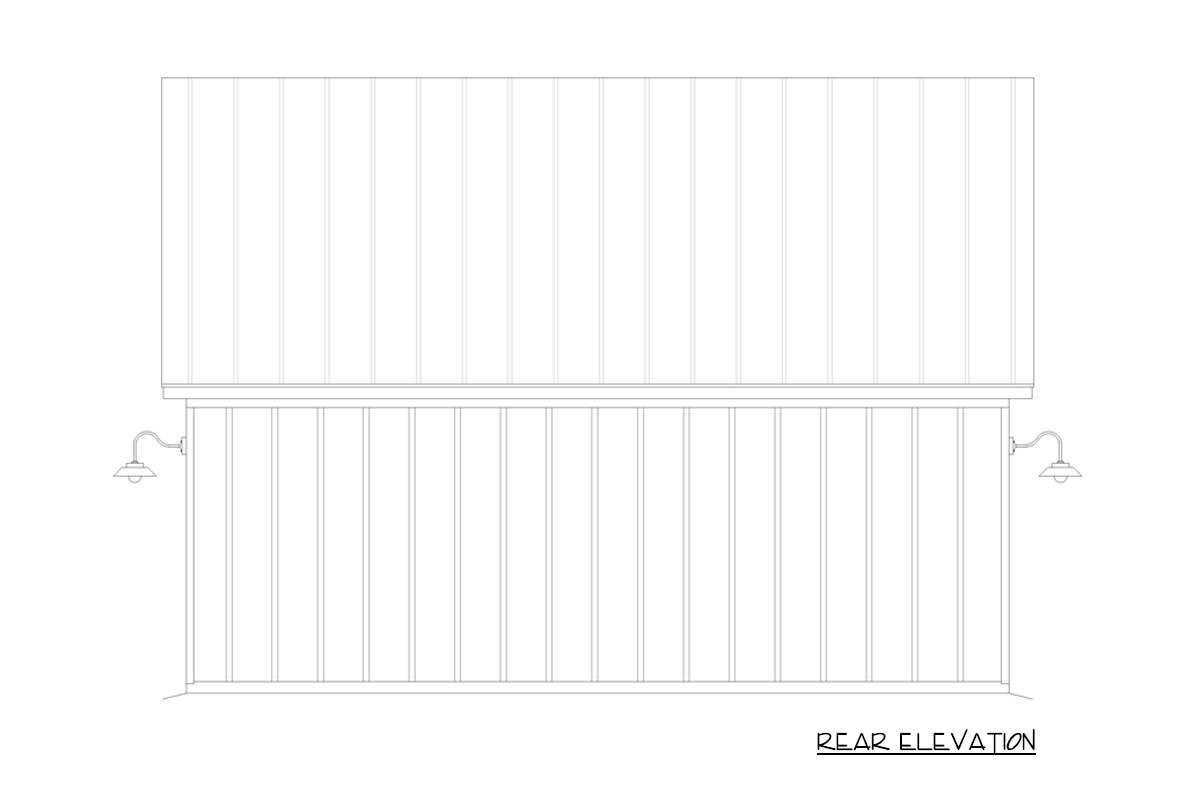

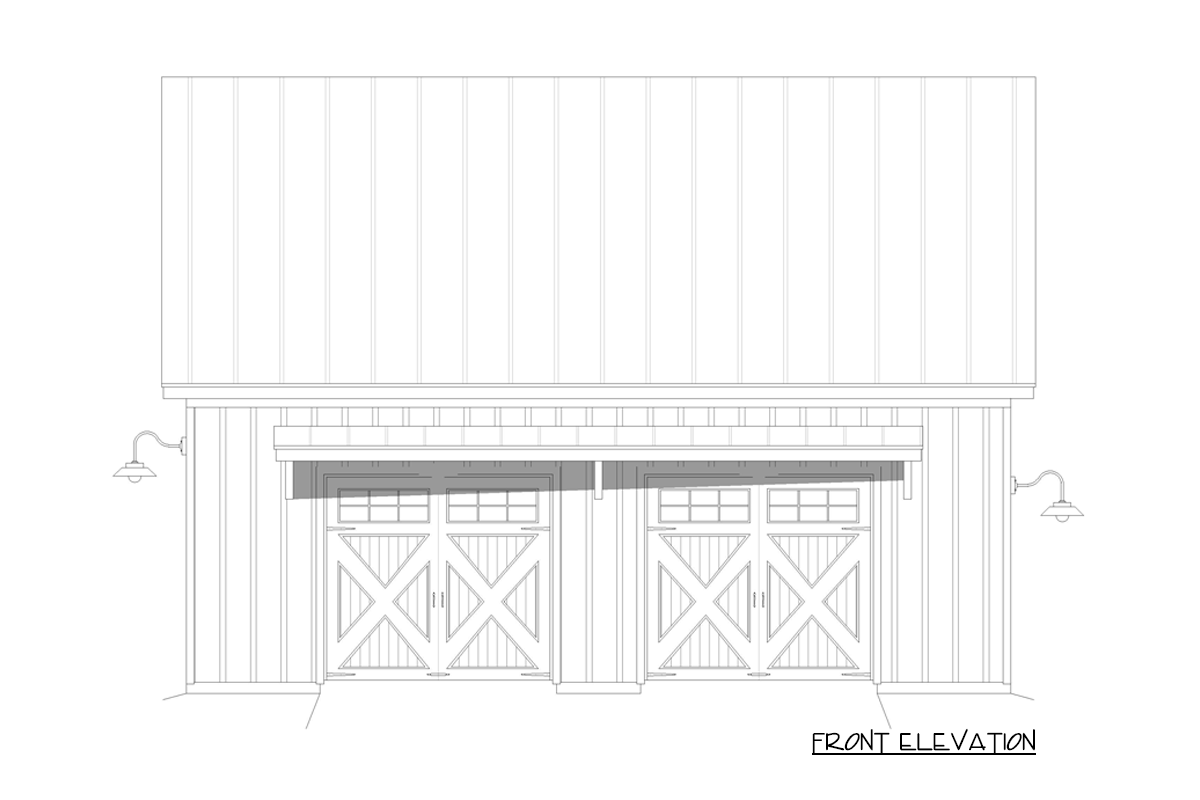

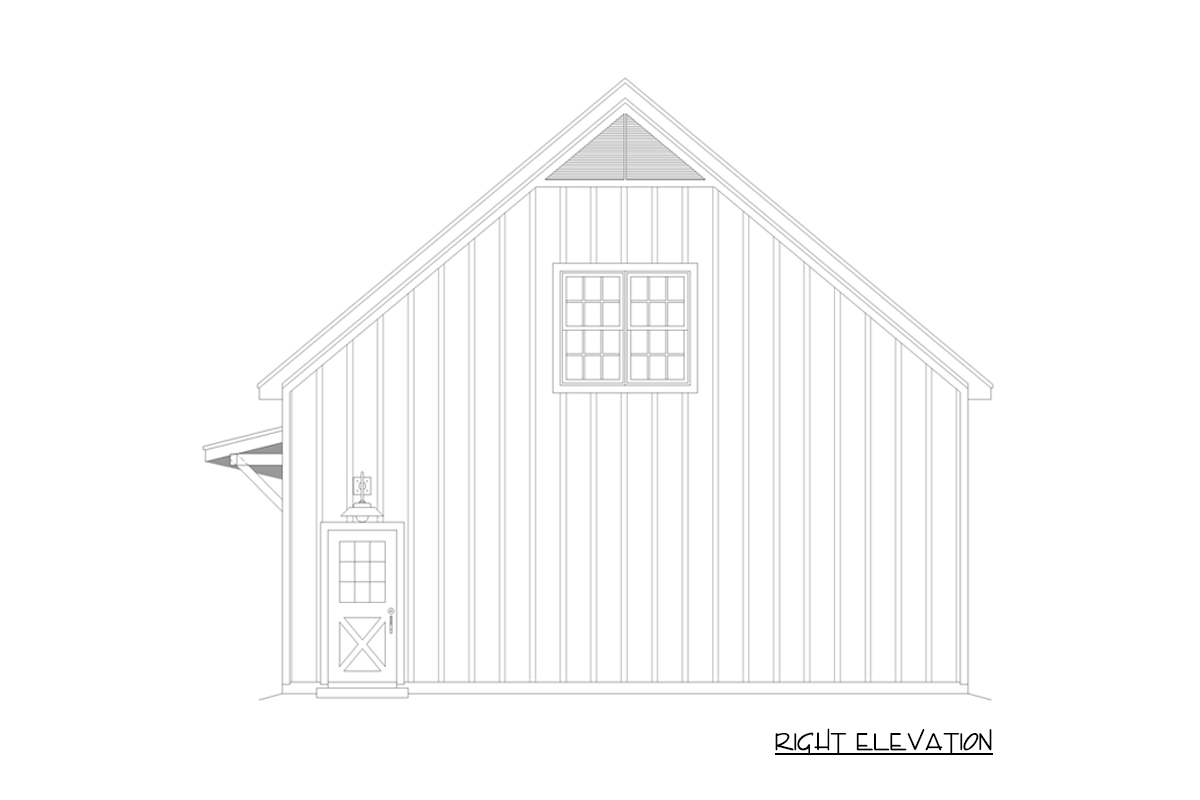

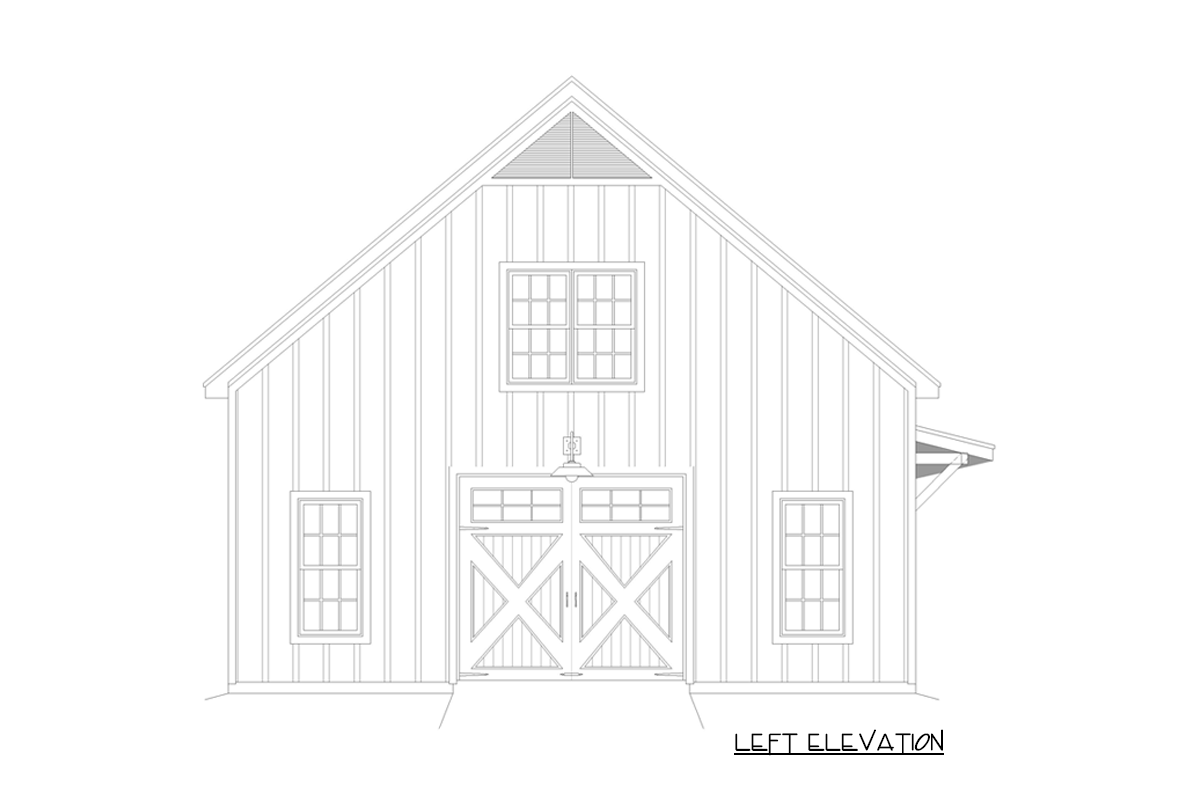

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

771 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

26' 6"

Garage

Type

Detached

Area

1080 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

771 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

26' 6"

Garage

Type

Detached

Area

1080 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick
