Country Carriage House Plan with Porch and Bed or Bonus Room

Plan 61319UT

  • 434

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This country-inspired, carriage house plan features a 3-car garage and powder bath on the main level.
  • Arched garage doors add character, and grand windows provide natural light to permeate throughout.
  • A shed roof sits atop a large, covered porch, and a separate door provides access to a storage room.
  • Stairs lead to a second-level bonus room with a full bathroom and Juliet balcony overlooking the garage below.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

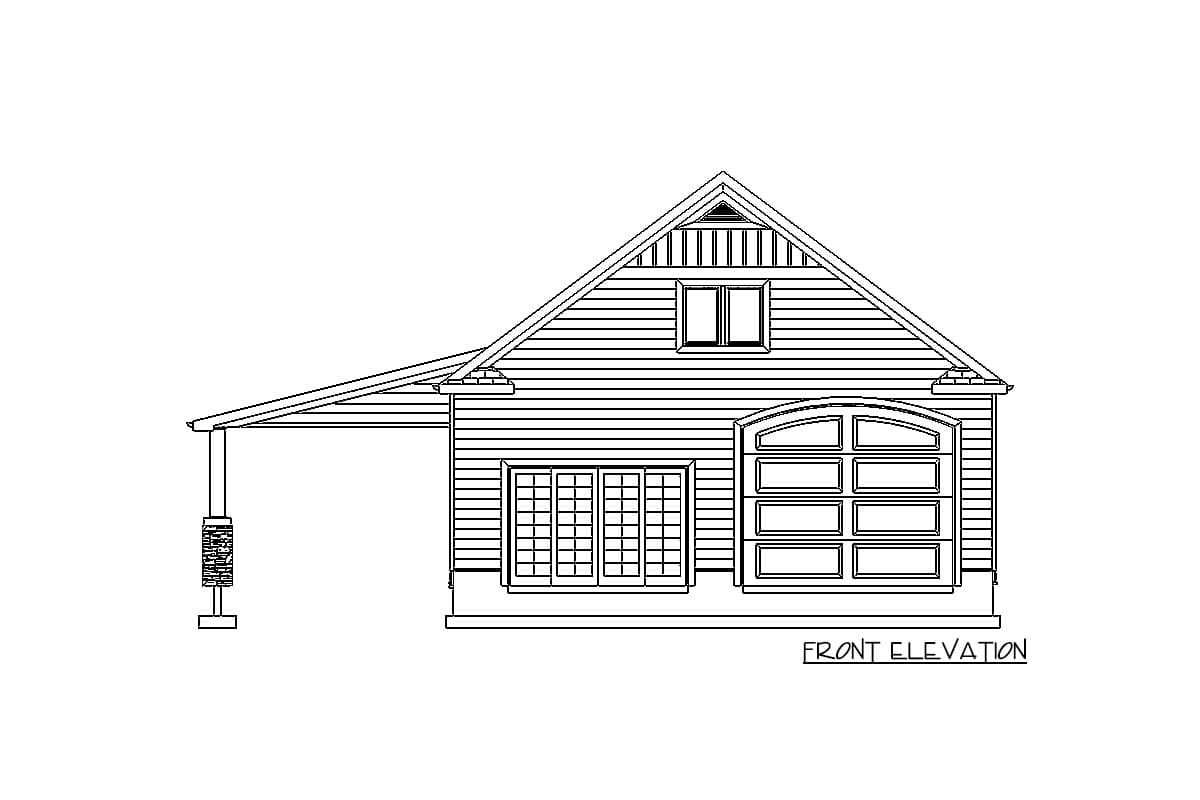

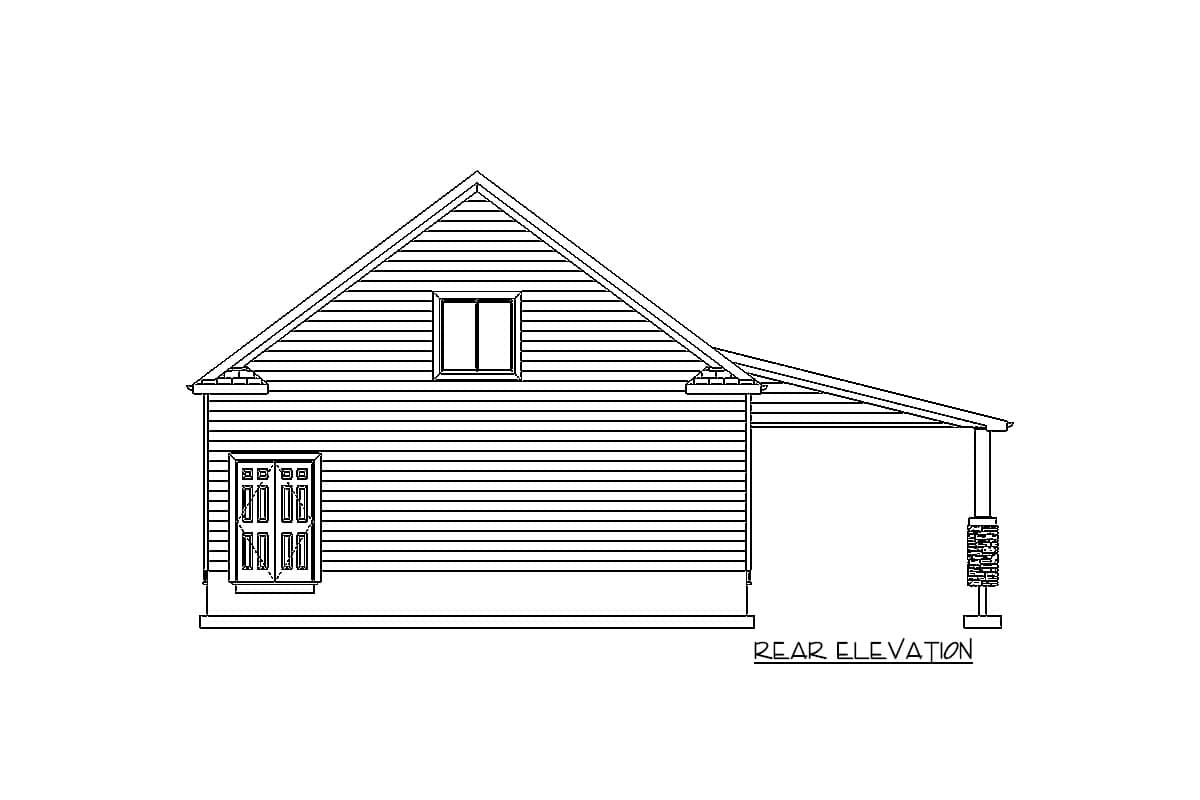

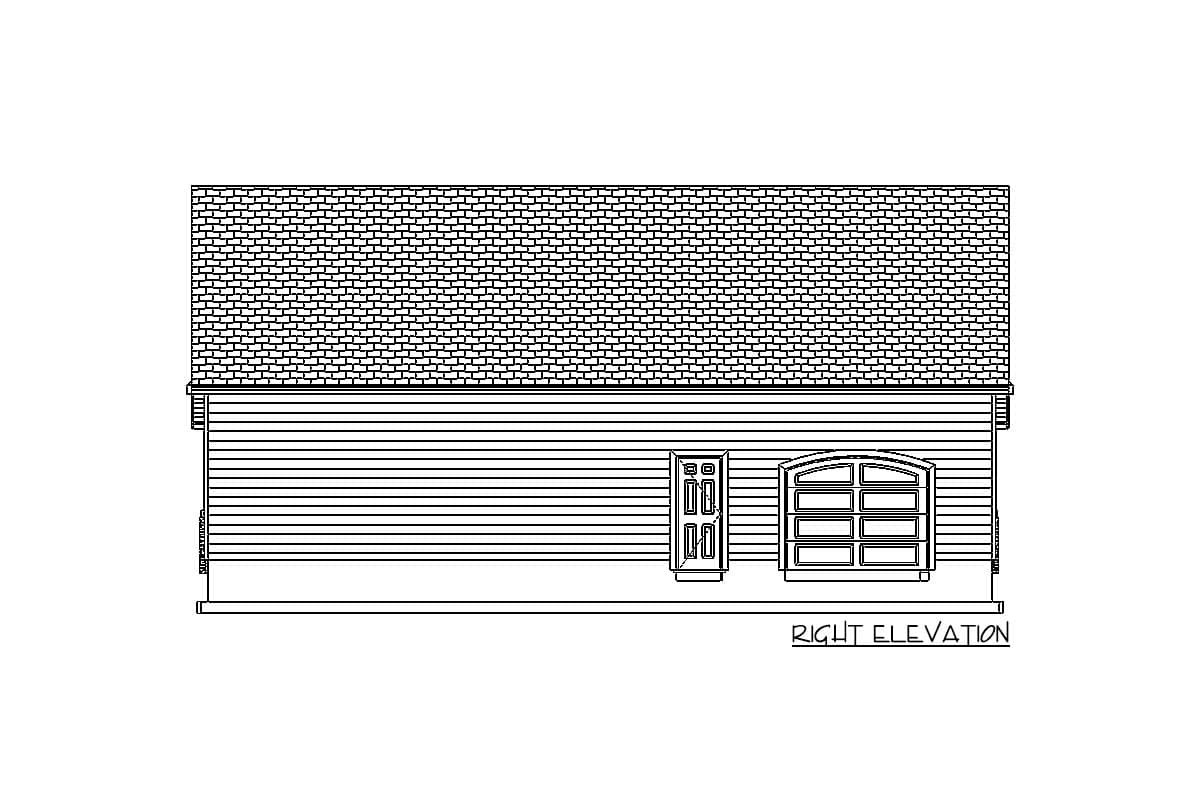

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

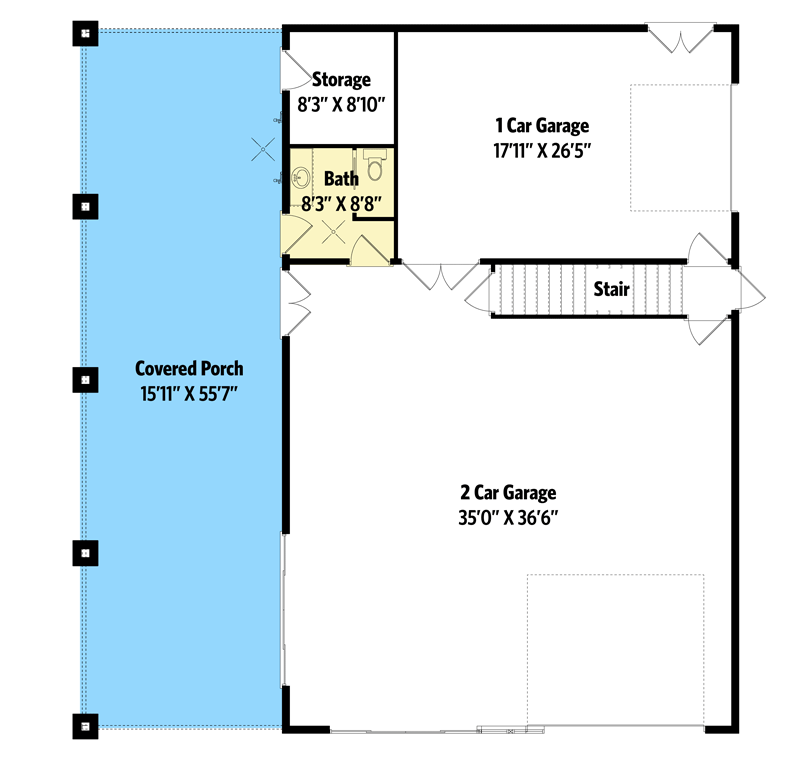

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Carriage House Plan with Porch and Bed or Bonus Room - 61319UT floor plan - Main Level

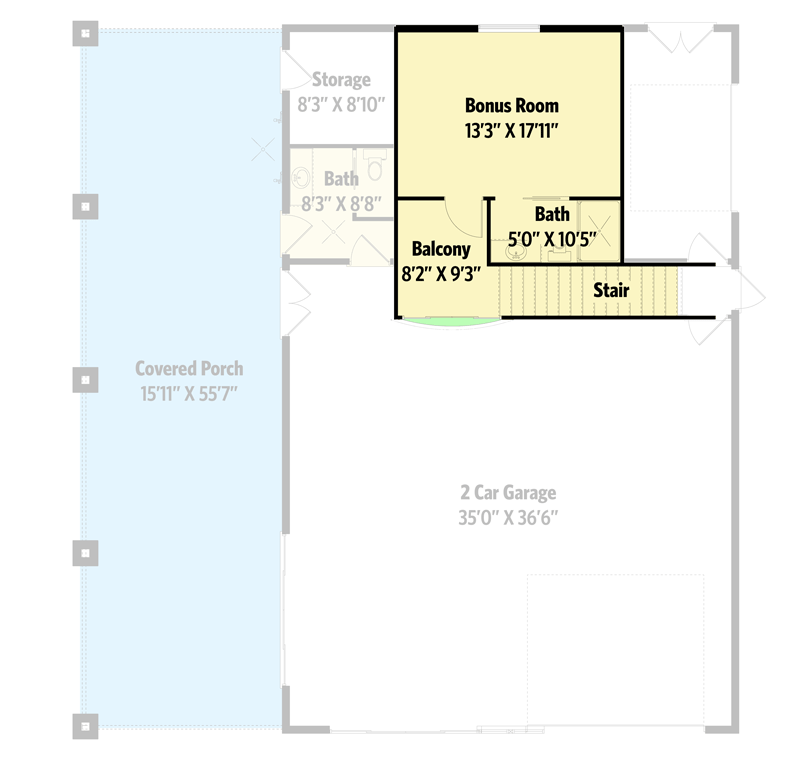

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Carriage House Plan with Porch and Bed or Bonus Room - 61319UT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 434 sq. ft.
  • 2nd Floor: 434 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 9"
  • Depth: 56' 0"
  • Max ridge height: 26' 8"

Garage

  • Type: Detached
  • Area: 2016 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 6" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Country Carriage House Plan with Porch and Bed or Bonus Room

  • 434

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $580
  • PDF - Unlimited Build $625
  • CAD - Unlimited Build $725
  • 5 Sets + PDF $780
  • CAD Unlimited + PDF $825
  • View all purchase option online
