Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
- Material Labels
- Floor-to-Floor Heights
- Roof Slope Indicators

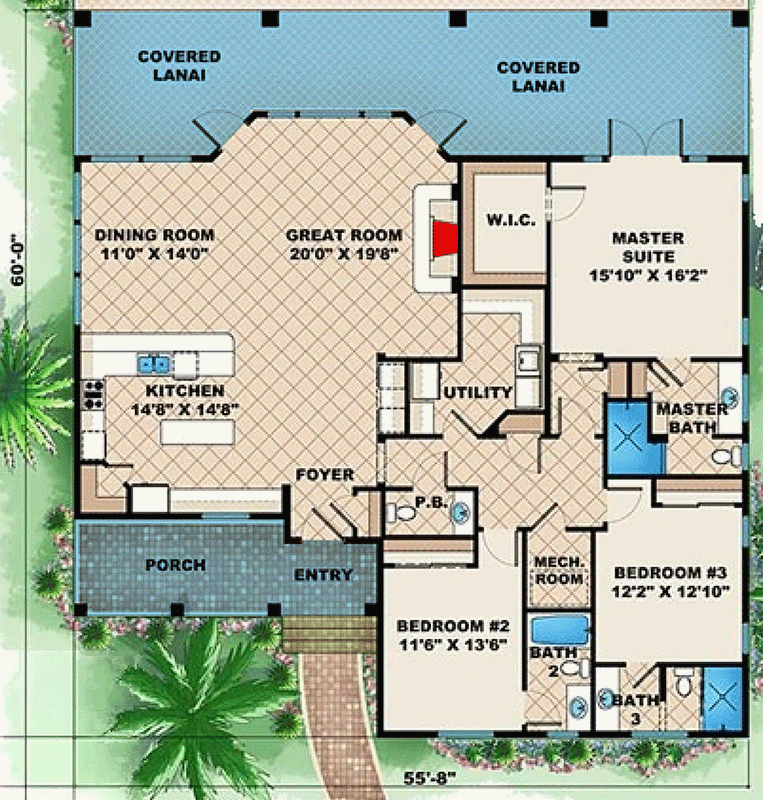

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
- Door and Window Sizes
- Completely Dimensioned Floor Plan
- Room Labels and Interior Room Sizes
Electrical Layouts
- Building Section Markers
- All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
- Floor and Deck Joist Size and Spacing
- Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
- All Beam and Header Heights and Locations
- All Hips, Gables, Ridges, and Valleys
- Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
- Floor Joist Size and Spacing
- Floor-to-Floor Heights
- Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
- All Labels Indicating Wall Construction
- Foundation Wall Thickness and Reinforcing
- Insulation Type and Thickness
Miscellaneous Notes and Details
- Miscellaneous General Notes
- Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
