Plan 444026GDN Country Cottage Plan with Screened Porch

Country Cottage Plan with Screened Porch

Plan 444026GDN

  • 1,246

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Country Cottage plan makes efficient use of the 1,246 square feet by opening up the living spaces to flow into one another and vaulting the ceilings in key rooms for added volume.
  • The front porch wraps slightly, giving the illusion of a larger home on the outside, while inside a cathedral ceiling maximizes space in the open great room and dining room.
  • The kitchen features a center skylight, breakfast bar, and access to the garage via a screened porch.
  • Two bedrooms share a bath up front, while the master suite with cathedral ceiling, walk-in closet, and well-equipped bath maintains privacy in back.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

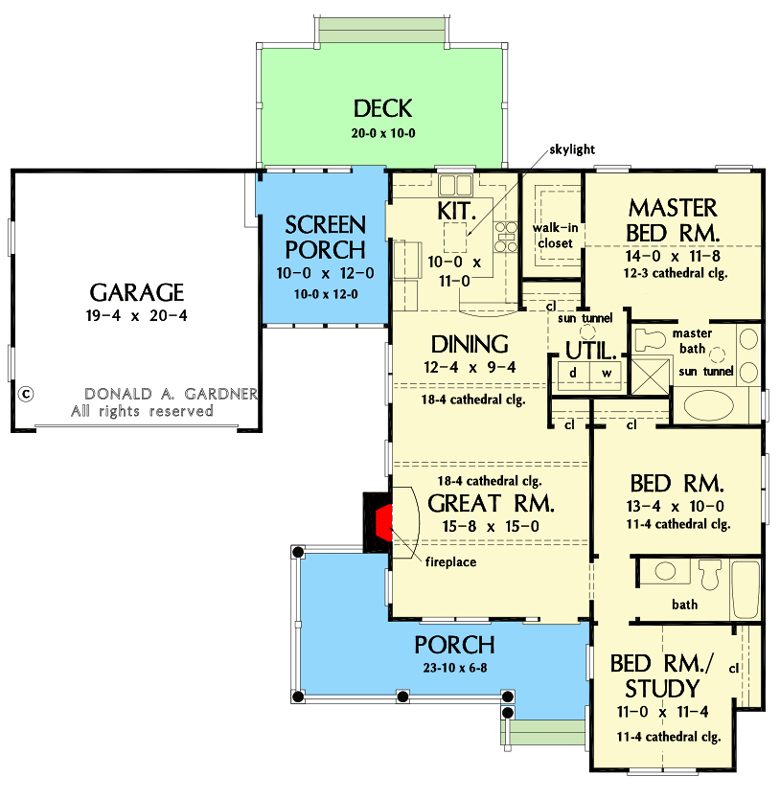

Country Cottage Plan with Screened Porch - 444026GDN floor plan - Main Level

Basement Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

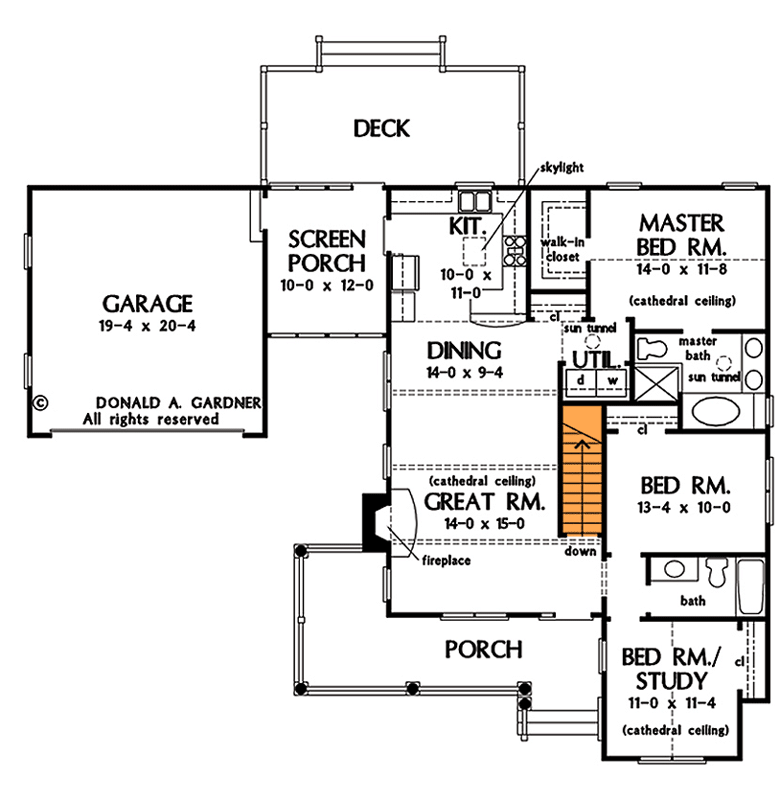

Country Cottage Plan with Screened Porch - 444026GDN floor plan - Basement Option

Plan details

Country Cottage Plan with Screened Porch

  • 1,246

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $855
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,255
  • CAD Unlimited + PDF $2,110
  • View all purchase option online

About This Plan

  • This Country Cottage plan makes efficient use of the 1,246 square feet by opening up the living spaces to flow into one another and vaulting the ceilings in key rooms for added volume.
  • The front porch wraps slightly, giving the illusion of a larger home on the outside, while inside a cathedral ceiling maximizes space in the open great room and dining room.
  • The kitchen features a center skylight, breakfast bar, and access to the garage via a screened porch.
  • Two bedrooms share a bath up front, while the master suite with cathedral ceiling, walk-in closet, and well-equipped bath maintains privacy in back.

Floor Plans

  • Main Level

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,246 sq. ft.
  • 1st Floor: 1,246 sq. ft.
  • Deck: 200 sq. ft.
  • Screened Porch: 127 sq. ft.
  • Porch, Front: 250 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 48' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
