Country Craftsman Plan with Large Gathering Spaces

Plan 444071GDN

3,335
Heated s.f.
3-4
Beds
3
Baths
1
Stories
3
Cars

If you're looking for luxury on one level designed to maximize wide-open views then you'll love this Country Craftsman plan. Unique details abound in this sprawling plan that offers so many amenities.
Inside, guests are drawn into the space via a foyer with a barrel vaulted ceiling and an octagonal dining room to the left opens to the oversized great room with cathedral ceiling.
The left wing of the home includes an enormous gourmet kitchen, breakfast area, and open family room that creates one large entertaining space.
Two secondary bedrooms with a jack-and-jill bath are tucked away on this side as well, while the opposite wing holds the decadent master suite.
The octagonal master bedroom features an attached octagonal sitting area with an art niche, an enormous walk-in closet, and a master bath with dual vanities, soaking tub, and separate shower.

1. Cover Sheet

An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan

This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans

These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations

The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan

The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations

Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details

Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan

Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

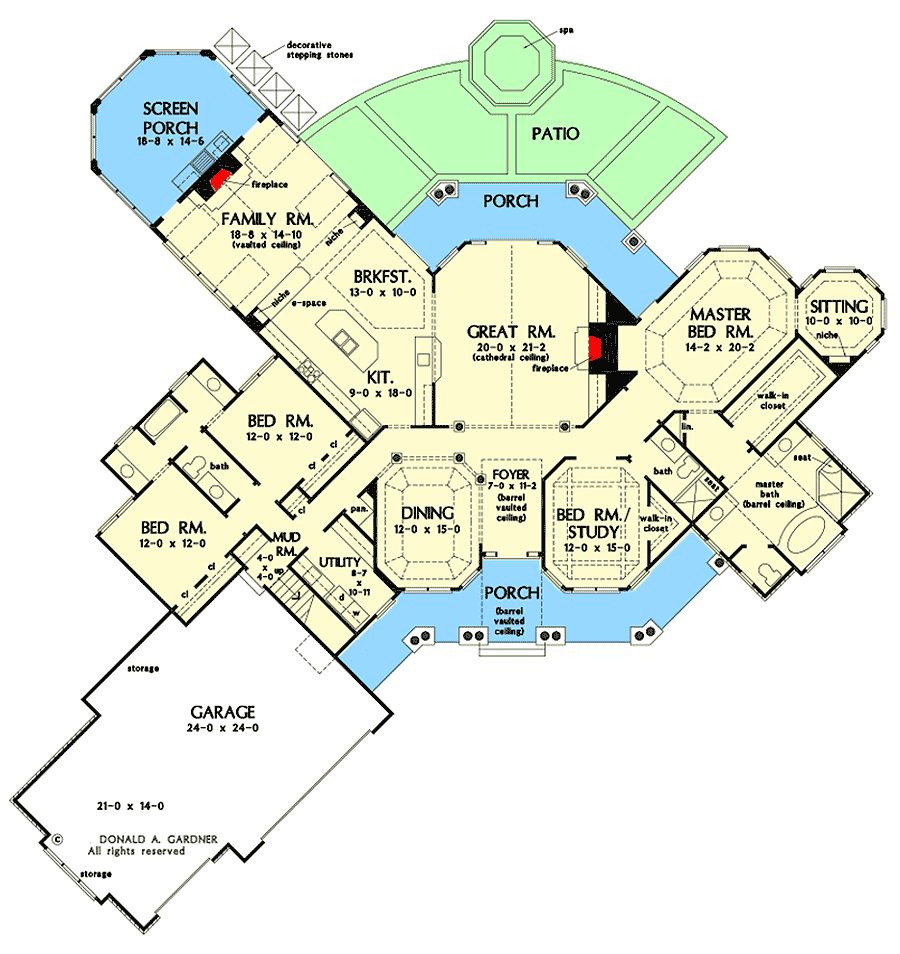

Country Craftsman Plan with Large Gathering Spaces - 444071GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

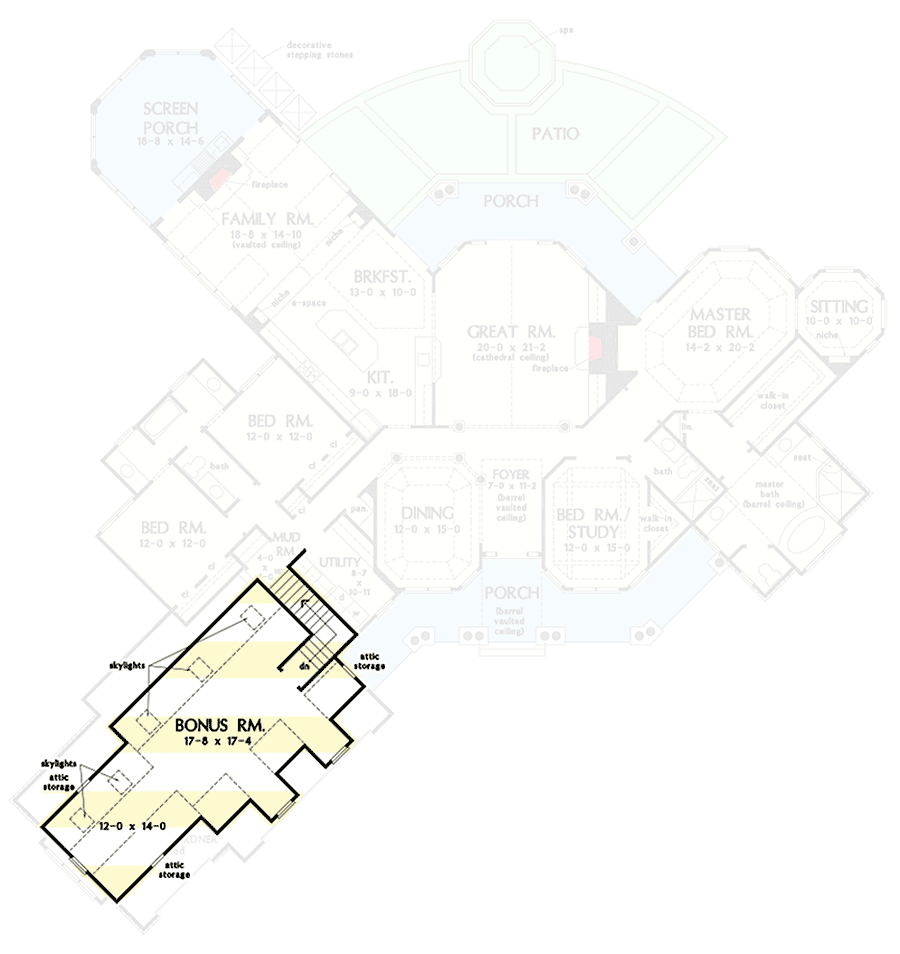

Country Craftsman Plan with Large Gathering Spaces - 444071GDN floor plan - Bonus Room

Basement Option

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

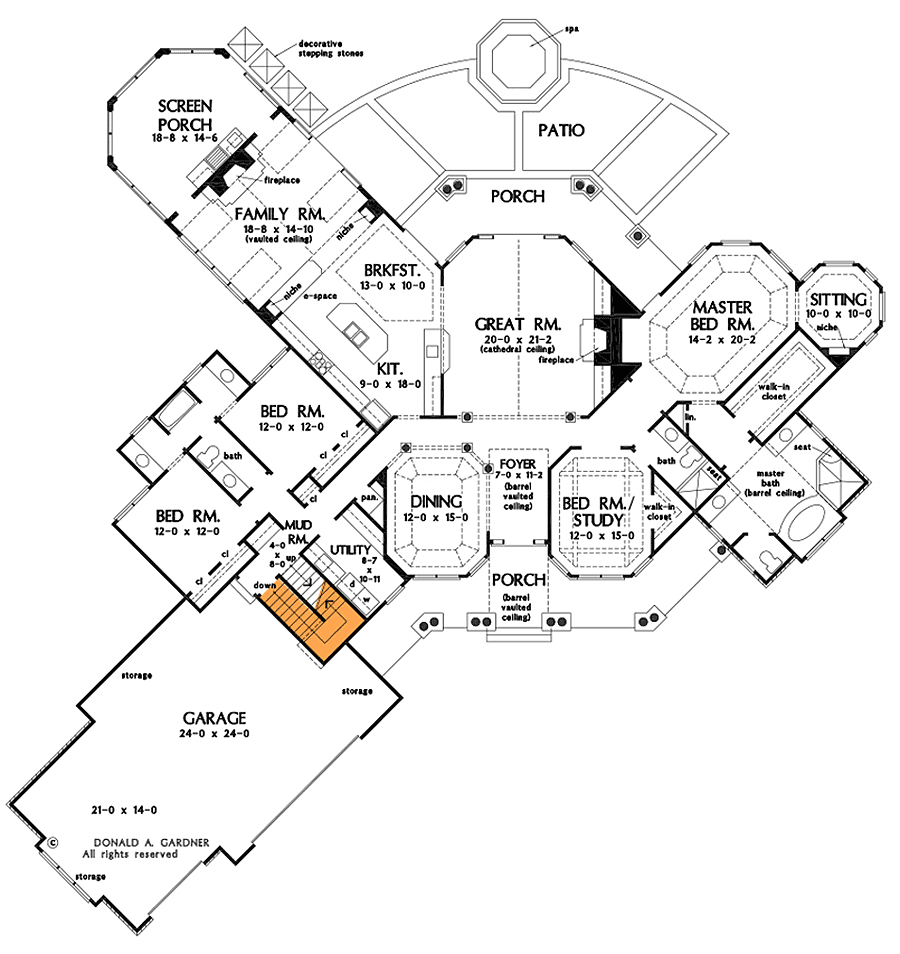

Country Craftsman Plan with Large Gathering Spaces - 444071GDN floor plan - Basement Option

Plan details

Square Footage Breakdown

Total Heated Area: 3,335 sq. ft.
1st Floor: 3,335 sq. ft.

Covered Patio: 627 sq. ft.
Porch, Combined: 826 sq. ft.
Bonus: 633 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Slab, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 101' 11"
Depth: 103' 0"
Max ridge height: 24' 0"

Garage

Type: Attached
Area: 955 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Foyer	Vaulted			11' 2"
Great Room	Cathedral			25' 0"
Family Room	Cathedral			21' 0"
Dining Room	Tray			11' 0"
Breakfast Room	Tray			10' 0"
Study	Coffered			10' 0"
Master Bedroom	Tray			11' 0"
Screened Porch				11' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 12 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
