Plan 280117JWD
Country Craftsman Plan with Main-floor Master Bedroom
Heated S.F.
3,828
Beds
4
Baths
2.5+
Stories
2
Cars
3
Flyer
Photos
What's Included
Plan Details
  • The L-shaped design of this country Craftsman home plan creates a parking courtyard in front of the formal entry. The protruding 3-car garage opens into a useful mudroom with a nearby powder bath.
  • Enjoy the benefits of an open concept floor plan, while still able to find a space to unwind in the quiet den.
  • Counters, cabinets, and appliances wrap around a large prep island in the spacious kitchen, and oversized sliding doors part to provide access to a rear covered patio.
  • The master bedroom can be found on the main level, and includes a 5-fixture bath and walk-in closet.
  • The remaining bedrooms are located upstairs, along with a compartmentalized bath and generous bonus room above the garage.
  • IMPORTANT NOTE: The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Craftsman Plan with Main-floor Master Bedroom

  • 3,828

    Heated s.f.

  • 4

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

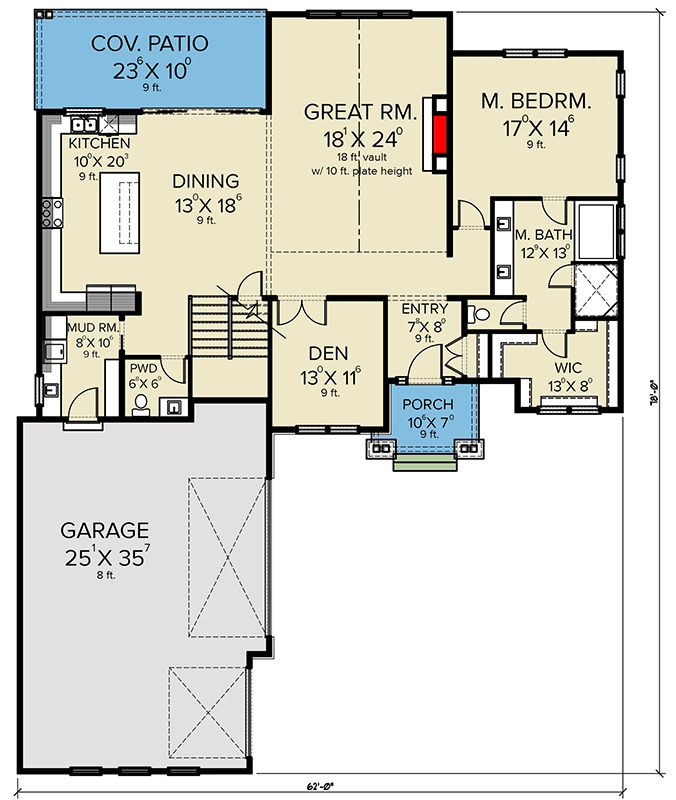

  • Main Level

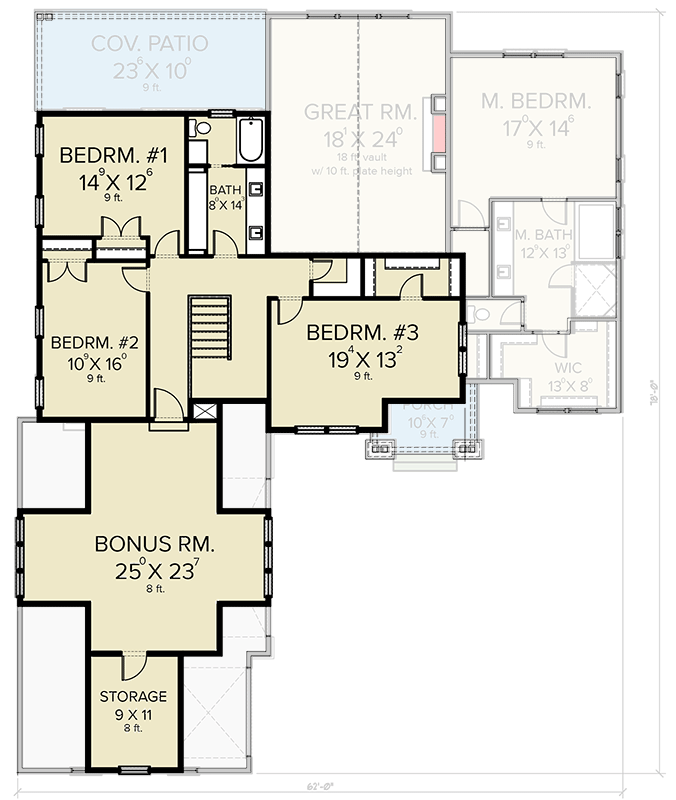

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,828 sq. ft.
  • 1st Floor: 2,149 sq. ft.
  • 2nd Floor: 1,102 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 78' 0"
  • Max ridge height: 30' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 928 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
