Plan 280196JWD
EXCLUSIVE
Country Craftsman with Two Vaulted Spaces and an Angled Garage - 3274 Sq Ft
Heated S.F.
3,274
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • This country Craftsman house plan gives you 3 beds, 3 baths and 3,274 square feet of heated living space with an additional 431 square feet of expansion space available above the angled 2-car garage.
  • Two vaulted spaces inside - the great room and man cave - each have fireplaces and access the covered rear porch.
  • The master suite has a fireplace as well and sliding door access to the back yard. Across the home, Beds 2 and 3 share a Jack and Jill bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Craftsman with Two Vaulted Spaces and an Angled Garage - 3274 Sq Ft

  • 3,274

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

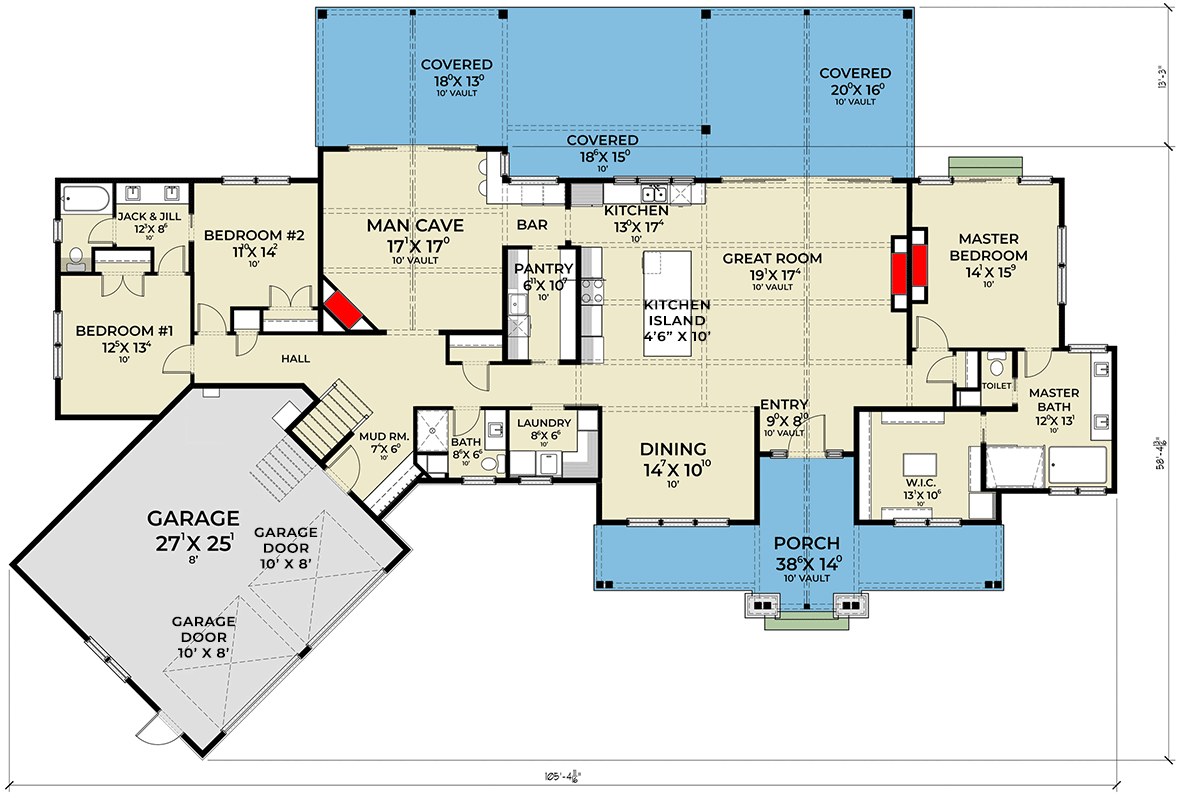

Floor Plan

  • Main Level

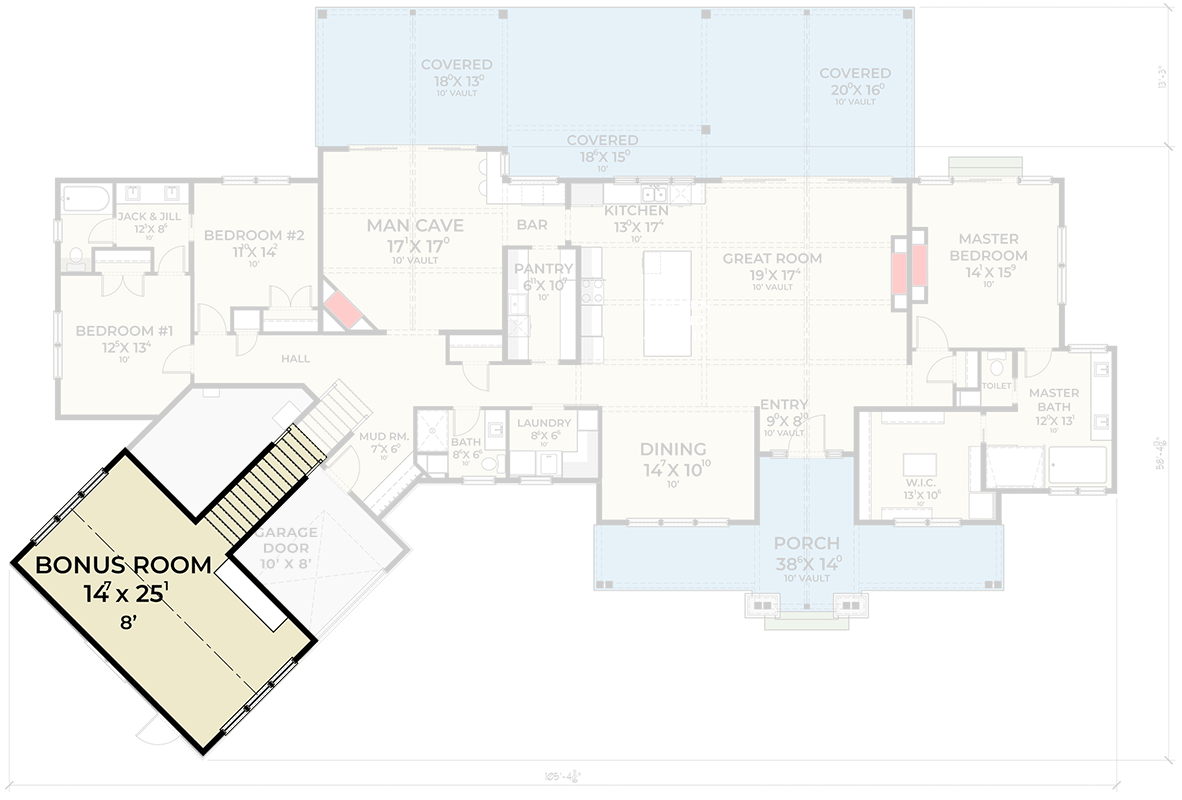

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,274 sq. ft.
  • 1st Floor: 2,843 sq. ft.

Dimensions

  • Width: 105' 5"
  • Depth: 71' 2"
  • Max ridge height: 27' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 723 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
